Westerschelde 03 March 2016 |
|
Name |

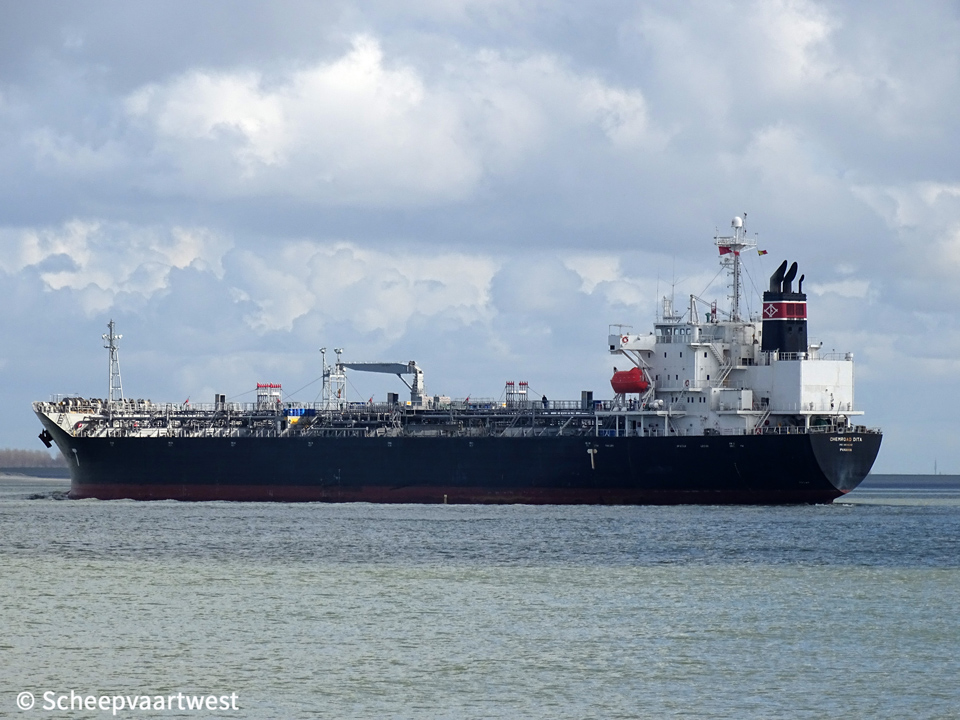

CHEMROAD DITA |
|
Type |
Oil / Molasses / Chemical tanker |
|
IMO-number |
9414242 |
|
Call sign |
HODJ |
|
Flag |
Republic of panama |
|
Port of registry |
Panama City |
|
GT |
20.108 t registered |
|
DWT |
Summer: 33.554 t |
|
NT |
9.165 t registered |
|
Length |
174,39 m overall |
|
Breadth |
27,70 m moulded |
|
Draught |
Summer: 11,02 m |
|
Moulded L x B x D |
167,00 x 27,70 x 16,00 m |
|
Registered L x B x D |
167,62 x 27,70 x 16,00 m |
|
Freeboard |
Summer: 5.014 mm |
|
Depth |
16,00 m moulded |
|
Speed |
Max: 16,8 knots |
|
Built |
2009 |
|
Keel laid |
01/12/2008 |
|
Launch date |
08/04/2009 |
|
Date of completion |
17/07/2009 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5535 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Kobe Hatsudoki 6UEC52LS - 2 stroke single acting 6 cylinder 520 x 1.850 mm combustion engine 7.980 kW at 120,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 460 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 21,46 t/h Manufacturer: Aalborg Industries Co.,Ltd. |
|
Generators |
3x Main diesel generatorset each 600 kW |
|
Number of cargo tanks |
16 |
|
Cargo tank capacity |
37.288 m³ |
|
Tank capacities |
Fuel oil: 1.814 m³ fresh water: 339 m³ |
|
Manager |
Excel Marine Co., Ltd. 6th Floor, Seamark Building 3-2, Kashiiteriha, Higashi-ku, Fukuoka-shi Fukuoka Prefecture 813-0017 Japan |
|
Registered owner |
Lucia Navigation (Panama) S.A. |
|
Previous owners |
Celis Navigation Panama SA |
|
Latest data adjustment |
25 March 2020 |
