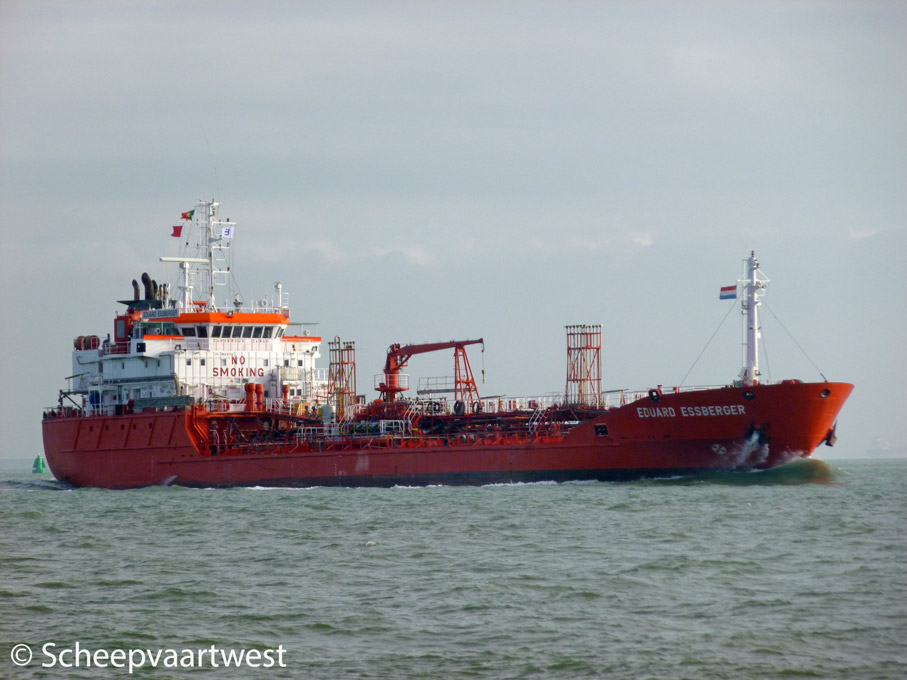

Eduard Essberger 03
Westerschelde 11 November 2012

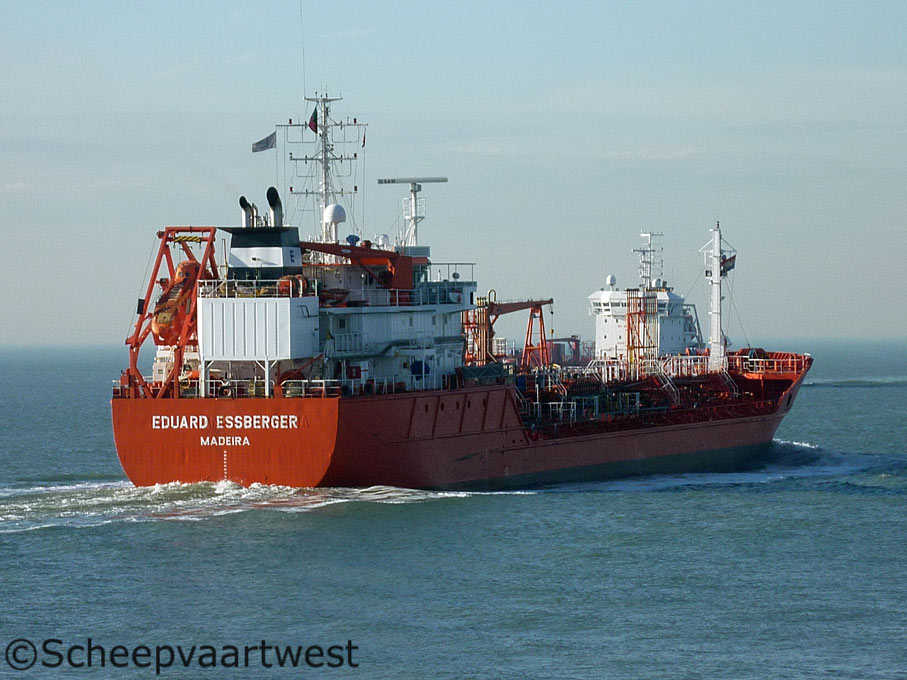

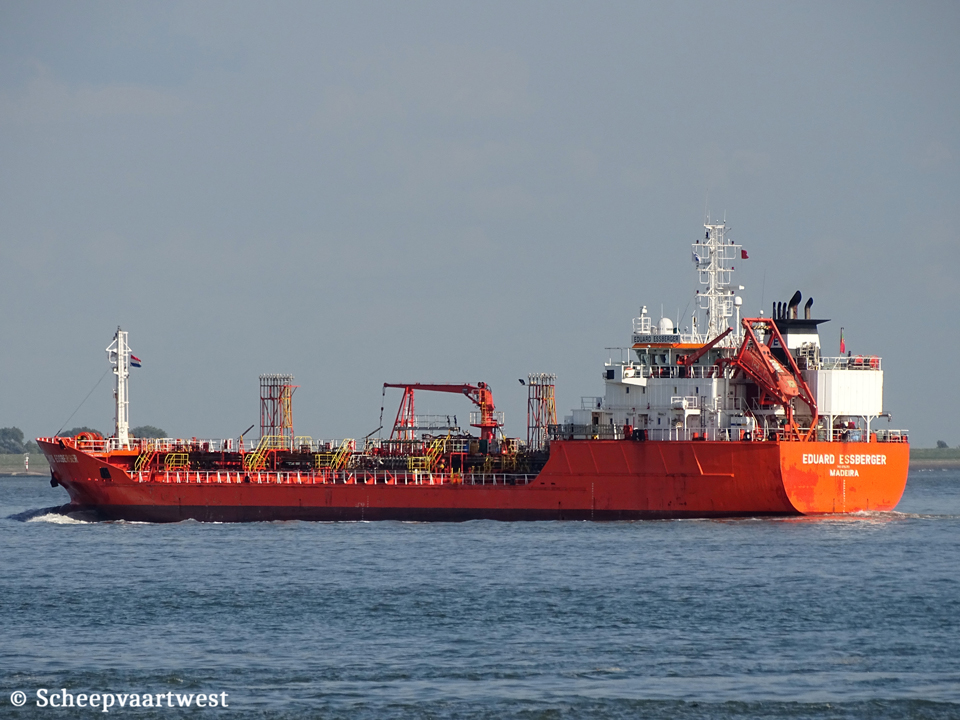

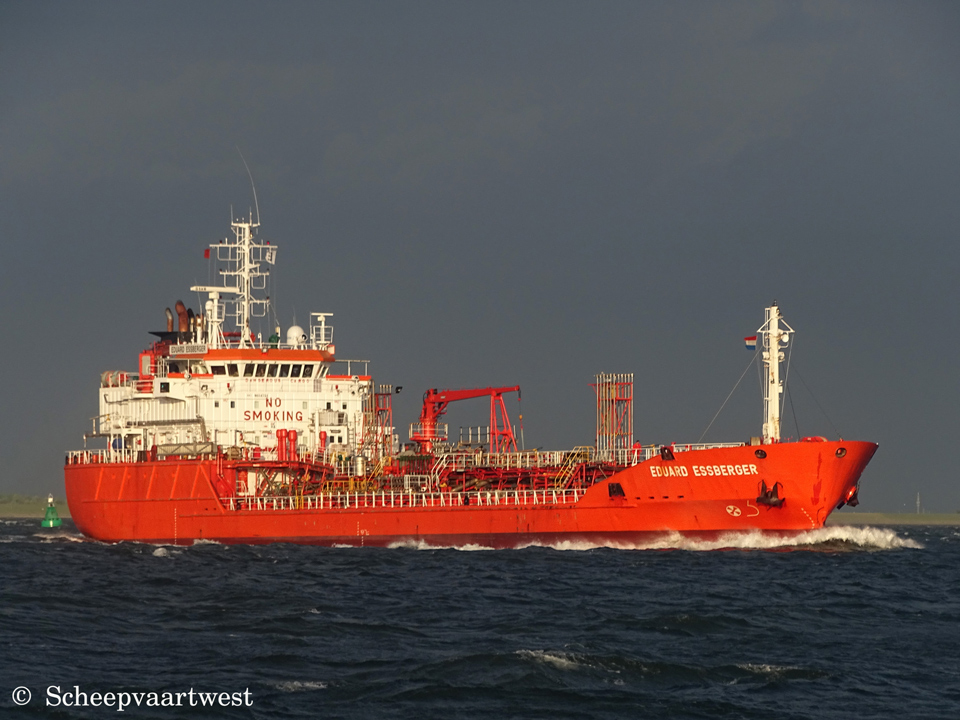

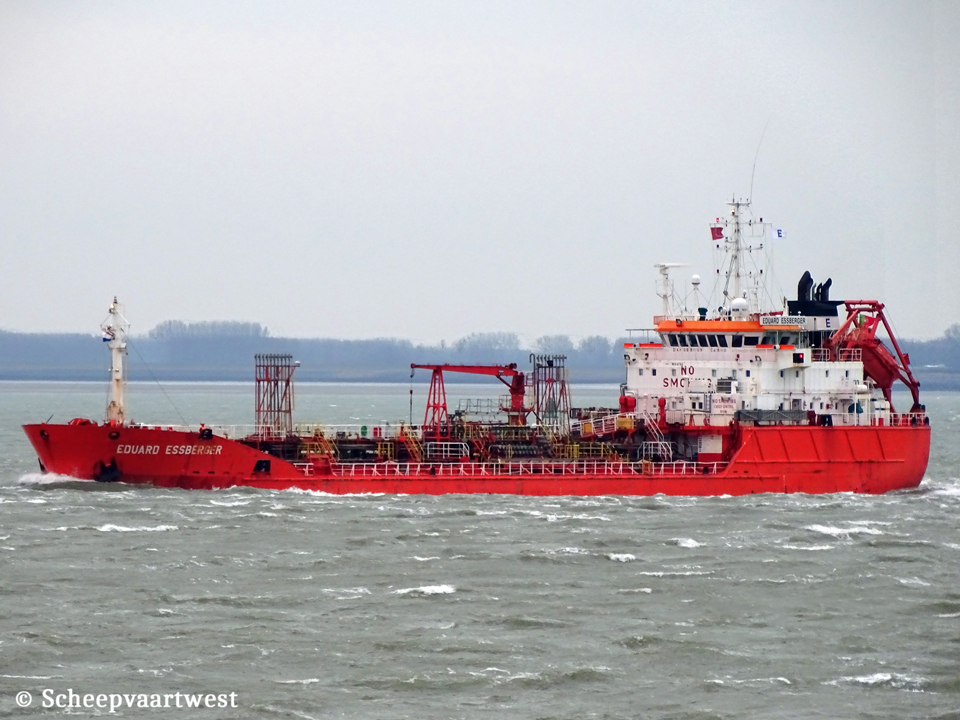

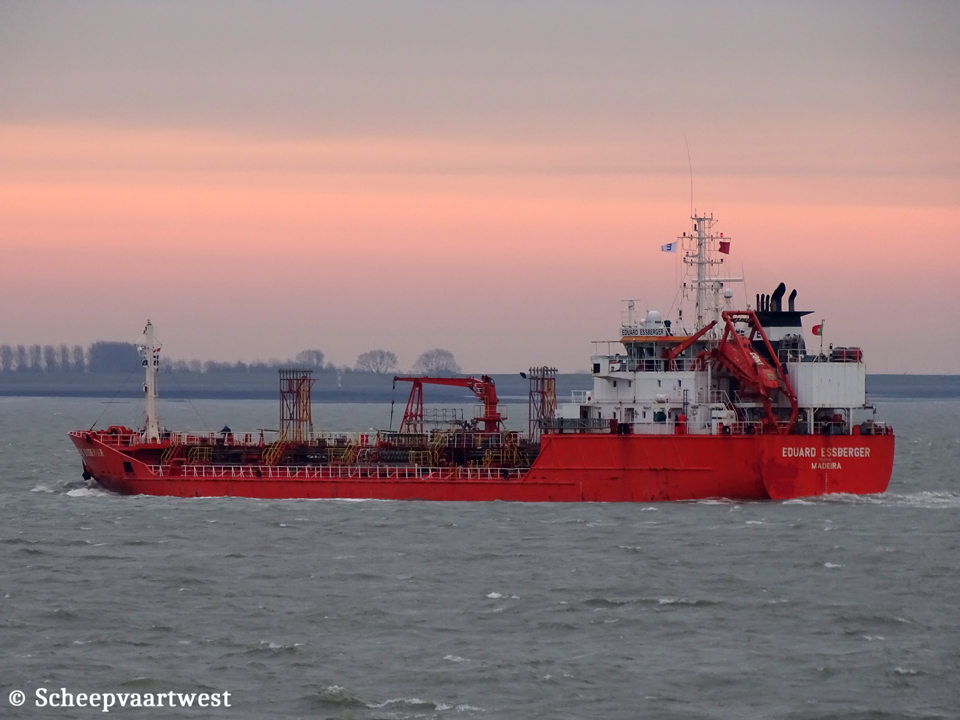

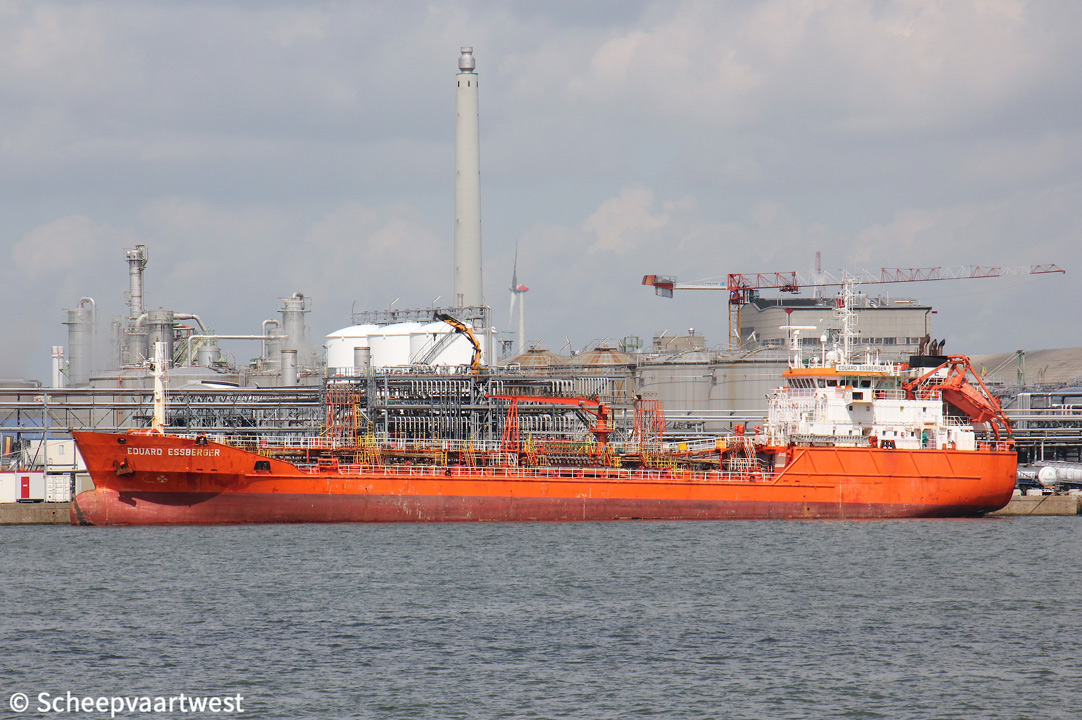

Eduard Essberger 01   Eduard Essberger 04   Eduard Essberger 05   Eduard Essberger IMO 9114751 06   Eduard Essberger IMO 9114751 07   Eduard Essberger IMO 9114751 08
Westerschelde 10/11/11 Westerschelde 30/01/17 Antwerpen 26/04/19 Westerschelde 04/02/19   Westerschelde 04/02/19   Westerschelde 31/08/18


Name

EDUARD ESSBERGER

Previous names

1996 - 05/2010 Multitank Britannia

Type

Tanker for oil and chemicals

IMO-number

9114751

Call sign

CQNT

Flag

Portugal

Port of registry

Madeira

GT

3.726 t

DWT

Summer: 5.871 t

NT

1.673 t

Length

99,81 m overall

95,33 m registered

Breadth

16,50 m registered

Draught

6,788 m

Keel to mast end

33,50 m

Forecastle

7,80 m

Poop

24,05 m

Depth

8,30 m moulded

Speed

15,0 knots

Built

1996

Keel laid

05/06/1995

Launch date

05/01/1996

Date of completion

17/07/1996

Builder

ENVC - Estaleiros Navais de Viana do Castelo, S.A.

Avenida Praia do Norte

4901-851 Viana do Castelo

Portugal

Yard number

184

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

11

Continuous decks

1

Main engine

1x MAN-B&W 7S35MC - 2 stroke 7 cylinder 350 x 1.400 mm combustion engine 4.165 kW / 5.663 hp at 173 rpm

Year of manufacture: 1995

Manufacturer: MAN B&W Diesel A/S Frederikshavn

Niels Juels Vej 15

9900 Frederikshavn

Denmark

Propeller

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 82,0 m²

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 61,6 m²

Year of manufacture: 1995

Manufacturer: Keu Energie- und Umwelt- Technik GmbH Niederlassung Wiesloch

Baiertaler Str. 92-98

69168 Wiesloch

Federal Republic of Germany

Electric installations

2x Plant 380/220 V - 790 kVA

1x Plant 380 V - 688 kVA

1x Plant 380 V - 103 kVA

Shaft generator

1x 688 kVA

Generators

2x Main diesel generatorsets each 790 kVA

Emergency generator

1x Diesel generatorset 103 kVA

Compressed air receivers

1x Receiver 1.000 litres - 30,0 bar

2x Receivers each 500 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 80 litres - 30,0 bar

2x Receivers each 1.000 litres - 8,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 300 kW, forward

Number of cargo tanks

20

Liquid cargo capacity

6.121 m³

Largest cargo tank

589 m³

Number of pumps

20x Cargo pumps each 100 m³/h

Tank capacities

Fuel oil: 363 m³

Ballast water: 2.439 m³

Anchor equipment

3x Anchors weight each 2640 kg

Chain length: 467,50 m

Manager

John T. Essberger GmbH & Co. KG

Palmaille 45

22767 Hamburg

Federal Republic of Germany

Operator

Essberger Tankers

Owner

Eduard Essberger Tankreederei GmbH & Co. KG

Palmaille 45

22767 Hamburg

Federal Republic of Germany

Renamed

07/2020 Samson

Russia, Petropavlovsk-Kamchatskiy - Call sign: UBMU4

Owner & manager: Morskoy Standart-Bunker LLC - Russia

Latest data adjustment

05 June 2022
