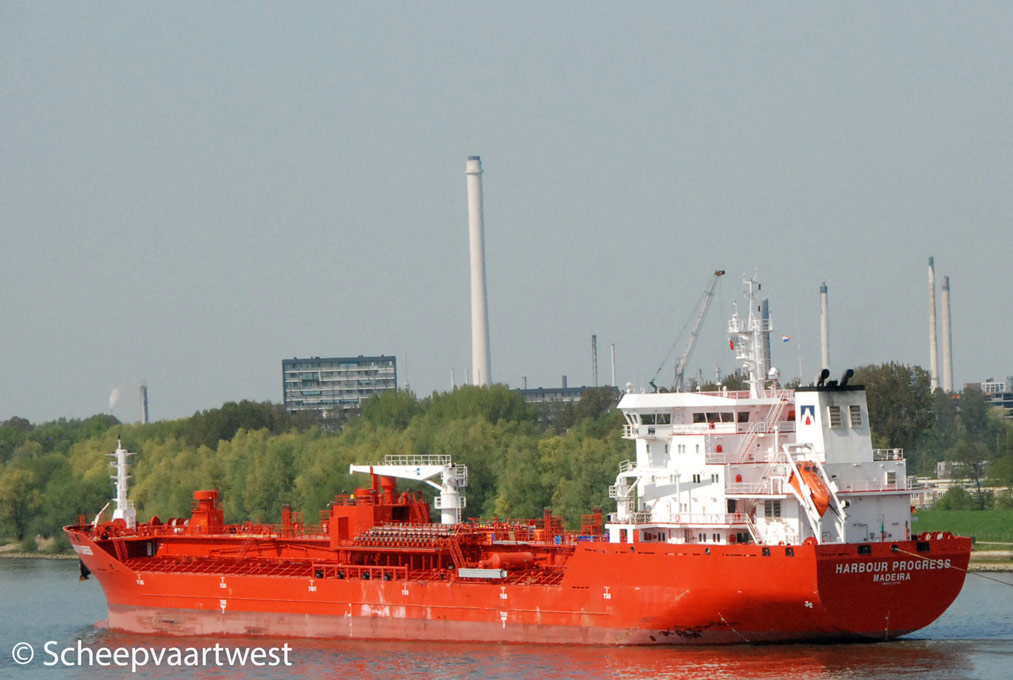

| Spijkenisse, The Netherlands 19 April 2011 |
 |
 |
 |
 |
|||

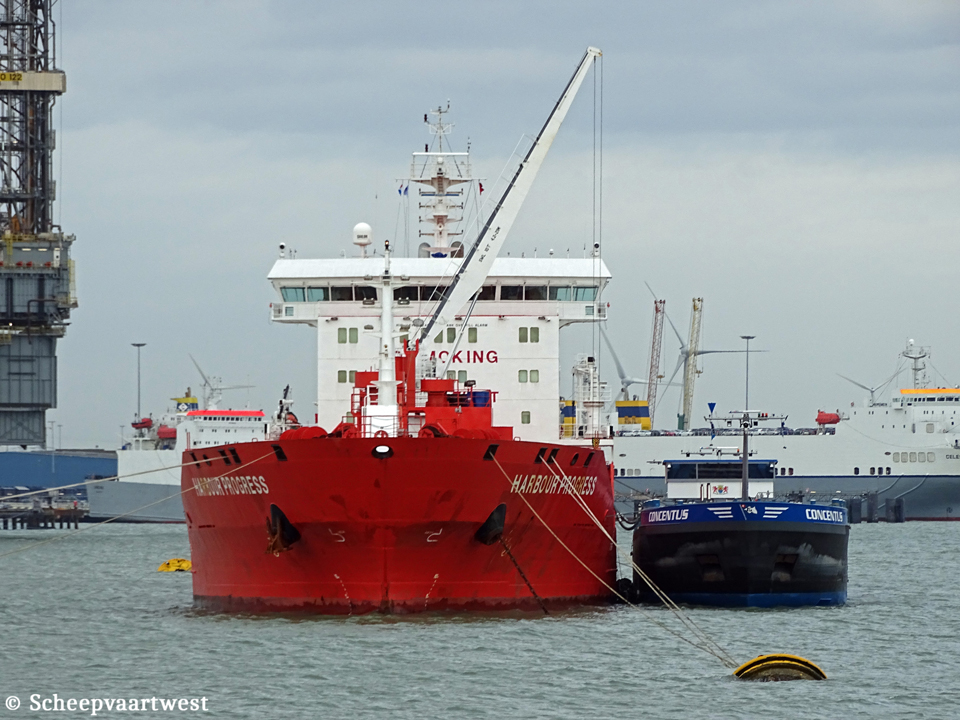

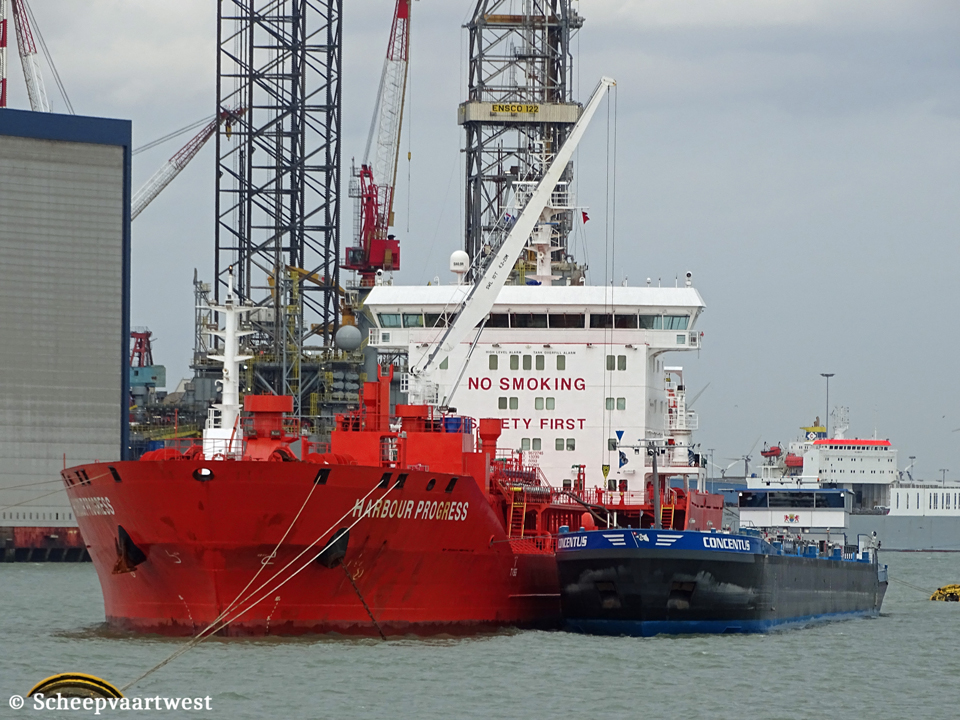

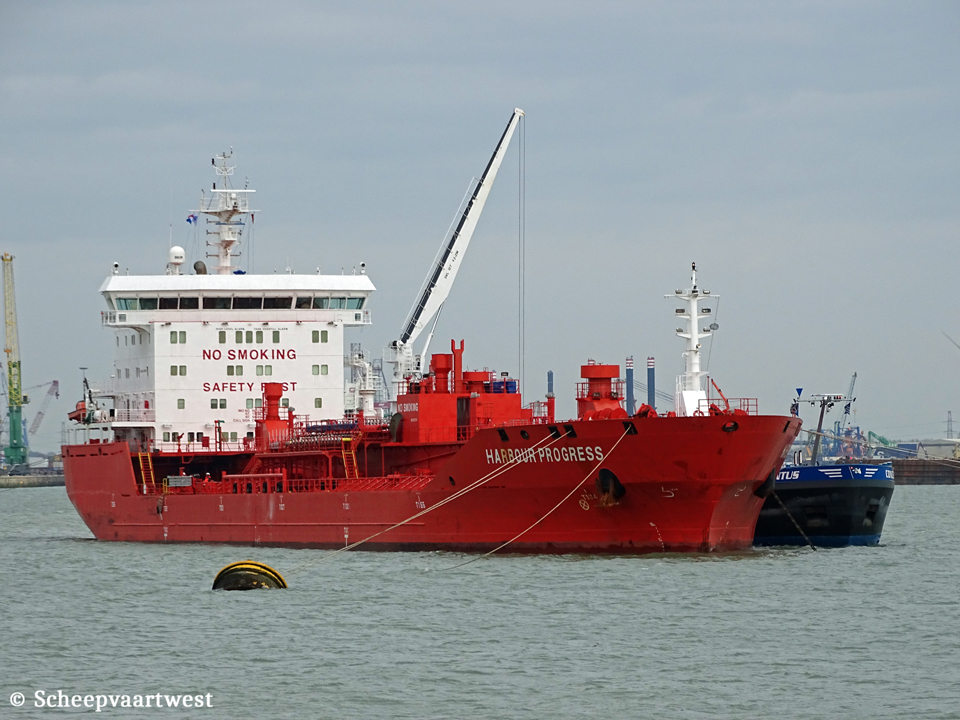

| Westerschelde 22/03/15 | Vlissingen 25/02/17 | Vlissingen 25/02/17 | Vlissingen 25/02/17 | |||
|
Name |
HARBOUR PROGRESS |
|
Previous names |
Harbour Progres Nortank Charcot |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9572745 |
|
Call sign |
CQNY |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
13.239 Suez: 14.141,58 |
|
DWT |
19.175 t |
|
NT |
6.093 Panama: 11.117 Suez: 11.884,46 |
|
Length |
161,68 m overall 150,80 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
8,40 m |
|
Keel to mast end |
41,85 m |
|
Air draft |
32,85 m light ship |
|
Freeboard |
3.412 mm |
|
Depth |
12,40 m moulded |
|
Built |
2010 |
|
Keel laid |
23/10/2009 |
|
Launch date |
26/01/2010 |
|
Date of completion |
25/11/2010 |
|
Builder |
Yangfan Group Co., Ltd. (Lujiashi Zhoushan Shipyard) Zhoushan China |
|
Yard number |
2003 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 14 Oil tight: 3 |
|
Main engine |
1x MaK 7M43 C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.565 hp at 500 rpm Manufacturer: Caterpillar Motoren GMBH & Co,. KG - Germany |
|
Propellers |
1x Controllable pitch propeller Builder: Rolls-Royce AB |
|
Boilers |
1x Fired boiler - 9,0 bar 1x Fired exhaust gas boiler - 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x HFC7 506-84K diesel generatorsets each 900 kW Manufacturer: HHI Electro Electric System |
|
Bow thruster |
1x Tunnel thruster 800 ekW, forward |
|
Number of cargo tanks |
12 Wing tanks |
|
Cargo tank capacity 98% |
21.882,60 m³ |
|
Segregations |
12 |
|
Number of pumps |
14x Centrifugal cargo pumps total 3.900 m³ |
|
Manifolds |
Manifold height above deck of 3,95 m Distance from bow to centre manifold is 82,98 m |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Lubricating oil: 9 Fresh water: 6 Diesel oil: 3 Waste water: 2 Chain: 2 Sludge: 2 |
|
Tank capacities |
Diesel oil: 66,84 m³ Fresh water: 486,2 m³ Fuel oil: 715,46 m³ Lube oil: 76,48 m³ Tank ballast: 9.372,72 m³ |
|
Lifting equipment |
1x Overhead crane type Atlas HD3C 22 KN - SWL 1,6 t Manufacture: Van Leusden BV 1x Hose handling crane type GP380-10-21 - SWL 10,0 t Manufacture: TTS Bohai Machinery Dalian Co., Ltd. 1x Hydraulic slewing crane type HDC3-15 - SWL 3,0 t Manufacture: Zhenjiang Marine Auxiliary Machinery Works |
|
Manager |
Nordic Tankers Marine Copenhagen Denmark |
|
Operator |
TB Marine Shipmanagement GmbH & Co,. KG Paul-Dessau-Strasse 6 D-22761 Hamburg Germany |
|
Registered owner |
Dritte Nordtank-Hamburg GmbH & Co,. KG |
|
Latest data adjustment |
04 February 2025 |
