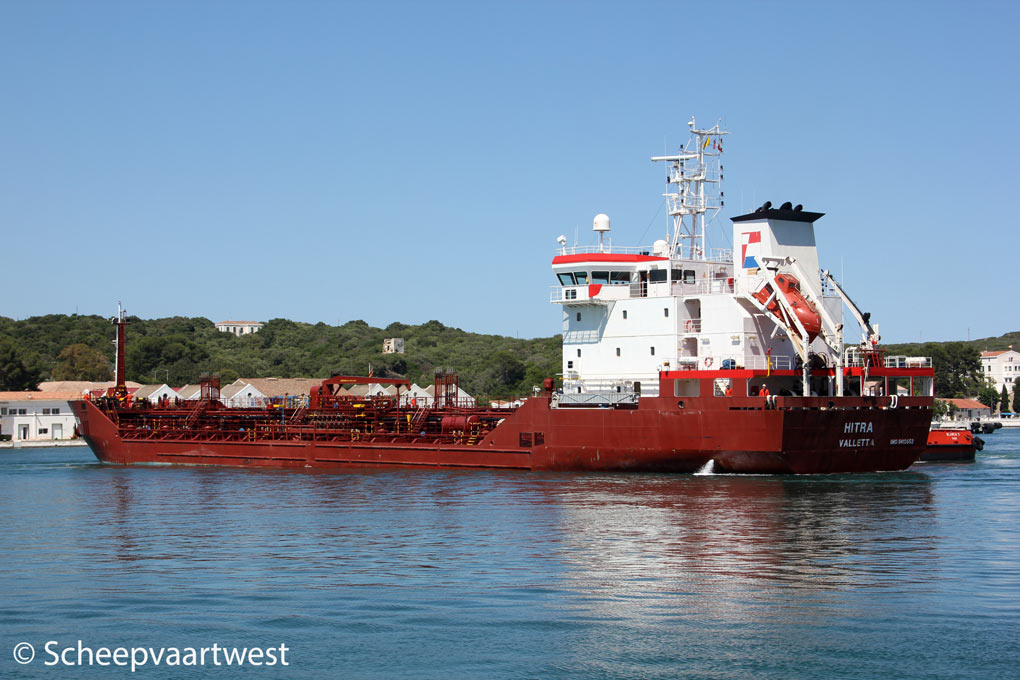

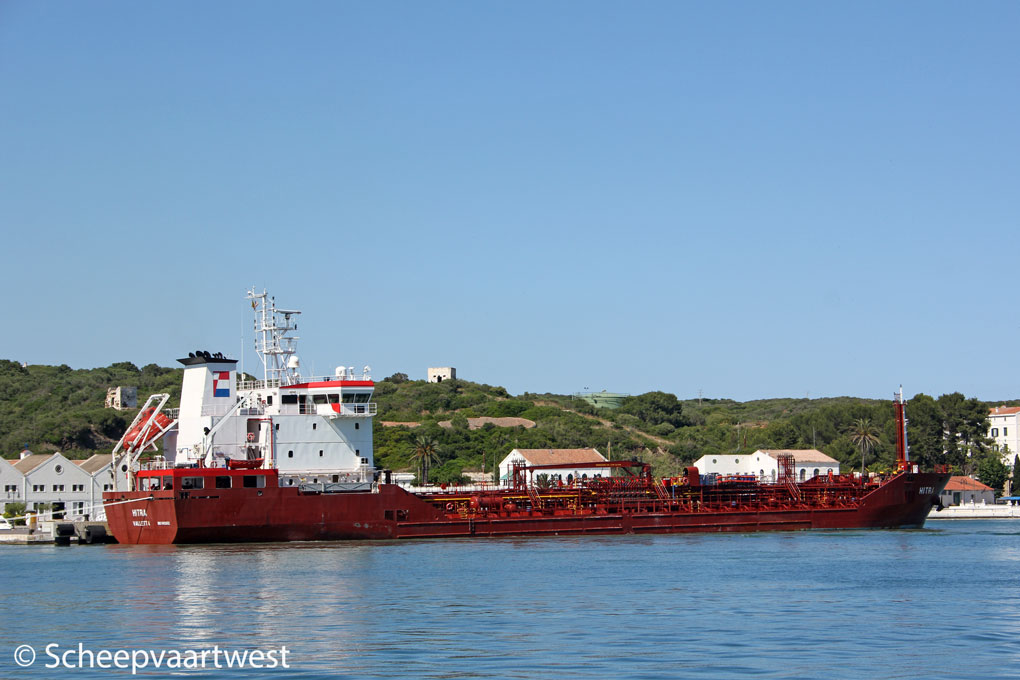

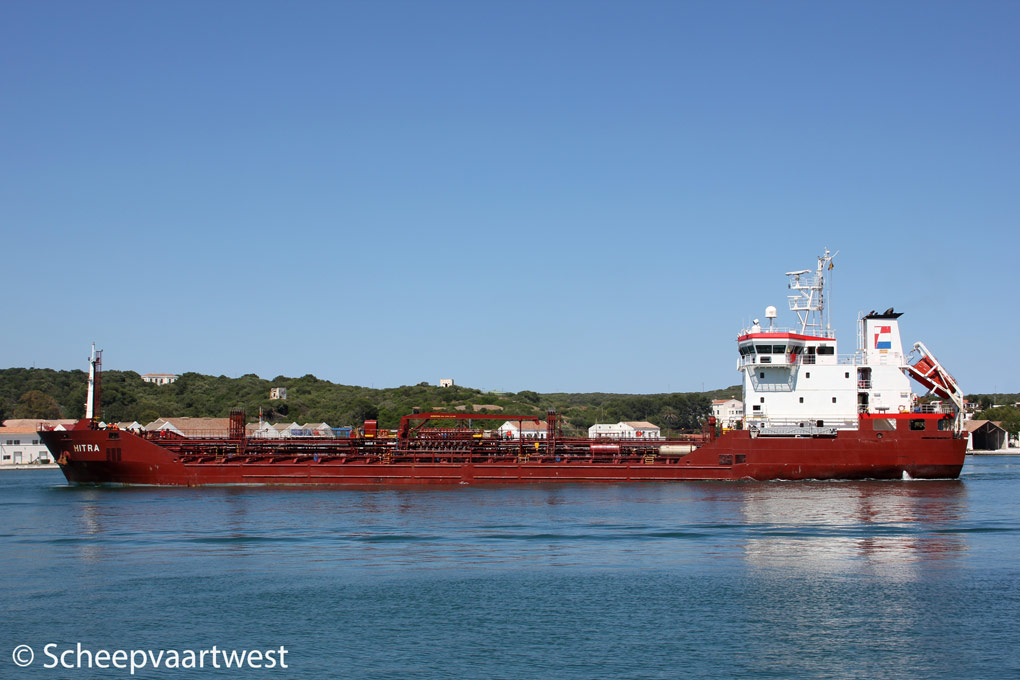

| Mahon, Menorca 14 June 2013 |
 |
 |
 |
||

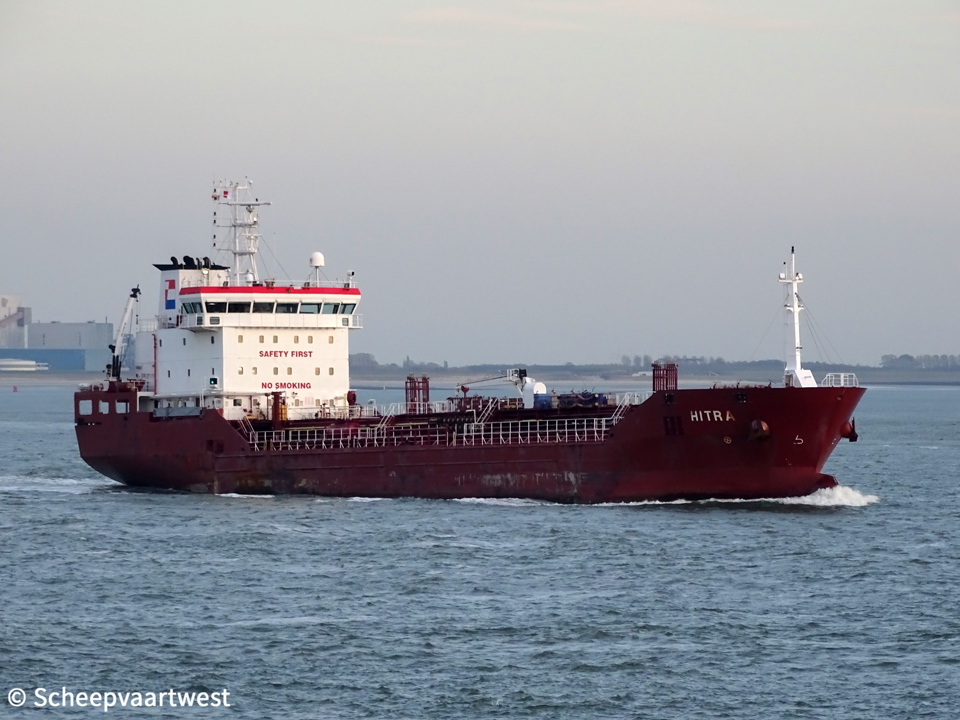

| Mahon, Menorca 14/06/13 | Mahon, Menorca 14/06/13 | Westerschelde 03/11/18 | ||
|
Name |
HITRA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9413652 |
|
Call sign |
9HRO9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.997 t |
|
DWT |
Summer: 5.544,74 t Winter: 5.166,66 t |
|
NT |
1.843 t |
|
Length |
107,60 m overall 100,43 m between perpendiculars |
|
Breadth |
16,00 m |
|
Draught |
Summer: 6,00 m |
|
Air draft |
29,00 m |
|
Freeboard |
2.012 mm |
|
Speed |
13,0 knots |
|
Built |
2009 |
|
Date of completion |
16.03.2009 |
|
Builder |
Celik Tekne Shipyard Turkey |
|
Yard number |
68 |
|
Hull material |
Steel |
|
Hull type |
Double hull - Double bottom |
|
Watertight compartments |
12 |
|
Continuous decks |
1 Machinery aft |
|
Main engine |
1x MAN B&W - 4 stroke 6 cylinder 320 x 400 mm diesel engine - 3.000 kW / 4.076 hp at 750 rpm Builder: MAN Diesel SE |
|
Propellers |
1x Screw propeller controllable pitch - aft at 147 rpm |
|
Boilers |
2x CHO Garioni Naval 46,70 m² - 10,0 bar 1x CHR Garioni Naval 80,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.063 kVA - 850 kW |
|
Generators |
3x Main diesel generatorsets each 500 kVA - 400 kW - 595 hp |
|
Emergency generator |
1x Diesel generatorset 135 kVA - 108 kW - 125 hp |
|
Number of tanks |
12 + 1 slop |
|
Segregation |
6 |
|
Total capacity of tanks |
6.522,07 m³ |
|
Slop tank 98% |
143,5 m³ |
|
Tank capacities |
HFO: 316,12 m³ / 260 t Diesel oil: 53 t Ballast water: 2.473 m³ |
|
Number of cargo pumps |
13 |
|
Loading rate |
400 m³/h |
|
Discharging rate |
600 m³/h |
|
Heating capacity |
70°C |
|
Manifolds |
Manifold to deck: 1,57 m Manifold to stern: 57,00 m Manifold to bow: 50,00 m Manifold to rail: 4.250 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Manager |
Ares Shipmanagement |
|
Operator |
Ares Ship Management |
|
Registered owner |
Talos Shipping Limited |
|
Last update |
29 June 2013 |
