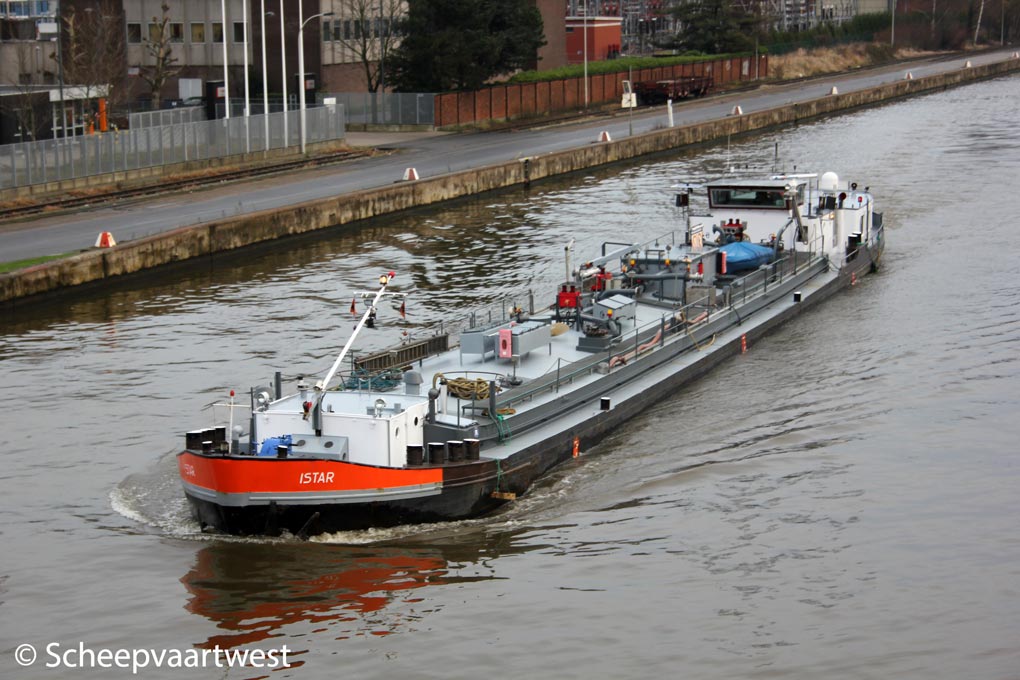

Istar 01
Merksem, Belgium 28 December 2012

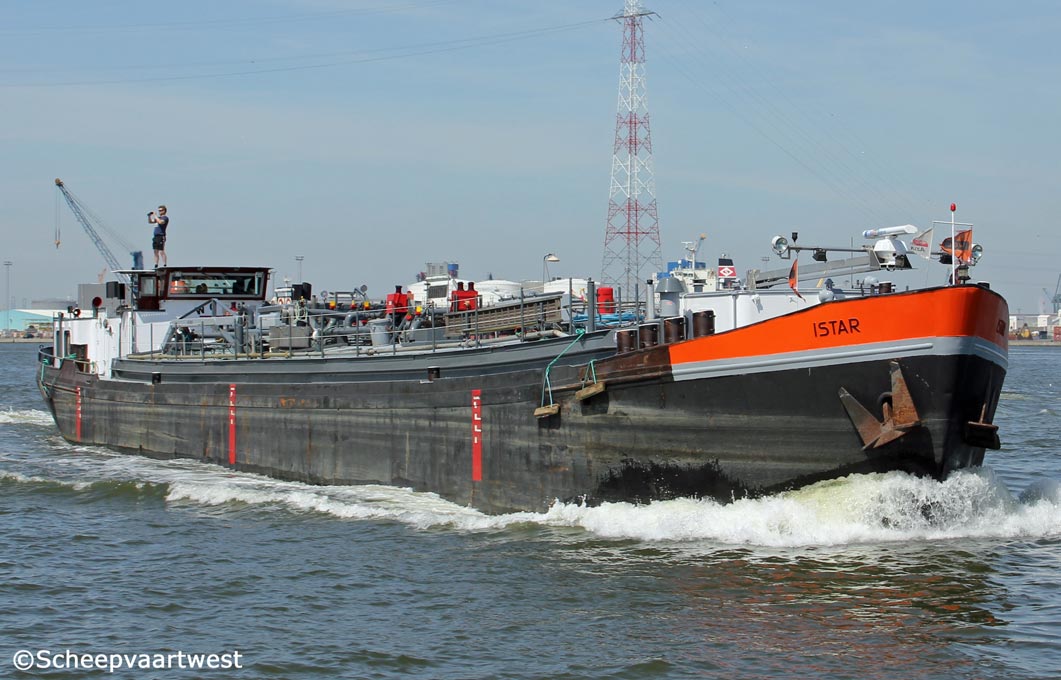

Istar 02
Antwerpen 16/05/14


Name

ISTAR

Type

Inland tanker

ENI-number

02005792

Call sign

PD4937

Flag

The Netherlands

Port of registry

Druten

Tonnage

550,685 t

Length

54,86 m

Breadth

6,54 m overall

Draught

2,65 m

Depth

2,72 m moulded

Built

1961

1987 elongation

Launch date

14.08.1961

Date of completion

10.1961

Builder

N.V. Scheepswerf V/H Firma J. Hendriks
Dodewaard
The Netherlands

Yard number

544

Hull material

Steel

Watertight bulkheads

6

Continuous decks

1

Main engine

1x Deutz SBA 6 M 816 U - 4 stroke 6 cylinder 142 x 116 mm diesel engine - 398 hp / 272 kW at 1.650 rpm

Year of manufacture: 1986

Manufacturer: Klöckner-Humboldt-Deutz AG
51057 Köln
Federal Republic of Germany

Previous main engine

1x Bolnes diesel engine - 300 hp

Propellers

1x Solid propeller - aft

Electric installations

1x Plant 380/220 V - 30 kVA

1x Plant 24/ 220 V - 2 kW

Generators

1x Main diesel generatorset 30 kVA

1x Generator 2 KW

Compressed air receivers

1x Receiver 122 litres - 6,0 bar

Bow thruster

1x 121 kW, forward

Number of cargo tanks

5

Cargo tank capacity

325 m³

Owner

Wijgula BV
Waalbandijk 123
Druten
The Netherlands

Previous names & owners

1961 Istar - Wijnhoff van Gulpen & Larsen NV, Amsterdam - The Netherlands

1993 Istar - Wijnhoff van Gulpen & Larsen BV, Druten - The Netherlands

1993 Istar - Wijgula BV, Druten - The Netherlands

Last update

04.02.2013
