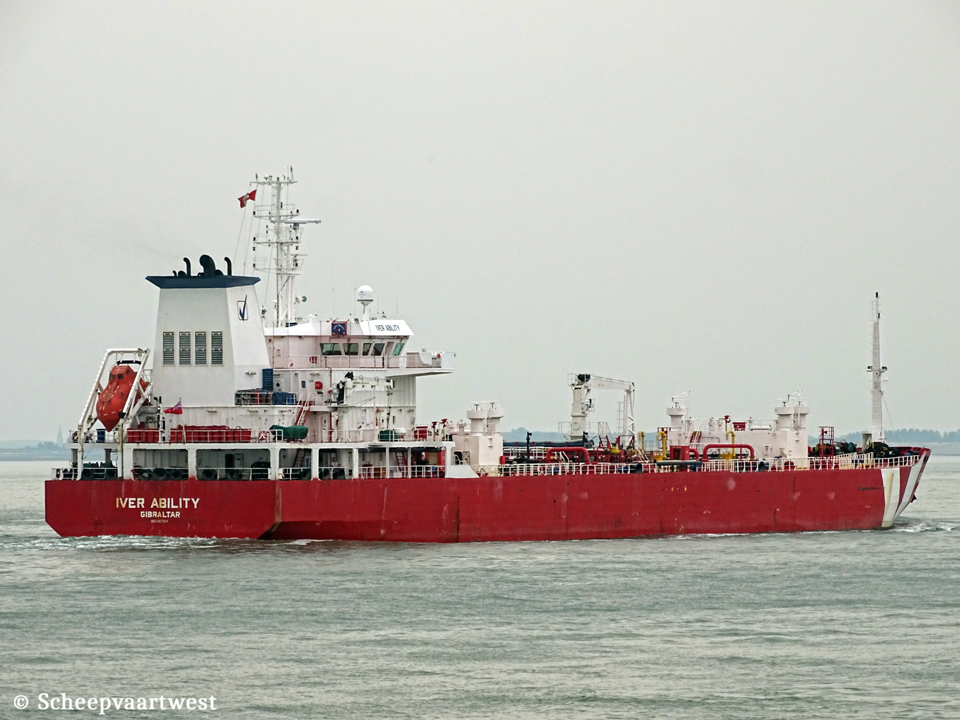

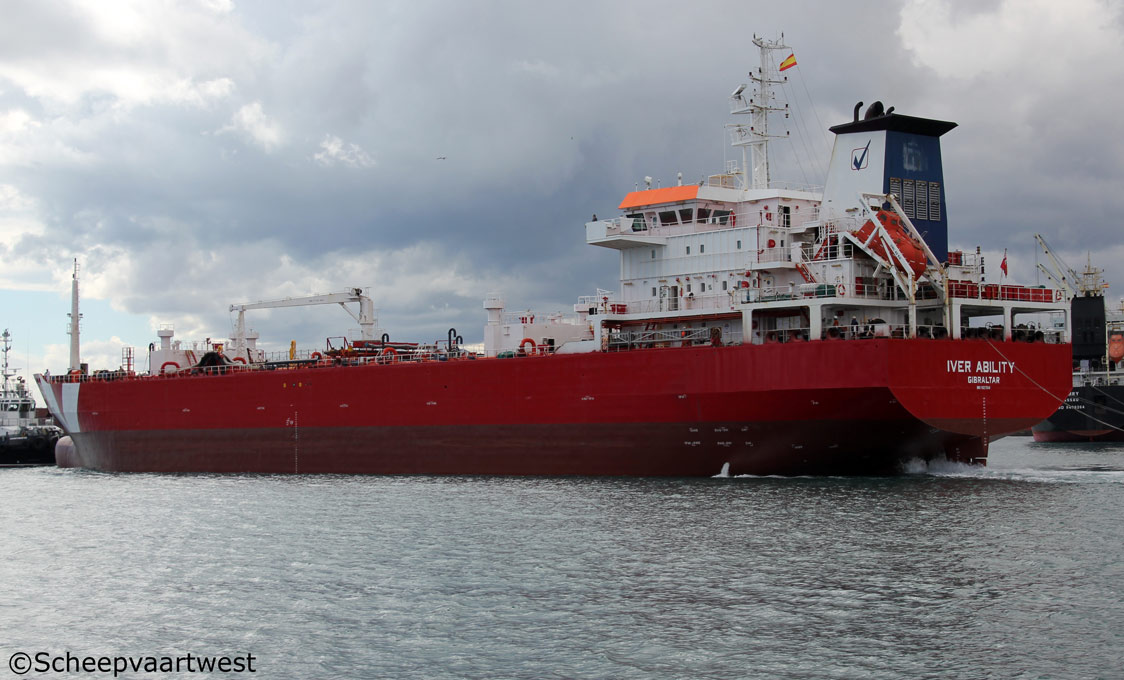

Westerschelde 17 July 2019 |
 |
 |
 |
 |
 |
 |
|||||

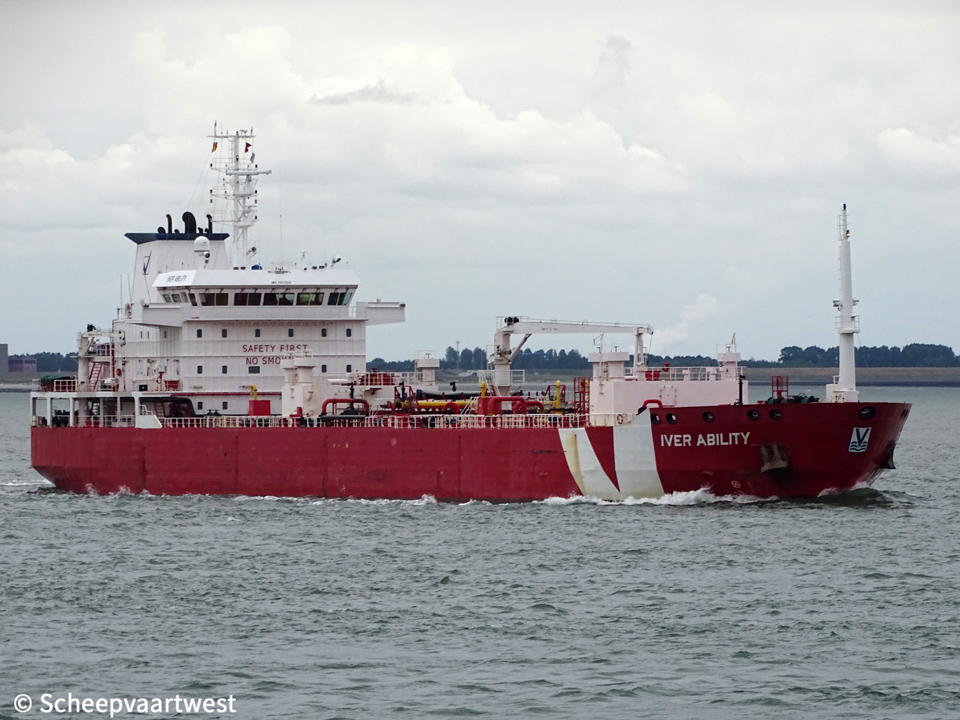

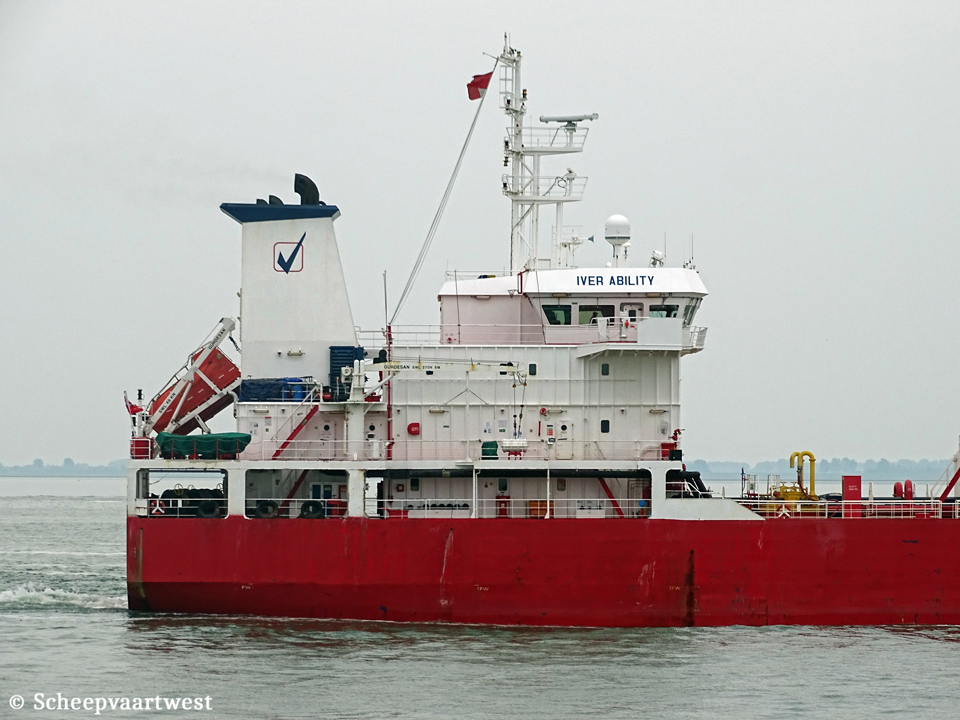

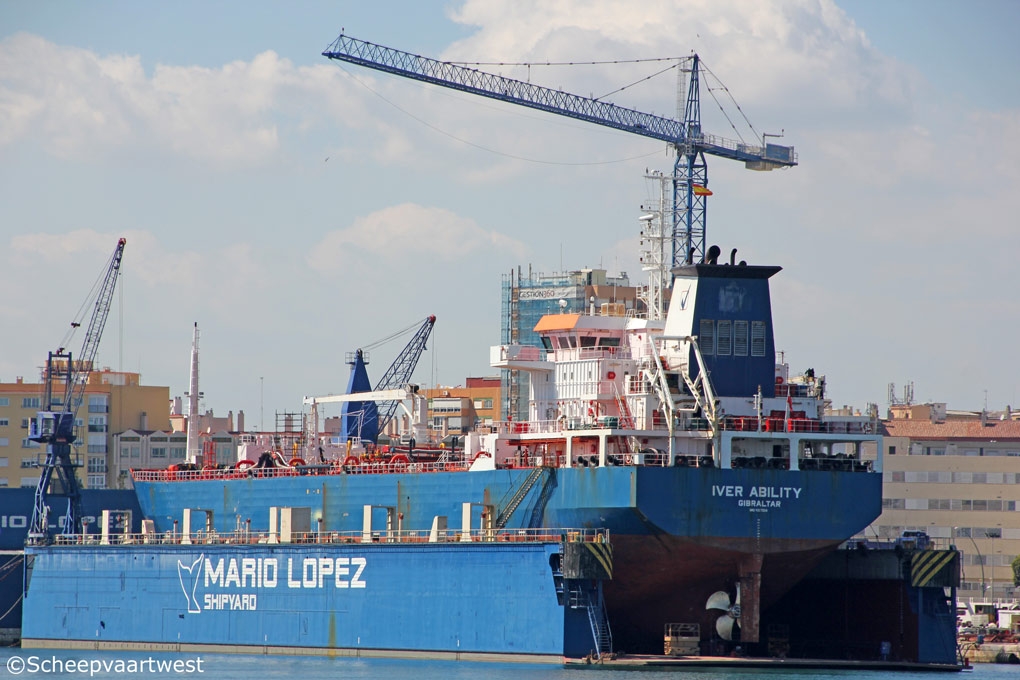

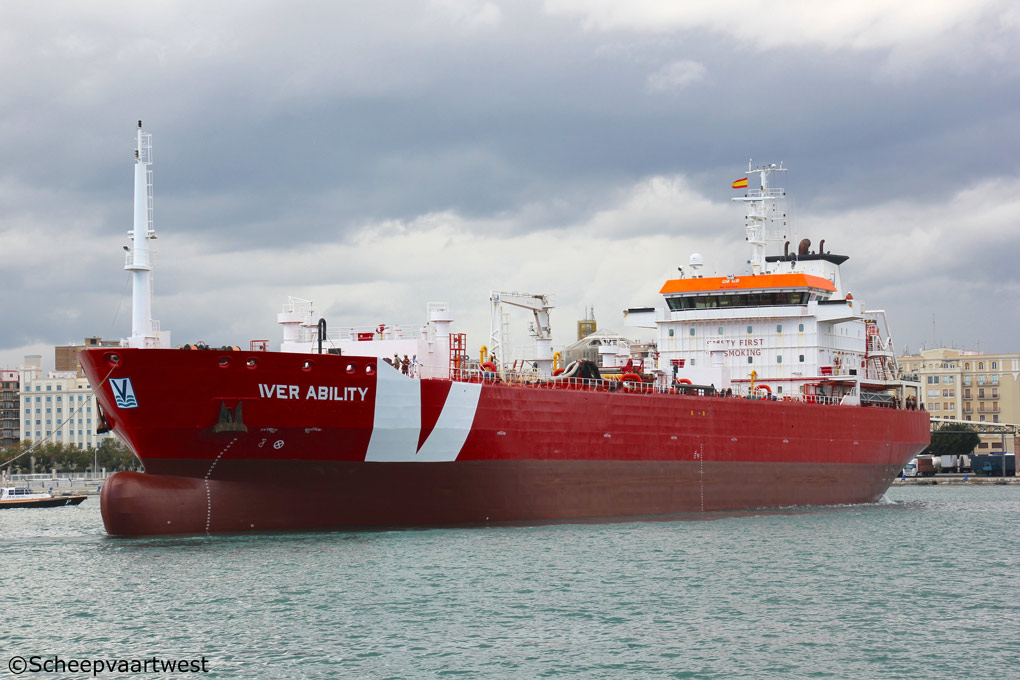

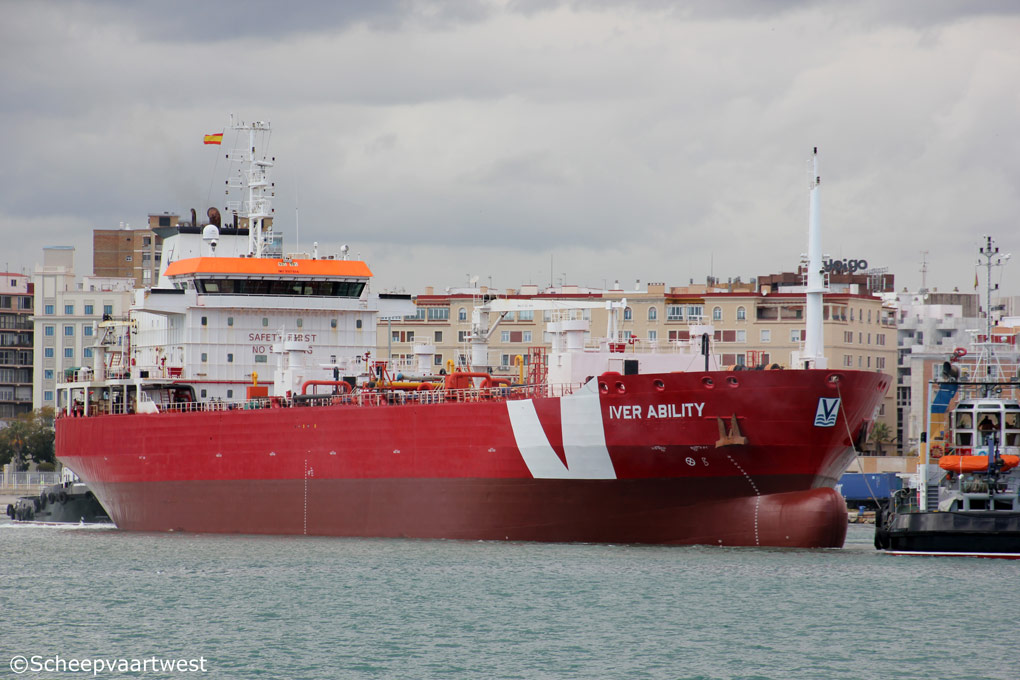

| Westerschelde 15/07/19 | Westerschelde 01/10/18 | Malaga, Spain 20/03/16 | Malaga, Spain 20/03/16 | Malaga, Spain 20/03/16 | Malaga, Spain 20/03/16 | |||||
 |
 |
 |
 |
|||||||

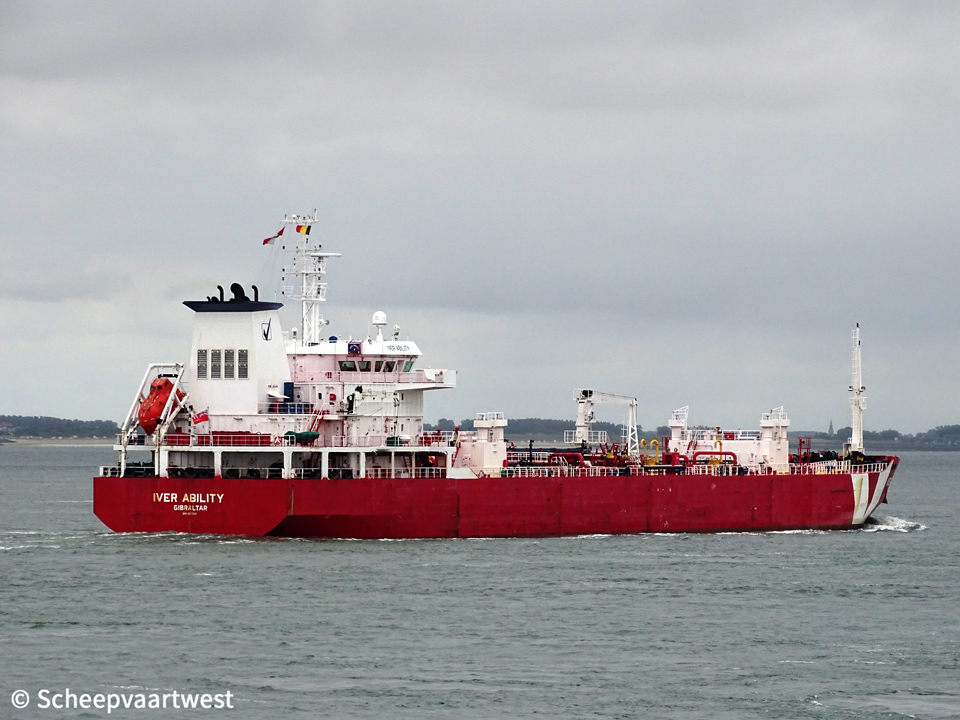

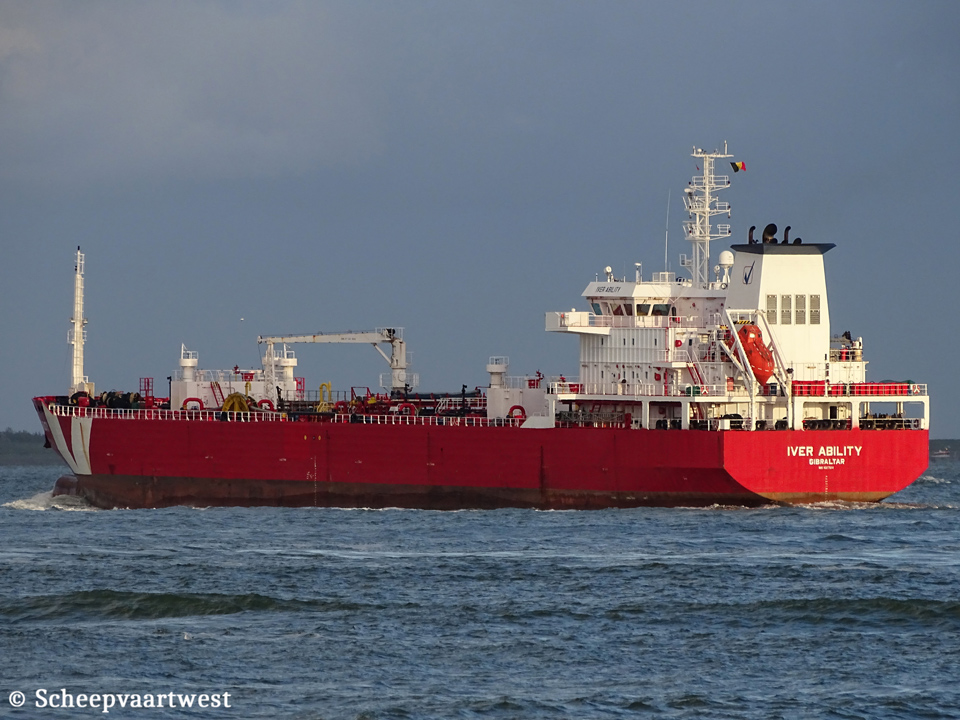

| Westerschelde 17/05/19 | Westerschelde 17/05/19 | Malaga, Spain 25/02/16 | Malaga, Spain 13/03/16 | |||||||
|
Name |
IVER ABILITY |
|
Previous names |
Launch as: Yardimci 40 03/2006 - 01/2009 St. Charlotte 03/2009 - 01/2015 FS Charlotte |
|
Type |
Oil tanker / Chemical tanker - Asphalt carrier Bitumen / Molten sulphur tanker |
|
IMO-number |
9327504 |
|
Call sign |
ZDPD8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
2008 - 2013 Antarctica 2013 - 2018 France, Marseille - Call sign: FWBM |
|
GT |
9.416 t |
|
DWT |
Summer: 12.496,98 t Winter: 12.057 t |
|
NT |
2.824 t |
|
Length |
129,00 m overall 123,90 m between perpendiculars |
|
Breadth |
22,00 m |
|
Draught |
8,20 m |
|
Depth |
12,50 m |
|
Speed |
13,5 knots |
|
Built |
2006 |
|
Keel laid |
17/11/2004 |
|
Date of completion |
07/03/2006 |
|
Builder casco |
Turkter Tersane ve Deniz Tuzla Turkey |
|
Builder completion |
Yardimci Shipyard Tuzla - Istanbul Turkey |
|
Yard number |
40 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43 - stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.341 hp at 500 rpm Built: 2004 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 138 rpm |
|
Boilers |
1x CHR S-MAN AB 119,80 m² - 8,0 bar 2x CHO S-MAN AB 93,50 m² - 8,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generator |
1x 1.490 kVA - 1.192 kW |
|
Generators |
3x Main diesel generatorsets each 937 kVA - 750 kW - 1.087 hp |
|
Emergency generator |
1x Diesel generatorset 375 kVA - 300 kW - 495 hp |
|
Bow thruster |
1x 800 kW |
|
Total capacity of tanks 98% |
No 1: 1.419;15 m³ (Bitumen) No 2P: 919,04 m³ (Molten Sulphur) No 2S: 986,52 m³ (Molten Sulphur) No 3P: 916,05 m³ (Molten Sulphur) No 3S: 994,07 m³ (Molten Sulphur) No 4P: 806,31 m³ (Bitumen) No 4S: 868,17 m³ (Bitumen) No 5P: 851,28 m³ (Bitumen) No 5S: 924,07 m³ (Bitumen) No 6P: 946,33 m³ (Molten Sulphur) No 6S: 1.023,86 m³ (Molten Sulphur) Total: 10.654,85 m³ m³ |
|
Cargo handling |
6x cargo pumps each 400 m³/h |
|
Max heating up temperature |
250°C |
|
Max loading temperature |
250°C |
|
Tank capacities |
Fuel oil: 796,64 m³ |
|
Crew size |
19 |
|
Manager |
Iver Ships B.V., Breda, The Netherlands |
|
Operator |
Iver Ships B.V. / Group Vroon Barendrecht The Netherlands |
|
Registered owner |
HB Tankship IX BV Care of Iver Ships B.V. Lage Mosten 17 4822 NJ Breda The Netherlands |
|
Previous names & owners |
2006 - 2009 FS. Charlotte - Fouquet Sacop Maritime SA 2009 - 2012 St. Charlotte - G.I.E. Charlotte Bail 2012 - 2015 St. Charlotte - Sea Tankers Shipping S.A.S |
|
Latest data adjustment |
29 October 2023 |
