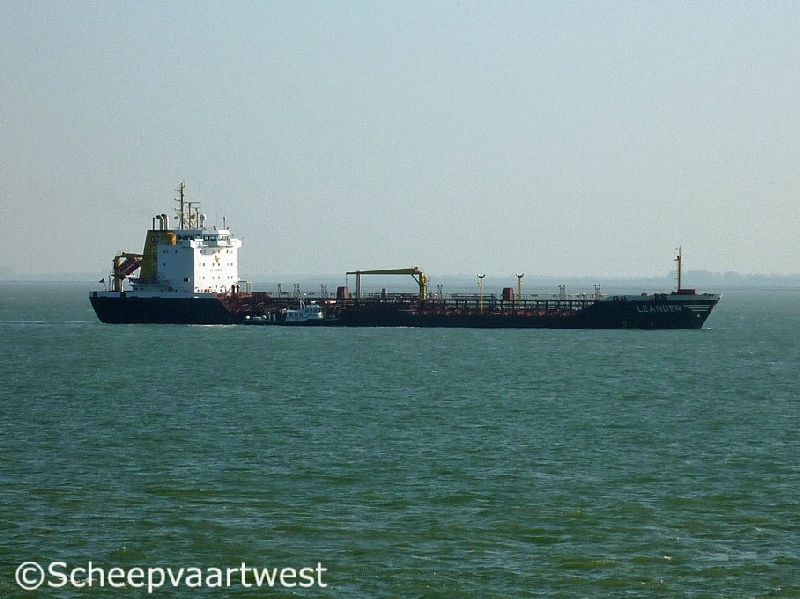

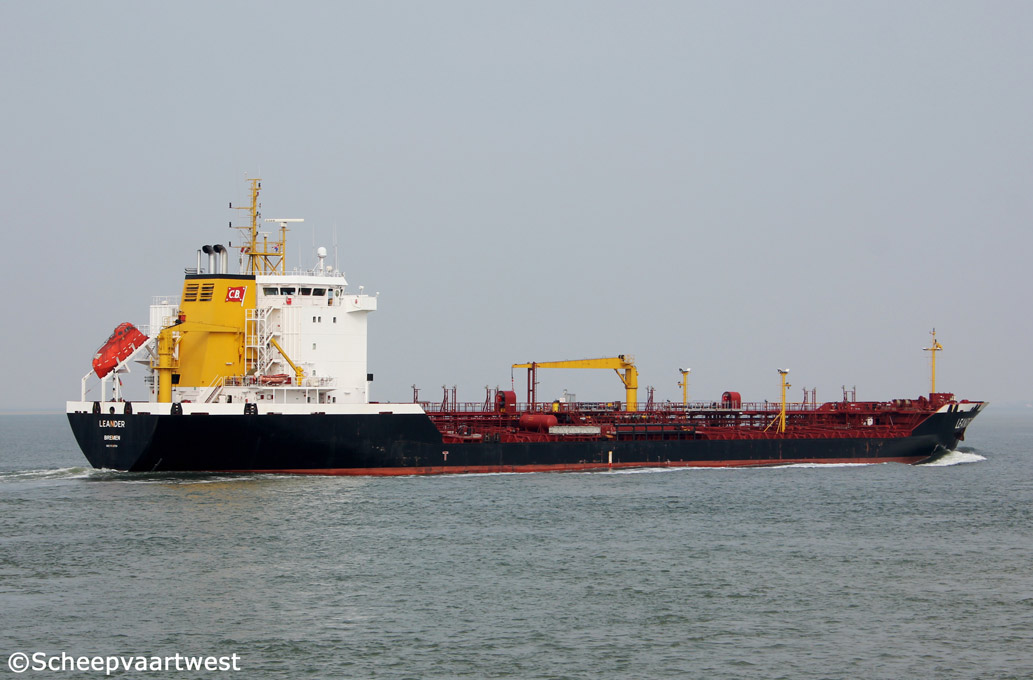

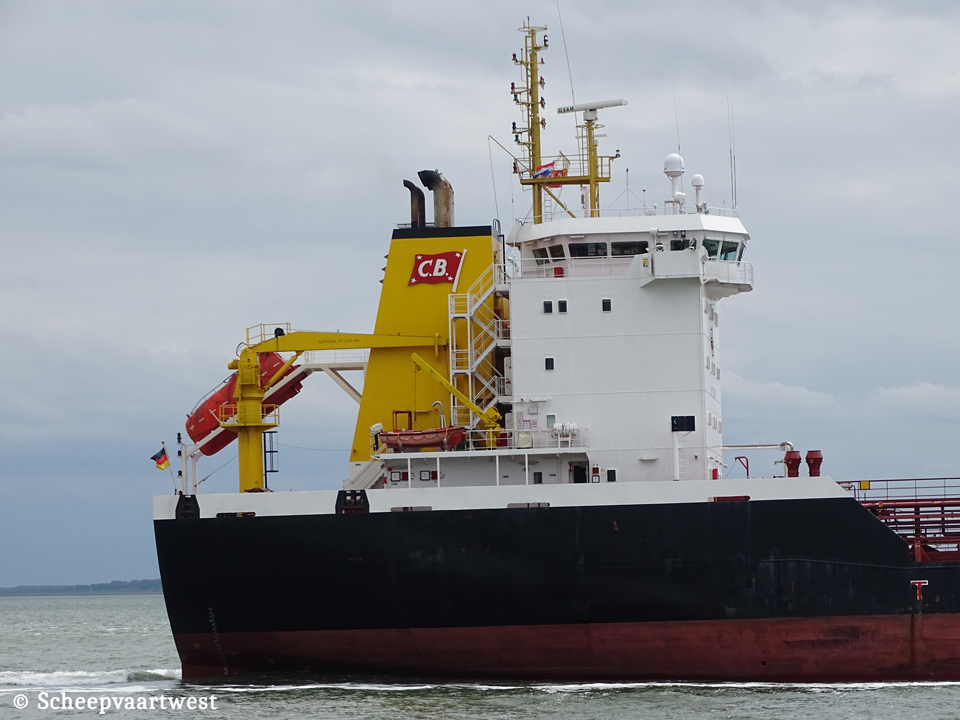

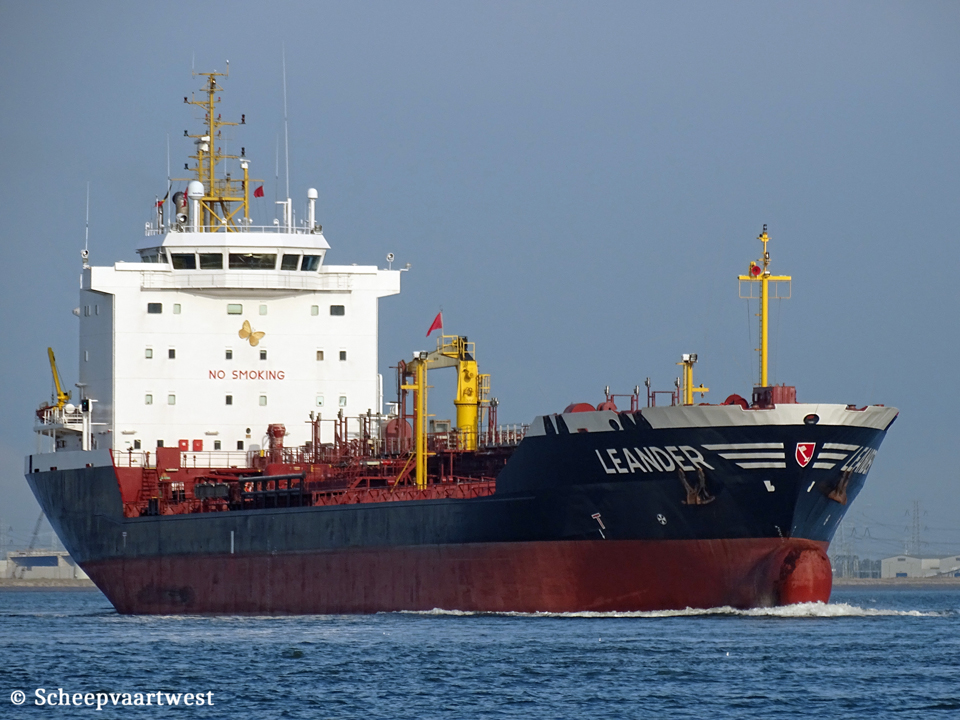

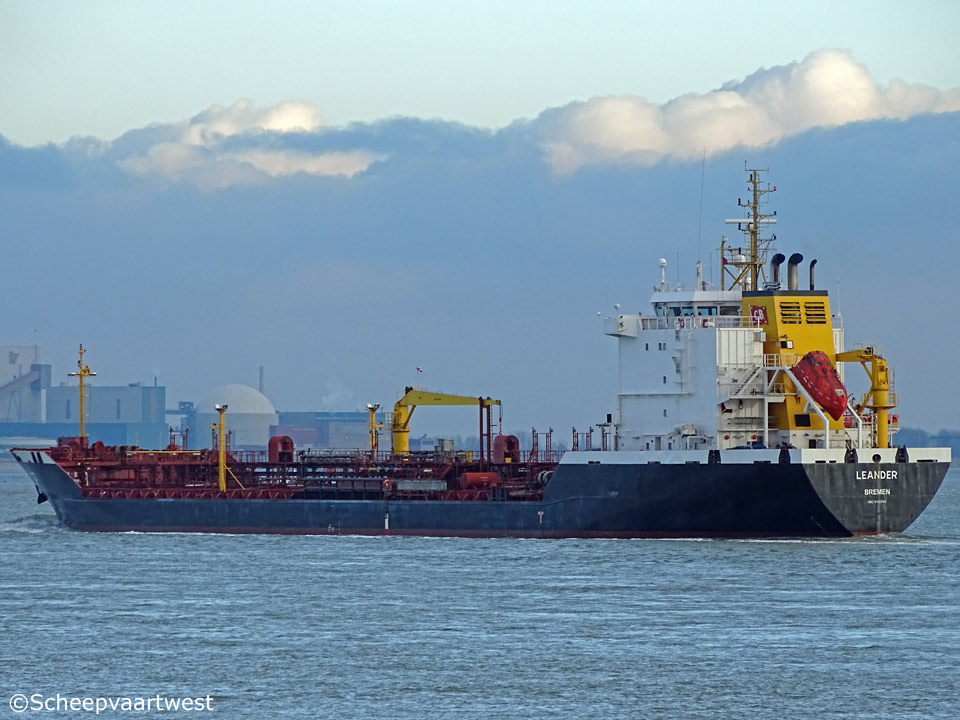

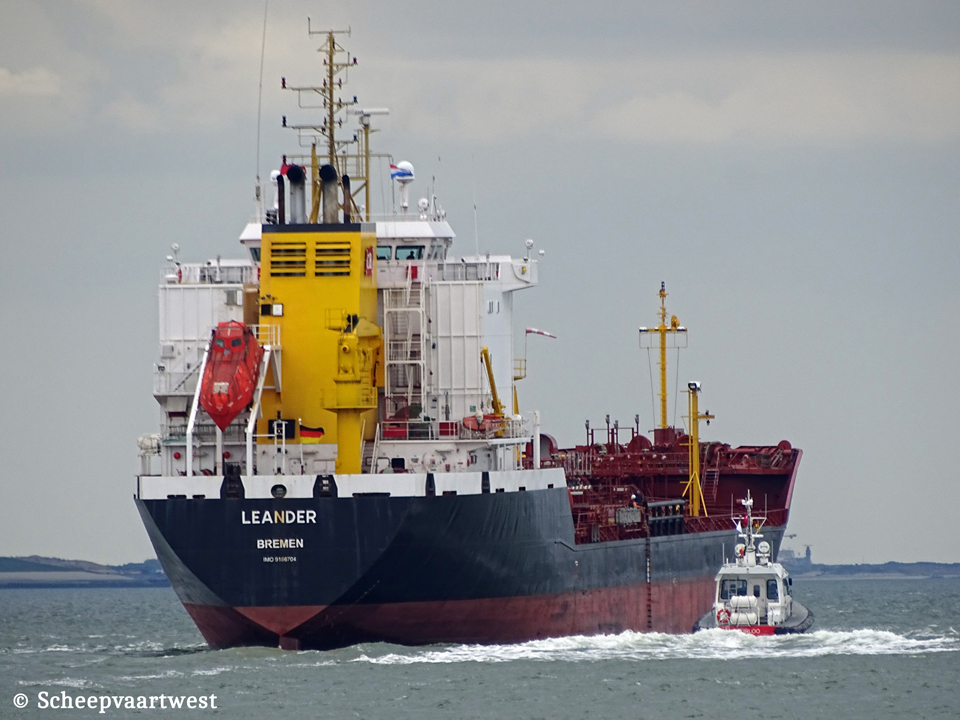

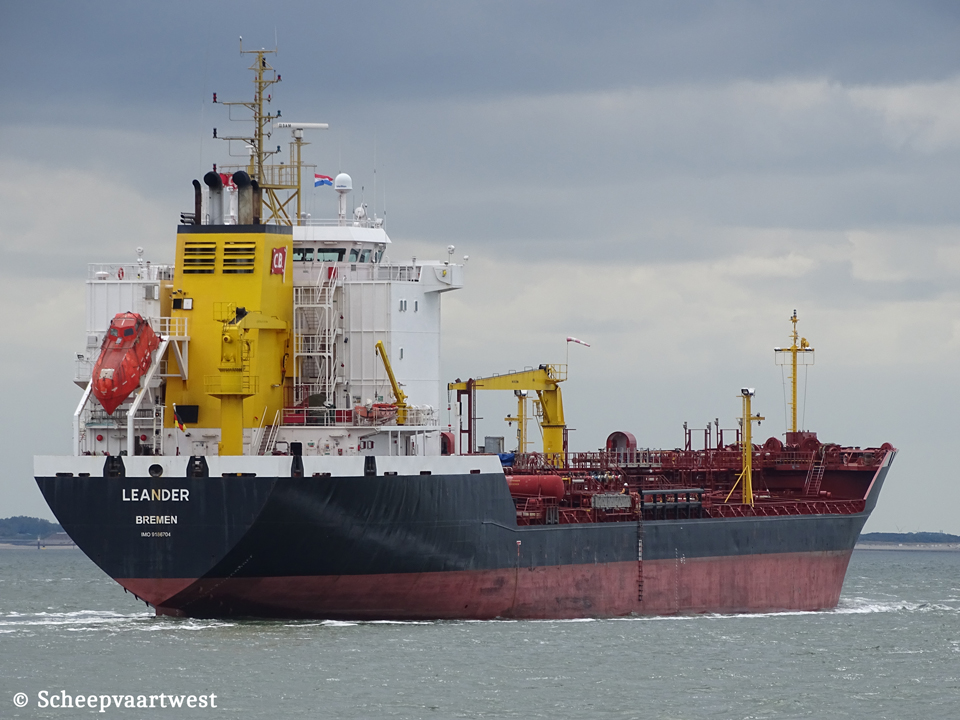

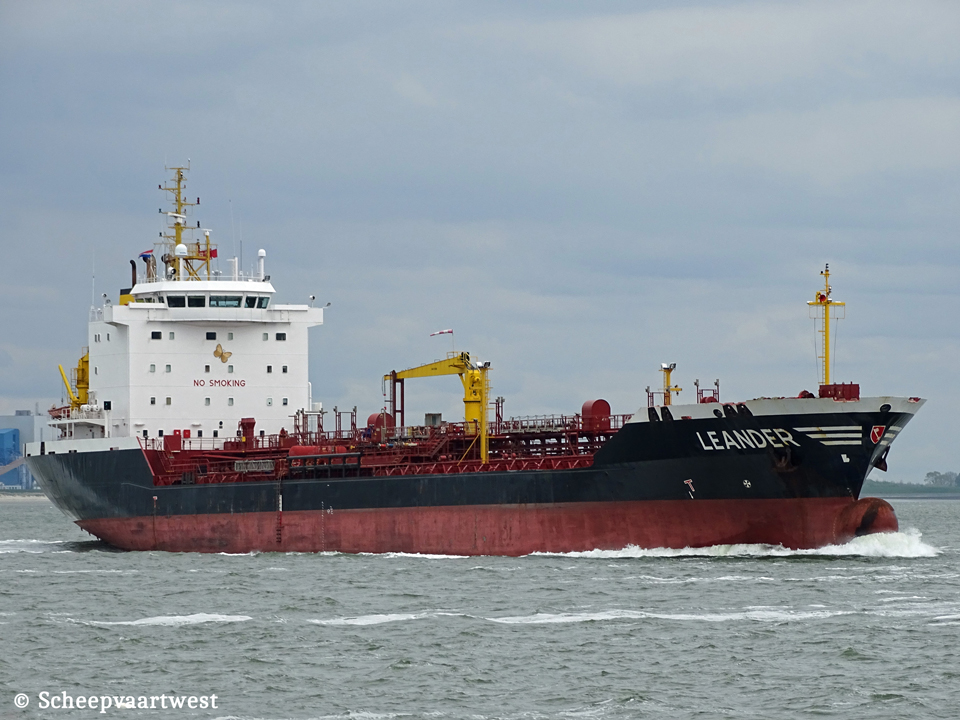

| Westerschelde 04 September 2014 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 01/05/17 | Westerschelde 01/05/17 | Westerschelde 01/05/17 | Westerschelde 04/09/14 | Westerschelde 16/01/17 | Westerschelde | |||||
 |
||||||||||
| Westerschelde 06/09/16 | ||||||||||
|
Name |
LEANDER |
|
Previous names |
1999 - 07/05/2005 Gold River |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9186704 |
|
Call sign |
DEDP |
|
Flag |
Germany |
|
Port of registry |
Bremen |
|
Previous flags |
1999 - 1999 Saint Vincent & The Grenadines 1999 - 2005 China 2005 - 2008 Gibraltar - Call sign: ZDGV2 |
|
GT |
8.085 t |
|
DWT |
13.190 t |
|
NT |
4.184 t |
|
Light ship |
4.166 t |
|
Length |
145,61 m overall 138,98 m registered |
|
Breadth |
19,60 m registered |
|
Draught |
8,36 m |
|
Keel to mast end |
39,20 m |
|
Forecastle |
12,72 m |
|
Poop |
27,90 m |
|
Depth |
10,65 m moulded |
|
Speed |
14,5 knots |
|
Built |
1999 |
|
Keel laid |
07/05/1998 |
|
Launch date |
09/10/1998 |
|
Date of completion |
08/03/1999 |
|
Builder |
Lindenau GmbH Schiffswerft & Maschinenfabrik in Insolvenz Christianspries 30 24159 Kiel Federal Republic of Germany |
|
Yard number |
247 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm combustion engine 4.200 kW / 5.710 hp at 600 rpm Year of manufacture: 1998 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propeller |
1x LIPS controllable pitch propeller - aft at 238 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 12,0 bar Heating surface: 55,5 m² Heating surface: 97,8 m² Year of manufacture: 1998 Manufacturer: Alfa Laval Aalborg A/S Division Boiler Production Gasvaerksvej 24 9100 Aalborg Denmark |
|
Electric installations |
2x Plant 380/220 V - 1.125 kVA 1x Plant 380 V - 800 kVA 1x Plant 380 V - 124 kVA |
|
Shaft generator |
1x Siemens 800 kVA - 640 kW / 380 Volt 50 Hz |
|
Generators |
2x Main diesel generatorsets each 1.125 kVA |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar |
|
Bow thruster |
1x Rolls Royce Type STH 06 - 550 kW |
|
Number of cargo tanks |
10 |
|
Cargo capacity |
No. 1 P + S: 2.552 m³ No. 2 P + S: 3.015 m³ No. 3 P + S: 3.043 m³ No. 4 P + S: 3.035 m³ No. 5 P + S: 2.832 m³ Slop: 173 m³ Total (98%): 14.650 m³ |
|
Cargo tanks coated |
Epoxy |
|
Number of pumps |
10x Framo cargo deepwell pumps each 230 m³/h 1x Framo cargo deepwell pump for slop tank 100 m³/h 1x Portable hydraulic deepwell pump 70 m³/h |
|
Manifolds |
Stern to centre manifold: 73,00 m Bow to centre manifold: 72,61 m Deck to centre manifold: 2,74 m Side to centre manifold: 4,60 m |
|
Tank capacities |
Fuel: 469 m³ Ballast water: 4.627 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m Diameter: 52 mm |
|
Lifting equipment |
1x Crane - SWL 2,0 t |
|
Special features |
Max. specific gravity of cargo 1,55 t/m³ in all cargo tanks Cargo tanks completely smooth Radar cargo and slop tank level measurement system Nitrogen Generator System - max. capacity: 1.580 m³/h On-line connection of loading computer to tank level gauging system |
|
Manager |
Carl Büttner Shipmanagement GmbH Herrlichkeit 2 28199 Bremen Federal Republic of Germany |
|
Owner |
Siebte Büttner Schiffahrtsges. mbH & Co. KG Herrlichkeit 2 28199 Bremen Federal Republic of Germany |
|
Previous names & owners |
1999 - 1999 Gold River - Oriental Maritime Ltd. 1999 - 2005 Gold River - Changjiang National Sg Corp. 2005 - 2008 Leander - Chamela Ltd. |
|
Renamed |
2019 Adeline Republic of Panama, Panama City - Call sign: 3EXM7 Owner: Leander Shipping & Maritime Service Inc., Dubai - United Arab Emirates Manager: Massi Shipping LLC, Dubai - United Arab Emirates |
|
Latest data adjustment |
16 May 2024 |
