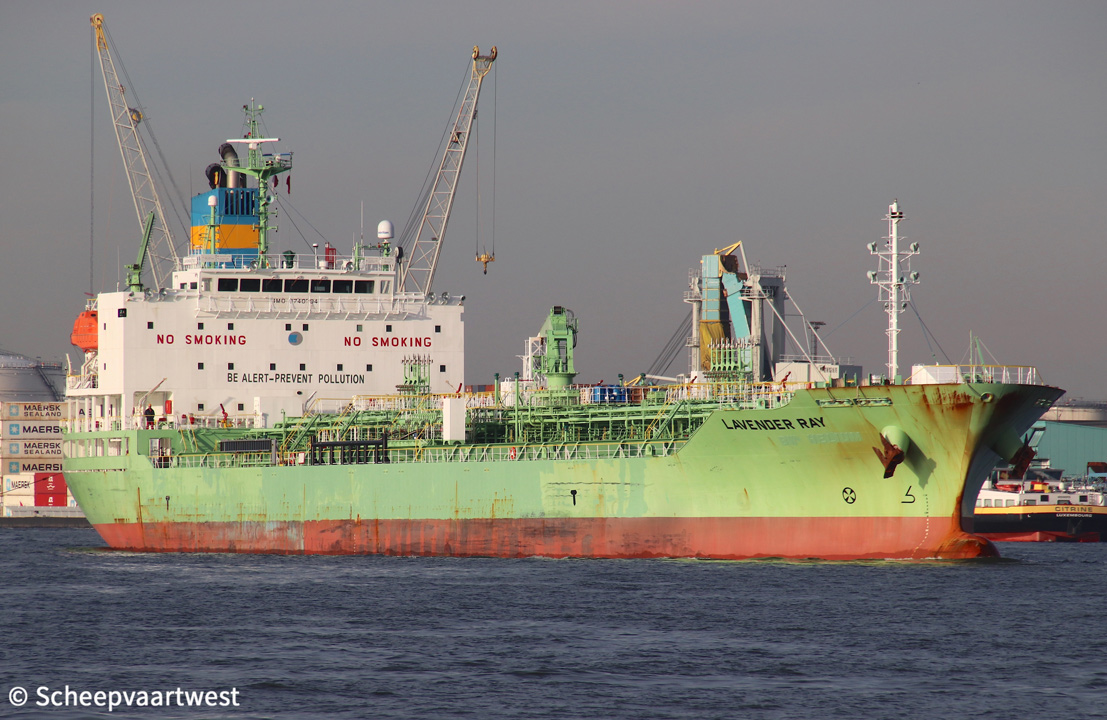

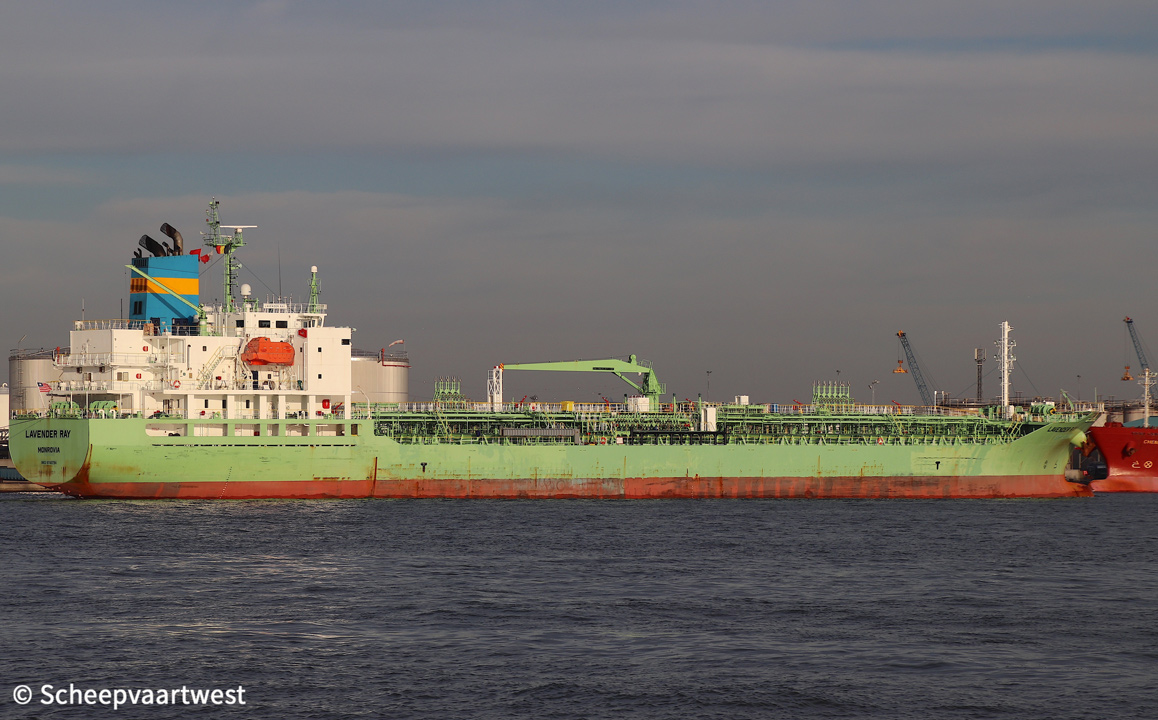

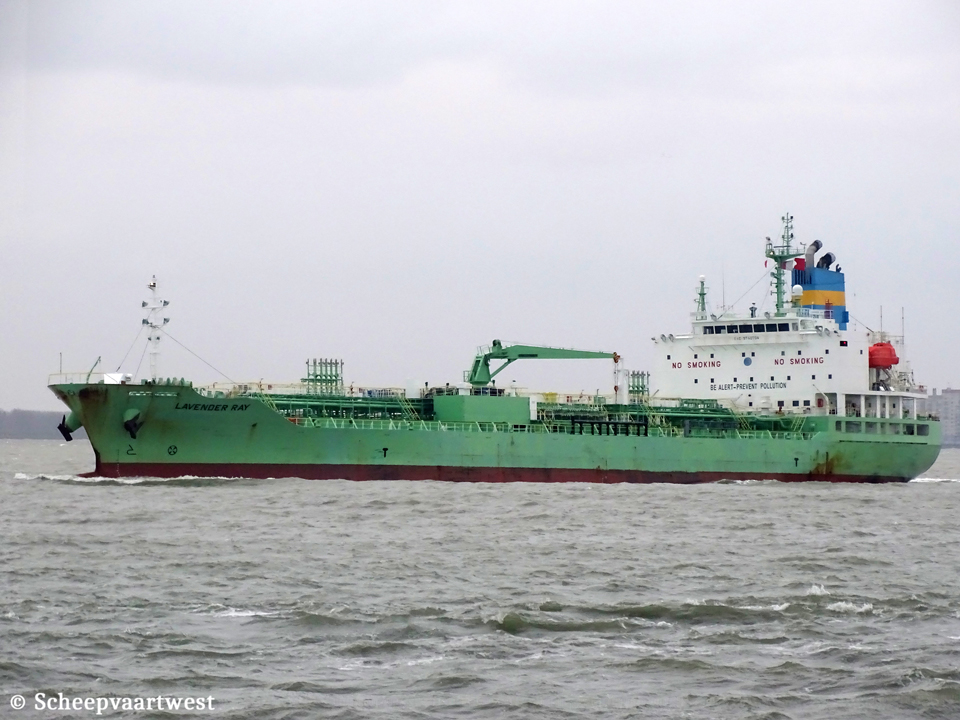

Lavender Ray - IMO 9740794

Westerschelde 13 December 2019

Name

LAVENDER RAY

Previous names

2017 - 2019 BW Helium

Type

Chemical & oil product tanker

IMO-number

9740794

Call sign

D5TH4

Flag

Liberia

Port of registry

Monrovia

Previous flags

2017 - 2019 United Kingdom - Call sign: MBAG6

GT

11.918 t registered

DWT

19.994 t

NT

6.268 t registered

Length

146,20 m overall

Breadth

24,00 m moulded

Draught

Summer: 9,73 m

Moulded L x B x D

138,00 x 24,00 x 13,10 m

Registered L x B x D

138,44 x 24,00 x 13,10 m

Keel to mast end

38,57 m

Freeboard

3.404 mm

Depth

13,10 m moulded

Speed

Max: 14,5 knots

Built

2017

Keel laid

21/12/2015

Launch date

14/03/2017

Date of completion

27/06/2017

Builder

Fukuoka Shipbuilding Co., Ltd

Japan

Yard number

S-7065

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/Makita 6S40ME-B9 -2 stroke single acting 6 cylinder 400 x 1.770 mm combustion engine 4.620 kW - 6.281 hp at 124,0 mm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Vertical boiler - 9,3 bar

Evaporation: 15,95 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Main diesel generatorsets each 530 kW

Bow thruster

412 kW

Number of cargo tanks

20

Cargo tank capacity

Liquid: 22.271,32 m³

Number of pumps

12x Cargo pumps each 300 m³/h

8x Cargo pumps each 200 m³/h

Tank capacities

Fuel oil: 893,56 m³

Fresh water: 375,05 m³

Crew size

23

ISM & commercial manager

Eastern Pacific Shipping Pte. Ltd.

38-01, Millenia Tower, 1, Temasek Avenue

Singapore 039192

Republic of Singapore

Operator

Ace tankers

Strawinskylaan 1997, Tower I, Level 7

1077 XX Amsterdam

The Netherlands

Registered owner

Picer Marine SA

Care of Biko Kisen Co Ltd.

2528-2, Namikata, Namikata-cho, Imabari-shi, Ehime-ken, 799-2101

Japan

Previous names & owners

2017 - 2019 BW Helium - Lemax Ltd.

Latest data adjustment

24 August 2022
