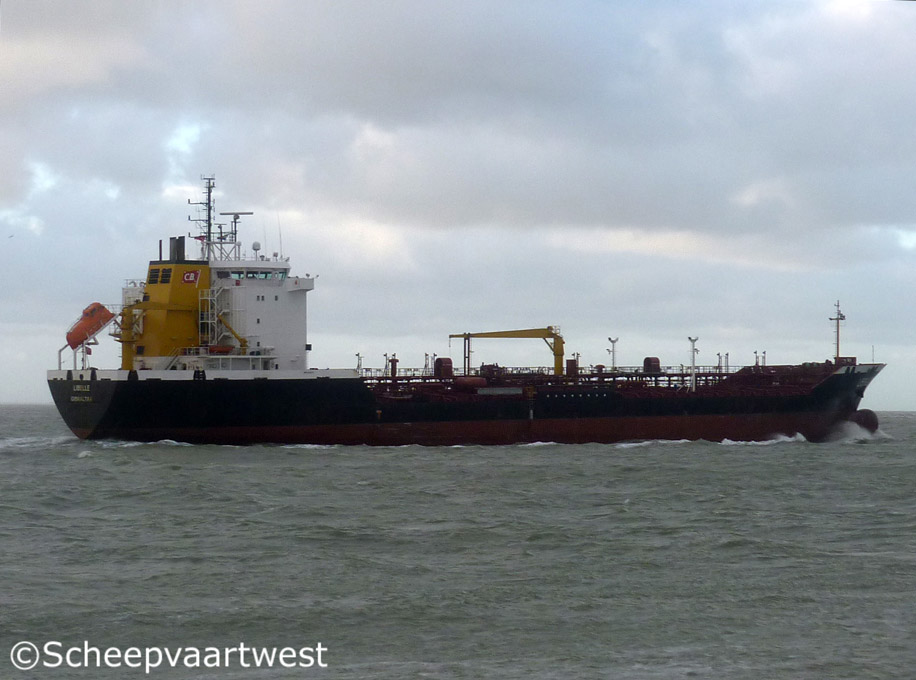

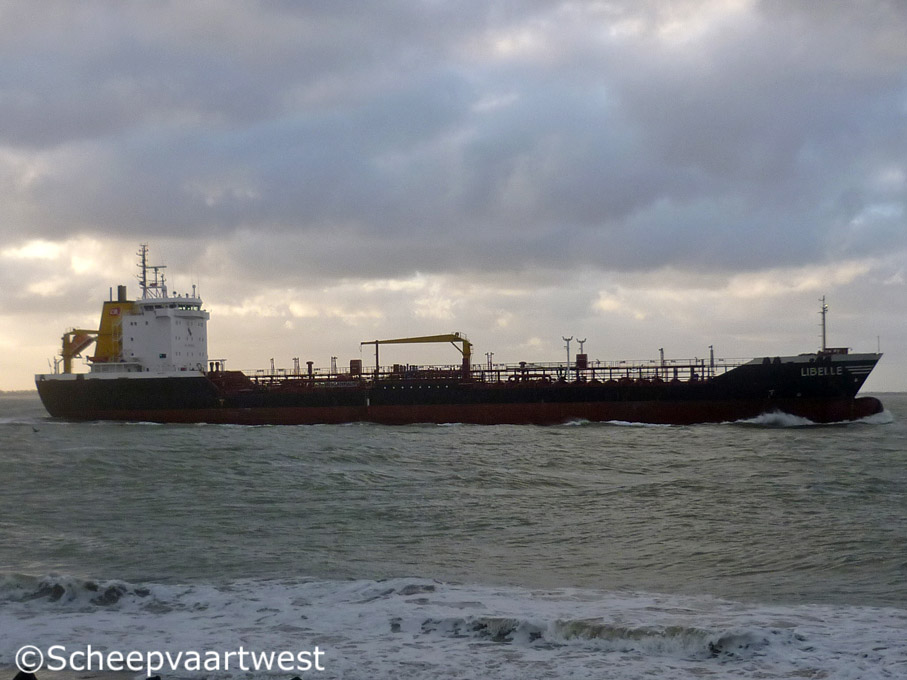

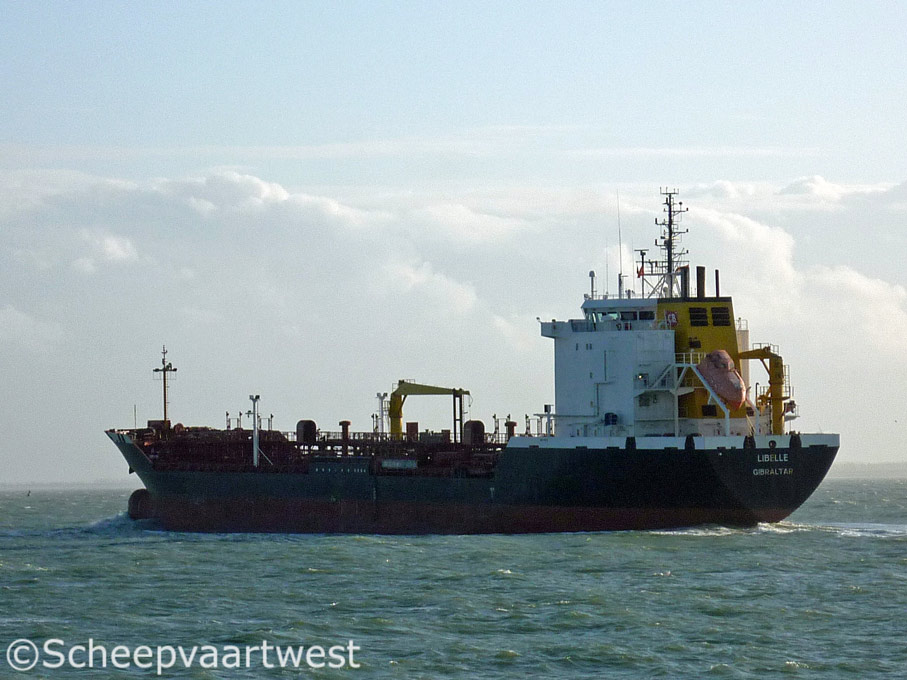

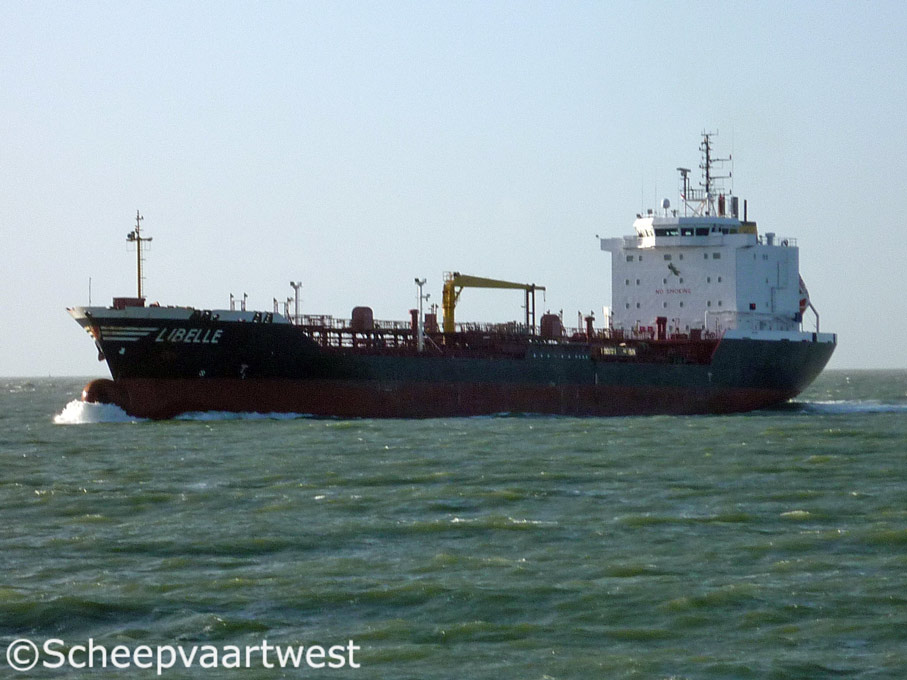

Westerschelde 03/12/11 Westerschelde 30/12/11 Westerschelde 30/12/11


Name

LIBELLE

Type

Chemical / Oil products tanker

IMO-number

9186730

Call sign

ZDDX8

Flag

Gibraltar - United Kingdom

Port of registry

Gibraltar

GT

8.116 t

DWT

13.050 t

NT

4.244 t

Length

145,56 m overall

138,98 m registered

Breadth

19,60 m registered

Draught

8,36 m

Forecastle

12,78 m

Poop

27,90 m

Depth

10,65 m moulded

Speed

15,0 knots

Built

1999

Keel laid

04.03.1999

Launch date

10.07.1999

Date of completion

11.1999

Builder

LINDENAU GmbH Schiffswerft & Maschinenfabrik in Insolvenz
Christianspries 30
24159 Kiel
Federal Republic of Germany

Yard number

250

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x Krupp MaK 9 M 32 - 4 stroke 9 cylinder 320 x 480 mm diesel engine - 4.200 kW at 600 rpm

Year of manufacture: 1999

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x LIPS controllable pitch propeller - aft at 115 rpm

Boilers

1x Steam boiler, oil fired - 12,0 bar

Heating surface: 55,5 m²

1x Exhaust gas heated - 12,0 bar

Heating surface: 97,8 m²

Year of manufacture: 1998

Manufacturer: Aalborg Sunrod
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

2x Plant 380/220 V - 1.125 kVA

1x Plant 380 V - 800 kVA

1x Plant 380 V - 124 kVA

Shaft generator

1x Siemens 800 kVA / 640 kW - 380 Volt 50 Hz

Generators

2x YANMAR main diesel generatorsets each 1.150 kVA

Emergency generator

1x Diesel generatorset 124 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Fixed pitch propeller LIPS type CT 06 - 550 kW, forward

Number of cargo tanks

10

Tank 1: 1,275 m³ port side

Tank 1: 1.282 m³ starboard side

Tank 2: 1.508 m³ port side

Tank 2: 1.509 m³ starboard side

Tank 3: 1.522 m³ port side

Tank 3: 1.522 m³ starboard side

Tank 4: 1.519 m³ port side

Tank 4: 1.519 m³ starboard side

Tank 5: 1.333 m³ port side

Tank 5: 1.509 m³ starboard side

Slop: 172 m³

Total 98%: 14.670 m³

Pumps

10x Framo deep-well pumps each 250 m³/h - 120 mlc, s.g. 0,87 m³

1x Framo deep-well pump for slop tank 100 m³/h - 120 mlc, s.g. 0,8 t/m³

1x Portable hydraulic deep-well pump 70 m³/h - 70 mlc, s.g. 1,0 t/m³

2x Ballast pumps: electric driven pumps capacity each 300 m³/h

Cargo manifolds

Distance from: stern to centre manifold: 73,00 m

Bow to centre manifold: 72,61 m

Deck to centre manifold: 2,74 m

Side to centre manifold: 4,60 m

Tank capacities

Fuel oil: 414 m³

Ballast water: 4.624 m³

Anchor equipment

3x Anchors weight each 4.320 kg

Chain length: 550,00 m

Manager

Carl Büttner Shipmanagement GmbH
Herrlichkeit 2
28199 Bremen
Federal Republic of Germany

Operator

Carl Buttner GmbH & Co.

Registered owner

MT "LIBELLE" Schiffahrtsges. mbH & Co. KG
Herrlichkeit 2
28199 Bremen
Federal Republic of Germany
