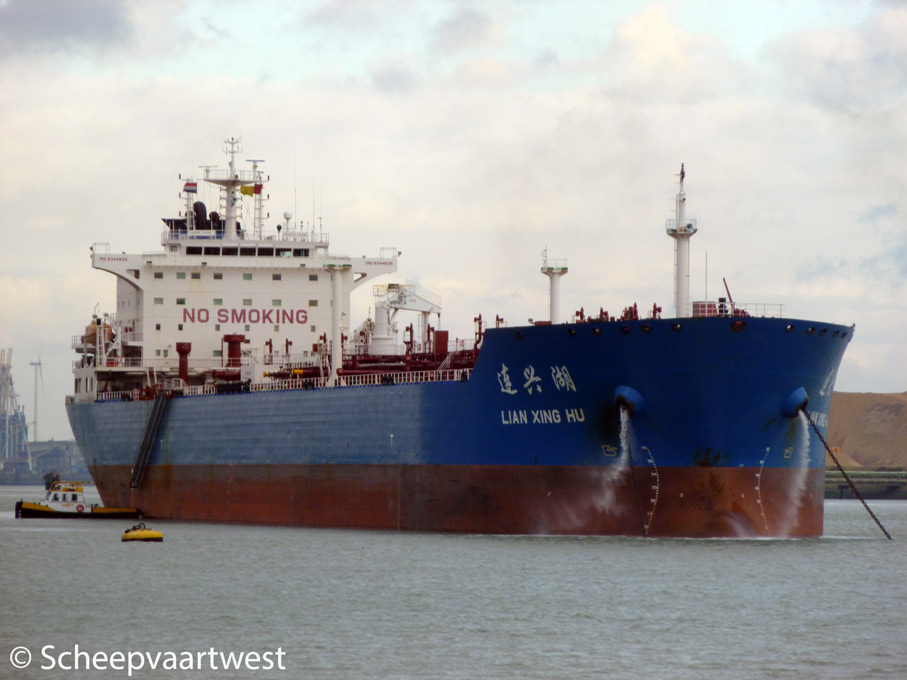

Lian Xing Hu 01
Vlissingen, The Netherlands 04 November 2012

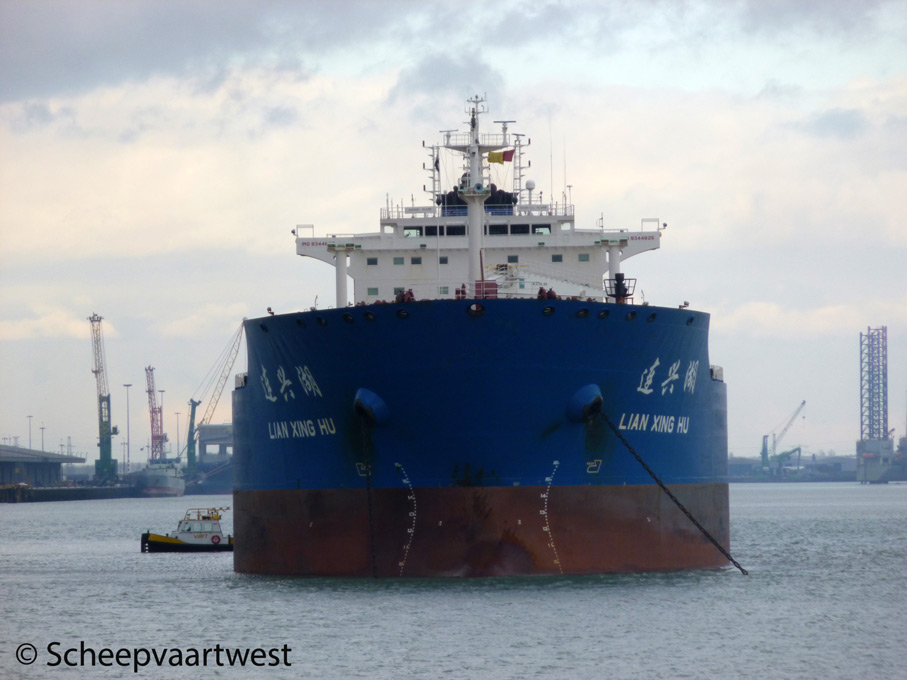

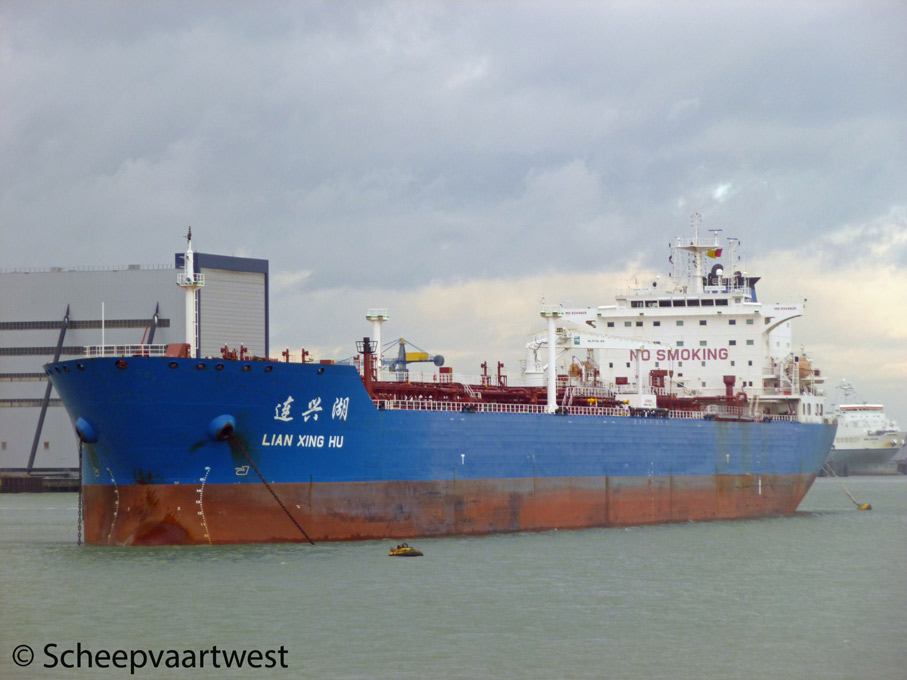

Lian Xing Hu 05   Lian Xing Hu 03
Vlissingen 04/11/12 Vlissingen 04/11/12


Name

LIAN XING HU

Type

Oil Tanker

IMO-number

9344825

Call sign

BOGK

Flag

China, People's Republic of

Port of registry

Dalian

GT

43.153 t

Suez: 44.900,12 t

DWT

75.504 t

NT

22.236 t

Suez: 39.199,08 t

Panama: 36.505 t

Length

228,60 m overall

217,00 m between perpendiculars

Breadth

32,26 m moulded

Draught

14,70 m

Keel to Masthead

47,95 m

Freeboard

Summer: 6.415 mm

Winter: 6.721 mm

Depth

21,10 m moulded

Speed

Service: 14,0 knots

Max.: 15,6 knots

Built

2006

Launch date

15.06.2006

Date of completion

10.08.2006

Builder

Dalian Shipbuilding Industry Group Co., Ltd.

Dalian
China, People's Republic of

Yard number

OT750-6

Hull material

Steel

Hull type

Double Hull

Main engine

1x MAN B&W 6S60MC - 6 cylinder 600 x 2.292 mm diesel engine - 12.240 kW / 16.642 hp at 105,0 rpm

Propellers

1x Fixed pitch propeller- aft at 105 rpm

Generators

3x FE 547C-8 main diesel generators each 800 kW 450 Volt

Number of cargo tanks



12

Tank 1P: 6.016,6 m³
Tank 1S: 5.996,4 m³
Tank 2P: 7.070,5 m³
Tank 2S: 7.086,5 m³
Tank 3P: 7.104,1 m³
Tank 3S: 7.086,5 m³
Tank 4P: 7.070,5 m³
Tank 4S: 7.086,5 m³
Tank 5P: 7.104,1 m³
Tank 5S: 7.086,5 m³
Tank 6P: 6.657,7 m³
Tank 6S: 6.673,7 m³

Number of slop tanks

2

Tank P: 1.936,4 m³

Tank S: 1.936,4 m³

Total: 3.872,8 m³

Volume of cargo space

85.912,4 m³

Pumps

3x Cargo centrifugal pumps 2.000 m³/h

2x Ballast centrifugal pumps 1.500 m³/h

Manifolds

Bow to center manifold: 115,00 m

Stern to center manifold: 113,60 m

Distance bridge front to center of manifold: 78,40 m

Distance between cargo manifold centers: 2.500 mm

Distance ships rail to manifold: 4.320 mm

Distance manifold to ships side: 4.600 mm

Top of rail to center of manifold: 750 mm

Distance main deck to center of manifold: 2.000 mm

Water ballast

29.441 m³

Lifting equipment

1x Crane - SWL 15,0 t

2x Cranes - SWL 4,0 t

Manager commercial

Star Tankers Inc. c/o Heidmar Inc.
20 Glover Avenue Norwalk, CT 06850
USA

Operator

Dalian Ocean Shipping Co.
Building B, Dalian International Ocean Building,No 6
Youhao Square
Zhongshan District Dalian
China, People's Republic of

Owner

Dalian Ocean Shipping Co.
China, People's Republic of

Registered owner

Dalian Ocean Shipping Co.
Building B, Dalian International Ocean Building,No 6
Youhao Square
Zhongshan District Dalian
China, People's Republic of

Last update

28 May 2013
