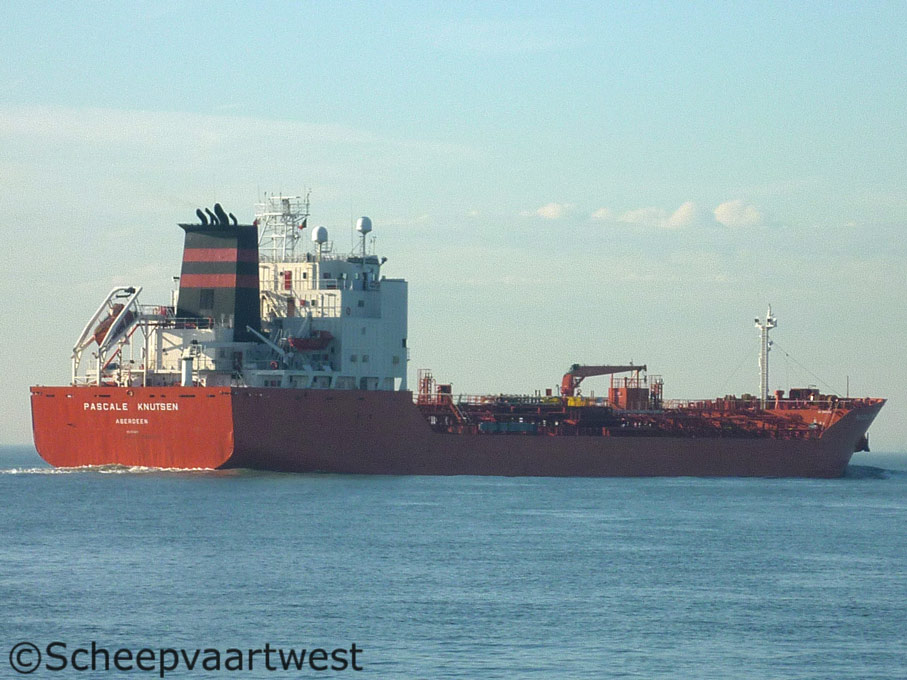

Pascale Knutsen 01
Westerschelde 10 November 2011


Name

PASCALE KNUTSEN

Type

Tanker for oil and chemicals

IMO-number

9070905

Call sign

ZQOR4

Flag

United Kingdom

Port of registry

Aberdeen

GT

11.688 t

Suez: 12.139 t

Panama: 12.195 t

DWT

Summer: 14.848 t

NT

4.066 t

Suez: 4.066 t

Panama: 7.918 t

Length

141,65 m overall

133,83 m between perpendiculars

135,26 m registered

Breadth

23,00 m registered

Draught

8,014 m extreme

Forecastle

16,35 m

Poop

28,80 m

Freeboard

4.145 mm

Depth

12,13 m moulded

Speed

13,0 knots

Built

1993

Keel laid

06.11.1992

Launch date

23.07.1993

Date of completion

20.10.1993

Builder

S.A. Juliana Constructora Gijonesa
c/ Montemayor, 2
33212 Gijon
Spain

Yard number

348

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x Man B&W 4 S 50 MC - 2 stroke 4 cylinder 500 x 1.910 mm diesel engine - 5.240 kW at 123,0 rpm

Year of manufacture: 1993

Manufacturer: Astilleros Espanoles, S.A. Factoria de Manises
Cuart de Poblet
Valencia
Spain

Propeller

1x Controllable pitch propeller - aft

Boilers

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 379,0 m²

1x Steam boiler, oil fired - 11,0 bar

Heating surface: 77,0 m²

Year of manufacture: 1993

Manufacturer: Astilleros Espanoles, S.A. Factoria de Cadiz
C/ Industrial, s/n
11007 Cadiz
Spain

Electric installations

2x Plant 440/220 V - 1.125 kVA

1x Plant 440 V - 938 kVA

1x Plant 440 V - 100 kVA

Shaft generator

1x 938 kVA

Generators

2x Main diesel generatorsets each 1.125 kVA

Emergency generator

1x Diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 2.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 22 litres - 30,0 bar

1x Receiver 500 litres - 7,0 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 600 kW, forward

Number of cargo tanks

12

Liquid cargo capacity

17.212 m³

Bow to centre manifold

62,00 m

Tank capacities

Fuel oil: 766 m³

Ballast water: 8.157 m³

Anchor equipment

3x Anchors weight each 5.250 kg

Chain length: 577,50 m

Manager

Knutsen OAS Shipping AS
Smedasundet 40
5529 Haugesund
Norway

Operator

Knutsen OAS Shipping AS

Owner

Betty Shipping Ltd.
1, Finsbury Circus
EC2M 7SH London LO
United Kingdom
