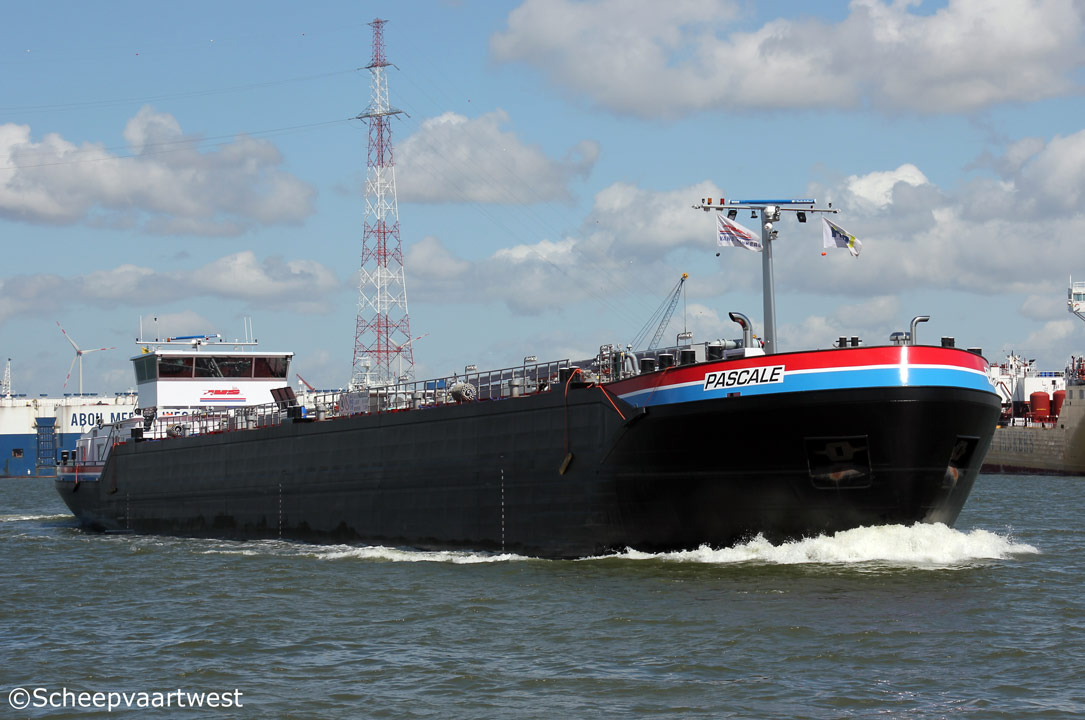

Pascale 01

Antwerpen 03 may 2016



Name

PASCALE

Type

Inland tanker

ENI-number

06105550

Call sign

OT5323

Flag

Belgium

Port of registry

Antwerpen

GT

1.532 t

Tonnage

2.284 t

Length

85,97 m

Breadth

10,49 m

Draught

3,90 m

Depth

5,68 m

Built

2016

Date of completion

23.03.2016

Builder casco

Santierul Naval Orsova SA
Orsova
Romania

Builder completion

Dolderman Dordrecht BV
Dordrecht
The Netherlands

Yard number

1057

Hull material

Steel

Hull type

Double hull

Watertight compartments

10

Continuous decks

1

Main engine

1x Caterpillar 3512 (C) DI-TA electronic - 4 stroke 12 cylinder 1.118 kW / 1.521 hp at 1.600 rpm

Gearbox

1x Reintjes type WAF 665 L / reduction 5,044:1

Propellers

1x Screw propeller solid 4 blades - Diameter: 1.700 mm with Optima nozzle 1.714 mm

Generators

1x Main diesel generatorset 150 kVA - 120 kW - 140 hp
1x Main diesel generatorset 79 kVA - 63 kW - 82 hp
1x Main diesel generatorset 813 kVA - 650 kW - 607 hp

Bow thruster

1x Caterpillar 535 hp - Verhaar Omege-Jet VBS1200sr - 393 kW

Cargo tank capacity

2.150 m³

Pumps

1x Bornemann cargo pump HC232 - 450 m³/h 8 bar with ABB electro motor 185 kW

1xBornemann cargo pump HC180 - 200 m³/h 8 bar with ABB electro motor 84 kW

Pump rate

700 m³/m³

Tank capacities

Fuel oil: 62 m³

Anchor equipment

1x Bunker crane 28,00 mm / 8 inch

Operator

Aegean NWE

Nijverheidsstraat 7
2960 Sint-Job-In-‘t-Goor
Belgium

Owner

Elveba Bunkering NV
Vosseschijnstraat 140
2000 Antwerpen
Belgium

Latest data adjustment

20 May 2017
