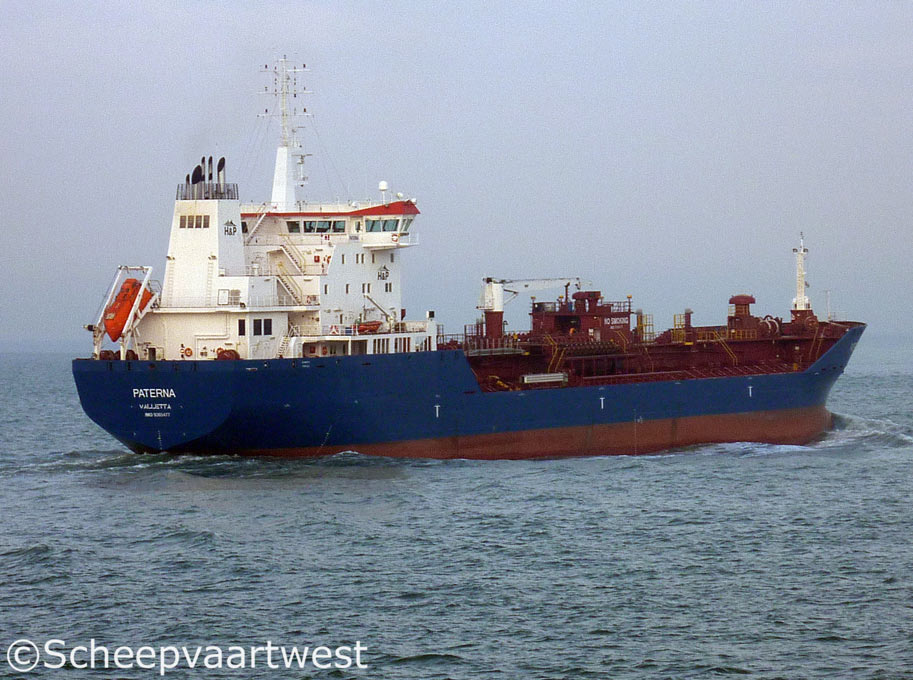

Westerschelde 25 September 2011 |

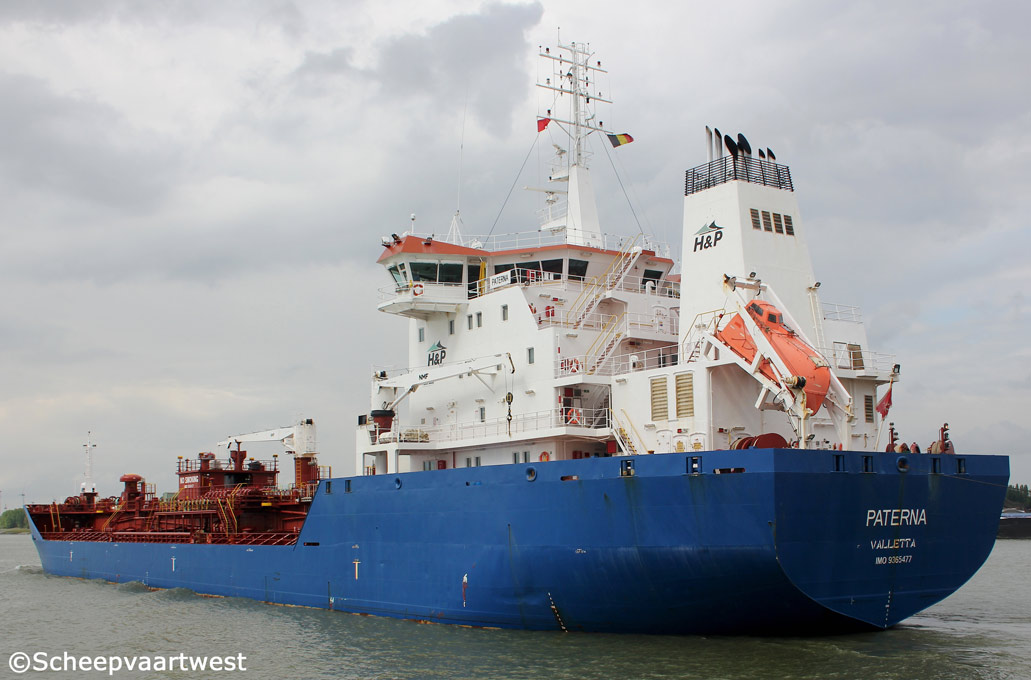

Westerschelde 25/09/11 | Westerschelde 07/07/12 | Antwerpen 07/05/15 | Antwerpen 07/05/15 | |||
Name |
PATERNA |
Previous names |
2006 - 05.10.2010 Marida Paterna |
Type |
Chemical and product tankers |
IMO-number |
9365477 |
Call sign |
9HOI9 |
Flag |
Malta |
Previous flags |
2006 - 2008 Cyprus 2008 - 2008 Malta 2008 - 2008 Cyprus |
Port of registry |
Valletta |
GT |
11.935 t |
DWT |
16.748 t |
NT |
5.137 t |
Length |
144,17 m overall 133,80 m between perpendiculars |
Breadth |
23,00 m |
Draught |
Max.: 8,90 m |
Freeboard |
3.511 mm |
Depth |
12,40 m |
Speed |
Max.: 14,0 knots |
Built |
2006 |
Keel laid |
21.09.2005 |
Launch date |
16.01.2006 |
Date of completion |
26.07.2006 |
Builder |
Jiangnan Shipyard Group Co., Ltd. |
Yard number |
H2334 |
Hull material |
Steel |
Hull type |
Double hull |
Main engine |
1x MAN B&W 6L48/60B diesel engine - 6.300 kW Builder: MAN Diesel & Turbo SE |
Boilers |
Auxiliary boiler, vertical shell - Mission OM Auxiliary boiler, composite - Mission OC Builder: Aalborg Industries A/S |
Shaft generator |
1x 1.875 kVA |
Diesel generators |
3x Wärtsilä W4L20 main diesel generatorsets - total power 2.800 KVA Builder: Wärtsilä Finland Oy |
Emergency Generator |
1x Diesel generatorset 125 kVA |
Bow thruster |
1x 750 kW |
Number of tanks |
12 |
Cargo capacity |
18.868,7 m³ |
Pumps |
Unloading capacity per tank: 300 m³/h Total unloading capacity: 2.100 m³/h |
Bunker capacity |
IFO tanks: 580,3 m³ MGO tanks: 74,8 m³ |
Ballast capacity |
8.179,4 m³ |
Anchor chain |
Length: 577,5 m Diameter: 58 mm |
Manager |
Harren & Partner Ship Management GmbH & Co. KG |
Charter |
Paterna Shipping Limited (Charterers) |
Owner |
Harren & Partner Schiffahrts GmbH & Co. KG MS "PATERNA" c/o Hermann-Hollerith-Str. 10 |
Previous owner |
2006 - 2007 MIT Maritime Investment & Trading GmbH & Co. KG |
