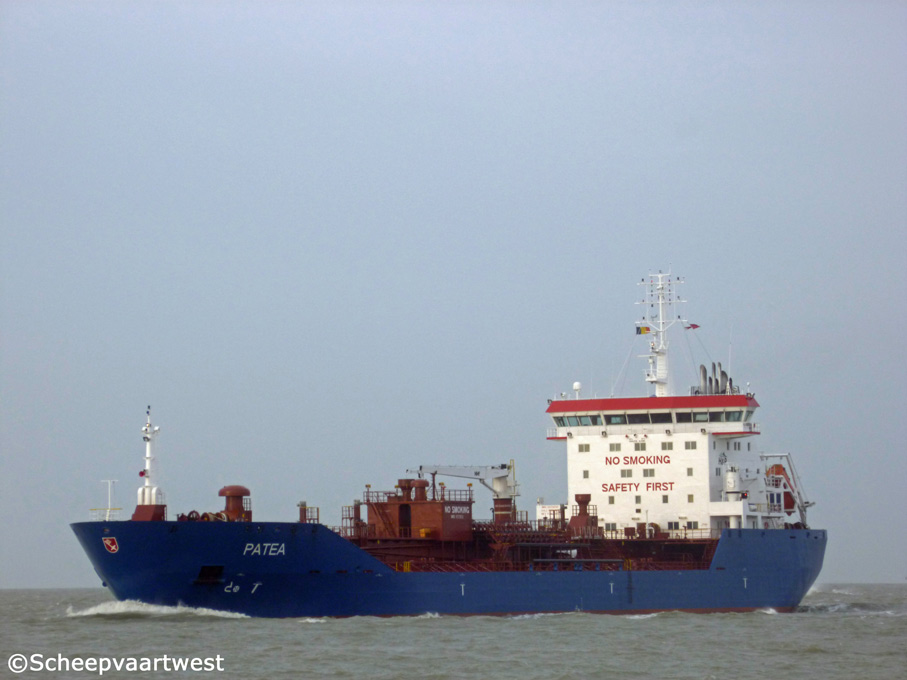

Patea 01

Westerschelde 06 February 2014

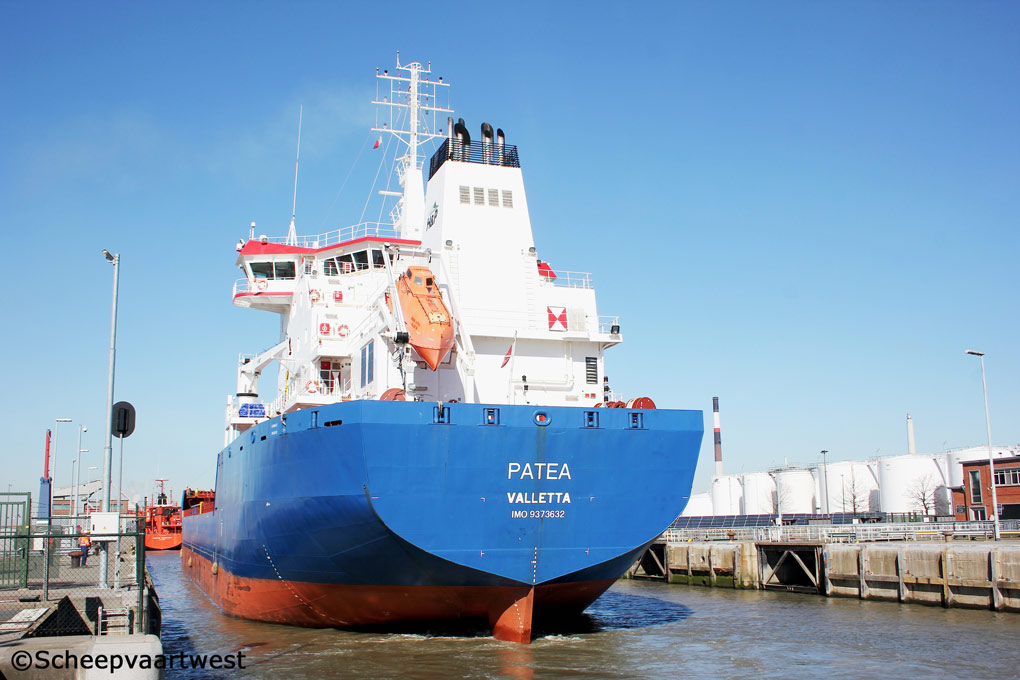

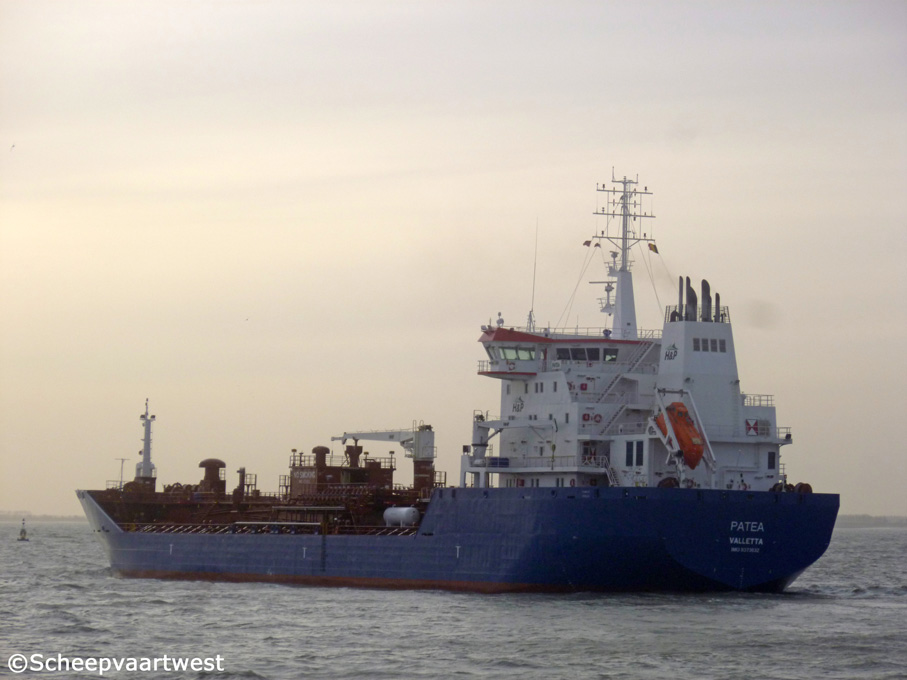

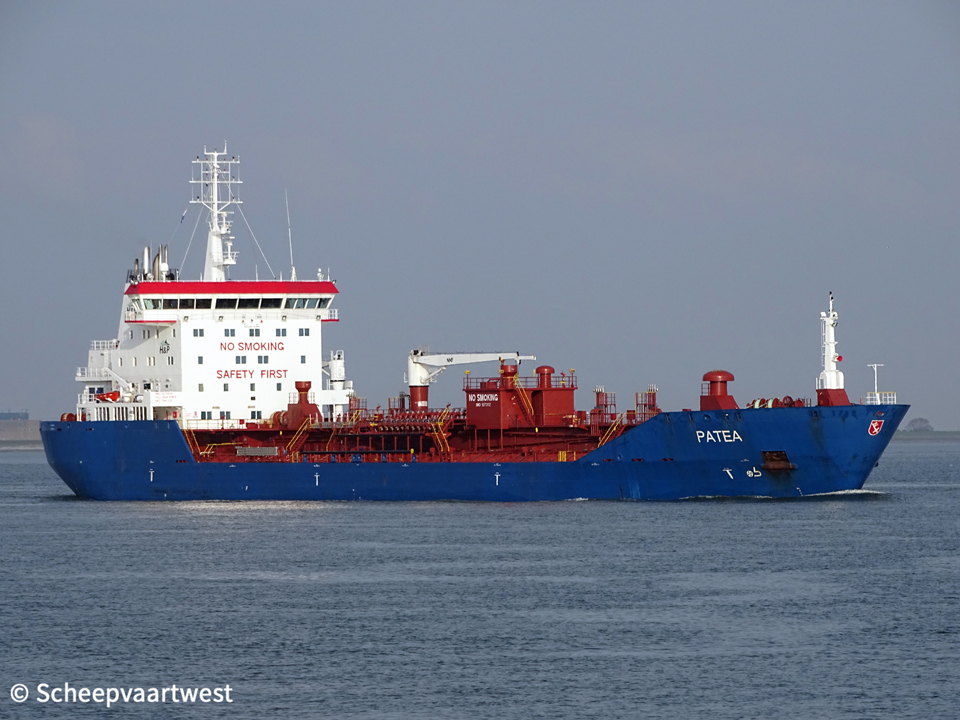

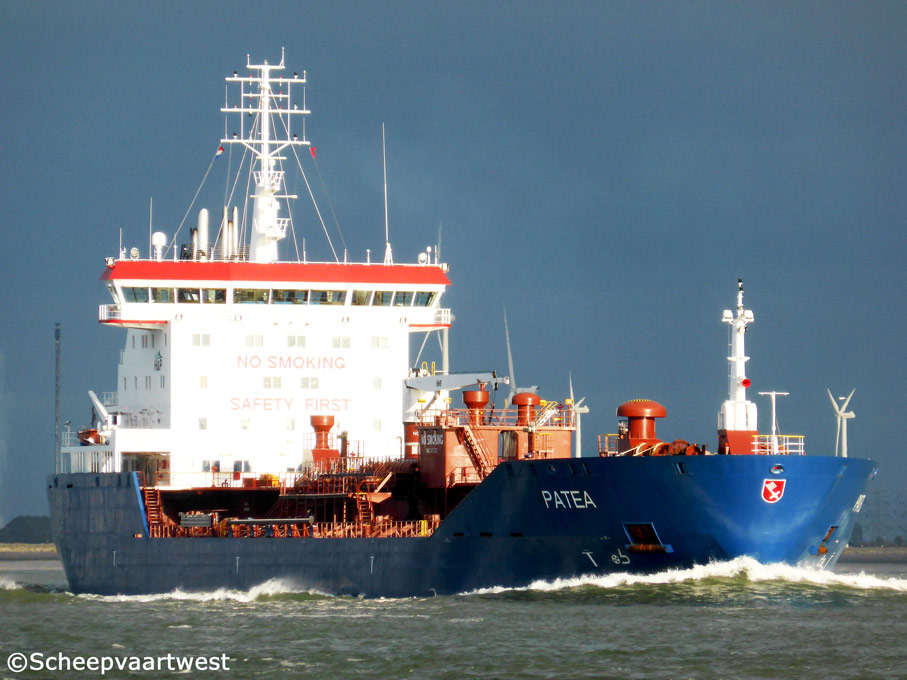

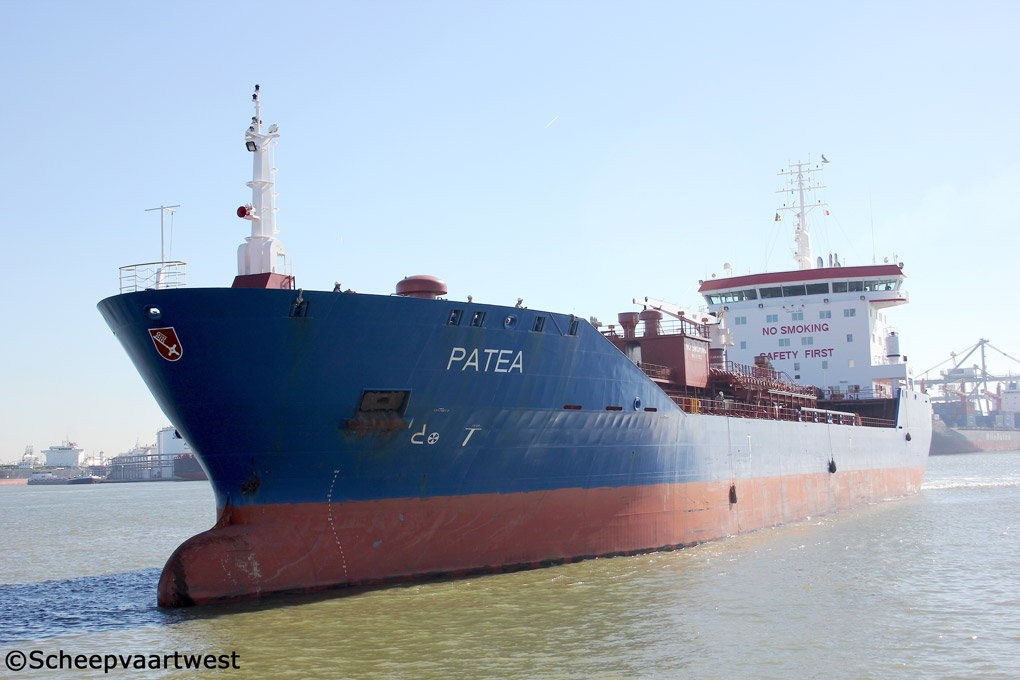

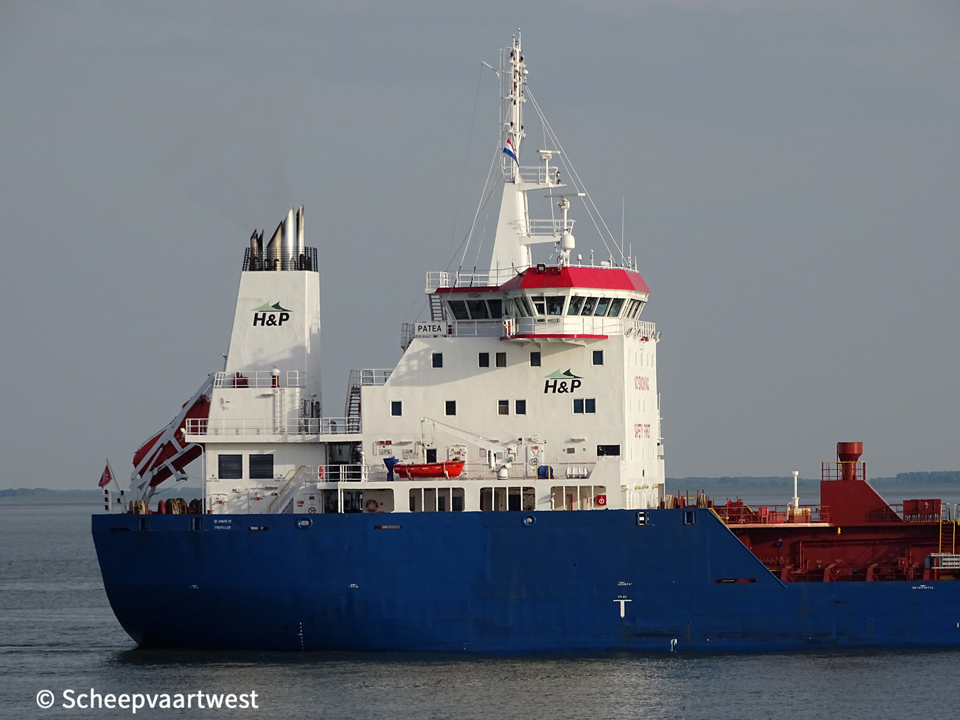

Patea 02   Patea 03   Patea 04   Patea 05   Patea 07   Patea 08
Westerschelde 06/02/14 Westerschelde 05/10/14 Antwerpen 12/03/15 Antwerpen 12/03/15   Westerschelde 11/05/18   Westerschelde 11/05/18


Name

PATEA

Previous names

2008 Launch as: Patea

05/2008 - 04/2011 Marida Patea

Type

Tanker for chemicals & Oil products

IMO-number

9373632

Call sign

CQEC2

Flag

Portugal

Port of registry

Madeira

Previous flag

2008 - 2008 Cyprus, Limassol

2008 - 2020 Malta,Valletta - Call sign: 9HMT9

GT

11.935 t

DWT

Summer: 16.651 t

NT

5.137 t

Length

144,18 m overall

133,80 m between perpendiculars

Breadth

23,03 m extreme

Draught

Max.: 8,90 m

Freeboard

3.511 mm

Depth

12,40 m

Speed

Max.: 14,8 knots

Service: 18,0 knots

Built

2008

Keel laid

09/02/2007

Launch date

20/07/2007

Date of completion

28/05/2008

Builder

Jiangnan Shipyard (Group) Co., Ltd.

Linhai

China

Yard number

H2373

Hull material

Steel

Hull type

Double hull

Number of decks

2

Main engine

1x MAN B&W 6L48/60B - 4 stroke single acting 6 cylinder 480 x 600 mm combustion engine

MCR: 7.200 kW / 9.789 hp at 514 rpm

Builder: MAN Diesel & Turbo

Propellers

1x Controllable pitch propeller VBS 1469

Builder: MAN B&W Diesel A/S, Alpha Diesel

Boilers

1x Auxiliary boiler, composite

1x Auxiliary boiler, oil/gas fired

Builder: Aalborg Industries A/S

Shaft generator

1x 1.875 kVA

Generators

2x Wärtsilä W4L20 - 4 stroke 4 cylinder 200 x 280 mm combustion engine each 800 kW connected with generator each 700 kW

1x Wärtsilä W6L20 - 6 stroke 4 cylinder 200 x 280 mm combustion engine 1.200 kW connected with generator 1.100 kW

Builder: Wärtsilä Finland Oy

Emergency generator

1x Sisu 634 diesel generatorset 125 kVA

Builder: AGCO Sisu Power, GenPowex

Bow thruster

1x Tunnel thruster 736 kW / 1.000 bhp, forward

Number of tanks

12

Cargo tank capacity 98%

18.478 m³

Slop tank capacity

560 m³

Pumps

12x cargo pumps each 300 m³/h

2x Cargo pump each 150 m³/h

Total unloading capacity: 2.100 m³/h

Tank capacities

Fuel oil IFO: 580,30 m³

Gas oil MGO: 74,80 m³

Ballast capacity: 8.179,40 m³

Anchor equipment

Length: 572,50 m

Diameter: 58 mm

Crew size

16

Manager

Harren & Partner Shipmanagement GmbH & Co. KG

Hermann-Hollerith-Str. 10

D-28355 Bremen

Germany

Registered owner

Condor 230. Schifffahrts-GmbH & Co. KG MS "BERN"

Previous owner

Harren & Partner Schiffahrts GmbH & Co. KG MS "PATEA"

Lindwurmstr. 88

D-80337 München

Germany

Latest data adjustment

06 July 2020
