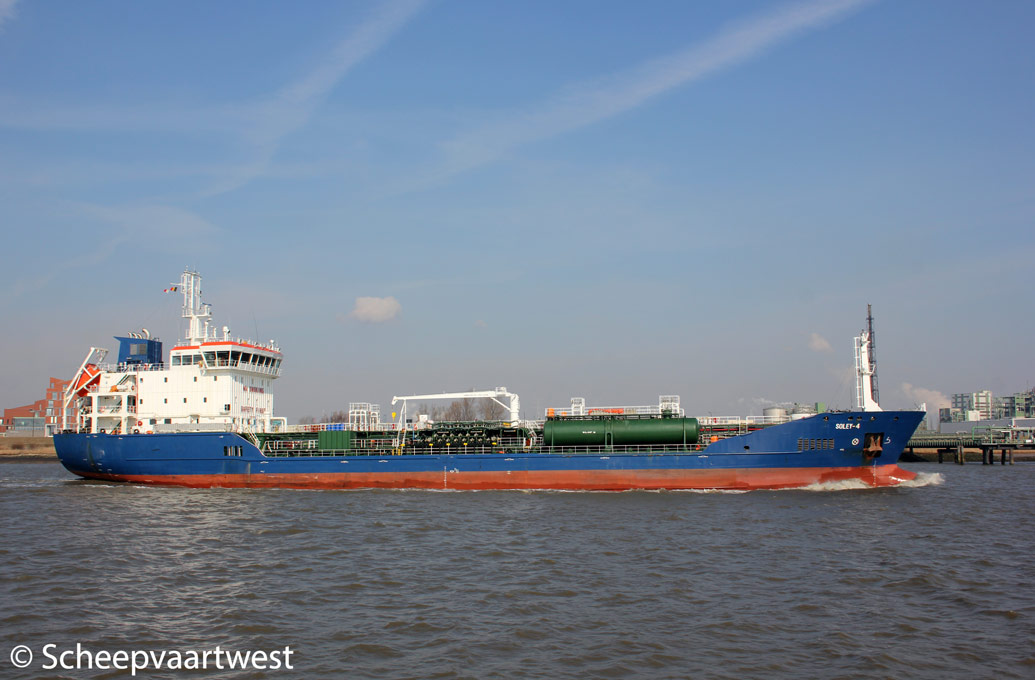

Soley-4 02
Antwerpen 01 April 2013

Soley-4 03
Antwerpen 01/04/13


Name

SOLEY-4

Type

Oil tanker / Chemical tanker

Main products

Chemicals

IMO-number

9566708

Call sign

9HA2977

Flag

Malta

Port of registry

Valletta

GT

4.812 t

Suez: 5.177,21 t

DWT

7.081 t

NT

2.229 t

Suez: 4.102,29 t

Length

109,92 m overall

103,18 m between perpendiculars

Breadth

17,42 m extreme

Draught

7,09 m

Air draft

Lightship: 31,94 m

Normal ballast: 29,59 m

At loaded summer deadweight: 27,20 m

Keel to masthead

34,30 m

Freeboard

Summer: 1.712 mm

Winter:1.860 mm

Tropical: 1.564 mm

Depth

8,80 m moulded

Speed

14,0 knots

Built

2012

Date of completion

09.02.2012

Builder

Soli Shipbuilding Industry S.A.
Kocaeli
Turkey

Yard number

09

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN - 4 stroke 6 cylinder 400 x 320 diesel engine - 2.000 kW / 4.076 hp at 750 rpm

Built: 10.05.2011

Builder: MAN Diesel & Turbo SE, Ausburg - Germany

Propellers

1x Screw propeller controllable pitch

Boilers

2x CHO Garioni Naval 47,30 m² - 10,0 bar
1x CHR Garioni Naval 57;70 m² - 10,0 bar

Shaft generator

1x 1.265 kVA - 1.012 kW

Generators

2x Main diesel generatorsets each 462 kVA - 370 kW - 530 hp

1x Main diesel generatorset 775 kVA - 620 kW - 842 hp

Emergency generator

1x Diesel generatorset 250 kVA - 200 kW - 150 hp

Bow thruster

405 bhp / 302 kW

Number of tanks

14

Total cap. of tanks 98%

7.596,89 m³ excluding slop tanks

Slop tank 98%

255,91 m³

Pumps

Cargo:

10x Deepwell each 250 m³/h

2x Deepwell each 125 m³/h

1x Deepwell each 100 m³/h

Ballast:

2x Horizontal centrifugal each 300 m³/h

Maximum loading rate

1.500 m³/h

Manifolds

Bow to centre manifold: 56,09 m

Stern to centre manifold: 53,80 m

Distance bridge front to centre of manifold: 28,59 m

Distance between cargo manifold centres: 1.016 mm

Distance ships rail to manifold: 3.950 mm

Distance manifold to ships side: 4.100 mm

Top of rail to centre of manifold: 522 mm

Distance main deck to centre of manifold: 1.735 mm

Fuel capacity

600,49 m³

Lifting equipment

1x Cranes - SWL 5,0 t

Manager

Nakkas Shipping & Trading
Istanbul
Turkey

Operator

Nakkas Denizcilik ve Ticaret Limited Sirketi

Mecidiye Mah, Ismail Pasa, Sok. No. 37/A
Kosuyolu-Kadikoy

Istanbul
Turkey

Owner

Trefoil Maritime & Trading
Istanbul
Turkey

Registered owner

Trefoil Maritime and Trading Ltd.
13/16 Vincenti Buildings, Strait

Street, VLT 1432
Valletta
Malta

Renamed

10.2013 Henda

Malta, Valletta - Call sign: 9HA2977

Latest data adjustment

03 June 2015
