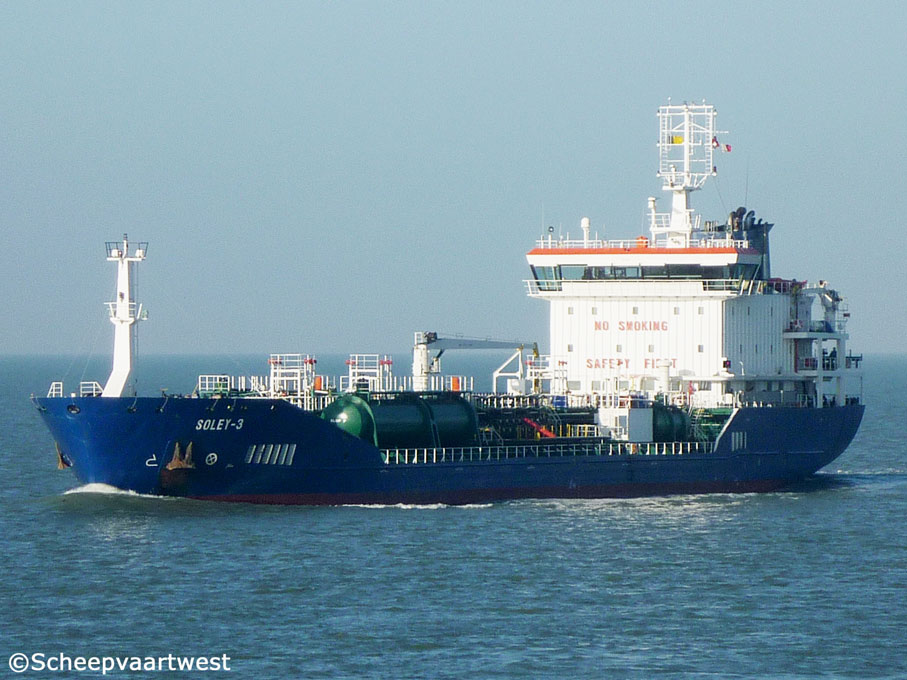

Soley-3 01

Westerschelde 25 February 2012

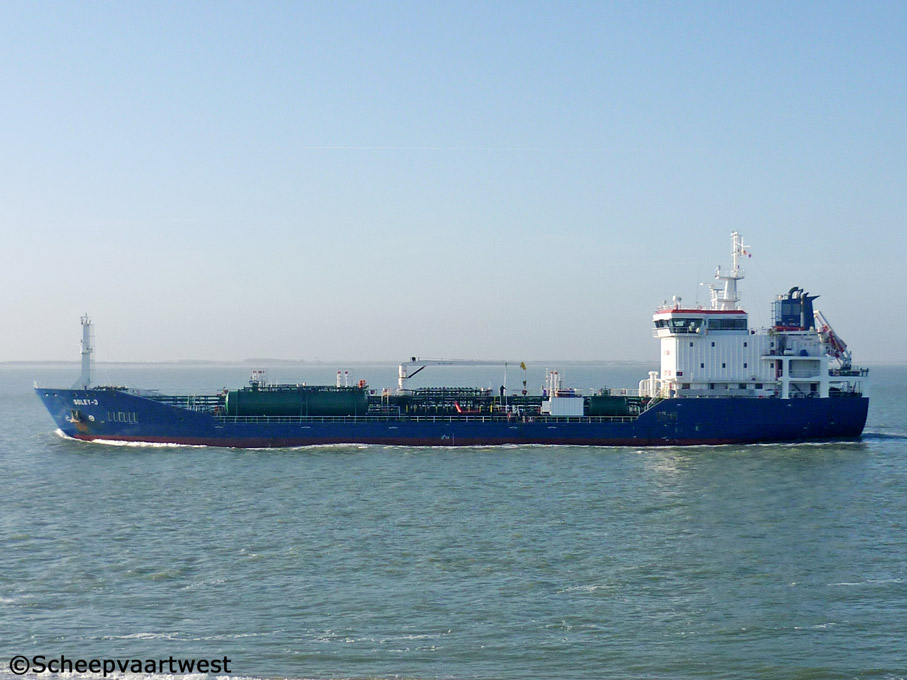

Soley-3 03
Westerschelde 25/02/12


Name

SOLEY-3

Type

Chemical & oil tanker

IMO-number

9566693

Call sign

9HA2499

Flag

Malta

Port of registry

Valletta

GT

4.812 t

Suez: 5.177,21 t

DWT

7.081 t

NT

2.229 t

Suez: 4.102,29 t

Length

109,92 m overall

103,18 m between perpendiculars

Breadth

17,42 m extreme

Draught

7,09 m

Keel to masthead

34,30 m

Air draft

Lightship: 31,94 m

Normal ballast: 29,59 m

At loaded summer deadweight: 27,20 m

Freeboard

Summer: 1.712 mm

Winter:1.860 mm

Tropical: 1.564 mm

Depth

8,80 m moulded

Speed

14,0 knots

Built

2010

Keel laid

01.06.2008

Launch date

24.04.2010

Date of completion

05.11.2010

Builder

Soli Shipbuilding Industry S.A.
Kocaeli Serbest Bölgesi 2. Ada Sepetlipinar, Yeniköy, Göl.
41275 Izmit
Turkey

Yard number

08

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN 6L32/40 - 4 stroke 6 cylinder 320 x 400 mm diesel engine - 3.000 kW at 750 rpm

Year of manufacture: 2009

Manufacturer: STX Engine Co., Ltd.
36, Gongdanro474-gil Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Controllable pitch propeller - aft at 143 rpm

Boilers

2x Thermal oil heater, oil fired - 10,0 bar

Heating Surface: each 40,7 m²

Thermal oil heater, exhaust gas heated - 10,0 bar

Heating Surface: each 57,7 m²

Electric installations

2x Plants each 440 V - 462,5 kVA

1x Plant 440 V - 775 kVA

1x Plant 440 V - 250 kVA

Shaft generator

1x 1.265 kVA - 1.012 kW

Generators

2x Main diesel generatorsets each 462,5 kVA - 370 kW - 530 hp

1x Main diesel generatorset 775 kVA - 620 kW - 842 hp

Harbour generator

1x Diesel generatorset 250 kVA - 200 kW - 150 hp

Compressed air receivers

2x Receivers each 355 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 20 litres - 30,0 bar

Bow thruster

1x Bow thruster 302 kW / 405 hp, forward

Pumps

Cargo:

10x Deepwell each 250 m³/h

2x Deepwell each 125 m³/h

1x Deepwell each 100 m³/h

Ballast:

2x Horizontal centrifugal each 300 m³/h

Maximum loading rate

1.500 m³/h

Number of cargo tanks

14

Cargo tank capacity 98%

Seg#1: 544,712 m³ (CTK. 1P)

Seg#2: 546,356 m³ (CTK. 1S)

Seg#3: 620,771 m³ (CTK. 2P)

Seg#4: 624,601 m³ (CTK. 2S)

Seg#5: 645,012 m³ (CTK. 3P)

Seg#6: 640,004 m³ (CTK. 3S)

Seg#7: 882,026 m³ (CTK. 4P)

Seg#8: 888,450 m³(CTK. 4S)

Seg#9: 280,883 m³ (CTK. 5P)

Seg#10: 277,491 m³ (CTK. 5S)

Seg#11: 820,513 m³(CTK. 6P)

Seg#12: 826,078 m³ (CTK. 6S)

Seg#13: 128,021 m³ (SLOP P)

Seg#14: 127,89 m³ (SLOP S)

Total: 7.596,89 m³ excluding slop tanks

Slop tank 98%

255,91 m³

Manifolds

Bow to centre manifold: 56,09 m

Stern to centre manifold: 53,80 m

Distance bridge front to centre of manifold: 28,59 m

Distance between cargo manifold centres: 1.016 mm

Distance ships rail to manifold: 3.950 mm

Distance manifold to ships side: 4.100 mm

Top of rail to centre of manifold: 522 mm

Distance main deck to centre of manifold: 1.735 mm

Fuel capacity

600,49 m³

Lifting equipment

1x Cranes - SWL 5,0 t

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Manager

Nakkas Shipping & Trading
Istanbul
Turkey

Technical & commercial operator

Nakkas Denizcilik ve Ticaret Limited Sirketi

Mecidiye Mah, Ismail Pasa, Sok. No. 37/A
Kosuyolu-Kadikoy

Istanbul
Turkey

Owner

Trefoil Maritime & Trading
Istanbul
Turkey

Registered owner

Maroil Maritime And Trading Ltd.

13/16 Vincenti Buildings,

Strait Street, VLT 1432,
Valletta

Malta

Renamed

08.2012 Boringia Swan - Middelfart - Denmark, call sign: 0WNY2

Latest data adjustment

23 december 2014
