| Westerschelde 16 October 2011 |
 |
| Westerschelde 16/10/11 |
|
Name |

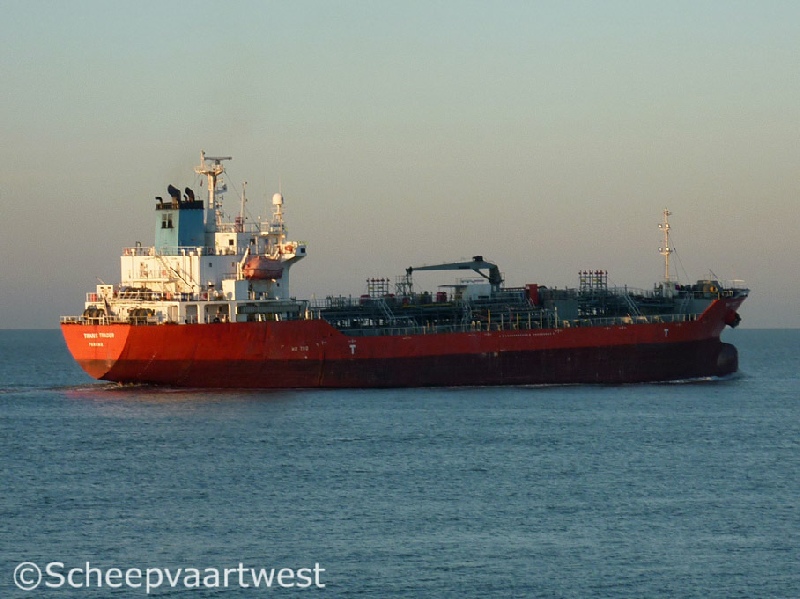

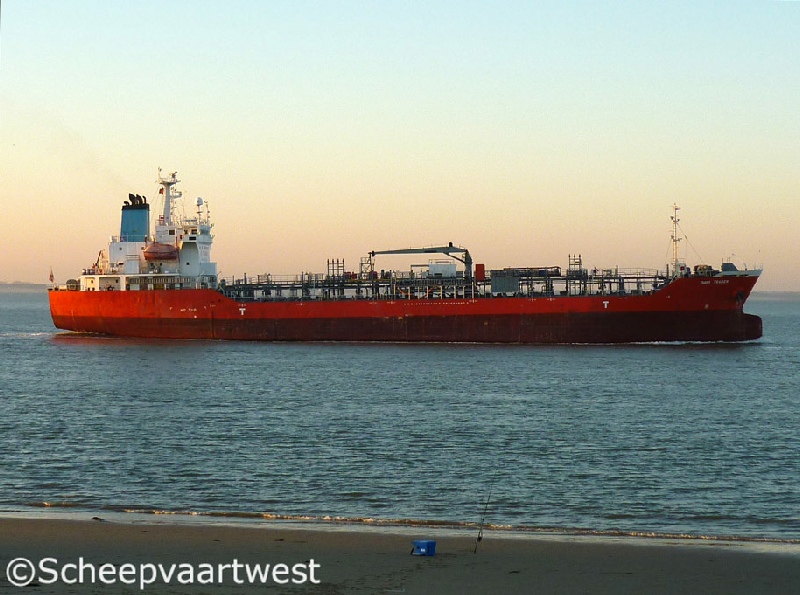

TRANS TRADER |
|
Previous names |
2005 - 10.04.2011 Chemical Trader |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9326213 |
|
Call sign |
3EAK6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
5.383 t |
|
DWT |
Summer: 8.801,92 t |
|
NT |
2.695 t |
|
Length |
112,00 m overall |
|
Breadth |
18,00 m |
|
Draught |
7,763 m |
|
Moulded L x B x D |
105,00 x 18,70 x 10,00 m |
|
Registered L x B x D |
105,29 x 18,70 x 10,00 m |
|
Freeboard |
Summer: 2.262 mm |
|
Depth |
10,00 m moulded |
|
Speed |
Max.: 14,2 knots Service: 13,0 knots |
|
Built |
2005 |
|
Keel laid |
01.11.2004 |
|
Launch date |
15.01.2005 |
|
Date of completion |
13.04.2005 |
|
Builder |
Shitanoe Shipbuilding Co., Ltd. |
|
Yard number |
1245 |
|
Hull type |
Double hull |
|
Main engine |
1x Man B&W 6L35MC - 2 stroke single acting 6 cylinder 350 x 1.050 mm diesel engine - 3.900 kW at 210,0 rpm Manufacturer: Makita Corporation |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 8,9 bar Evaporation: 12,71 t Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Diesel generatorsets - 1.300 kVA |
|
Cargo Capacity |
Liquid: 9.595 m³ |
|
Tank capacities |
Fuel oil: 697 m³ Fresh water: 261 m³ Water ballast: 2.574 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Manager |
Fleet Management Limited |
|
Operator |
Fleet Management 11/F, Dah Sing Financial Centre 108 Gloucester Road Wan Chai Hong Kong |
|
Owner |
Kimura Shoji |
|
Registered owner |
K.T. Neo Marine S.A. |
