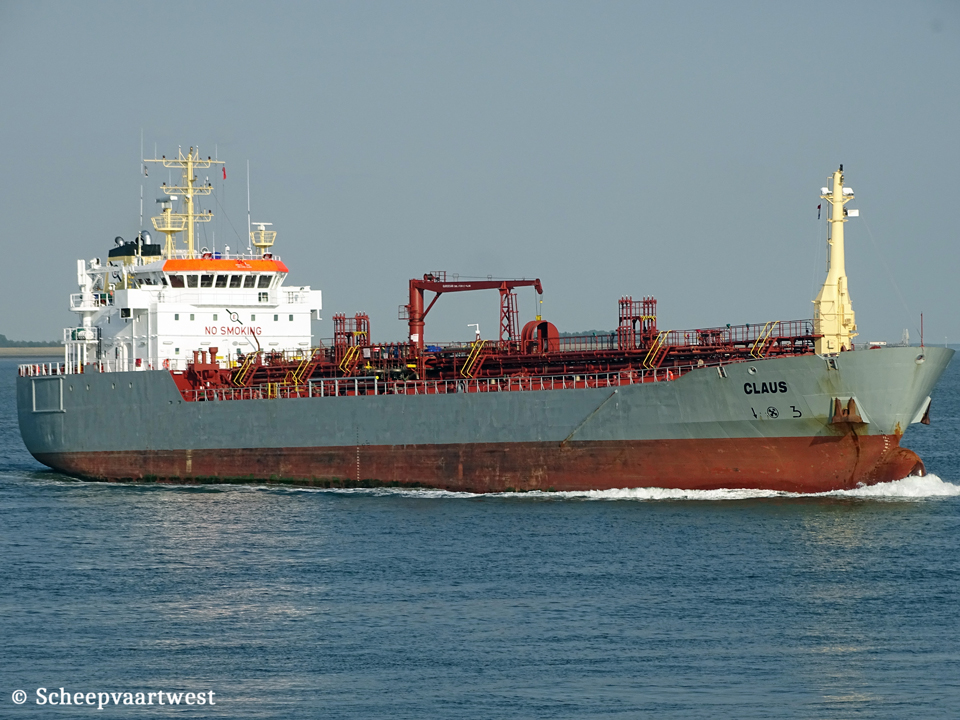

| Westerschelde 29 July 2019 |
 |
 |
 |
 |
 |
 |
|||||

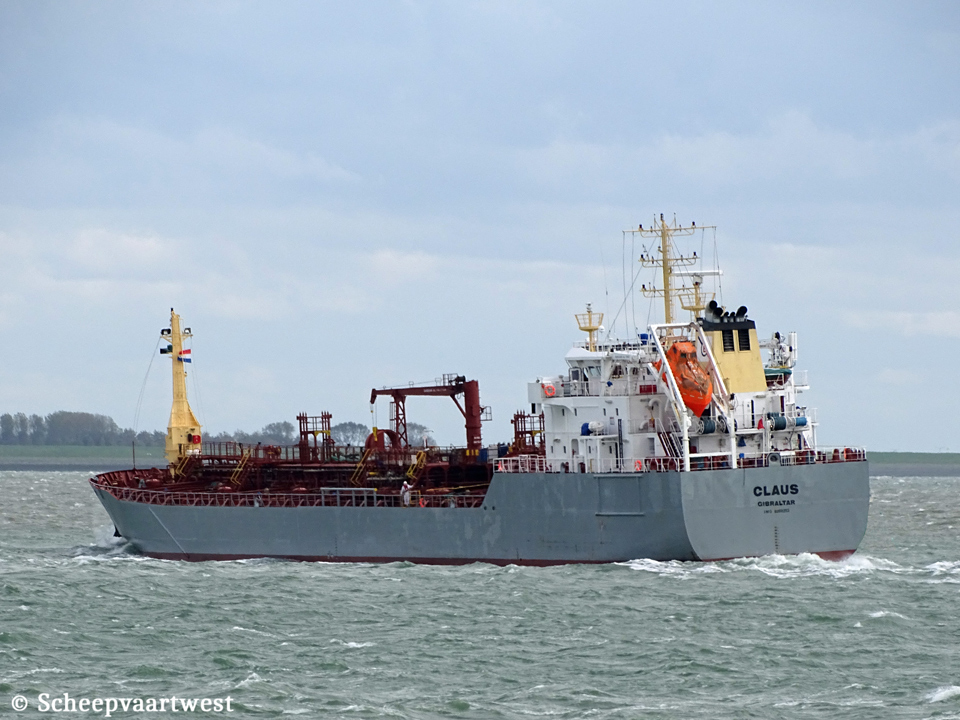

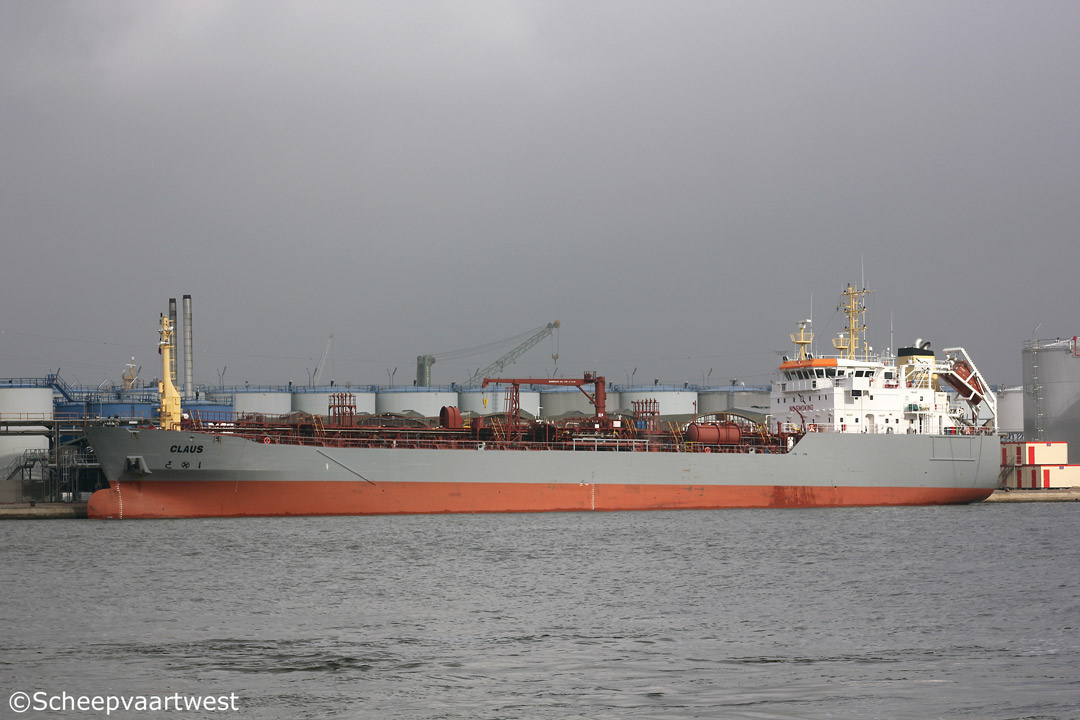

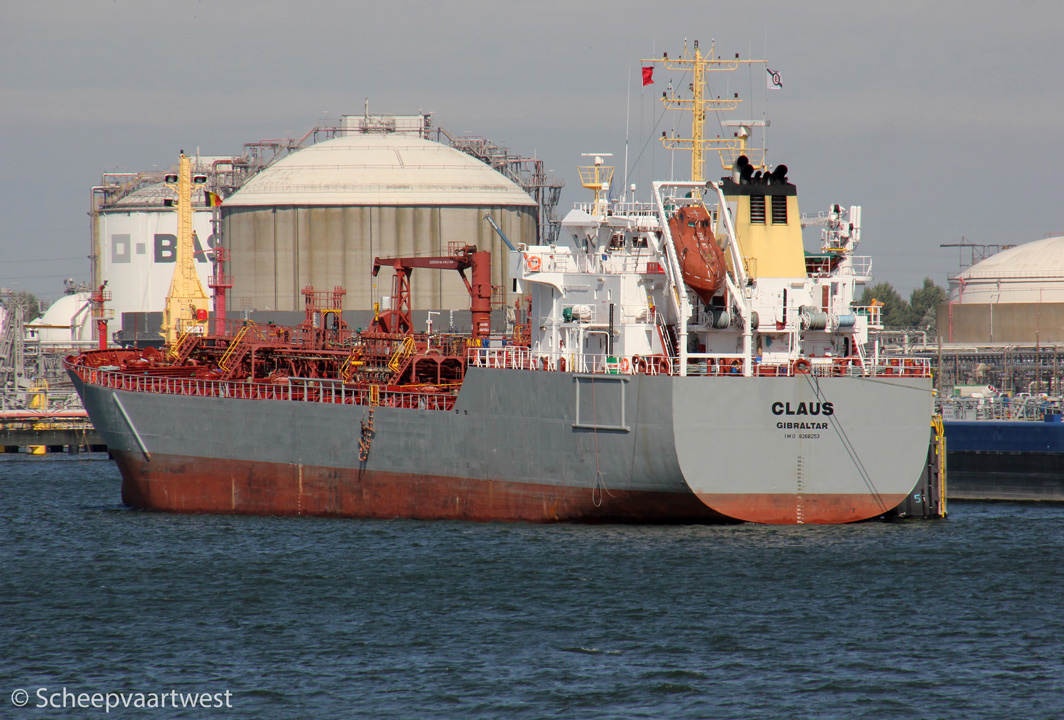

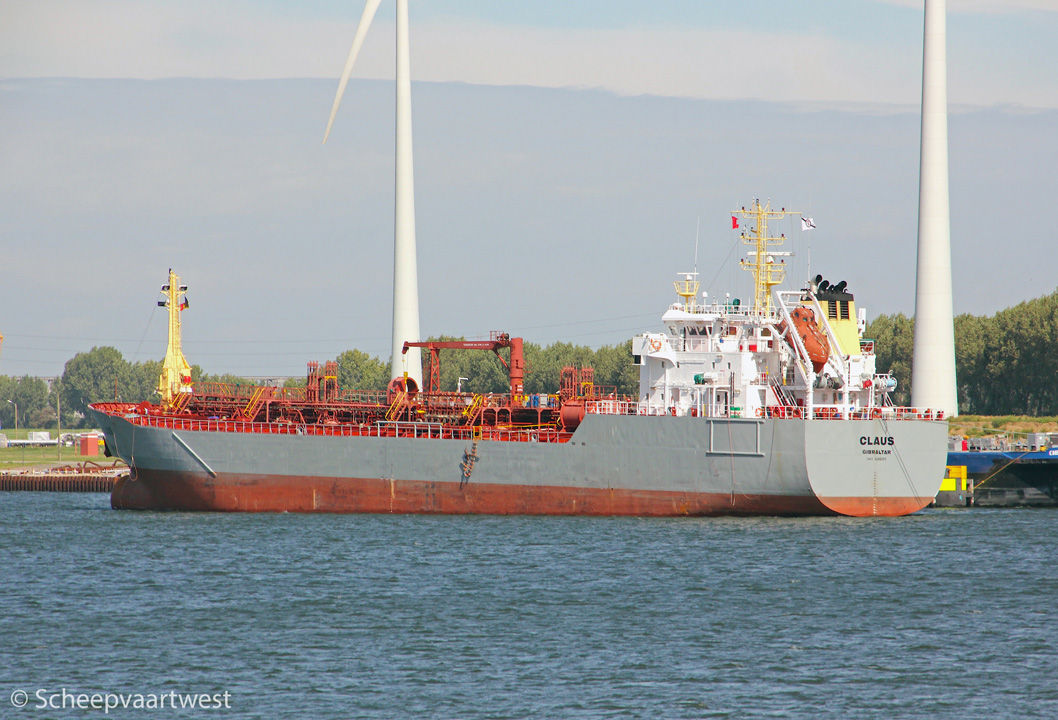

| Westerschelde 30/10/13 | Antwerpen 06/11/14 | Antwerpen 22/05/15 | Antwerpen 11/09/18 | Antwerpen 11/09/18 | Westerschelde 04/10/20 | |||||
|
Name |
CLAUS |
|
Type |
Oil & Chemicals tanker |
|
IMO-number |
9268253 |
|
Call sign |
ZDGN7 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
4.973 t |
|
DWT |
7.402 t |
|
NT |
2.249 t |
|
Length |
106,13 m overall 102,09 m registered 101,07 m between perpendiculars |
|
Breadth |
16,50 m registered 16,79 m extreme |
|
Draught |
7,45 m |
|
Poop |
22,44 m |
|
Depth |
10,60 m |
|
Speed |
12,5 knots |
|
Built |
2004 |
|
Keel laid |
04/11/2003 |
|
Launch date |
17/07/2004 |
|
Date of completion |
13/10/2004 |
|
Builder |
Sedef Gemi Insaati A.S. Tersaneler Yolu No:14 Tuzla 81700 Istanbul Turkey |
|
Yard number |
126 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK-Caterpillar 6M32C - 4 stroke 6 cylinder 320 x 480 mm combustion engine 2.880 kW at 600 rpm Year of manufacture: 2003 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 64,9 m² Year of manufacture: 2003 Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH 57647 Nistertal Federal Republic of Germany 1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 64,3 m² Year of manufacture: 2003 Manufacturer: Apparate- und Kesselbau AKB GmbH Baiertaler Str. 98 69168 Wiesloch Federal Republic of Germany |
|
Electric installations |
3x Plants each 440/220 V - 600 kVA 1x Plant 440 V - 1.200 kVA 1x Plant 440 V - 123,8 kVA 1x Plant 12 V - 200 Ah 1x Plant 12 V - 400 Ah |
|
Shaft generator |
1x 1.200 kVA |
|
Generators |
3x MAN D2840LE301 main diesel generatorsets each 600 kVA |
|
Emergency generator |
1x MAN D0824LE201 diesel generatorset 123,8 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 500 litres - 10,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster - 410 kW, forward |
|
Number of cargo tanks |
10 |
|
Liquid cargo |
9.199 m³ |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m Diameter: 42 mm |
|
Manager |
Carl F. Peters (GmbH & Co.) KG Kurze Mühren 13 20095 Hamburg Federal Republic of Germany |
|
Operator |
Carl F.Peters GmbH and Co. KG Shipmanagement |
|
Registered owner |
Eberhardt Tankers GmbH & Co. KG Rathausstr. 30 22941 Bargteheide Federal Republic of Germany |
|
Latest data adjustment |
01 August 2021 |
