| Westerschelde 31 October 2012 |
|
Name |

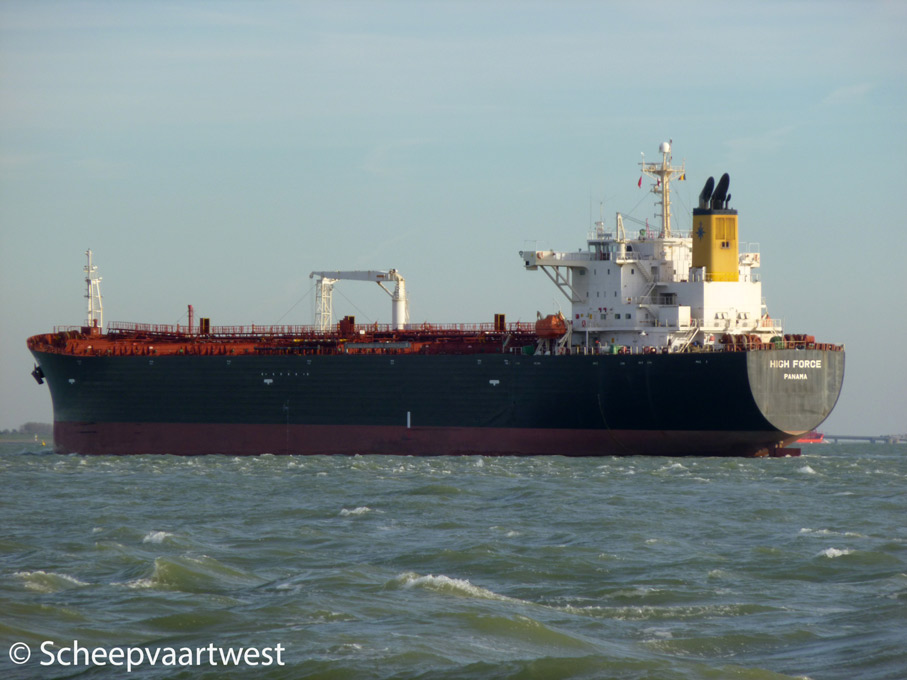

HIGH FORCE |
|
Type |
Oil carrier |
|
IMO-number |
9403346 |
|
Call sign |
3FMA2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
31.433 t |
|
DWT |
53.603 t |
|
NT |
14.001 t |
|
Length |
185,93 m overall |
|
Breadth |
32,00 m |
|
Draught |
13,02 m |
|
Moulded L x B x D |
179,95 x 32,20 x 19,67 m |
|
Registered L x B x D |
180,74 x 32,20 x 19,67 m |
|
Freeboard |
Summer: 6.684 mm |
|
Depth |
19,67 m moulded |
|
Speed |
15,8 knots |
|
Built |
2009 |
|
Keel laid |
23.02.2009 |
|
Launch date |
08.05.2009 |
|
Date of completion |
03.09.2009 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5552 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi-Kobe Diesel 6UEC60LS - 2 stroke single acting 6 cylinder 600 x 2.200 mm diesel engine - 10.620 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 18,61 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 2.895 kVA |
|
Number of tanks |
12 |
|
Cargo capacity |
Liquid: 60.334 m³ |
|
Tank capacities |
Fuel oil: 2.067 m³ Fresh water: 380 m² Water ballast: 20.586 m³ |
|
Crew |
22 |
|
Manager |
Fleet Management Limited |
|
Owner |
Fukujin Kisen |
|
Registered owner |
Wealth Line Inc. |
|
Last update |
15.05.2013 |
