| Deurne, Belgium 01 July 2013 |
 |
| Deurne 01/07/13 |
|

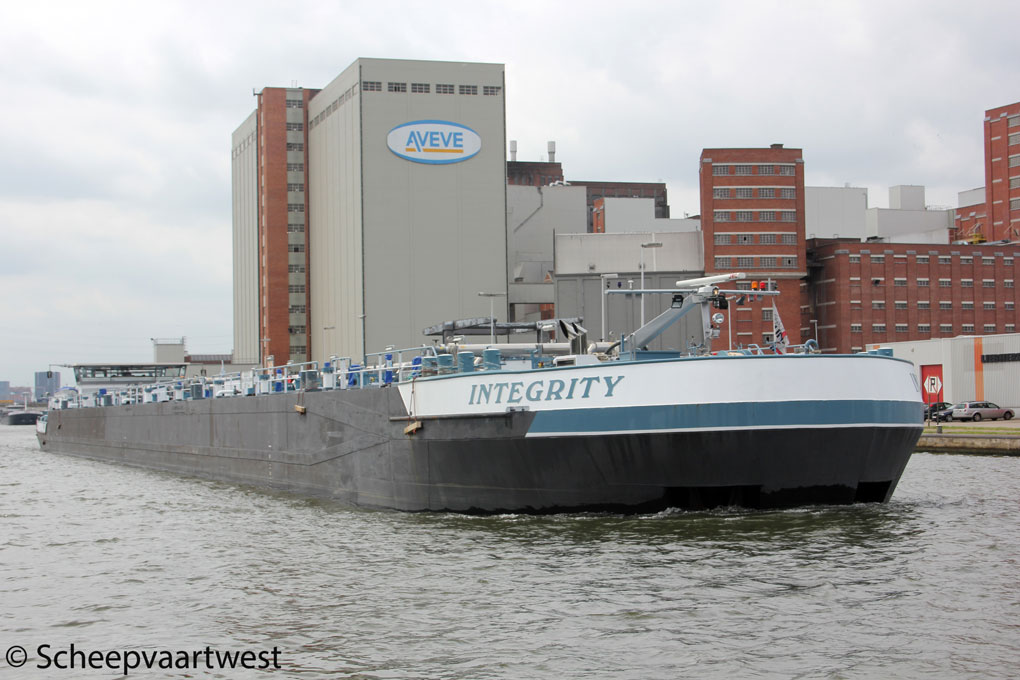

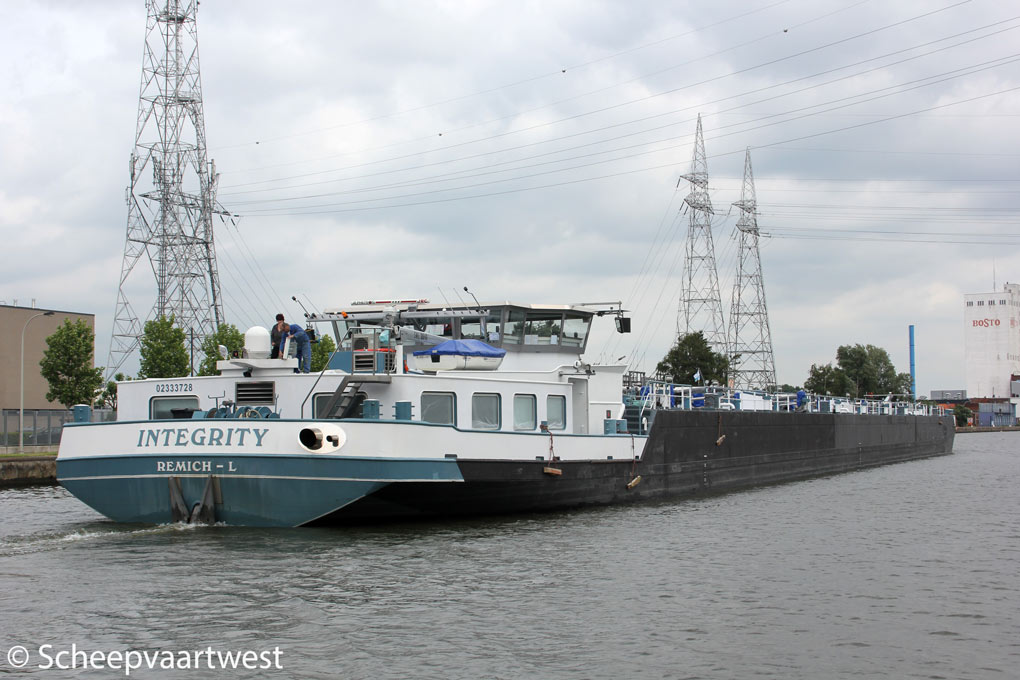

Name |
INTEGRITY |
|
Type |
Inland tanker |
|
ENI-number |
02333728 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Remich |
|
Tonnage |
1.455 t |
|
DWT |
3.130 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,80 m |
|
Depth |
4,40 m |
|
Built |
2011 |
|
Date of completion |
06.07.2011 |
|
Builder casco |
Zhenjiang HongXing Shipbuilding Co. Ltd. |
|
Builder completion |
TeamCo Shipyard |
|
Yard number |
08NNE0153 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic - 4 stroke 12 cylinder diesel engine1.193 kW / 1.622 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine type MM W7200 - reduction: 4,925:1 |
|
Propellers |
1x Screw propeller solid |
|
Diesel generators |
1x 81 kVA - 65 kW - 113 hp |
|
Bow thruster |
1x Caterpillar - Verhaar Omega-Jet type 31130-4k - 535 hp / 393 kW at 1.780 rpm |
|
Pumps |
10x MarFlex electric driven cargo pumps type MDPD-80 each 100 m³/h |
|
Tank capacity |
3.800 m³ |
|
Fuel capacity |
100 m³ |
|
Owner |
Pamela Shipping SA |
|
Last update |
12 July 2013 |
