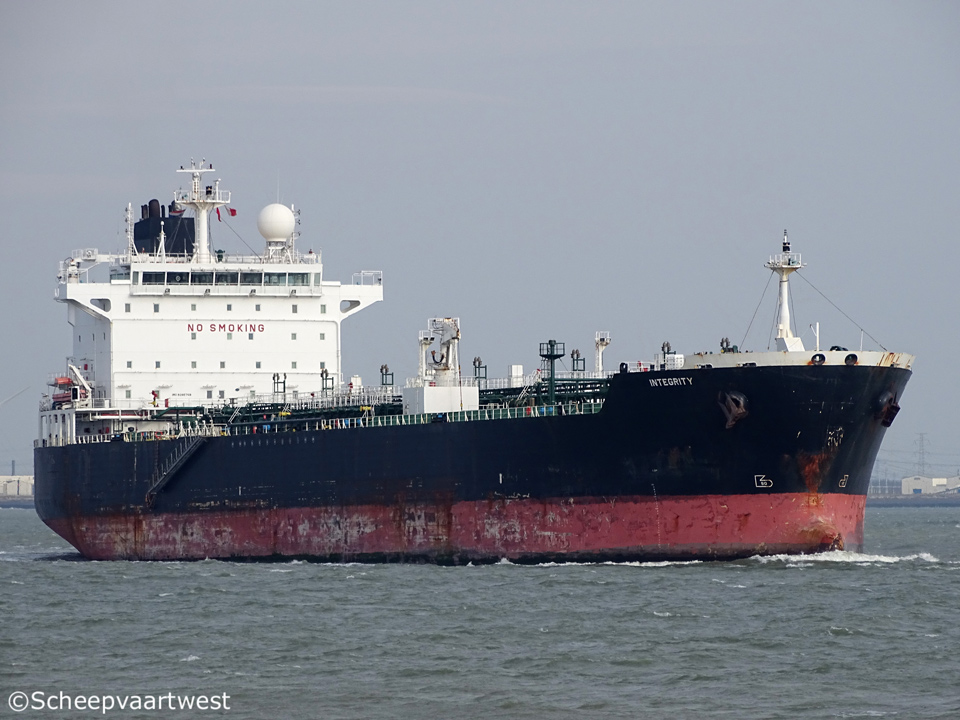

Name
|
INTEGRITY
|
|
Previous names
|
2004 - 2016 British Integrity
|
|
Type
|
Crude oil tanker
|
|
IMO-number
|
9288758
|
|
Call sign
|
MGGF9
|
|
Flag
|
Isle of Man - United Kingdom
|
|
Port of registry
|
Douglas
|
|
GT
|
29.335 t
|
|
DWT
|
Summer: 46.803 t
|
|
NT
|
11.917 t
|
|
Length
|
183,22 m overall
|
|
Breadth
|
32,00 m
|
|
Draught
|
12,22 m
|
|
Reg. dimensions L x B x D
|
175,55 x 32,20 x 18,80 m
|
|
Rule dimensions L x B x D
|
174,00 x 32,20 x 18,80 m
|
|
Freeboard
|
Summer: 6.613 mm
|
|
Depth
|
18,80 m
|
|
Speed
|
15,2 knots
|
|
Built
|
2004
|
|
Keel laid
|
28/06/2004
|
|
Launch date
|
16/09/2004
|
|
Date of completion
|
11/11/2004
|
|
Builder
|
Hyundai Mipo Dockyard Co.,Ltd.
Ulsan
South Korea
|
|
Yard number
|
0331
|
|
Hull material
|
Steel
|
|
Hull type
|
Double hull
|
|
Main engine
|
1x 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm
Built: 06/2004
Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division
|
|
Propellers
|
1
|
|
Boilers
|
1xAuxiliary Water tube boiler - 9,0 bar
2x Economizer EGE - 12,0 bar
Built: 07/2004
Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea
|
|
Generators
|
3x Main diesel generatorsets each 925 kVA / 450 Volt
|
|
Cargo tank capacity
|
Liquid: 53.888 m³
|
|
Tank capacities
|
Fuel oil: 1.472,4 m³
Fresh water: 419,4 m³
Water ballast: 24.344,8 m³
|
|
Crew size
|
34
|
|
Manager
|
Sinokor Petrochemical Co., Ltd.
10F Haenam Building Taepyeongn
64 Sejong-daero Jung-gu
Seoul, 04526
Korea, Republic of (South)
|
|
Technical manager
|
Fleet Management Limited
|
|
Owner
|
British Integrity Co., Limited
|
|
Latest data adjustment
|
19 June 2018
|
