| Antwerpen 05 July 2013 |
|
Name |

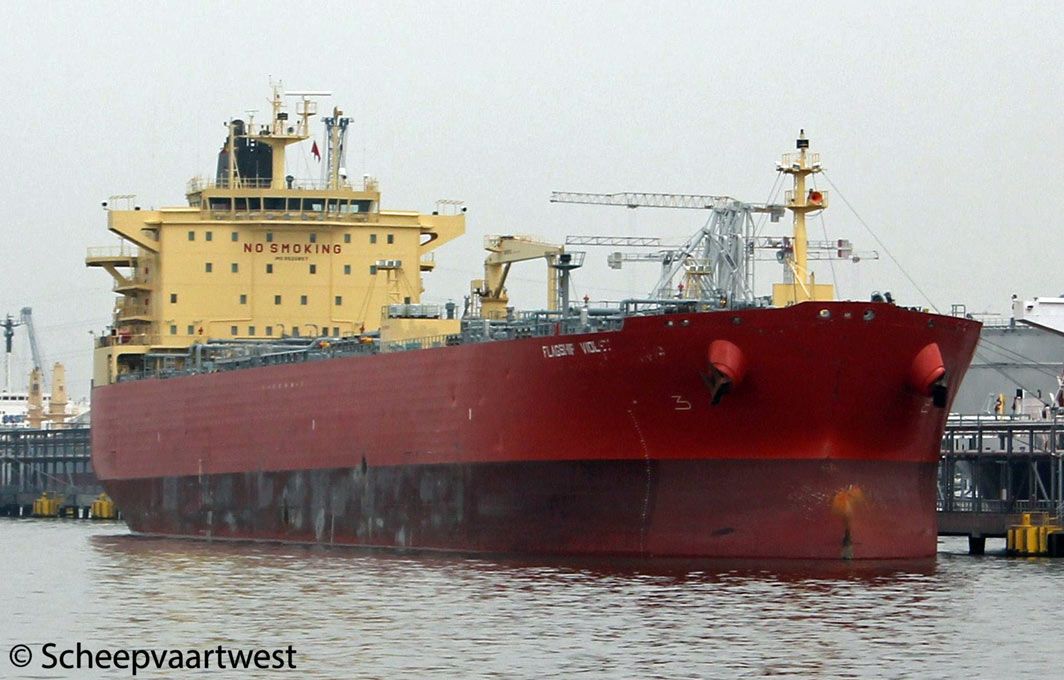

FLAGSHIP VIOLET |
|
Previous names |
2011 - 10.2012 Rio Luxembourg |
|
Type |
Oil products tanker |
|
IMO-number |
9520857 |
|
Official number |
4853 |
|
Call sign |
V7VI9 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
GT |
42.816 t |
|
DWT |
Summer: 74.999 t |
|
NT |
21.937 t |
|
Length |
228,24 m overall 219,00 m between perpendiculars 221,03 m registered |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 14,57 m |
|
Depth |
21,00 m moulded |
|
Speed |
17,5 knots |
|
Built |
2011 |
|
Keel laid |
09.08.2010 |
|
Launch date |
29.10.2010 |
|
Date of completion |
31.01.2011 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
2273 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai B&W 6S60MC-C8 - 2 stroke 6 cylinder 600 x 2.400 mm diesel engine - 13.560 kW at 105,0 rpm Year of manufacture: 2010 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 105,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 15,0 m² 1x Steam boiler; exhaust gas heated- 9,0 bar Heating surface: 285,0 m² Year of manufacture: 2010 Manufacturer: Alfa Laval Aalborg A/S 1x Steam boiler, oil fired - 12,0 bar Heating surface: 143,0 m² Year of manufacture: 2010 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
3x Plants each 450 V - 1.062,5 kVA 1x Plant 450 V - 187,5 kVA 3x Plants each 7 V - 3 Ah 1x Plant 7 V - 11 Ah 1x Plant 7 V - 13 Ah 1x Plant 12 V - 16 Ah 1x Plant 12 V - 88 Ah 2x Plants each 24 V - 2 Ah 2x Plants each 24 V - 24 Ah 2x Plants each 24 V - 65 Ah 2x Plants each 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 1x Plant 230 V - 8 Ah |
|
Generators |
3x Main diesel generatorsets each 1.062,5 kVA |
|
Emergency generator |
1x Diesel generatorset 187,5 kVA |
|
Batteries |
12x Batteries for emergency lighting each 300 Ah 12x Batteries for UPS radio each 200 Ah 2x Batteries for start emergency engine each 200 Ah 1x Battery for start main engine 88 Ah 2x Batteries for diesel control each 65 Ah 2x Batteries for automation each2 4 Ah 1x Battery for start main engine 16 Ah 1x Battery for UPS navigation 13 Ah 1x Battery for UPS radio 11 Ah 1x Battery for UPS navigation 4 Ah 1x Battery for UPS navigation 4 Ah 3x Batteries for UPS radio each 3 Ah 2x Batteries for other purpose each 2 Ah |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 32,37 bar 1x Receiver 250 litres - 32,37 bar 1x Receiver 250 litres - 7,7 bar 2x Receivers each 3.500 litres - 7,55 bar |
|
Anchor equipment |
3x Anchors weight each 11100 kg Chain length: 687,50 m |
|
Crew size |
32 |
|
Manager |
Prime Tanker Management Inc. |
|
Owner |
Flagship Violet Inc. |
|
Last update |
28 July 2013 |
