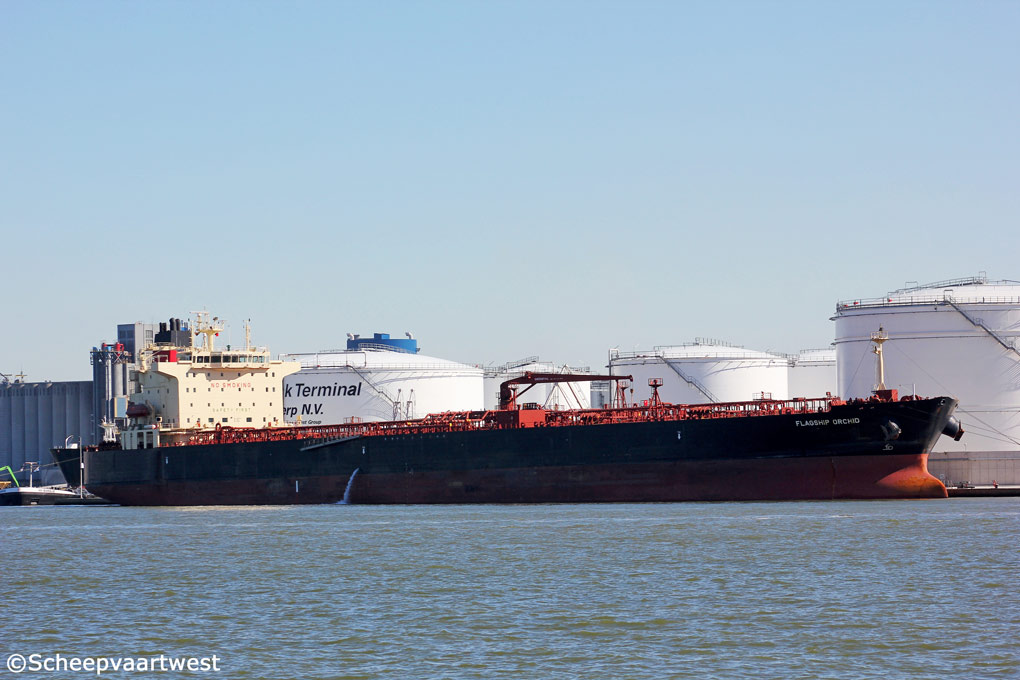

Antwerpen 12 March 2015 |
 |

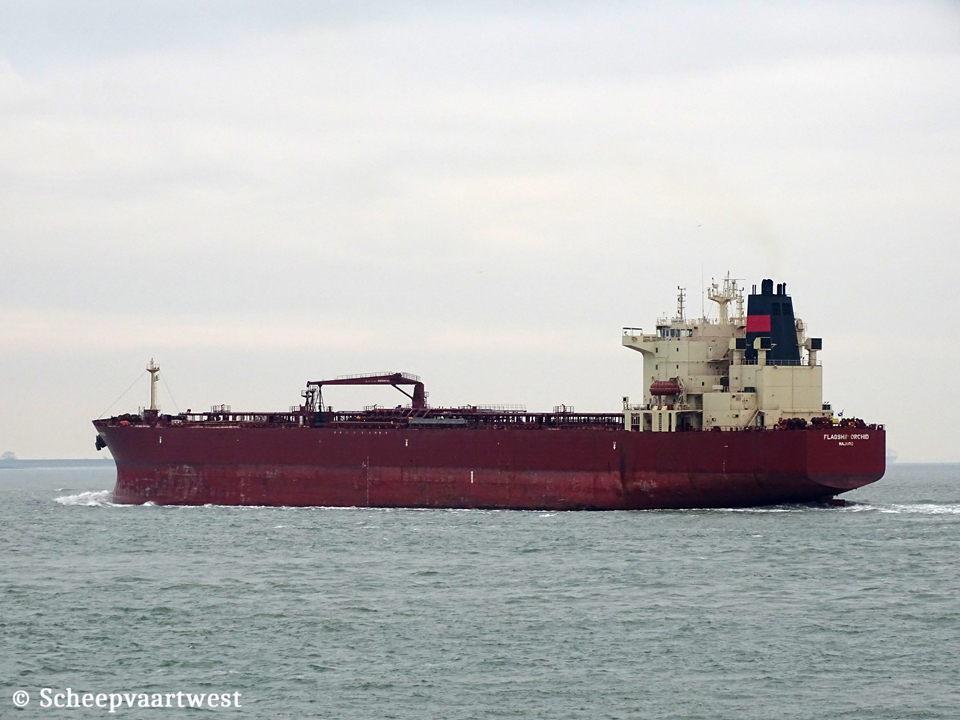

| Westerschelde 25/11/20 |
|
Name |
FLAGSHIP ORCHID |
|
Previous names |
2012 Launch as: Panagia 07/2012 Flagship Orchid |
|
Type |
Crude oil tanker / Oil products tanker - Panamax |
|
IMO-number |
9456939 |
|
Call sign |
V7YE4 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
GT |
42.208 t |
|
DWT |
Summer: 74.577 t |
|
NT |
22.056 t |
|
Lightship |
14.529 t |
|
Length |
228,48 m overall 219,00 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
14,50 m |
|
Keel to mast end |
52,75 m |
|
Depth |
20,90 m moulded |
|
Speed |
14,5 knots |
|
Built |
2012 |
|
Keel laid |
09/09/2011 |
|
Launch date |
20/10/2012 |
|
Date of completion |
16/07/2012 |
|
Builder |
Hyundai Mipo Dockyard Ulsan South Korea |
|
Yard number |
2299 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S60MC-C8 - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 10.620 kW / 14.439 hp at 96,6 rpm Builder: Hyundai Engine & Machinery Co., Ltd. (B&W), Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Main diesel generatorsets each 800 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 82.000 m³ |
|
Slop tank capacity |
2.215 t |
|
Number of pumps |
12x Framo cargo pumps each 900 m³/h |
|
Tank capacities |
Ballast: 25.702 m³ Diesel oil: 161,1 t Fresh water: 392,8 t Fuel oil: 1.952 t Lub oil: 168,9 t |
|
Lifting equipment |
1x Hose crane |
|
ISM & commercial manager |
Prime Marine Management Inc. 4, Possidonos Avenue 176 74 Kallithea Athens Greece |
|
Registered owner |
Orchid Shipping LLC - Marshall Islands Care of Prime Tanker Management Inc. 4, Poseidonos Avenue Kallithea, 176 74 Athens Greece |
|
Latest data adjustment |
08 May 2022 |
