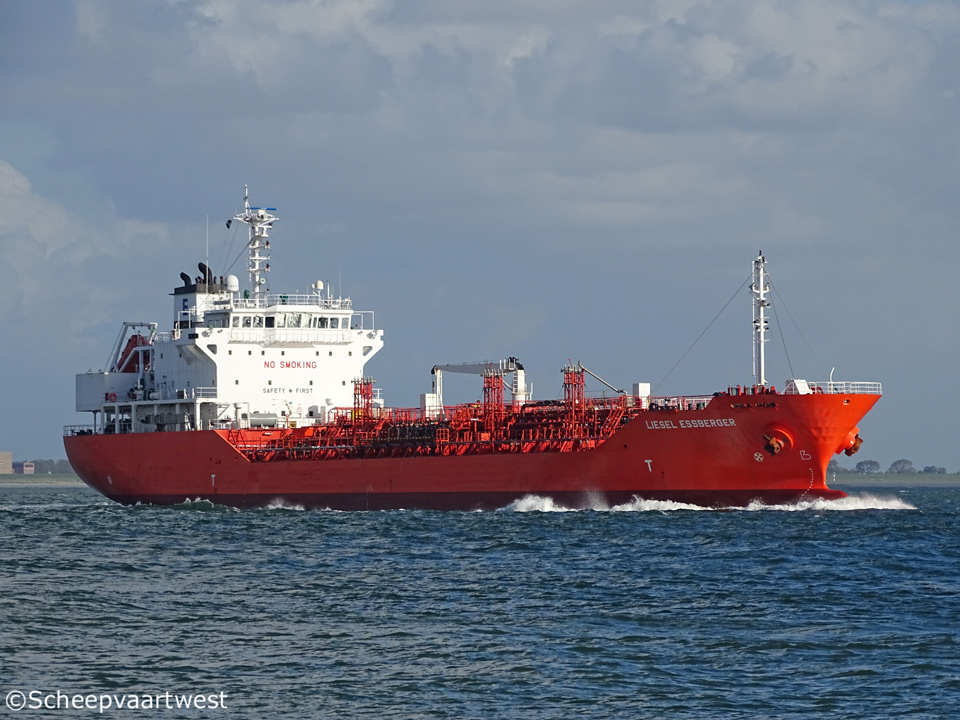

Liesel Essberger 04
Westerschelde 03 October 2017

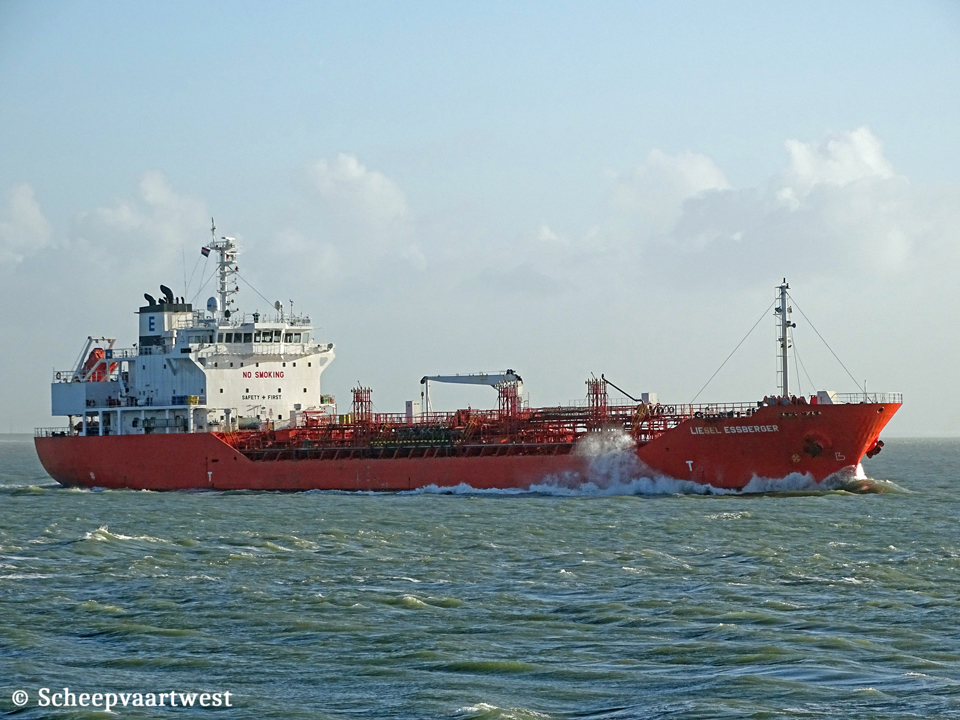

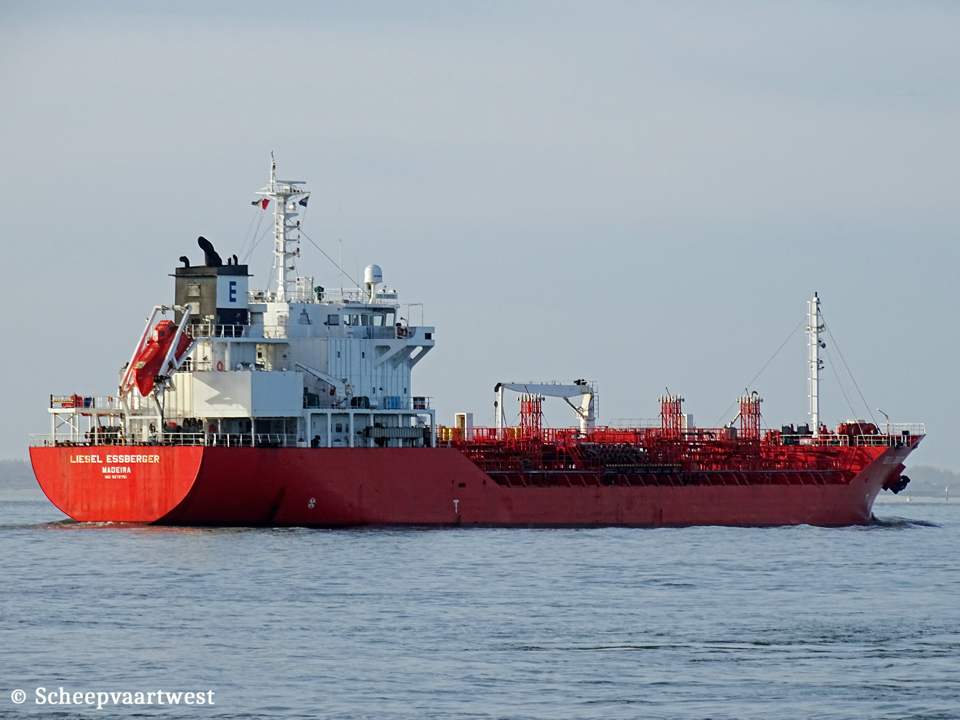

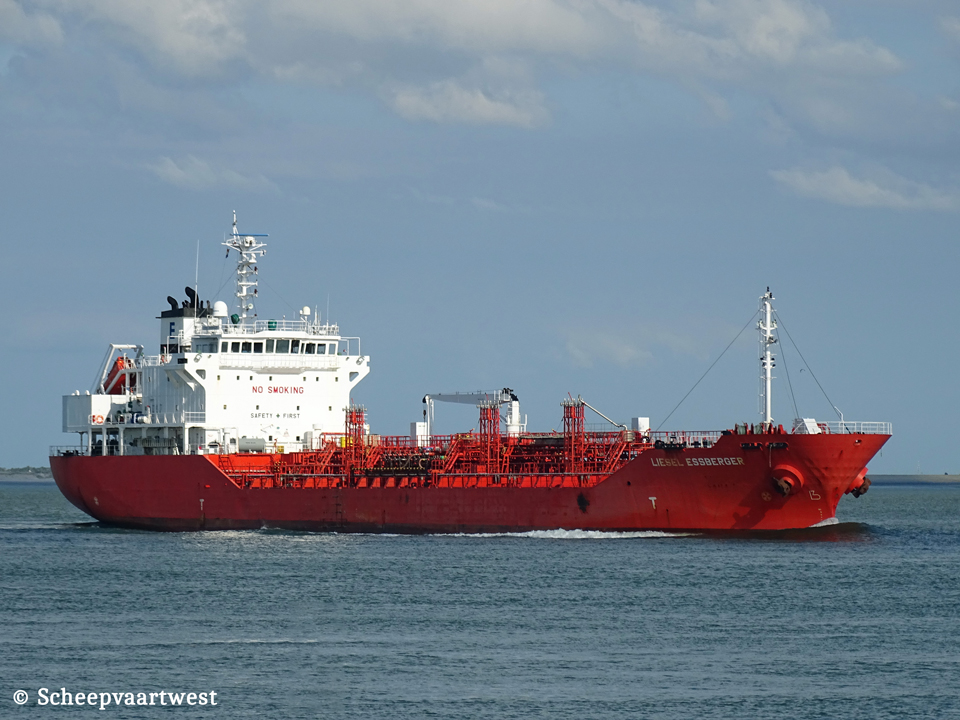

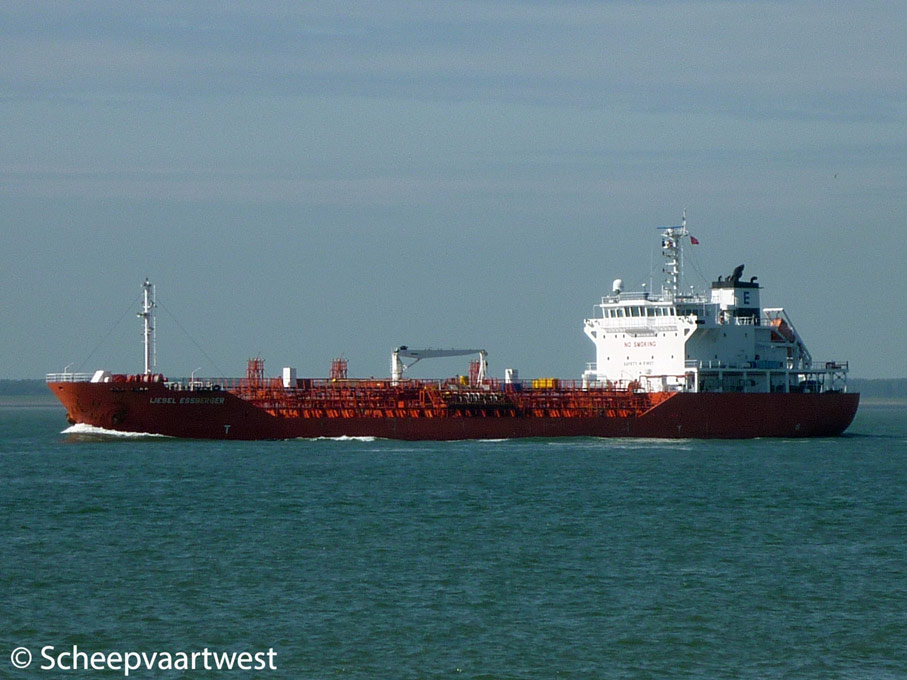

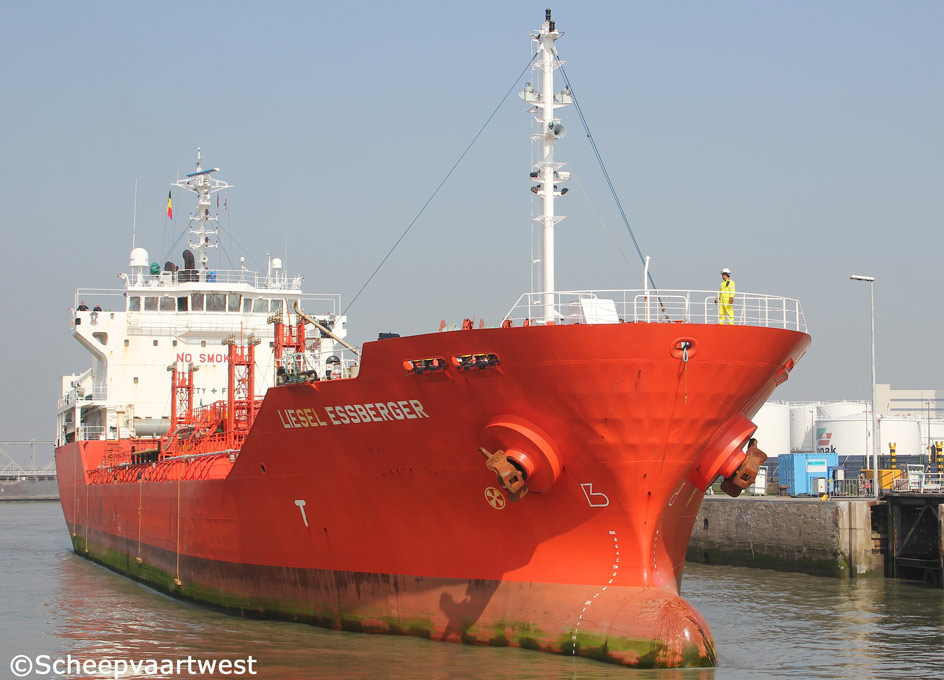

Liesel Essberger 01   Liesel Essberger 03   Liesel Essberger IMO 9272761 05   Liesel Essberger IMO 9272761 06   Liesel Essberger IMO 9272761 07   Liesel Essberger IMO 9272761 08
Westerschelde 10/06/12 Antwerpen 09/04/15 Westerschelde 22/12/18   Westerschelde 14/08/16   Westerschelde 01/01/16   Westerschelde 01/01/16


Name

LIESEL ESSBERGER

Previous names

2004 - 08.2008 Cape Everad

2008 - 06/2011 UCT Everad

Type

Chemical / Oil products tanker

IMO-number

9272761

Call sign

CQLN

Flag

Portugal

Port of registry

Madeira

GT

5.955 t

DWT

8.545 t

NT

2.533 t

Length

118,00 m overall

111,06 m registered

Breadth

18,80 m registered

Draught

7,35 m

Keel to mast end

34,40 m

Depth

9,70 m moulded

Speed

14,0 knots

Built

2004

Keel laid

10/10/2003

Launch date

10/02/2004

Date of completion

31/05/2004

Builder

Sasaki Shipbuilding Co., Ltd.

65-1, Kinoe, Osakikamijima-ch Toyota-gun

Kinoe ,725-0401 Hiroshima-ken

Japan

Yard number

648

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

11

Continuous decks

1

Main engine

1x Hitachi/MAN-B&W 6S35MC - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.060 hp at 173 rpm

Year of Manufacture: 2003

Manufacturer: Hitachi Zosen Corporation Sakurajima Works

7-89, Nanko-kita 1-chome Suminoe-ku

Osaka ,559-8559 Osaka-fu

Japan

Propellers

1x Fixed pitch propeller - aft at 173 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 10,0 m²

1xSteam boiler, exhaust gas heated - 10,0 bar

Heating surface: 60,0m²

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 81,0 m²

Year of Manufacture: 2003

Manufacturer: Alfa Laval Qingdao Ltd.

86 Guangzhou Road North Jiaozhou

Qingdao ,266300 Shandong

People's Republic of China

Electric installations

3x Plants each 440 V - 700 kVA

1x Plant 440 V - 65 kVA

Generators

3x Yanmar N18AL-SV main diesel generatorsets each 700 kVA

Emergency generator

1x Deutz F6L912 diesel generatorset 65 kVA

Compressed air receivers

2x Receivers each 1200 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

Thruster

1x 475 kW - aft

1x 475 kW - forward

Number of cargo tanks

18

Cargo tank capacity

Liquid: 9.083 m³

Number of pumps

10x Cargo pumps each 300 m³/h

4x Cargo pumps each 200 m³/h

4x Cargo pumps each 100 m³/h

Tank capacities

Fuel capacity: 612 m³

Anchor equipment

3x Anchors weight each 3.540 kg

Chain length: 522,50 m

Diameter: 52 mm

Crew size

17

ISM & commercial manager

John T. Essberger GmbH & Co. KG

Palmaille 45

22767 Hamburg

Federal Republic of Germany

Registered owner

"LIESEL ESSBERGER" Tankreederei GmbH & Co. KG

Palmaille 45

22767 Hamburg

Federal Republic of Germany

Latest data adjustment

10 March 2022
