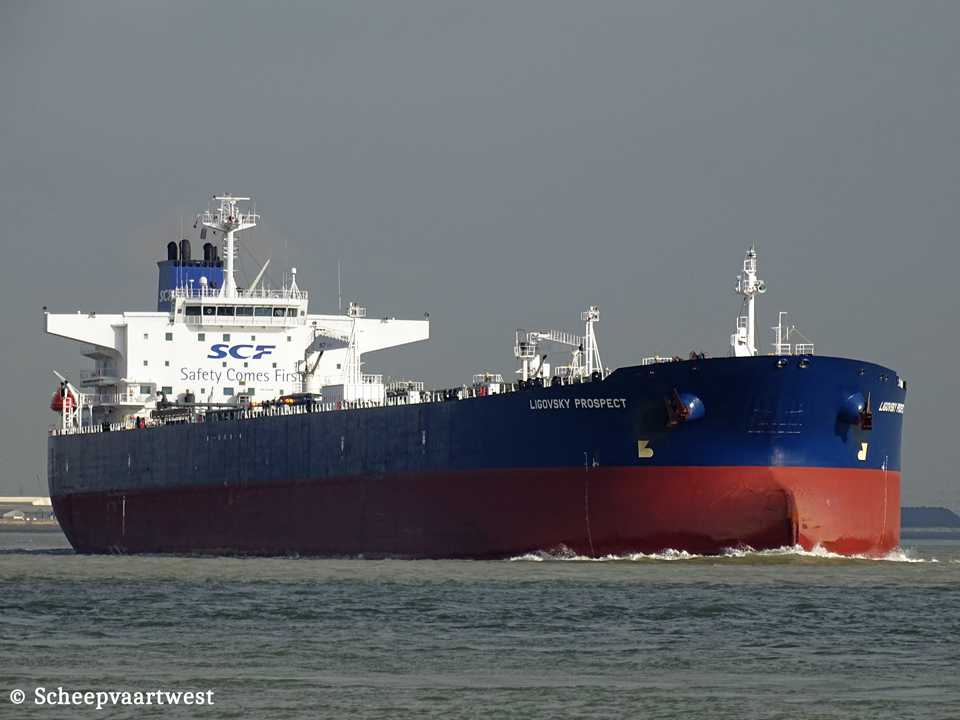

Ligovsky Prospect IMO 9256066 02

Westerschelde 05 March 2016

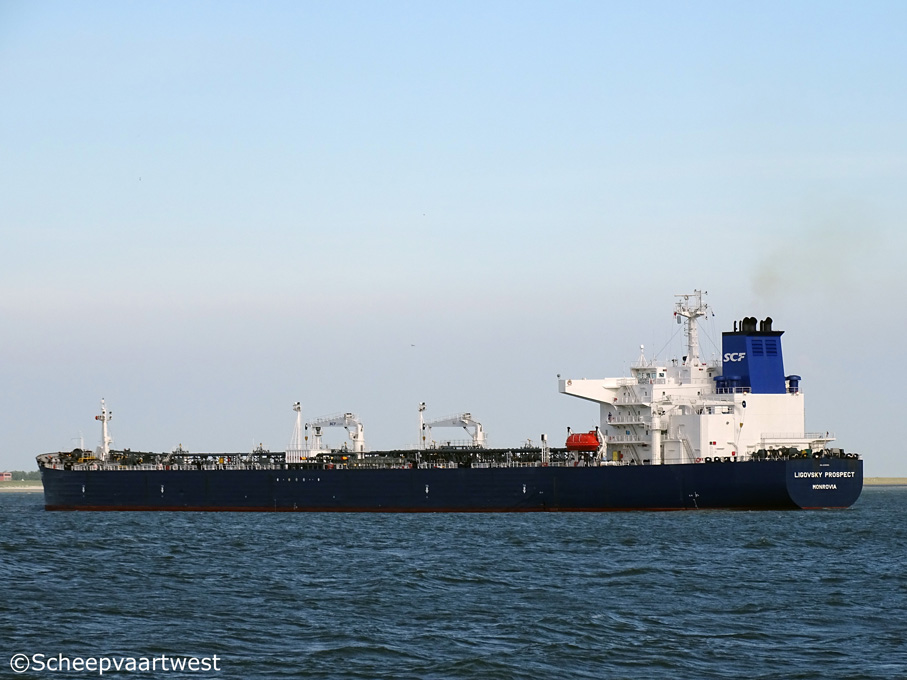

Ligovsky Prospect 01
Westerschelde 15/07/16


Name

LIGOVSKY PROSPECT

Type

Crude oil tanker - Aframax tanker

IMO-number

9256066

Call sign

A8AP5

Flag

Liberia

Port of registry

Monrovia

GT

62.586 t registered

Suez: 64.368 t

DWT

Summer: 114.639,5 t

NT

34.823 t registered

Suez: 57.786 t

Length

249,90 m overall

239,00 m between perpendiculars

Breadth

44,00 m moulded

Draught

14,80 m loaded

Freeboard

6.216 mm

Depth

21,00 m moulded

Speed

15,1 knots

Built

2003

Keel laid

19/05/2003

Launch date

23/08/2003

Date of completion

28/10/2003

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Geoje

South Korea

Yard number

5231

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 3

Gas tight: 1

Oil tight: 11

Main engine

1x HSD/MAN-B&W 5S70MC-C - 5 cylinder 700 x 2.800 mm combustion engine 15.519 kW / 21.100 hp at 91,0 rpm

Manufacturer: HSD Engine CO., LTD

Propellers

1

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Exhaust gas economizer

2x Auxiliary boiler

Manufacturer: Aalborg Industries Ltd.

Generators

3x Main diesel generatorsets each 750 kW

Manufacturer: HHI, Electro Electric System

Number of cargo tanks

14

Cargo tank capacity 100%

130.015,6 m³

Number of tanks

Ballast: 14

Fuel oil: 7

Lubricating oil: 7

Fresh water: 4

Diesel oil: 4

Chain: 2

Sludge: 2

Waste water: 1

Tank capacities 100%

Diesel Oil: 216,4 m³

Freshwater: 405,7 m³

Fuel Oil: 3.635,1 m³

Lube Oil: 311,6 m³

Tank Ballast: 42.345,4 m³

Lifting equipment

1x Engine room crane - SWL 6,0 t

Manufacture: Dongwoo Machinery & Engineering Co., Ltd.

2x Hose handling crane - SWL 15,0 t

2x Provision cane - SWL 6,0 t

Manufacturer: Dong Woo Machinery & Engineering

Technical manager

SCF Management Services - Dubai, Ltd.

Commercial manager

Unicom Management Services (Cyprus) Ltd.

Limassol

Cyprus

Registered owner

Progress Shipping Company Limited

80 Broad Street

Monrovia

Liberia

Latest data adjustment

03 May 2023
