| Merksem 17 August 2013 |
|
Name |

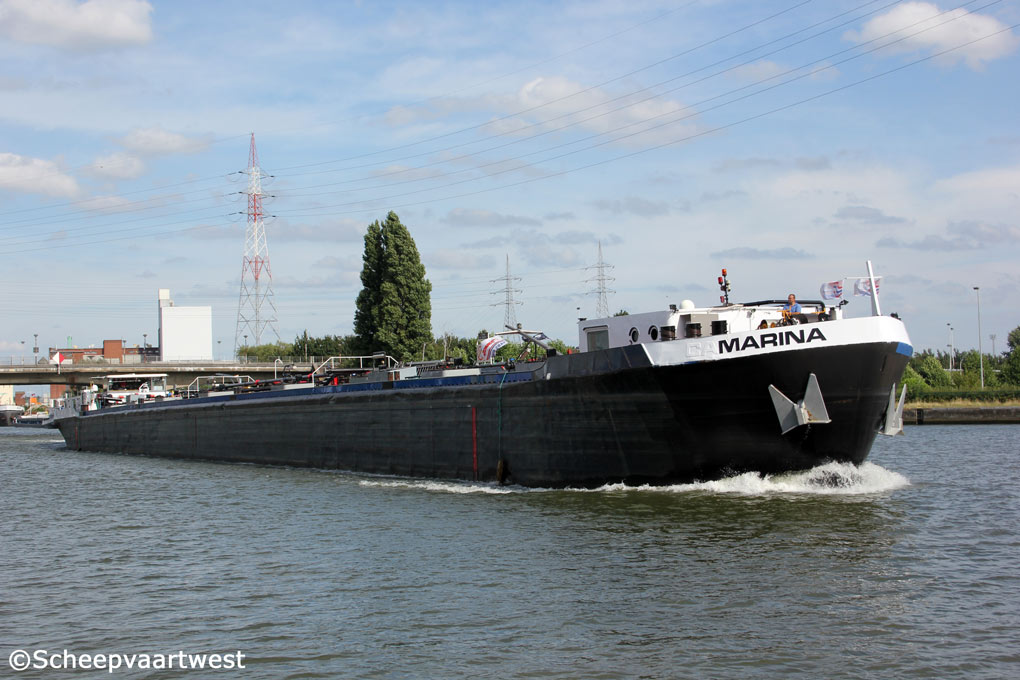

MARINA |
|
Previous names |
1973 Uniontank 6 - EU-number 4023920 1977 Innovatie VI 1980 Neutron 1985 Camaris 1986 Marina |
|
Type |
Inland tanker |
|
ENI-number |
02315116 |
|
Call sign |
PE7081 |
|
Flag |
The Netherlands |
|
Port of registry |
Zwijndrecht |
|
Tonnage |
2.222,952 t |
|
Length |
109,90 m |
|
Breadth |
9,04 m |
|
Draught |
3,13 m |
|
Depth |
3,75 m |
|
Built |
1973 03.1992 Ship lengthened |
|
Launch date |
17.03.1973 |
|
Date of completion |
05.1973 |
|
Builder |
Wroclawska Stocznia Rzeczna |
|
Yard number |
362/2 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 DITA - 4 stroke 12 cylinder 170 x 190 mm diesel engine - 954 kW / 1.280 hp at 1.600 rpm Year of manufacture: 2001 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Solid propeller - aft at 355 rpm |
|
Electric installations |
1x Plant 380/220 V - 17 kVA 1x Plant 380/220 V - 30 kVA 1x Plant 380/220 V - 36 kVA 1x Plant 24/220 V - 2 kW |
|
Generators |
1x Main generator 36 kVA 1x Main generator 30 kVA 1x Main generator 17 kVA 1x Generator 2 kW |
|
Compressed air receivers |
2x Receivers each 400 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 191 kW, forward |
|
Number of cargo tanks |
16 |
|
Cargo tank capacity |
2.835 m³ |
|
Owner |
Marina Tanktransporten BV |
|
Registered owner |
Marinus Brand |
|
Previous names & owner |
1973 Uniontank 6 - Wiestrach, Berlijn - Germany 1977 Innovatie VI - Gefonzo BV, Rotterdam - The Netherlands 1980 Neutron - L. Vogel, Sneek - The Netherlands 1985 Neutron - Concilia BV, Zwijndrecht - The Netherlands 1985 Camaris - Wencar Scheepvaartonderneming BV, Rotterdam - The Netherlands 1986 Marina - M. Brand, Hendrik Ido Ambacht - The Netherlands 1991 Marina - Marina Tanktransporten BV, Zwijndrecht - The Netherlands |
|
Last data update |
02 December 2013 |
