Westerschelde 10 January 2017 |
|
Name |

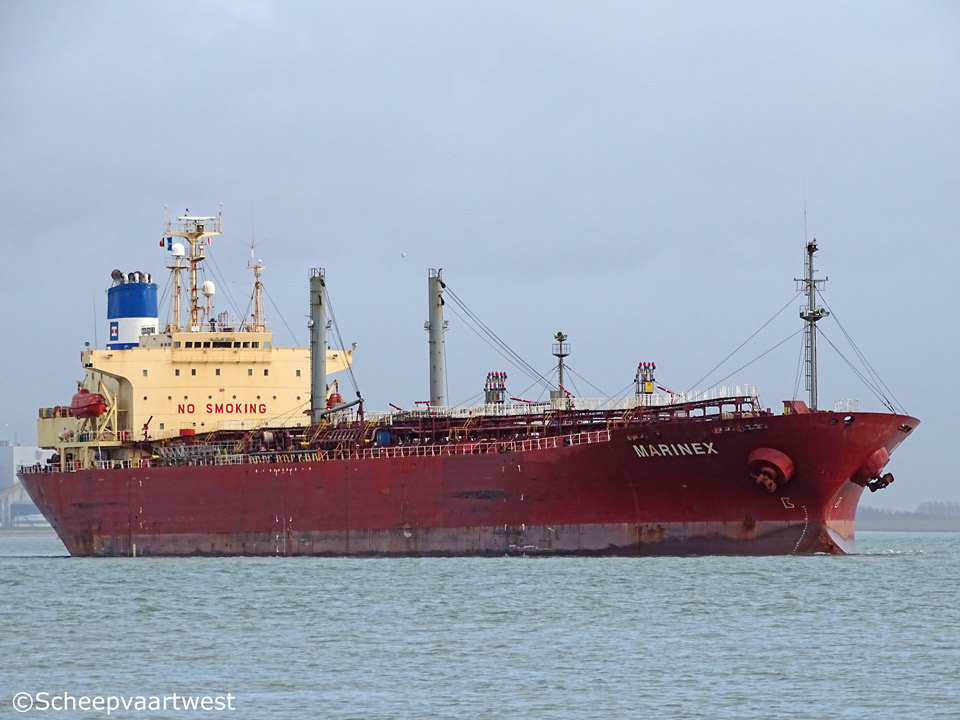

MARINEX |
|
Previous names |
06/1994 - 08/2007 Maui Exporter |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9074420 |
|
Call sign |
LADI7 |
|
Flag |
Norway |
|
Port of registry |
Stavanger |
|
GT |
20.593 t |
|
DWT |
Summer: 31.206 t |
|
NT |
7.214 t |
|
Displacement |
Summer: 38.975 t Winter: 38.111 t |
|
Length |
175,00 m overall 166,00 m between perpendiculars |
|
Breadth |
27,73 m extreme |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Air draft |
36,92 m in ballast |
|
Freeboard |
Summer: 6.014 mm Winter: 6.220 mm |
|
Depth |
16,00 m |
|
Speed |
Service: 14,2 knots |
|
Built |
1994 |
|
Keel laid |
15/11/1993 |
|
Launch date |
01/01/1994 |
|
Date of completion |
27/06/1994 |
|
Builder |
Minami-Nippon Shipbuilding Co. Ltd. Usuki Japan |
|
Yard number |
628 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x MAN B&W/Mitsui 6S50MC Mk. VI - 2 stroke 6 cylinder combustion engine 11.641 bhp / 8.562 kW |
|
Propellers |
1x Fixed pîtch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x Yanmar T240 L-ST main diesel generatorsets |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 100% |
37.637,49 m³ |
|
Number of slop tanks |
2 |
|
Number of pumps |
14x Kosaka submerged hydraulic driven A2V500 cargo pumps each 300 m³/h |
|
Tank capacities |
Ballast: 14.879,44 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Manager |
Fleet Management Ltd. |
|
Operator |
Waterfront Shipping Company Limited 1800 Waterfront Centre 200 Burrard Street Vancouver, BC V6C 3M1 Canada |
|
Registered owner |
Marinex Limited |
|
Renamed |
2019 Brave Worth Republic of Panama, Panama City - Call sign: 3ETZ8 Manager: WS Shipping Co., Ltd. - China Manager: Brave Worth Shipping Co., Ltd. |
|
Scrapped |
01/2022 Beached as: Brave Worth at Gadani - Pakistan |
|
Latest data adjustment |
18 February 2022 |
