| Antwerpen 08 November 2013 |
|
Name |

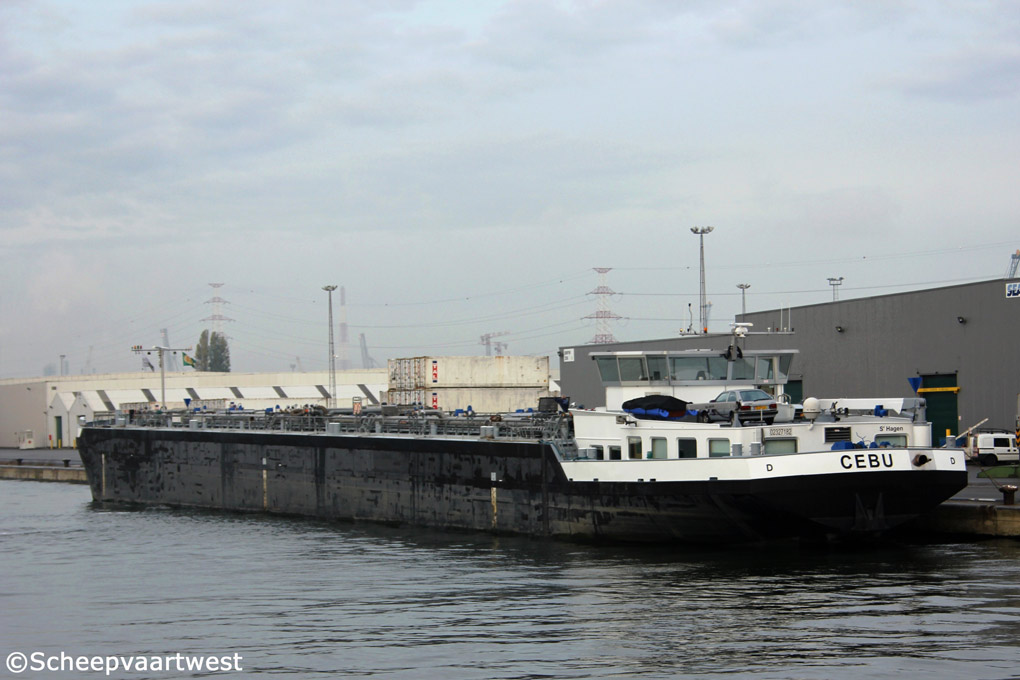

CEBU |
|
Previous names |
2005 - 2001 Joery P |
|
Type |
Inland tanker |
|
ENI-number |
02327182 |
|
Call sign |
PG5596 |
|
Flag |
Germany |
|
Port of registry |
S' Hagen |
|
Tonnage |
3.210 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,76 m |
|
Depth |
5,40 m |
|
Built |
2005 |
|
Builder casco |
Centromost Stocznia Rzeczna |
|
Builder completion |
Bijlsma Shipyard |
|
Hull material |
Steel |
|
Main engine |
1x Caterpillar 3512 (B) DI-TA electronic - 1.305 kW / 1.775 hp at 1.600 rpm |
|
Gearbox |
1x Reintjes WAF 763L - Reduction: 5,136:1 |
|
Propellers |
1x 5-bladed propeller 1,75 m with Optima nozzle 1.762 mm |
|
Generators |
1x Caterpillar 3412 DI-TA diesel engine coupled with Marathon 573 RSL 4032 generator 630 kVA 1x John Deere 6068 TF 258 diesel engine coupled with Marathon 431 PSL 6202 generator 148 kVA 1x John Deere 4045 TF 158 diesel engine coupled with Marathon 362 PSL 1604 generator 71 kVA |
|
Bow thruster |
1x Caterpillar 500 hp - Verhaar Omega-Jet 31130-4k with electro motor 237 kW at 1.780 rpm |
|
Number of tanks |
10 |
|
Cargo tank capacity |
100%: 3.779 m³ 97% 3.666 m3 |
|
Cargo pumps |
10 Marflex deepwell pumps |
|
Lifting equipment |
1x Car crane - SWL 2,0 ton |
|
Owner |
Gebroeders Vos De Leeuw |
|
Previous names & owners |
2005 Joery P - Vof. Strientank, Dordrecht - The Netherlands 2010 Cebu - Gebroeders Vos De Leeuw, Schmachtenhagen - Germany |
|
Last data update |
17 January 2014 |
