Antwerpen 26 June 2015 |
 |
 |
|
| Antwerpen 15/07/14 | Westerschelde 12/05/20 | |
|
Name |

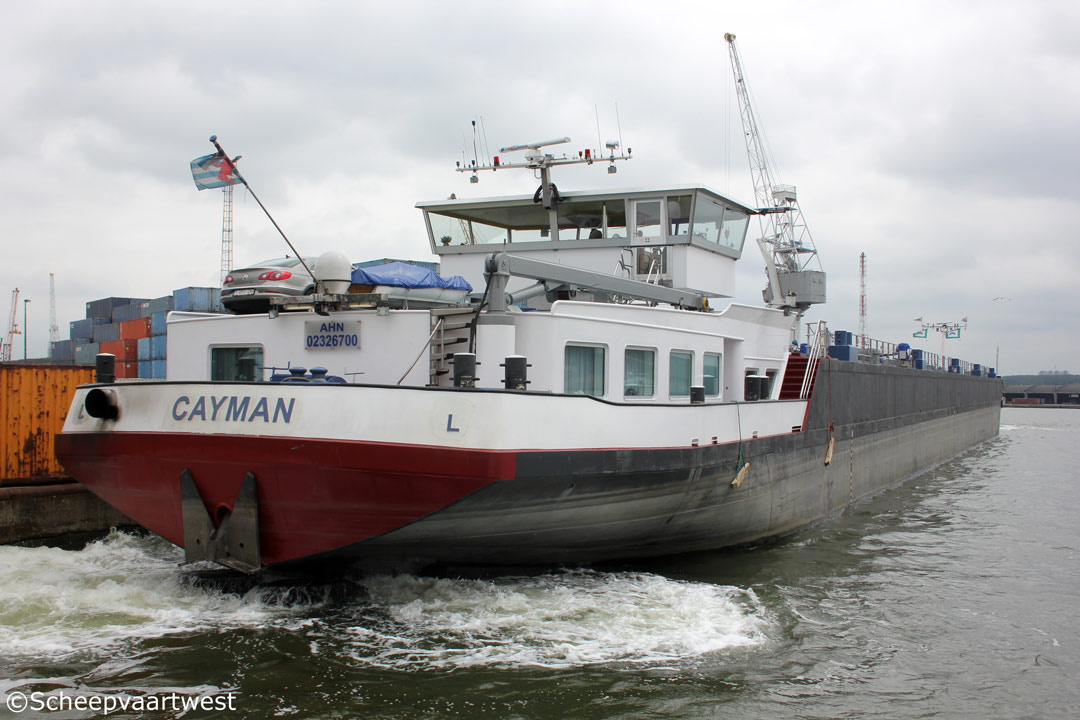

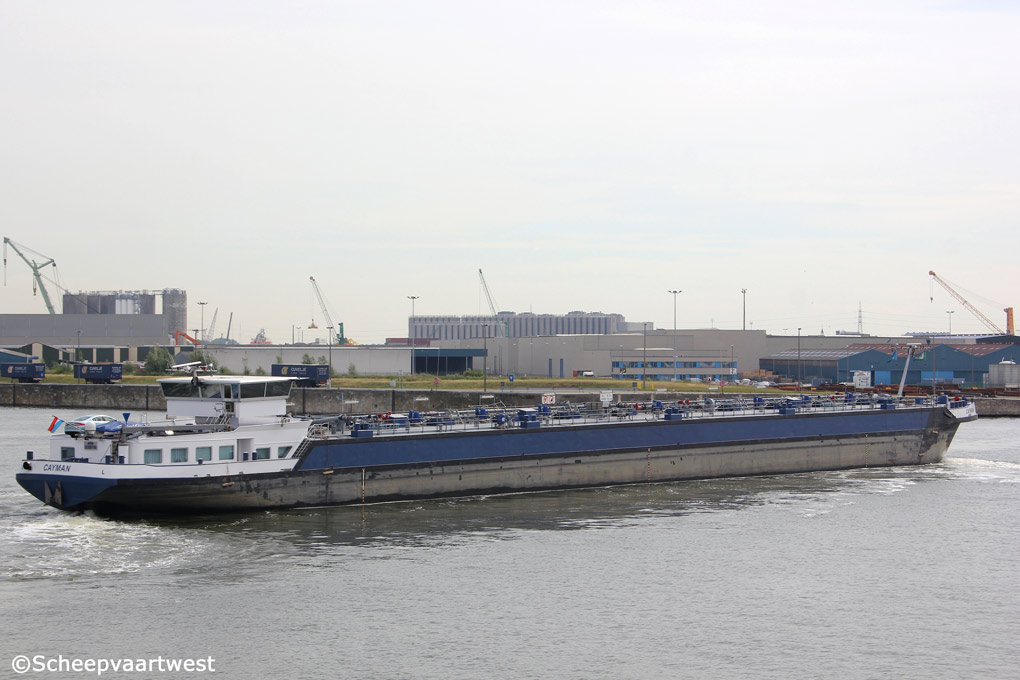

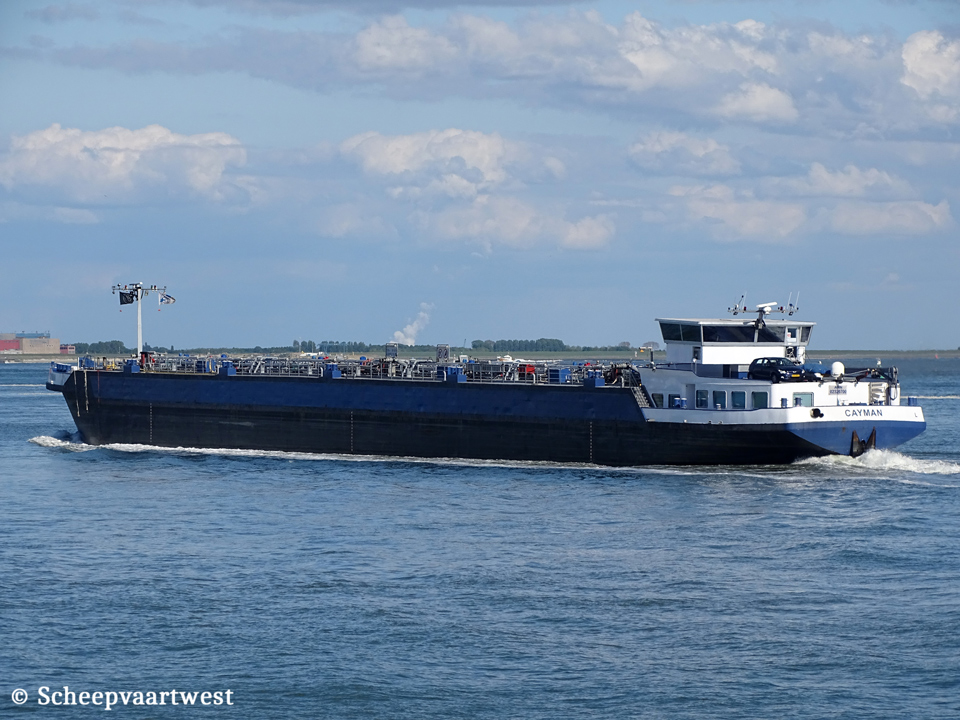

CAYMAN |
|
Previous names |
2004 Iduna 2010 Iduna II 2013 Cayman |
|
Type |
Inland tanker |
|
ENI-number |
02326700 |
|
Call sign |
PD4278 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Ahn |
|
Tonnage |
3.156 t |
|
Length |
109,80 m |
|
Breadth |
11,40 m |
|
Draught |
3,65 m |
|
Air draft |
5,00 m |
|
Depth |
5,90 m |
|
Built |
2004 |
|
Builder casco |
Severnav Shipyard Drobeta Turnu Severin Romania |
|
Builder completion |
Jac. den Breejen shipyard Hardinxveld-Giessendam The Netherlands |
|
Yard number |
3445 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Caterpillar 3512 (B) DI-TA electronic diesel engine 1.250 kW / 1.699 hp at 1.600 rpm |
|
Gearbox |
1x Reintjes WAF 663 - reduction: 5,044:1 |
|
Propellers |
1x 5 blades diameter 1.700 mm with nozzle Opitma diameter 1.714 mm |
|
Generators |
1x Caterpillar type 3412E - 644 hp at 1.800 rpm diesel generatorset 1x John Deere diesel generatorset 71 kVA 1x John Deere diesel generatorset 108 kVA |
|
Bow thruster |
1x Caterpillar 535 hp- Verhaar Omega-Jet 31130 with electric motor of 393 kW at 1.780 rpm |
|
Number of tanks |
11 |
|
Cargo tank capacity |
4.031 m³ |
|
Pumps |
12x Marflex deepwell pumps |
|
Freighter |
Interstream Barging Centraleweg 9 4931 NA Geertruidenberg The Netherlands |
|
Owner |
Ortus SA Ahn G.D. Luxembourg |
|
Previous names & owners |
2004 Iduna - Iduna Scheepvaart, Barendrecht - The Netherlands 2010 Iduna II - Iduna Scheepvaart, Barendrecht - The Netherlands 2013 Cayman - Ortus SA, Ahn - G.D. Luxembourg |
|
Latest data adjustment |
13 September 2021 |
