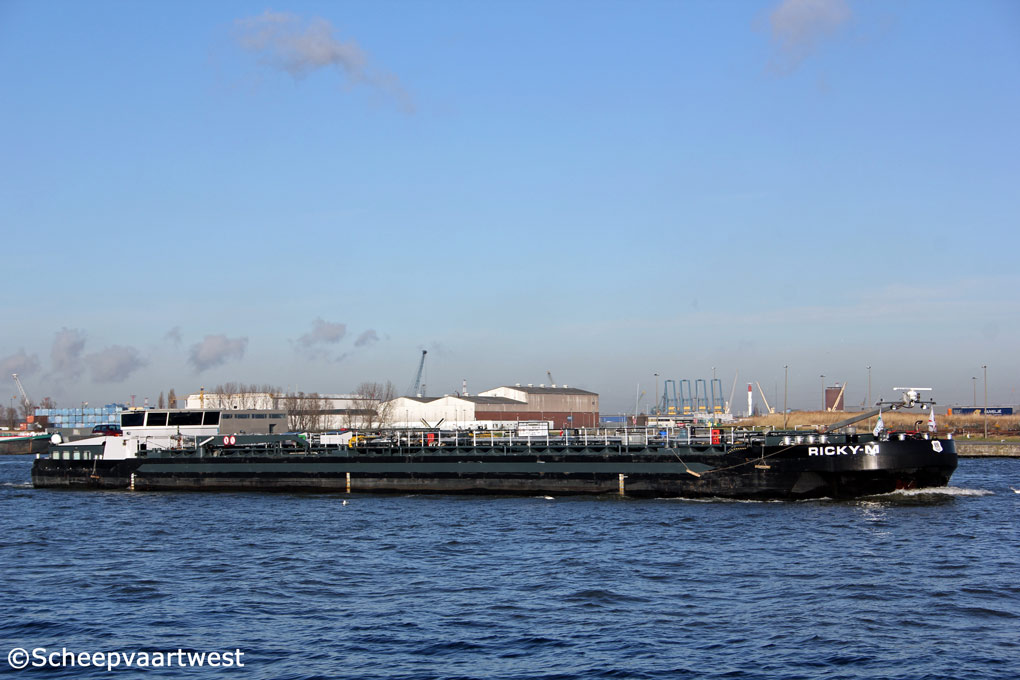

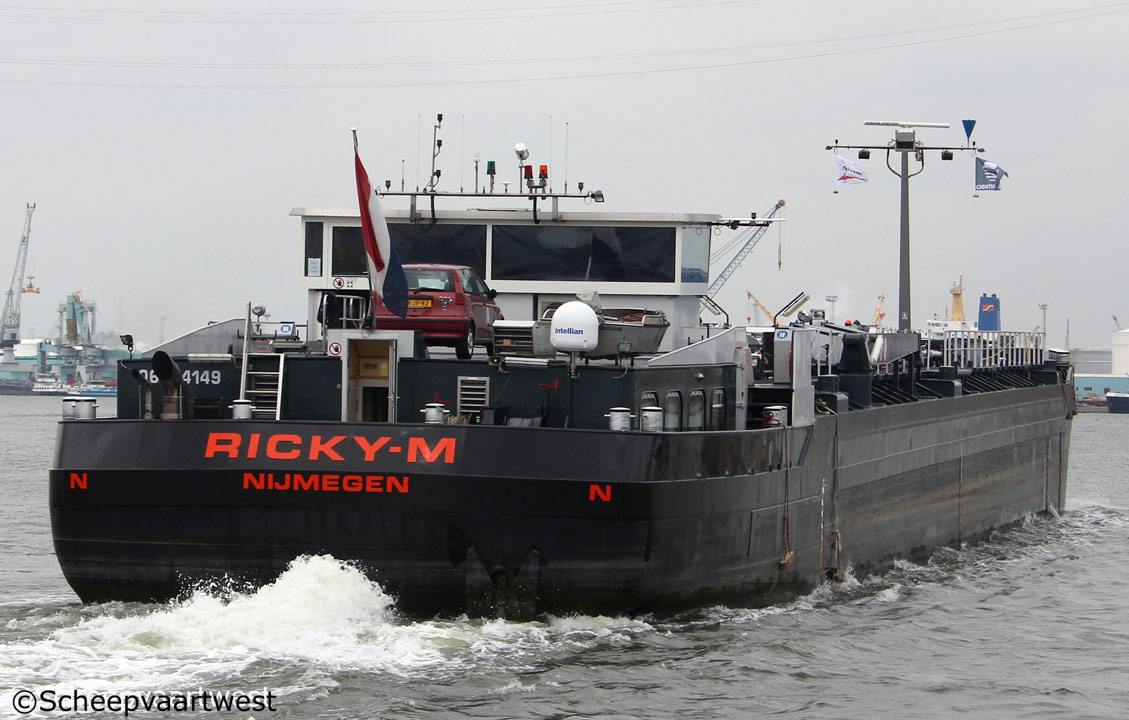

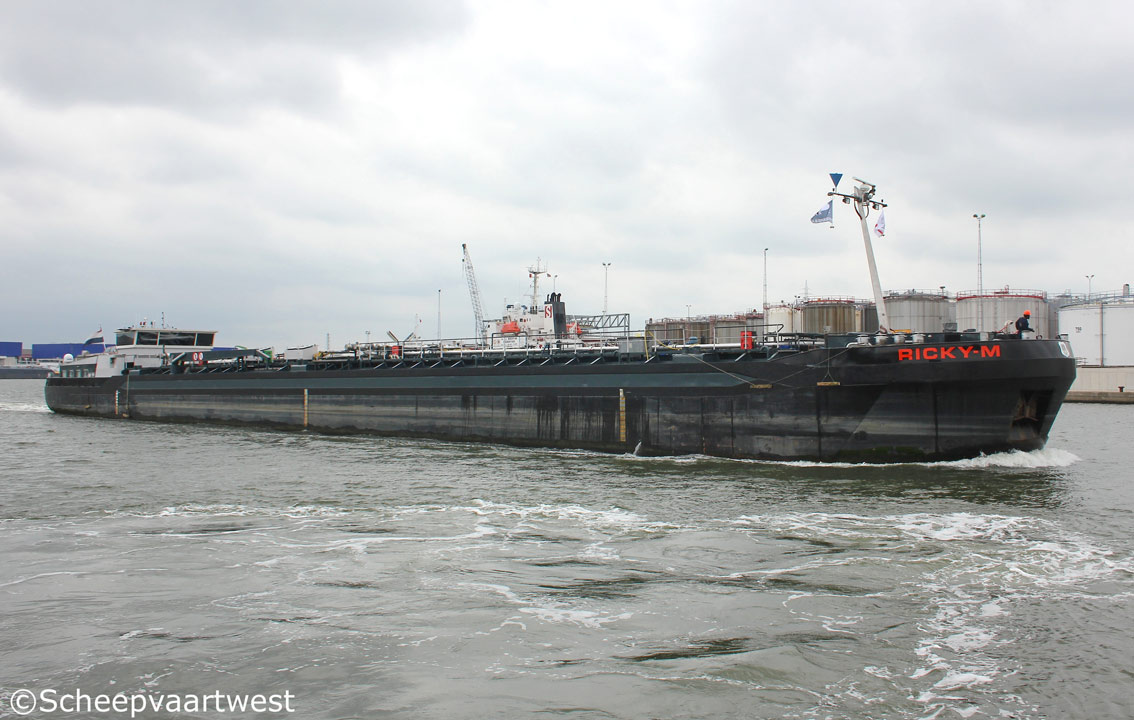

Antwerpen 15 Juli 2014 |
 |
 |
 |
||

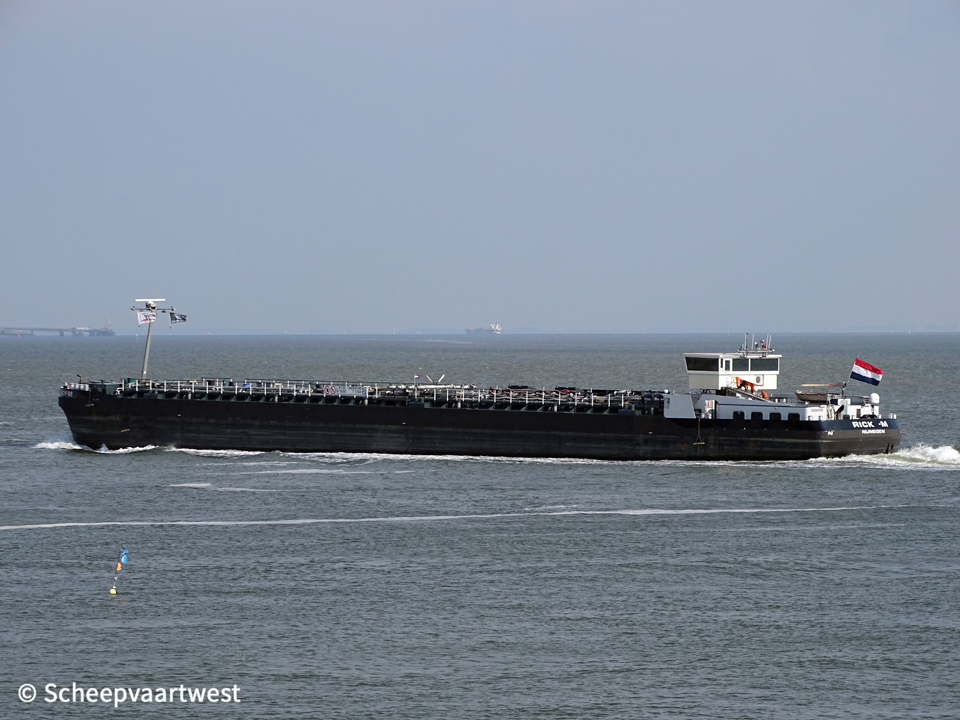

| Antwerpen 15/07/14 | Antwerpen 10/01/14 | Westerschelde 29/04/19 | ||
|
Name |
RICKY-M |
|
Previous names |
2005 Orinoco 2007 Doa-Chem 2008 Ricky-M |
|
Type |
Inland tanker |
|
ENI-number |
06004149 |
|
Call sign |
PF4271 |
|
Flag |
The Netherlands |
|
Port of registry |
Nijmegen |
|
Tonnage |
1.764 t |
|
Length |
81,30 m |
|
Breadth |
10,20 m |
|
Draught |
3,40 m |
|
Depth |
4,60 m |
|
Built |
2005 |
|
Builder casco |
Maas Shipyard Hoogezand The Netherlands |
|
Builder completion |
Koninklijke Niestern Sander B.V. Delfzijl The Netherlands |
|
Hull material |
Steel |
|
Main engine |
1x Cummins KTA38-M2 - 956 kW / 1.300 hp at 1.800 rpm |
|
Gearbox |
1x ZF Marine ZF W5200 reduction 5,955:1 |
|
Propellers |
1x Cunial 5-bladed - diameter 1.700 mm with LIPS nozzlle diameter 1.710 mm |
|
Generators |
1x Perkins N14G2 diesel motor coupled with HCM 534C generator 1.418 kVA for cargo pumps and bow thruster 1x Cummins 6CT8.3D(M) diesel motor couples with UCM 274E generator 120 kVA 1x Cummins 4BT3.9G4 diesel engine coupled with UCM 224F generator 63 kVA |
|
Bow thruster |
1x Cummins 395 hp- Gerlein - van Tiem with electro motor 290 kW |
|
Cargo capacity |
1.880 m³ |
|
Lifting equipment |
1x Car crane - SWL 1.800 kg |
|
Freighter |
Unitas N.V. Antwerpen Belgium |
|
Owner |
Chemtrans BV Nijmegen The Netherlands |
|
Previous names & owners |
2005 Orinoco - Orinoco NV, Antwerpen - Belgium 2007 Doa-Chem - Unitas (H.J. van Dodewaard), Merksem - Belgium 2008 Ricky-M - Chemtrans BV, Nijmegen - The Netherlands |
|
Latest data adjustment |
15 February 2014 |
