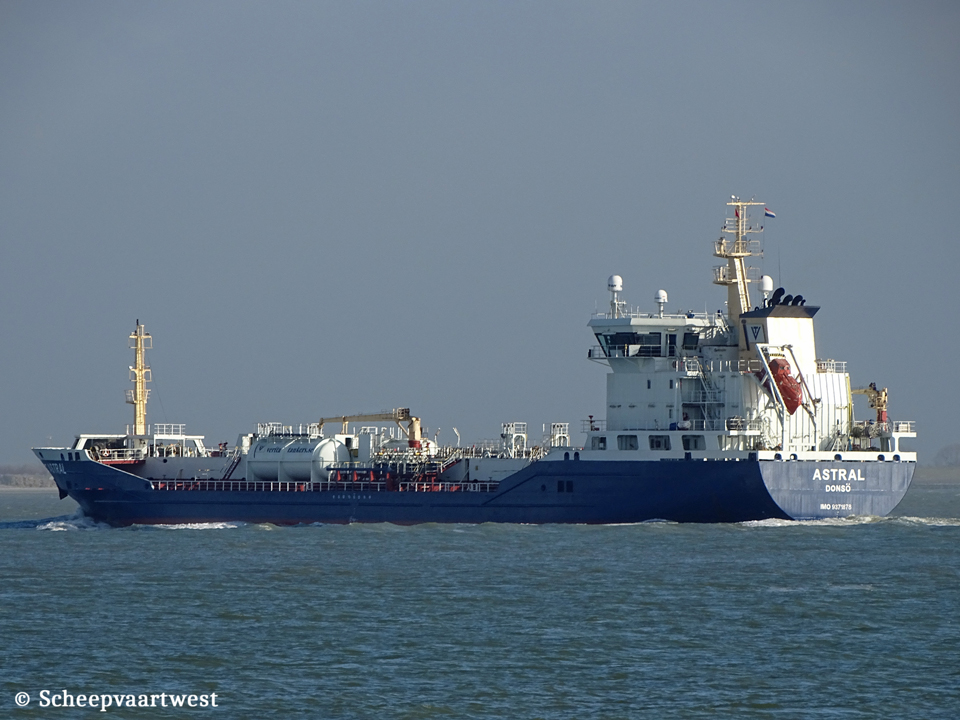

Westerschelde 23 April 2016 |
 |
 |
 |
||

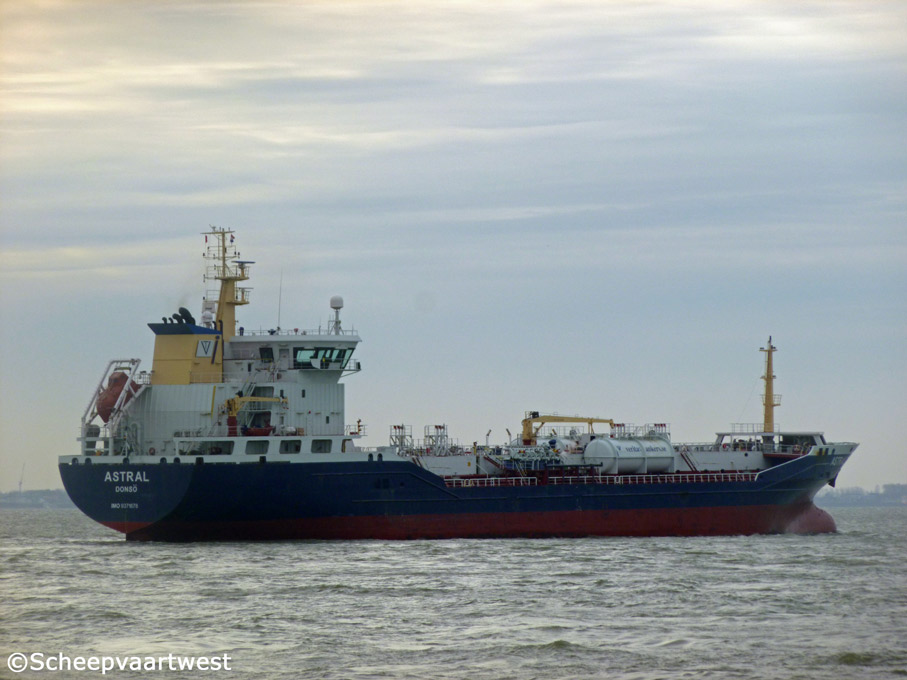

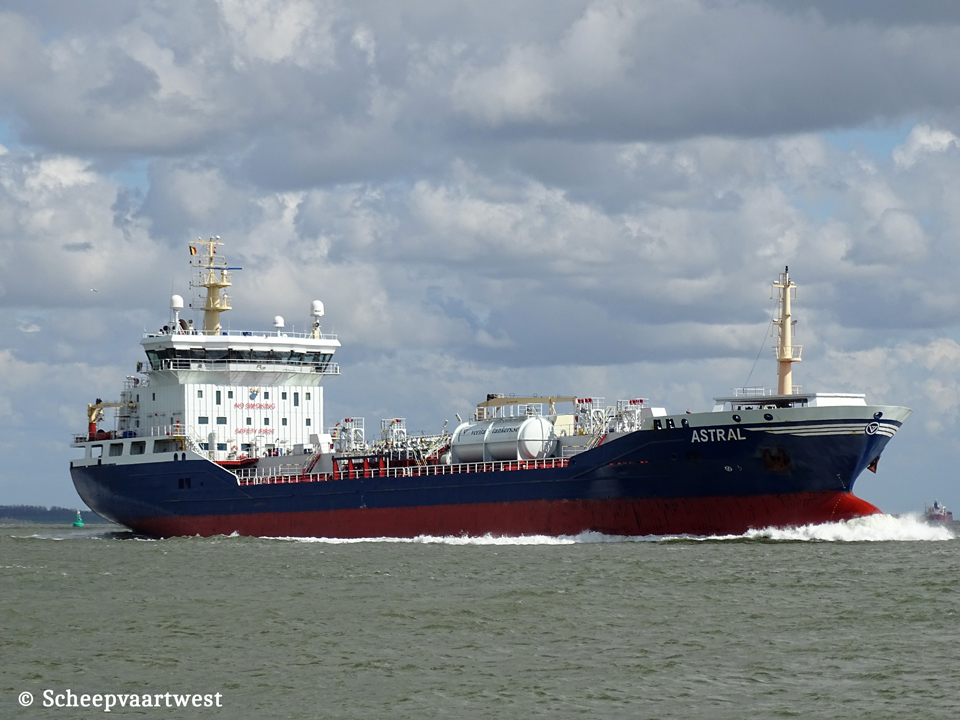

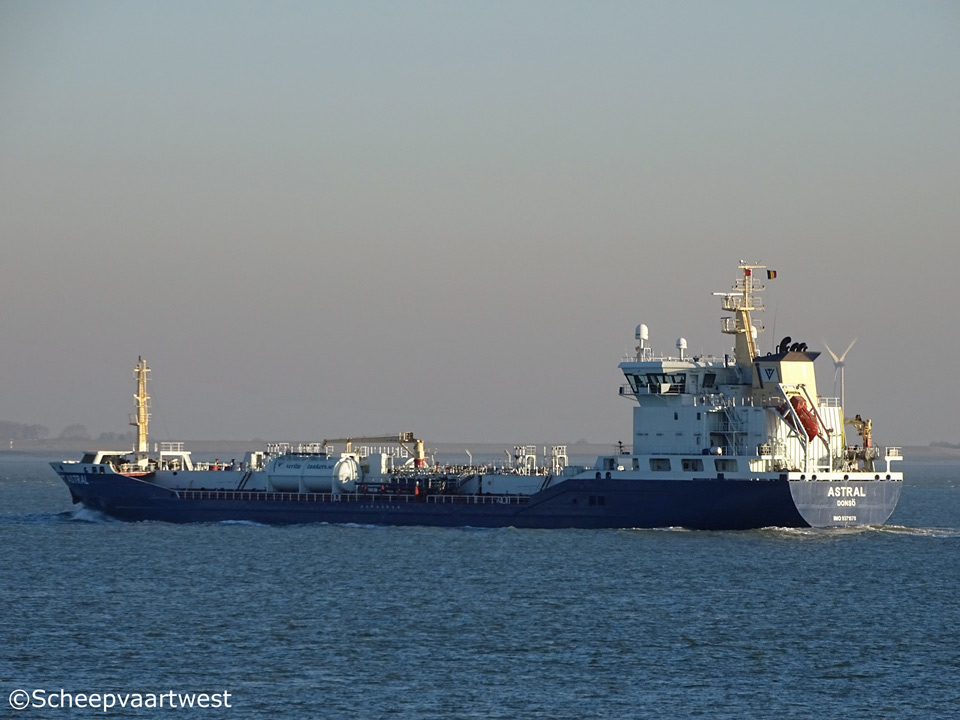

| Westerschelde 11/11/13 | Westerschelde 11/11/13 | Westerschelde 19/01/17 | ||
|
Name |
ASTRAL |
|
Previous names |
2006 - 04/2007 Besiktas Finland |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9371878 |
|
Call sign |
SLHJ |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
Previous flag |
2006 - 2007 Malta, Valletta |
|
GT |
7.636 t |
|
DWT |
Summer: 11.317,62 t |
|
NT |
3.644 t |
|
Length |
129,75 m overall 123,20 m between perpendiculars |
|
Breadth |
19,60 m |
|
Draught |
Summer: 8,00 m |
|
Air draft |
26,35 m |
|
Freeboard |
2.411 mm |
|
Depth |
10,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
2006 |
|
Keel laid |
09/2005 |
|
Launch date |
05/2006 |
|
Delivery date |
18/10/2006 |
|
Builder |
Torlak Denizcilik San. Ve Tic. A.S. Istanbul Turkey |
|
Yard number |
47 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm combustion engine 4.320 kW / 5.793 bhp at 600 rpm Built: 2005 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 120 rpm Diameter: 4.750 mm |
|
Boilers |
1x CHS NL BV 30114 - 11,00 m² / 10,0 bar 1x CHR NL BV 12471 - 60,00 m² / 10,0 bar 1x CHO 15216 - 65,00 m² / 13,0 bar 1x CHO NL BV 15214 - 65,00 m² / 13,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generator |
1x 1.400 kVA- 1.150 kW at 1.800 rpm |
|
Generators |
3x MAN/Lindenberg V12 main diesel generatorsets each 725 kVA - 580 kW - 859 hp at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 270 hp |
|
Bow thruster |
1x Electric driven bow thrusters 450 KW / 603 hp, type Schottel |
|
Number of tanks |
12 + 2 slop tanks |
|
Total capacity of tanks 98% |
12.394 m³ - Epoxy coated |
|
Number of pumps |
12x Separate electric driven deep-well cargo pumps, type Svanhöj DL 132d each 300 m³/h 2x Slop pumps each 65 m³/h 2x Electrical driven centrifugal ballast pumps each 350 m³/h |
|
Manifolds |
Distance manifold to bow: 68,01 m |
|
Tank capacities |
Fuel oil: 540 m³ Diesel oil: 115 m³ Water ballast: 4.736 m³ |
|
Lifting equipment |
1x Gurdesan hoses crane - SWL 5,0 t 1x Provision crane - SWL 2,1 t |
|
Manager |
Veritas Tankers Donsö Sweden |
|
Owner |
Rederi AB Veritas Tankers Tjärebergsvägen 10 SE 430 82 Donsö Sweden |
|
Latest data adjustment |
11 April 2023 |
