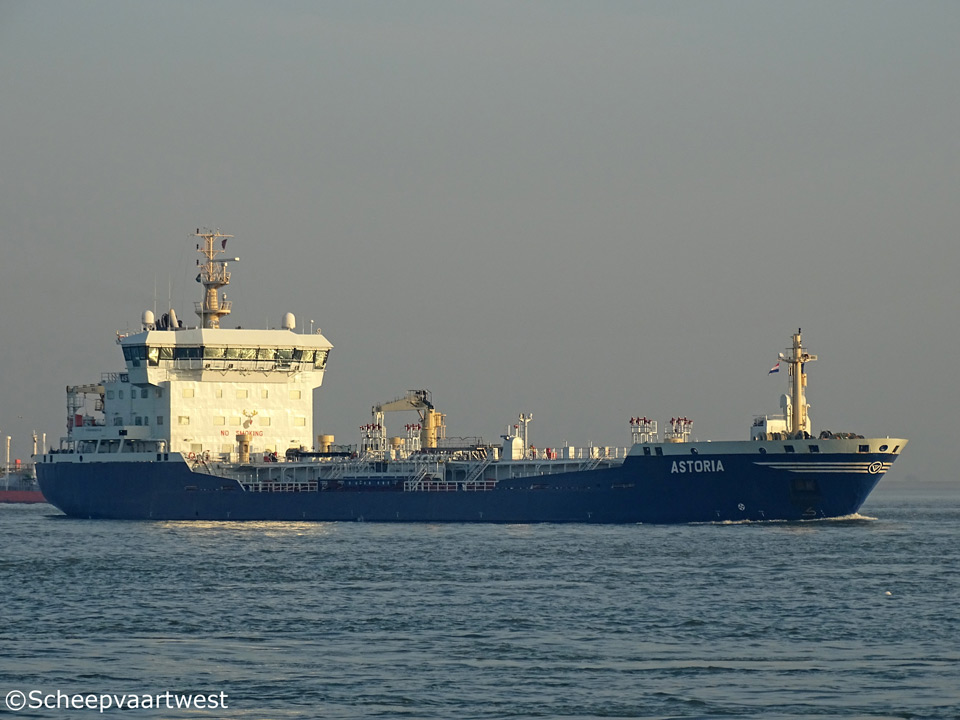

Westerschelde 07 December 2015 |
|
Name |
ASTORIA |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9166314 |
|
Call sign |
SKEP |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
GT |
8.886 t Suez: 9.291 t registered Panama: 7.506 t registered |
|
DWT |
Summer: 12.712 t |
|
NT |
4.168 t |
|
Length |
137,44 m overall 126,48 m between perpendiculars |
|
Breadth |
21,82 m |
|
Draught |
Summer: 8,02 m |
|
Air draft |
31,00 m 31,66 m ballast |
|
Keel to masthead |
37,00 m |
|
Freeboard |
2.511 mm full loaded 5.340 mm ballast |
|
Depth |
10,50 m |
|
Speed |
14,5 knots |
|
Built |
1999 |
|
Date of completion |
08.1999 |
|
Builder |
Jurong Shipyard Pte Ltd. Republic of Singapore |
|
Yard number |
1057 |
|
Hull material |
Mild steel |
|
Hull type |
Double sides, double bottom |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 5L40/54 - 4 stroke 8 cylinder 5.760 kW / 7.833 bhp at 550 rpm |
|
Propellers |
1x Screw propeller controllable pitch - aft at 380 rpm Diameter: 4.800 mm |
|
Boilers |
2x CHO HT 1 HE 25V40 119,00 m² - 10,0 bar / 2.907 kWh |
|
Shaft generator |
1x 1.238 kVA - 990 kW |
|
Generators |
3x YANMAR 6N21AL main diesel generatorsets each 937,5 kVA - 750 kW - 1.196 hp at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 250 kVA - 200 kW - 295 hp |
|
Number of cargo tanks |
12x Wing tanks - Epoxy-coated tanks |
|
Cargo tank capacity |
14.176,9 m³ - 100% 13.949,0 m³ - 98% |
|
Number of slop tanks |
2 |
|
Pumps |
12x Framo SD 150 cargo pumps - 330 m³/h each 2x Framo SD 100 slop pumps - 11 m³/h each 2x Framo SB 200 ballast pumps - 500 m³/h each |
|
Manifolds |
Manifold to ship side: 4,70 m Manifold to bow: 69,00 Manifold to stern: 67,20 m |
|
Tank capacities |
Fuel oil: 628,82 m³ |
|
Lifting equipment |
1x Macgregor hose crane HH 160-518-2 - SWL 5,0 t 1x NED Marine M.O.B. Boat & provision crane - SWL 5,0 t |
|
Manager |
Sirius Chartering AB Hälleflundregatan 16 Gothenburg |
|
Owner |
Rederi AB Veritas Tankers |
|
Registered owner |
Veritas Shipping AB |
|
Latest data adjustment |
16 February 2017 |
