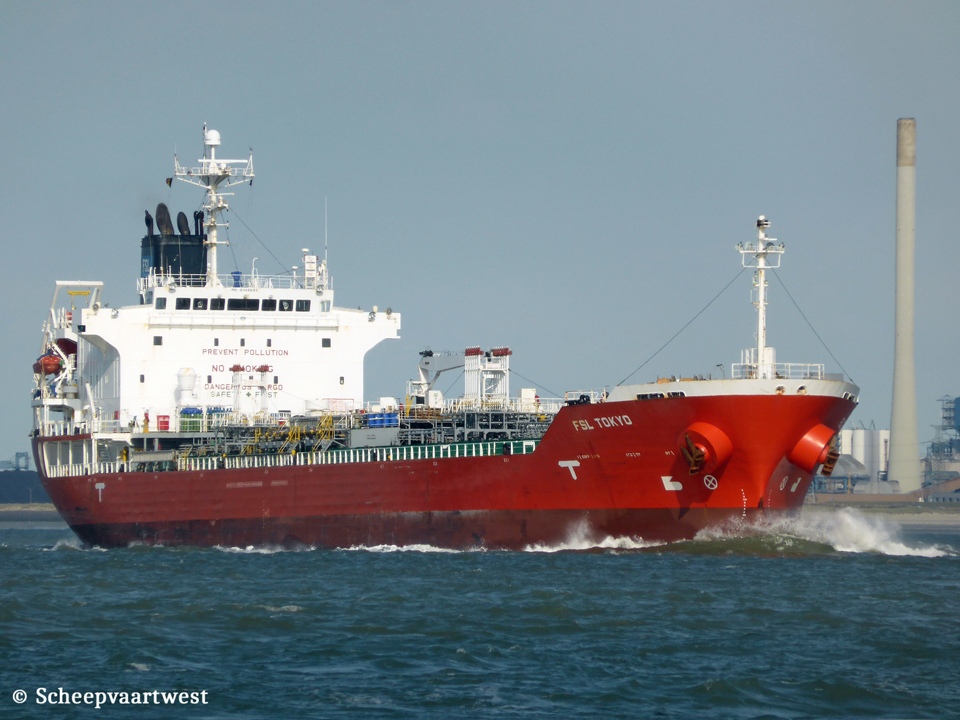

| Westerschelde 23 August 2016 |
 |
 |
 |
 |
|||

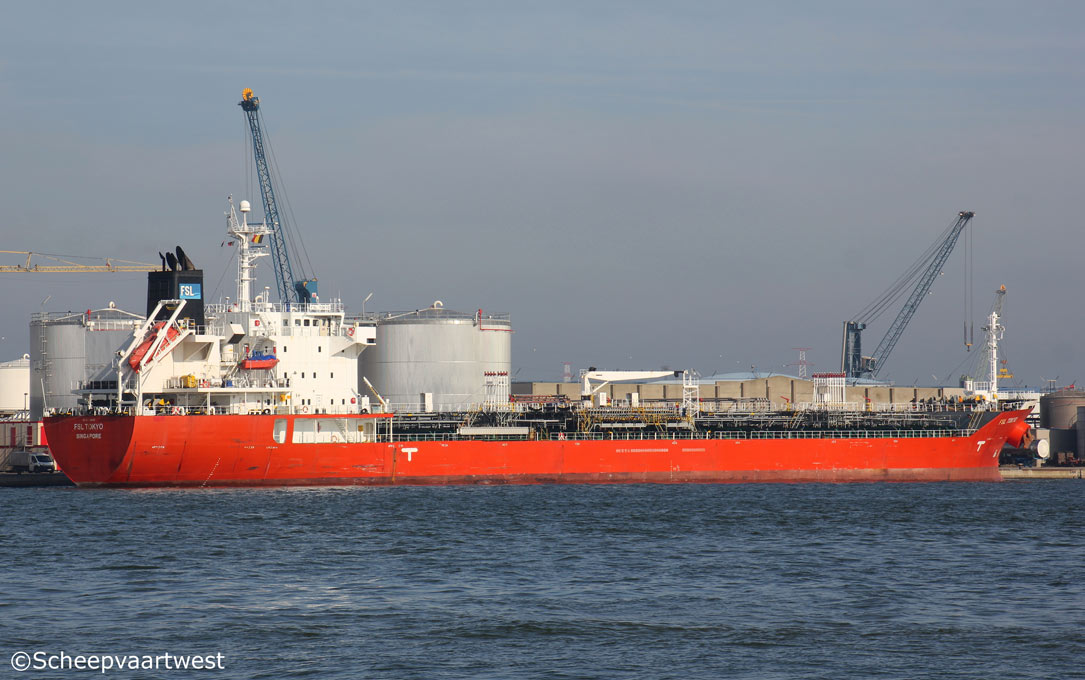

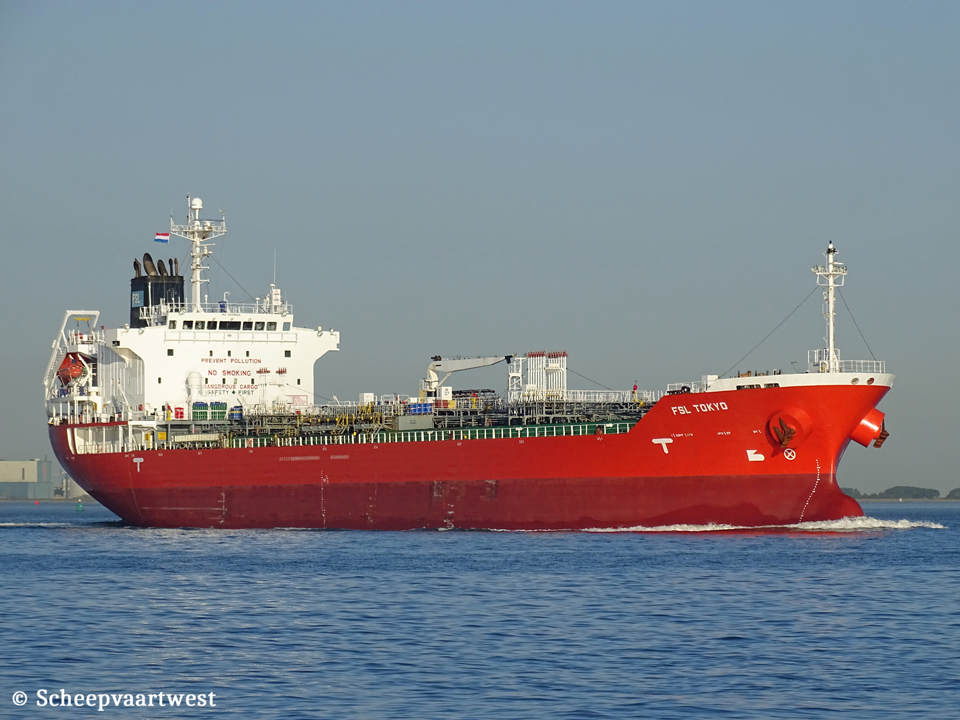

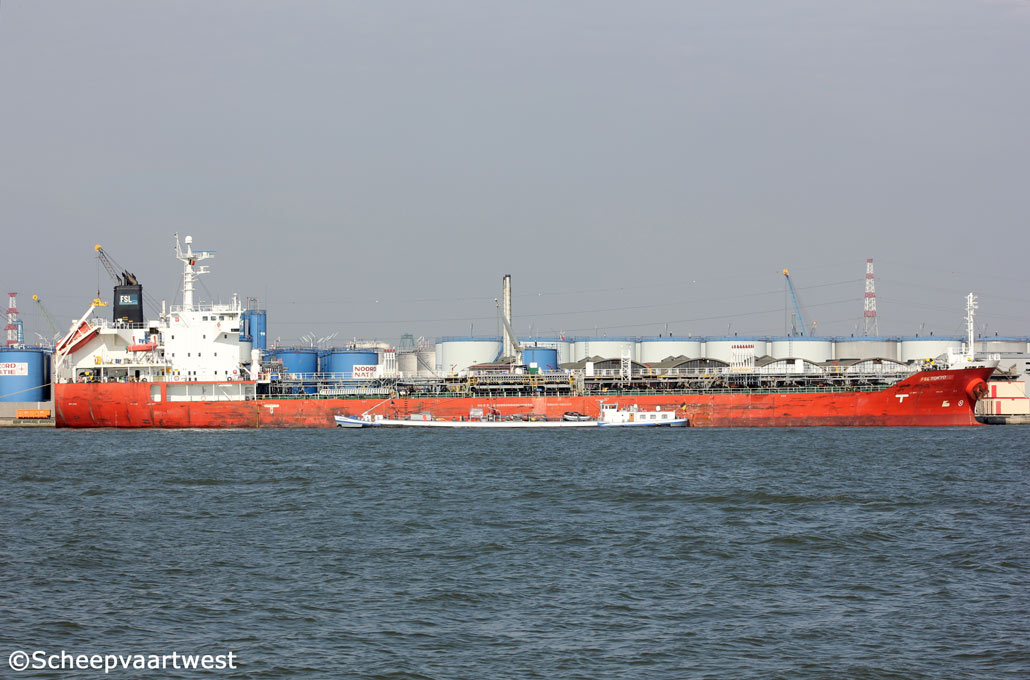

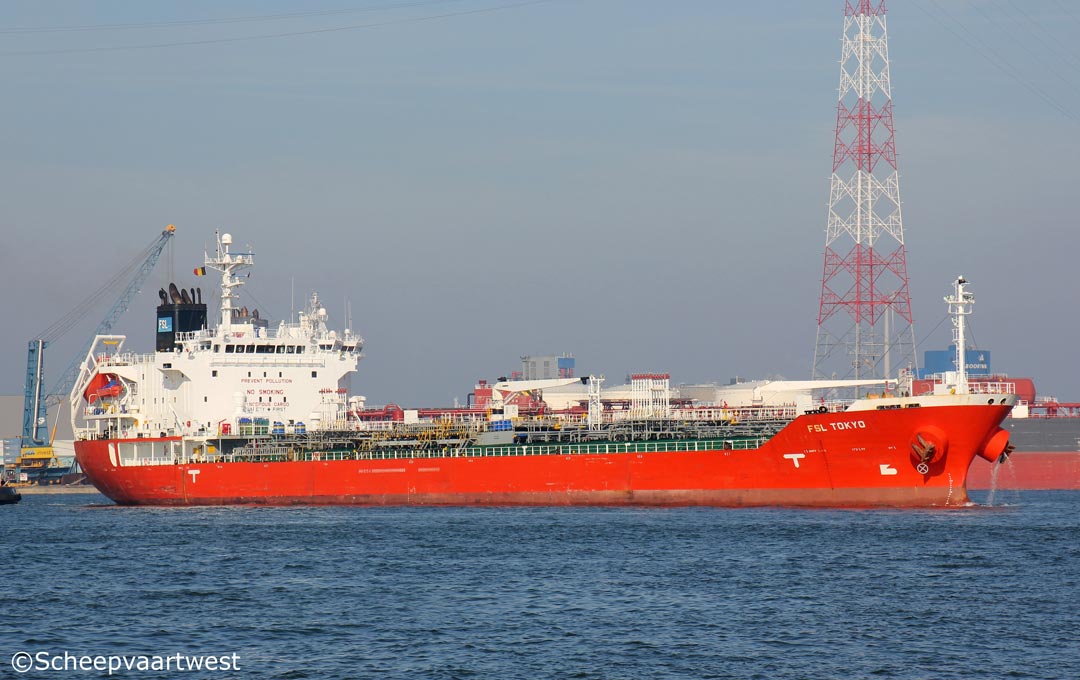

| Westerschelde 30/05/15 | Antwerpen 26/10/15 | Antwerpen 26/10/15 | Antwerpen 06/03/14 | |||
|
Name |
FSL TOKYO |
|
Previous names |
07/2006 - 03/2012 Prita Dewi |
|
Type |
Oil / Molasses / Chemical tanker |
|
IMO-number |
9349643 |
|
Call sign |
9VBR4 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
12.105 t Suez: 12.607,37 t |
|
DWT |
Summer: 20.938 t |
|
NT |
6.378 t Suez: 10.666 t |
|
Displacement |
26.506 t |
|
Length |
147,83 m overall |
|
Breadth |
24,22 m extreme |
|
Draught |
Summer: 9,77 m |
|
Moulded L x B x D |
141,00 x 24,20 x 12,85 m |
|
Registered L x B x D |
141,20 x 24,20 x 12,85 m |
|
Freeboard |
3.123 mm |
|
Depth |
12,85 m moulded |
|
Speed |
Max: 16,1 knots Service: 14,7 knots |
|
Built |
2006 |
|
Keel laid |
09/12/2004 |
|
Launch date |
27/03/2006 |
|
Date of completion |
26/07/2006 |
|
Builder |
Shin Kurushima Hiroshima Dockyard Co. ltd. 5563-5 Mitsu, Akitsu-Cho, Higashihiroshima City, 729-2402 Japan |
|
Yard number |
5410 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S42MC(MK6) - 2 stroke single acting 6 cylinder 420 x 1.764 combustion engine Mcr 6.150 kW / 8.361 hp at 136,0 rpm Manufacturer: Makita Corporation Co., Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 136,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation:16,95 t/h Manufacturer: Aalborg(Qingdao) Boiler Company Ltd. |
|
Generators |
3x Main diesel generatorsets each 460kW / 450Volt 60 Hz Manufacture: Taiyo Electric Co., Ltd. |
|
Bow thruster |
1x Tunnel thruster 578 kW / 786 bhp, forward |
|
Segregations |
22 |
|
Cargo liquid capacity 100% |
21.932,27 m³ |
|
Slop tank capacity |
637 m³ |
|
Number of pumps |
6x Cargo pumps each 200 m³/h 14x Cargo pumps each 330 m³/h |
|
Tank capacities |
Fuel oil: 1.147,37 m³ Diesel oil: 95,59 m³ Fresh water: 670,36 m³ Water ballast: 7.865,35 m³ Lub oil: 90,90 m³ |
|
Lifting equipment |
1x General use crane - SWL 2,0 t 1x Hose handling crane - SWL 5,0 t |
|
Crew |
20 |
|
Manager |
Nordic Tankers Trading Copenhagen Denmark |
|
Operator |
Columbia Shipmanagement (S) Pte Ltd. |
|
Registered owner |
FSL-11 Pte Ltd. |
|
Renamed |
01/2018 - 04/2022 Saranga India - Call sign: AWXF 04/2022 Sinar Malahayati Republic of Singapore, Singapore City - call sign: 9V7715 Owner: Samudera Tankers Pte Ltd. Manager: V.Ships Asia Group Pte. Ltd. - Republic of Singapore |
|
Latest data adjustment |
03 October 2023 |
