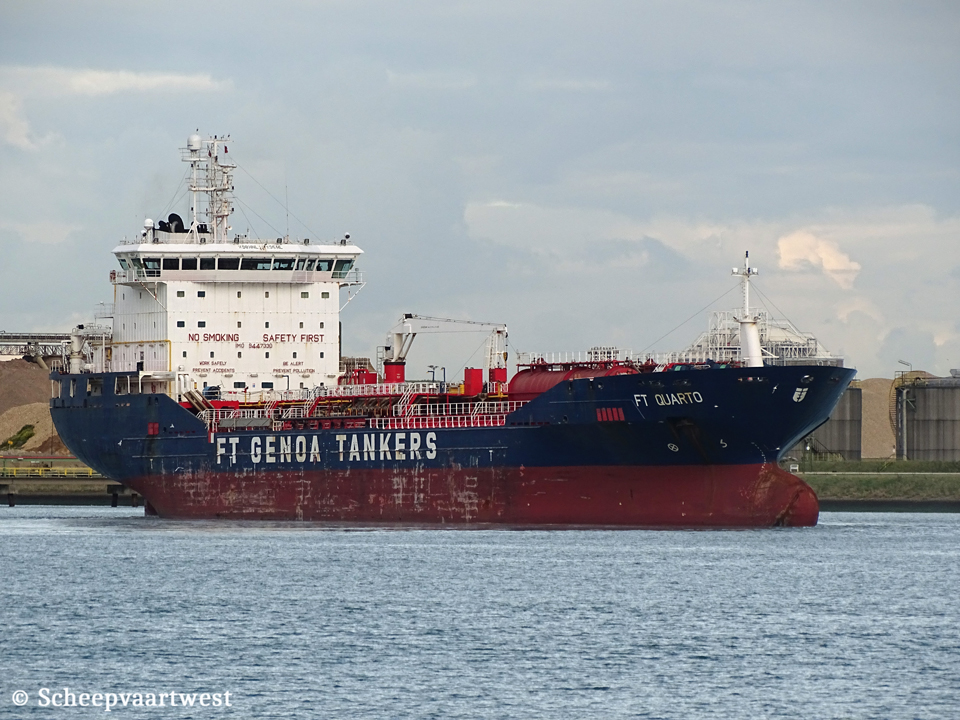

Westerschelde 24 May 2017 |
 |
 |
 |
 |
 |
 |
|||||

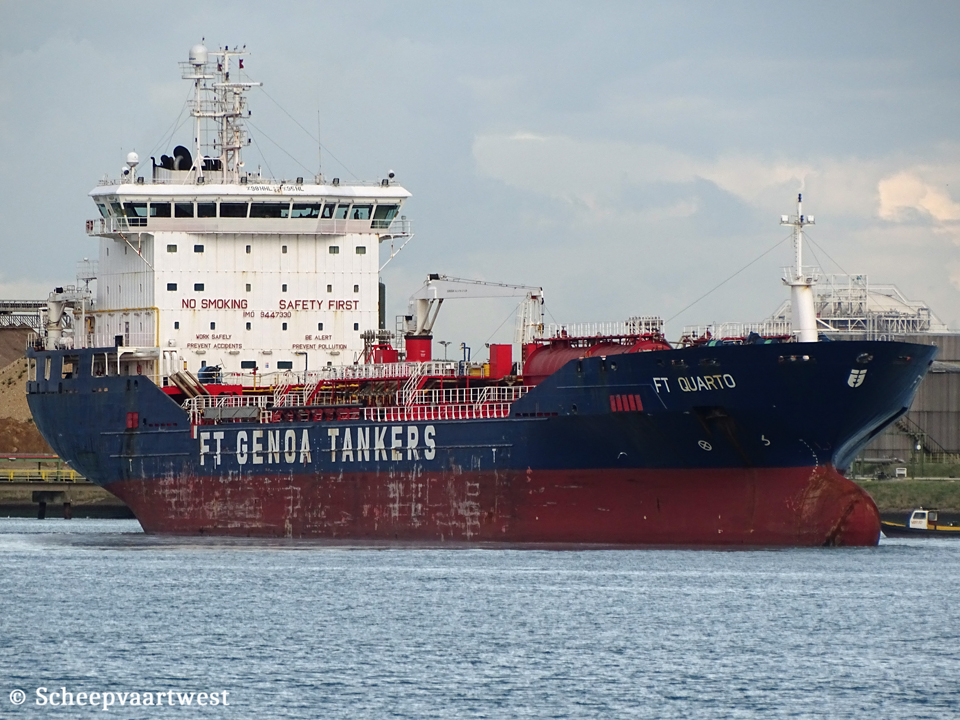

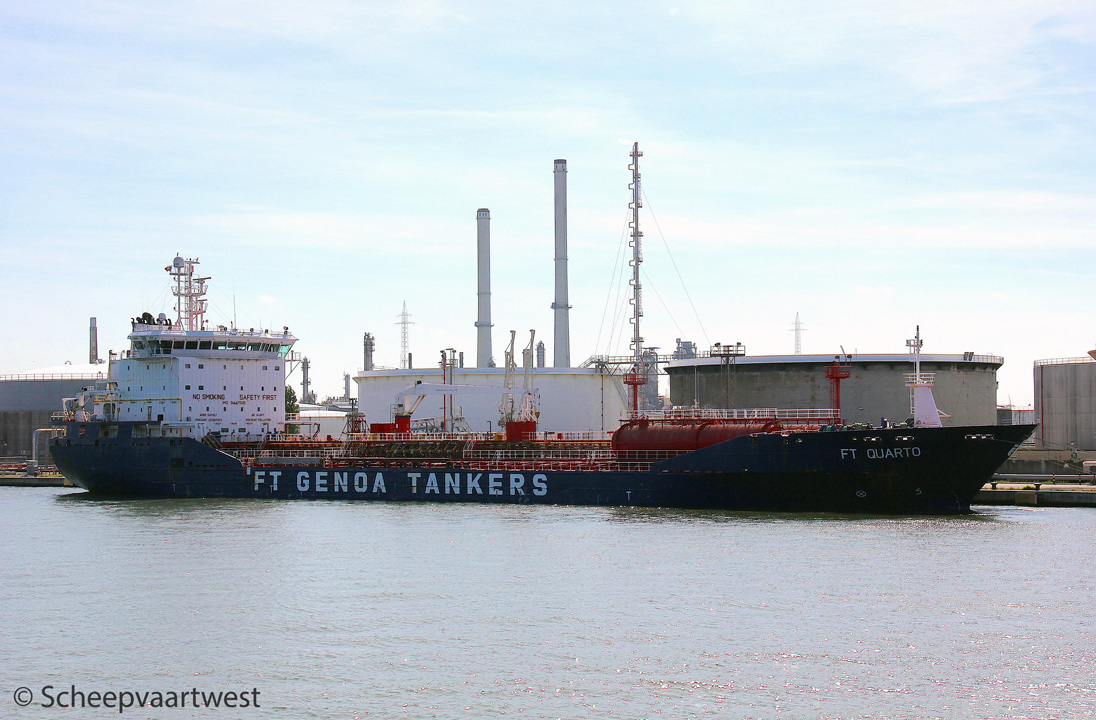

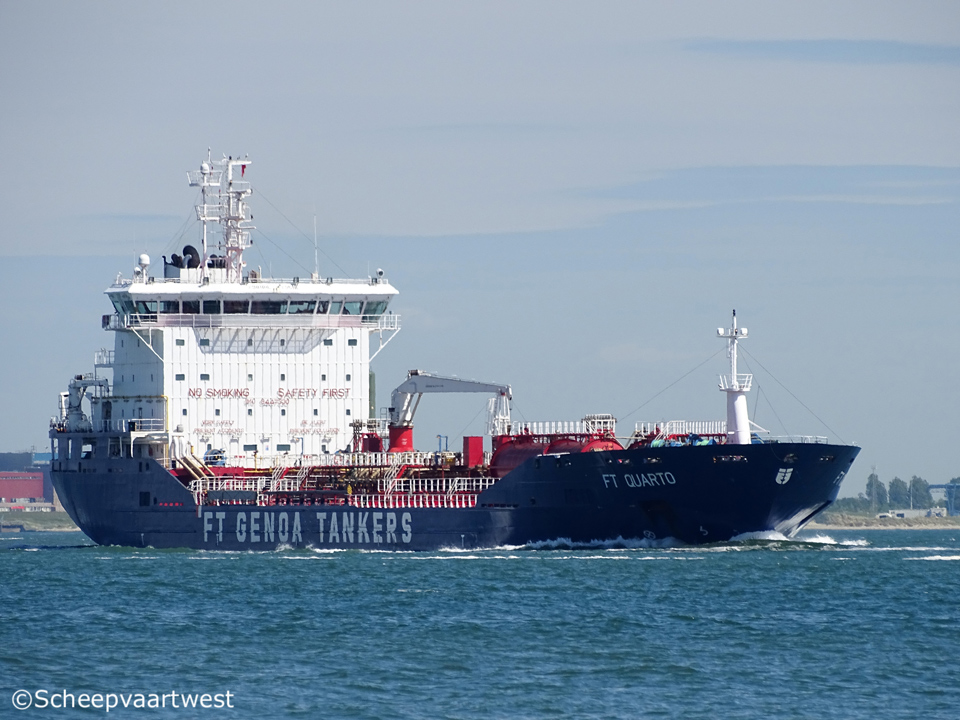

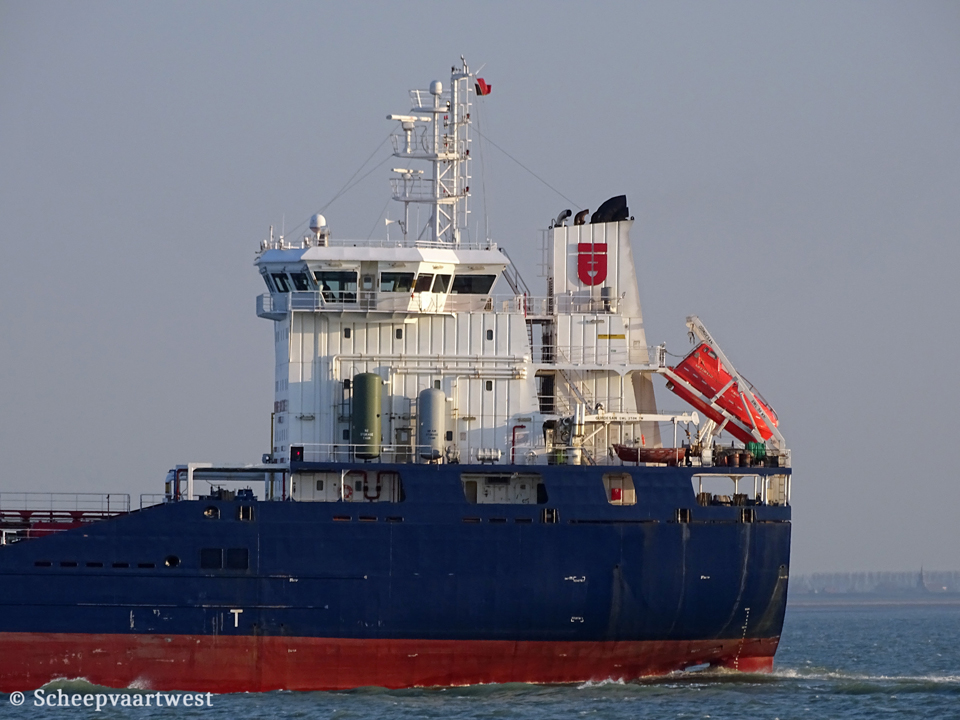

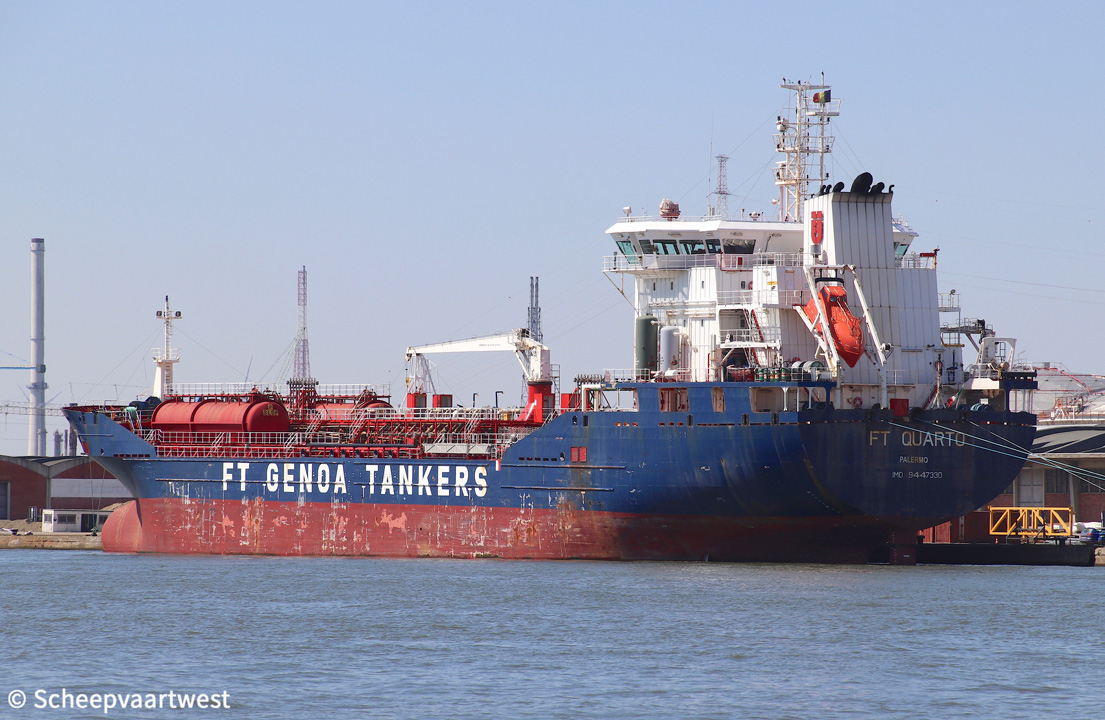

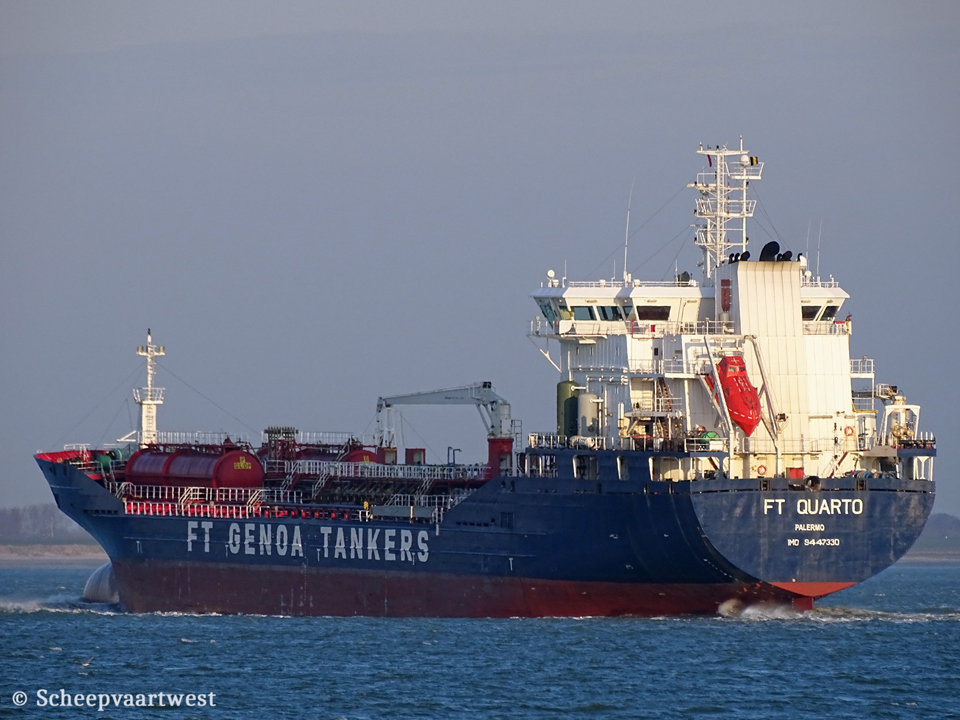

| Vlissingen 28/10/19 | Vlissingen 28/10/19 | Vlissingen 28/10/19 | Vlissingen 28/10/19 | Antwerpen 11/09/18 | Antwerpen 06/05/20 | |||||
 |
 |
|||||||||

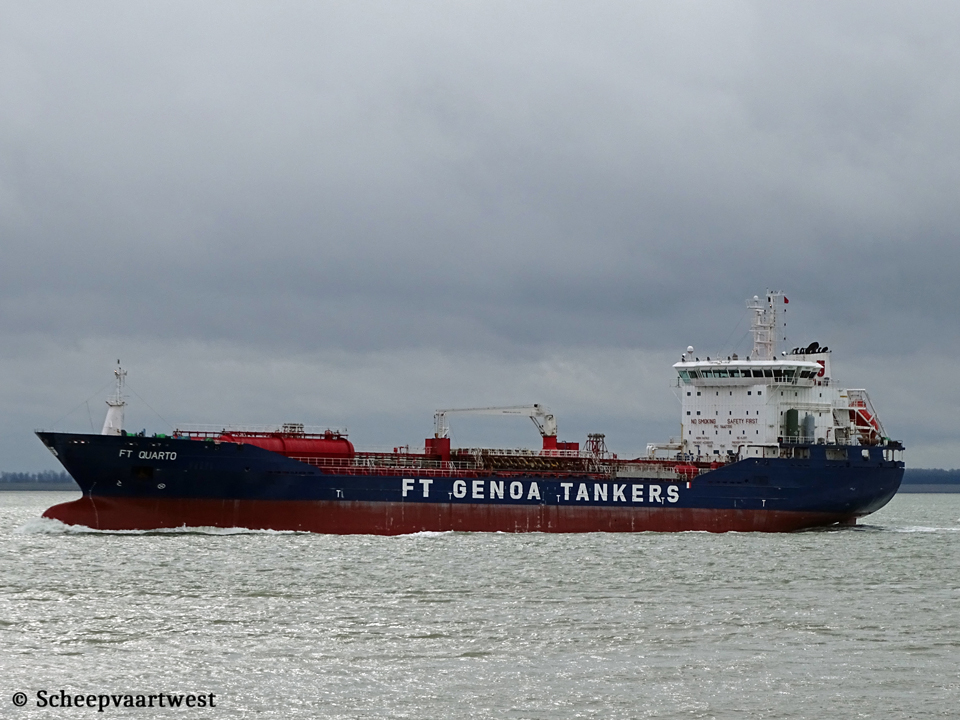

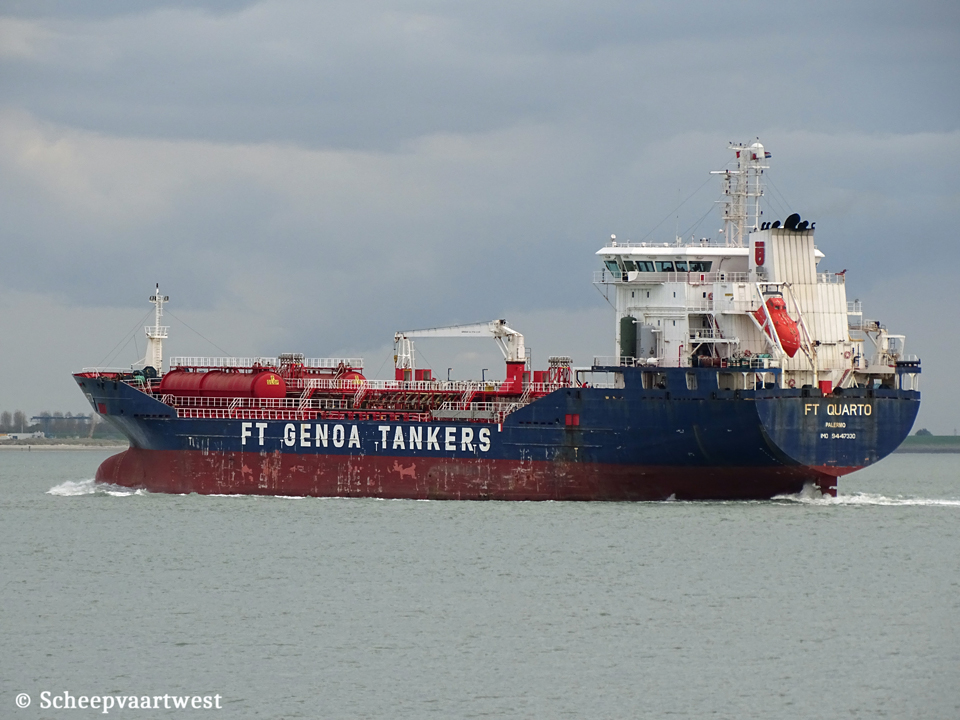

| Westerschelde 23/03/17 | Westerschelde 23/03/17 | |||||||||
|
Name |
FT QUARTO |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9447330 |
|
Call sign |
9HA5266 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
02/2012 - 07/2020 Italy, Palermo - Call sign: ICTJ |
|
GT |
11.393 t |
|
DWT |
Summer: 18.000 t |
|
NT |
5.891 t |
|
Length |
147,50 m overall 140,00 m between perpendiculars |
|
Breadth |
22,40 m extreme |
|
Draught |
Summer: 9,35 m 4,30 m lightship |
|
Freeboard |
3.256 mm |
|
Depth |
13,60 m |
|
Speed |
15,0 knots |
|
Built |
2012 |
|
Date of completion |
09/01/2012 |
|
Builder |
Anadolu Deniz Insaat Kizaklari San. Ve Tic. Ltd.Sti Istanbul Turkey |
|
Yard number |
220 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 8S35-MC - 2 stroke 8 cylinder 350 x 140 mm combustion engine 5.920 kW / 8.043 hp at 173 rpm Manufacturer: MAN Diesel SE, Frederikshavn - Denmark |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO S-MAN AB 86,00 m² - 10,0 bar 1x CHO 86.00 m² - 10,0 bar 1x CHR S-MAN AB 102,00 m² - 10,0 bar |
|
Generators |
4x Yanmar diesel generatorsets each 725 kVA - 580 kW - 842 hp |
|
Bow thruster |
1x 745 kW / 1.000 bhp |
|
Number of tanks |
12 |
|
Total capacity of tanks 98% |
Tank 1P: 1.059 m³ Tank 1S: 1.058 m³ Tank 2P: 2.031 m³ Tank 2S: 2.036 m³ Tank 3P: 1.809 m³ Tank 3S: 1.813 m³ Tank 4P: 1.816 m³ Tank 4S: 1.811 m³ Tank 5P: 1.805 m³ Tank 5S: 1.801 m³ Tank 6P: 1.577 m³ Tank 6S: 1.580 m³ Total: 20.207 m³ ex slop tanks |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
Tank 1P: 214 m³ Tank 1S: 215 m³ Total: 429 m³ |
|
Pumps |
12 Framo hydraulic driven deepwell cargo pumps each 380 m³/h 2 Framo hydraulic driven deepwell cargo pumps each 100 m³/h |
|
Tank capacities |
Fuel: 1.024,1 m³ |
|
Manager |
Furtrans Shipping & Trading AS Istanbul Turkey |
|
ISM manager |
Furtrans Tanker & Ship Management S.R.L. Genoa Italy |
|
Owner |
FT Quarto Tankers Ltd. Care of Furtrans Denizcilik Ticaret Ve Sanayi As (Furtrans Shipping & Trading As) Mehmet Aktan Sokak 9/11 Kosuyolu Mah, Kadikoy 34718 Istanbul Turkey |
|
Registered owner |
FT Quarto Tankers Ltd. |
|
Latest data adjustment |
30 October 2024 |
