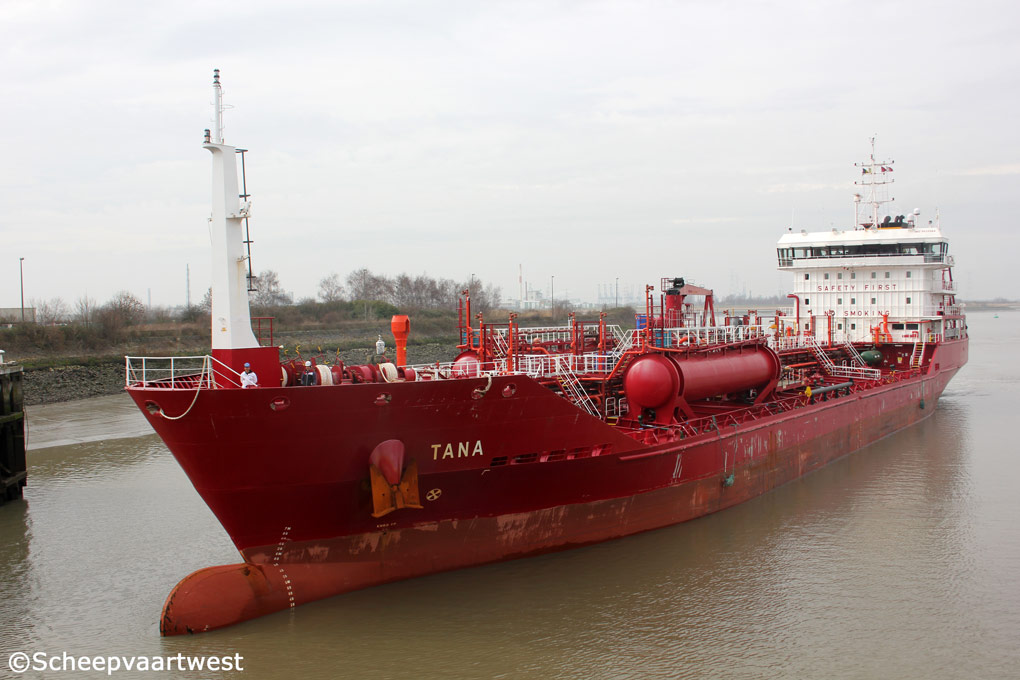

Tana 01

Antwerpen 07 March 2014

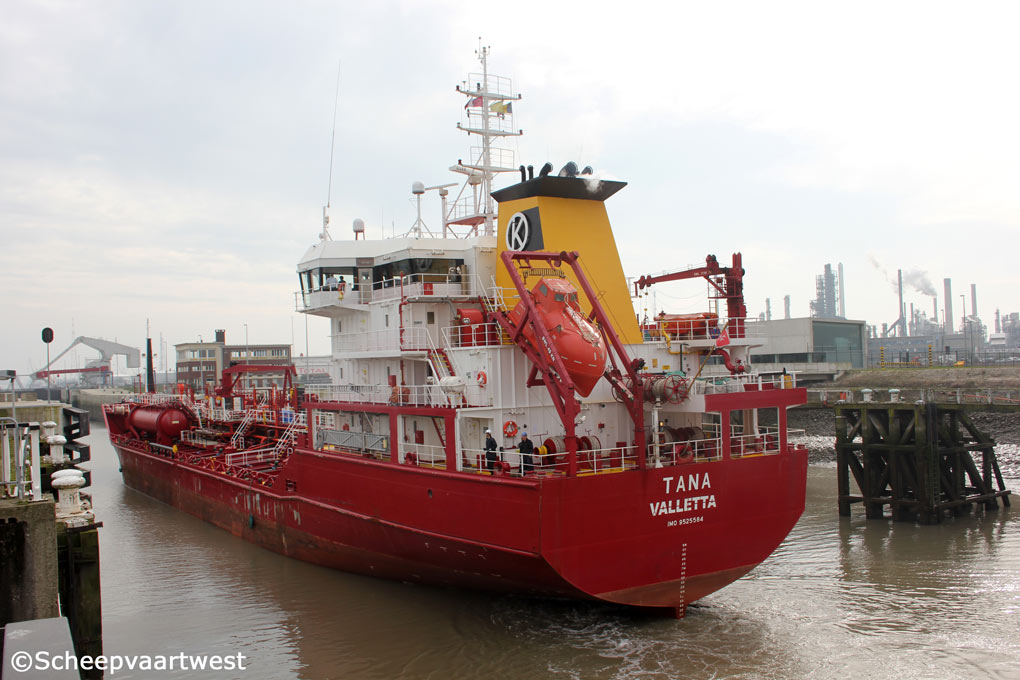

Tana 02
Antwerpen 07/03/14


Name

TANA

Type

Oil / chemical tanker

IMO-number

9525584

Call sign

9HA2992

Flag

Malta

Port of registry

Valletta

GT

4.242 t

DWT

Summer: 6.487,6 t

Winter: 6.269,7 t

NT

1.992 t

Length

109,00 m overall

103,10 m between perpendiculars

Breadth

16,80 m

Draught

6,65 m

Air draft

32,00 m

Freeboard

1.661 mm

Depth

8,30 m

Speed

14,5 knots

Built

2011

Date of completion

21/11/2011

Builder

Desan Shipyard

Istanbul

Turkey

Yard number

22

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 8L27/38 - 4 stroke 8 cylinder 270 x 380 combustion engine 2.720 kW / 3.696 hp at 800 rpm

Builder: MAN Diesel A/S

Propellers

1x Screw propeller controllable pitch

Boilers

2x CHO S-Man AB 35,00 m² - 10,0 bar

1x CHO S-Man AB 43,00 m² - 10,0 bar

Shaft generator

1x 800 kW

Generators

3x MAN diesel generatorsets each 520 kVA - 416 kW

Emergency generator

1x Diesel generatorset 125 kVA - 100 kW

Bow thruster

1x 350 kW

Number of tanks

10

Total capacity of tanks 98%

6.983,47 m³

Number of slop tanks

2

Slop tanks capacity 98%

159,42 m³

Segregation

12

Cargo pumps

10x Pumps each 200 m³/h

2x Pumps each 70 m³/h

Loading rate

400 m³/h

Discharging rate

4x 220 m³/h

Heating capacity

Steam heating, max. load/discharge temp 80°C

Manifolds

Manifold to main deck: 2.136 mm

Manifold to platform: 900 mm

Manifold to stern: 60,00 m

Manifold to bow: 49,00 m

Manifold to rail: 4.557 m

Tank capacities

Fuel oil: 320,65 m³

Diesel oil: 66,65 m³

Water ballast: 2.315,99 m³

Lifting equipment

1x Deck crane - SWL 5,0 t

Manager

K Tankering & Shipmanagement

Denizciler İş Merkezi

F.Kerim Gökay Cad. No:18/1 A Blok Kat 3

34662 Altunizade Üsküdar

İstanbul / Türkiye

Operator

K Tankercilik Ve Gemi Isletmeciligi A.S.

Owner

Desan Deniz Insaat San. A.S.

Istanbul

Turkey

Renamed

2019 Key East

Malta, Valletta - Call sign: 9HA2992

Owner: Key Tankers As

Latest data adjustment

25 August 2020
