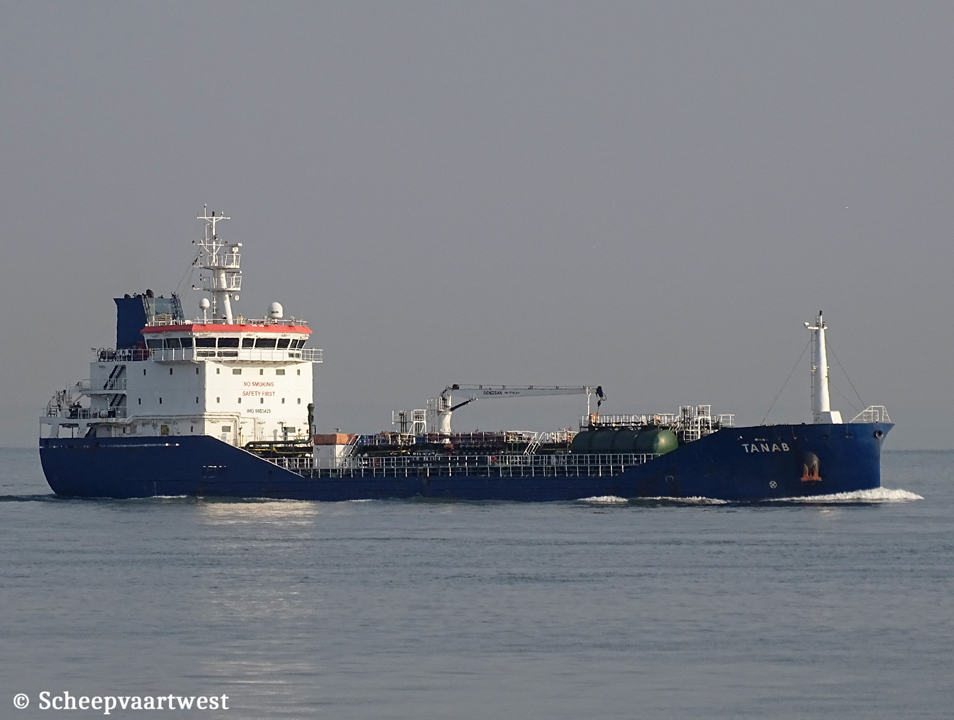

Tanab IMO 9803429 01
Westerschelde 11 August 2020


Name

TANAB

Type

Chemical tanker

IMO-number

9803429

Call sign

9HA4393

Flag

Malta

Port of registry

Valletta

GRT

3.994 t

Suez: 4.468,08 t

DWT

Summer: 6.122 t

Winter: 5.915 t

NRT

1.775 t

Suez: 3.642,64 t

Panama: 3.415 t

Displacement

Summer: 8.302 t

Winter: 8.095 t

Length

99,99 m overall

98,11 m between perpendiculars

Breadth

16,60 m moulded

Draught

Summer: 6,70 m

Winter: 6,56 m

Keel to mast end

33,08 m

Air draft

27,07 m in ballast

26,23 m loaded condition

Distance bow to bridge

77,51 m

Distance stern to bridge front

22,48 m

Freeboard

Summer: 1.760 mm

Winter: 1.900 m

Depth

8,45 m moulded

Speed

11,5 knots loaded

12,0 knots in ballast

Built

2017

Builder

Hercelik Shipyard

Yard number

NB20

Hull material

Steel

Hull type

Double hull

Main engine

1x Yanmar 6EY26W - 4 stroke 6 cylinder 260 x 385 mm combustion engine 1.920 kW / 2.610 hp at 750,0 rpm

Manufacturer: Yanmar Co., Ltd. Amagasaki Plant

Propellers

1x Controllable pitch propeller

Boilers

2x Thermal oil heater Gesab TOH 1600 V 40 W (vertical) - 10,0 bar

Shaft generator

1x AVK DSU 62 M1 - 4 - 580 kVA

Generators

3x Scania-DI9074M diesel generatorsets each 298 ekWe

Emergency generator

1x Cummins 6 BT5.9 diesel generatorset 96 ekW

Bow thruster

1x Electric fixed pitch 265 kW / 360 hp

Number of tanks

10 + 2 slop tanks

Number of segregations

12x Double valves

Cargo tank capacity

1P: 590,20 m³

1S: 592,27 m³

2P: 450,86 m³

2S: 448,33 m³

3P: 800,74 m³

3S: 805,02 m³

4P: 586,63 m³

4S: 583,08 m³

5P: 693,00 m³

5S: 693,20 m³

Slop P: 85,22 m³

Slop S: 85,30 m³

Total: 6.416,91 m³

Max loading

1.200 m³/

Discharging rate

500 m³/h

Number of pumps

10x Framo cargo pumps each 150 m³/h

2x Framo slop pumps each 80 m³/h

1x Portable cargo pump 70 m³/h

2x Ballast pumps each 200 m³/h

Manifolds

Distance bridge front to mid-point manifold: 32,00 m

Distance bow to mid-point manifold: 45,25 m

Distance aft to mid-point manifold: 54,75 m

Distance between manifolds: 0,75 m

Distance from ship side to manifold: 3,55 m

Distance from deck to manifold: 2,29 m

Tank capacities 100%

HSFO: 225,34 m³

LSFO: 64,34 m³

LSMGO: 77,72 m³

Lub oil: 15,48 m³

Technical water: 201,04 m³

Fresh water 118,74 m

Ballast: 2.410,70 m³

Anchor equipment

2x 2.280 kg each

Lifting equipment

1x Crane - SWL 5,0 t

1x Crane - SWL 2,0 t

ISM & commercial manager

Nakkas Shipping & Trading Co. (Nakkas Denizcilik Ve Ticaret)

Ismail Pasa Sokak 37/1, Kosuyolu Mah, Kadikoy

34718 Istanbul

Turkey

Registered owner

Tanab Maritime & Trading Inc.

Care of Nakkas Denizcilik ve Ticaret AS (Nakkas Shipping & Trading Co Ltd)

Ismail Pasa Sokak 37/1, Kosuyolu Mah, Kadikoy

34718 Istanbul

Turkey

Latest data adjustment

25 January 2022
