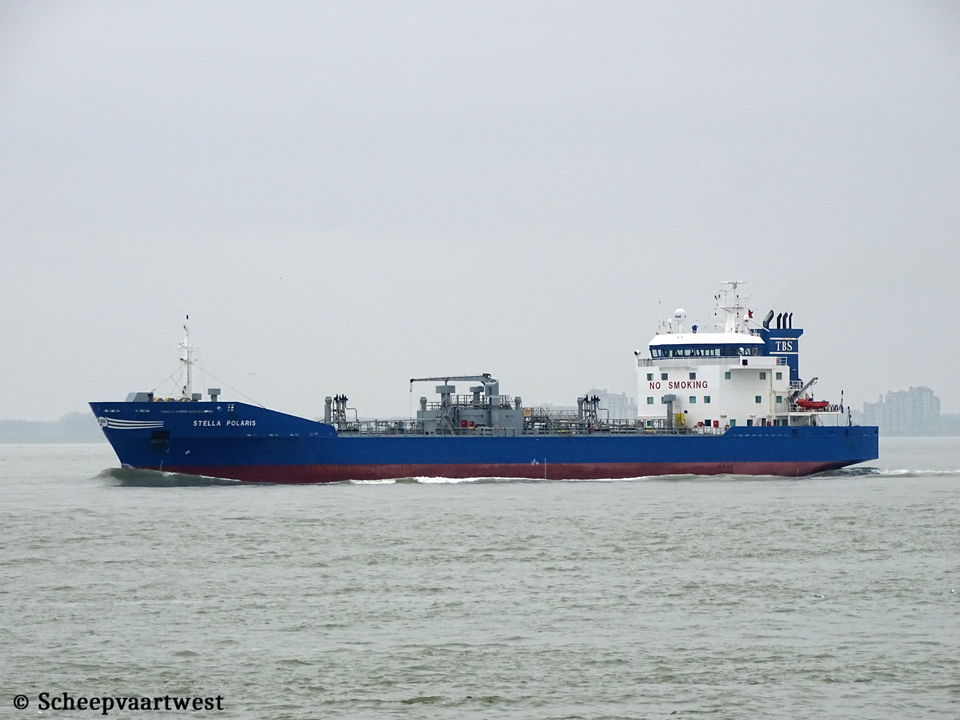

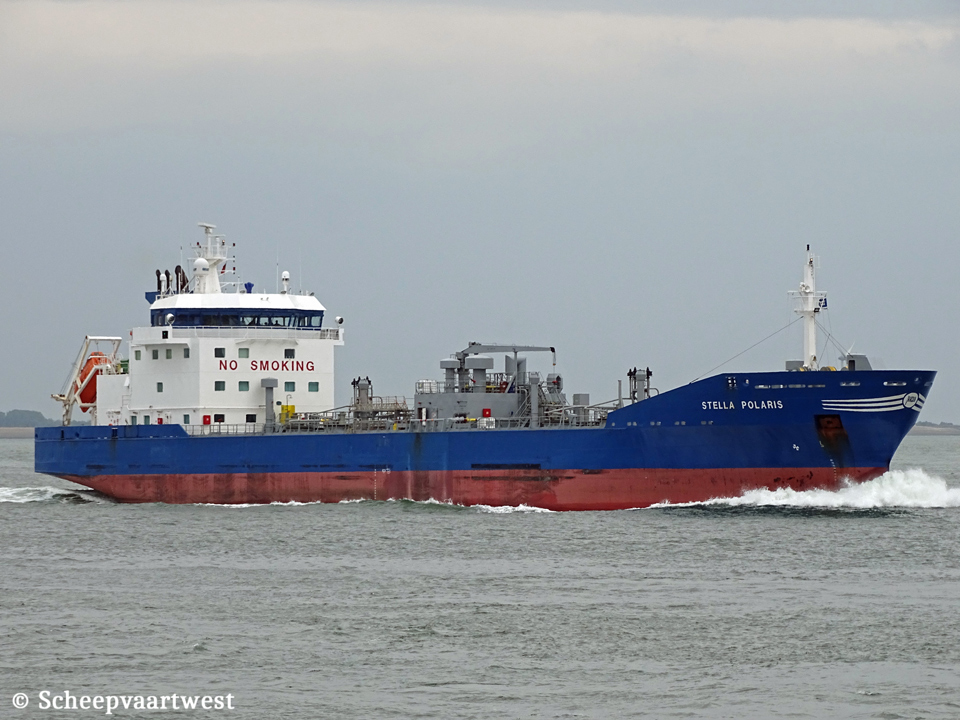

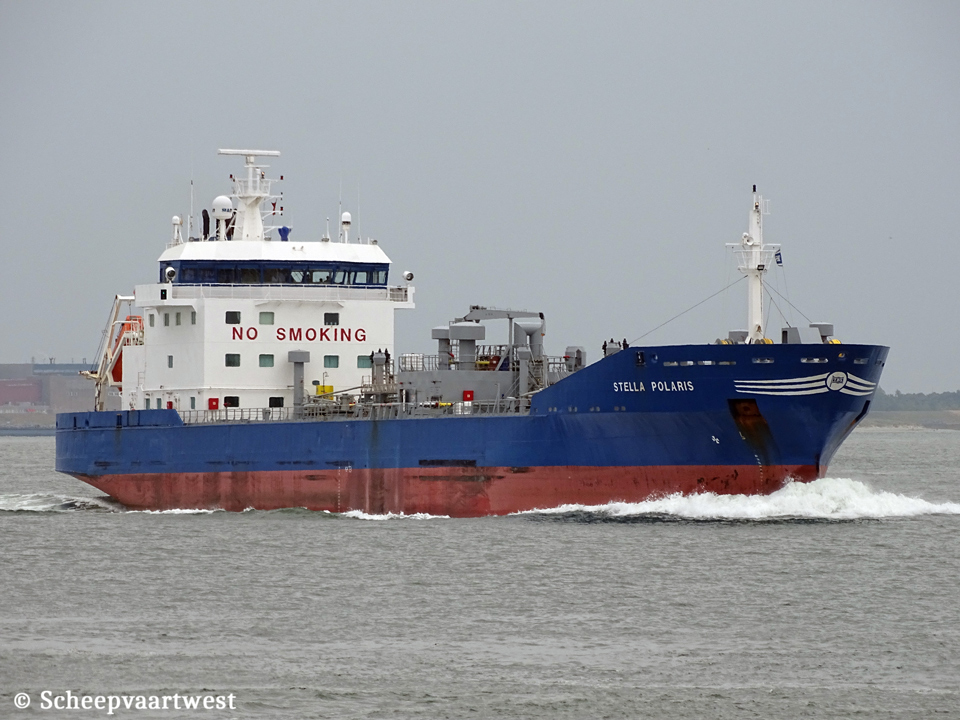

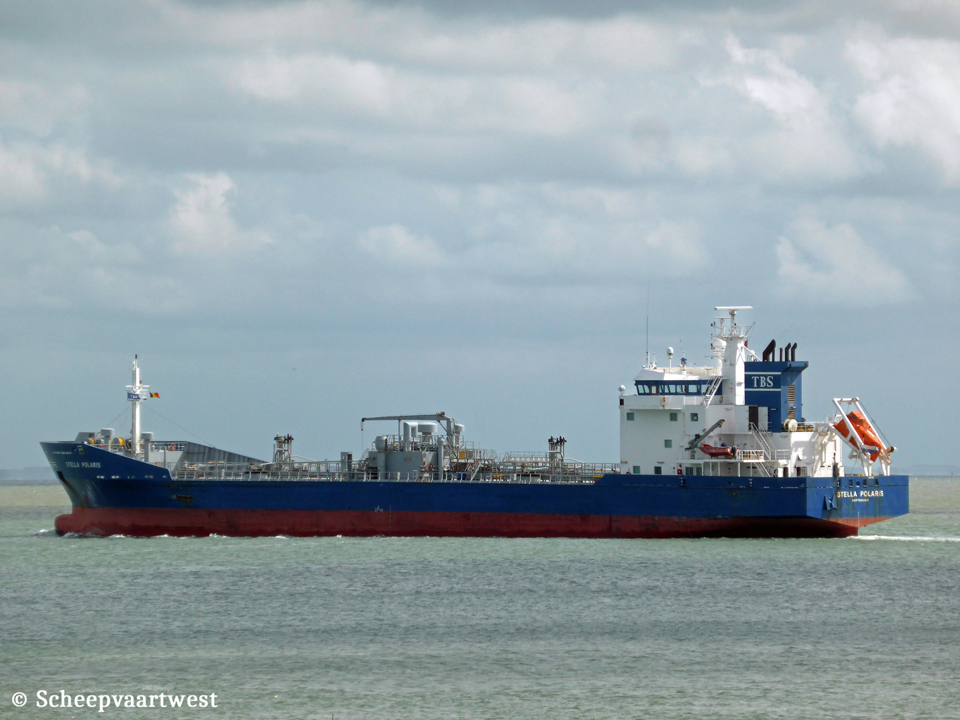

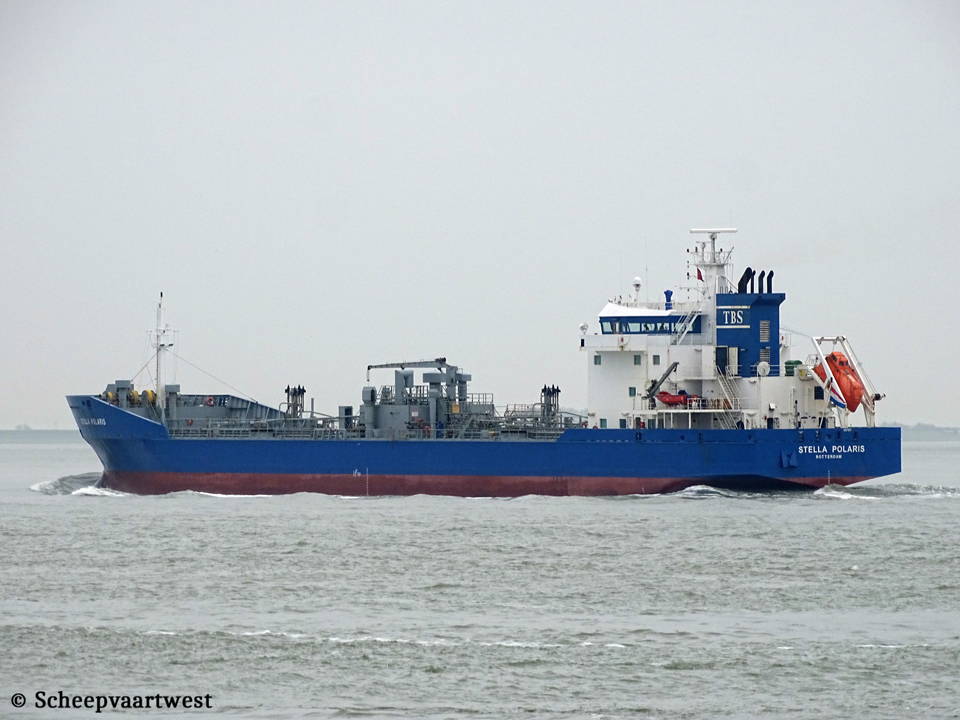

Westerschelde 18 July 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 18/07/19 | Westerschelde 29/07/14 | Westerschelde 04/09/14 | Westerschelde 21/03/19 | Westerschelde 21/03/19 | Westerschelde 01/09/15 | |||||
|
Name |
STELLA POLARIS |
|
Type |
Bitumen, oil & chemical tanker Fully segregated water ballast, independent cargo tanks 250ºC, double hull, closed loading system |
|
IMO-number |
9187057 |
|
Call sign |
PEBD |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
5.396 t |
|
DWT |
Summer: 8.297 t |
|
NT |
1.668 t |
|
Length |
117,18 m overall 111,73 m between perpendiculars |
|
Breadth |
17,12 m extreme |
|
Draught |
7,55 m |
|
Depth |
10,50 m moulded |
|
Speed |
Service: 14,0 knots Max.: 15,0 knots |
|
Built |
1999 |
|
Launch date |
20/01/1999 |
|
Date of completion |
06/04/1999 |
|
Builder |
Koninklijke Schelde Groep B.V Vlissingen The Netherlands |
|
Yard number |
389 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm Built: 1998 Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHR 74,00 m² - 13,0 bar 2x CHO 44,60 m² - 13,0 bar |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 500 kVA - 400 kW |
|
Generators |
2x Mitsubishi S6R-MPT8 main diesel generatorsets each 586 kVA - 469 kW - 666 hp at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 198 kVA - 158 kW - 215 hp |
|
Bow thruster |
1x 300 kW |
|
Number of cargo tanks |
8 2x 2 wing tanks, 4 centre tanks |
|
Cargo tank capacity 98% |
Tank 1: 618 m³ Tank 2&3: 780 m³ each Tank 4&5: 1.047 m³ each Tank 6&7: 606 m³ each Tank 8: 903 m³ Total: 6.387 m³ |
|
Cargo handling |
2x Houttuin screw cargo pumps each 450 m³/h |
|
Cargo heating |
Maximum cargo temperature 250ºC |
|
Manifolds |
Bow to centre manifold: 52,00 m |
|
Fuel capacity |
432 m³ |
|
Lifting equipment |
1x Crane (tank deck) - SWL 1,39 t at 13,00 m 1x Crane (poop deck p/s) - SWL 1,5 t |
|
Manager |
Tarbit Tankers Wolwevershaven 30-M 3311 AW Dordrecht The Netherlands |
|
Previous manager |
04/1999 - 03/2007 Rederij Theodora B.V., Rotterdam - The Netherlands |
|
Registered owner |
Azollo BV Wolwevershaven 30-M 3311 AW Dordrecht The Netherlands |
|
Latest data adjustment |
11 June 2021 |
