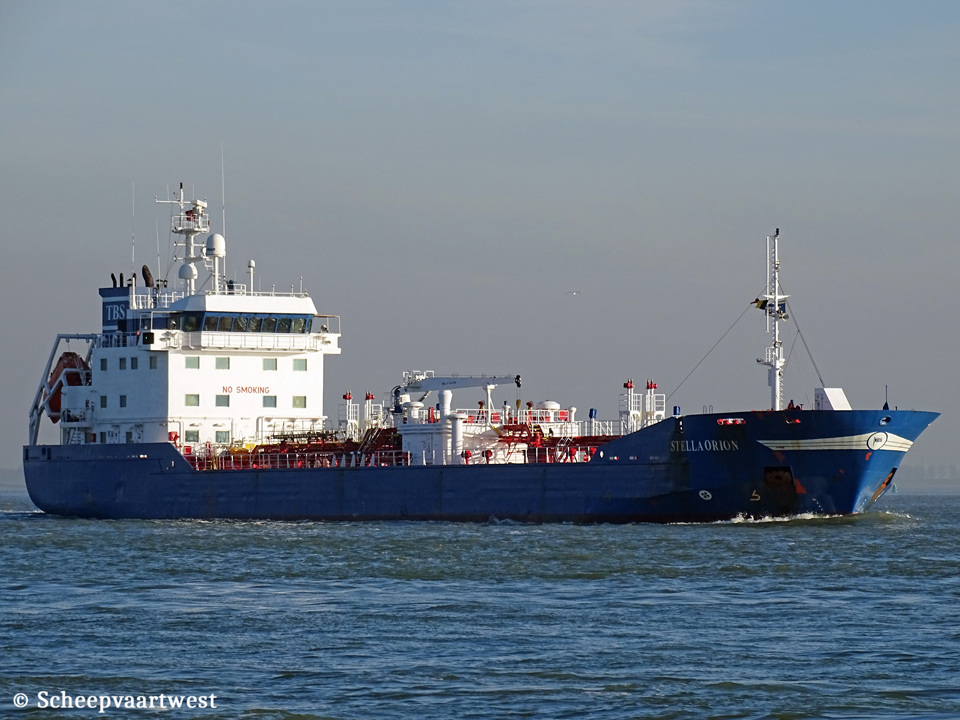

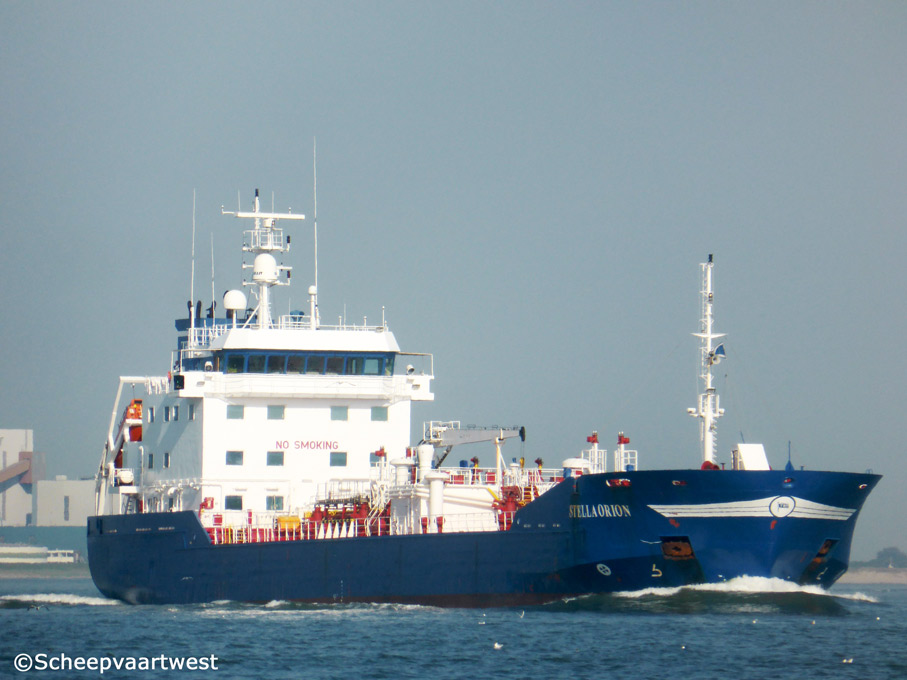

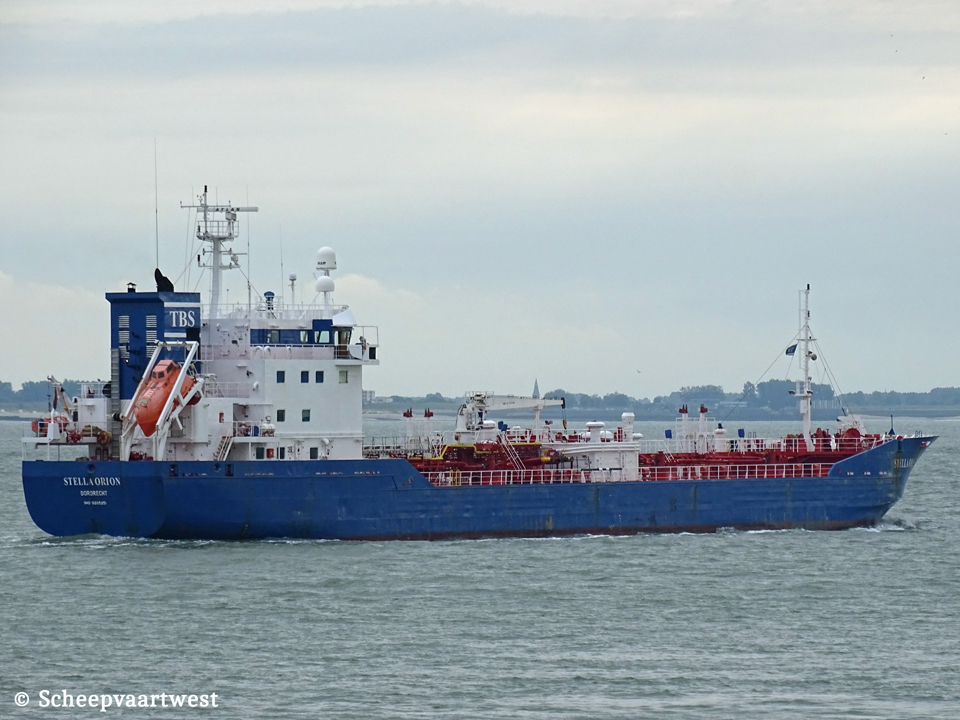

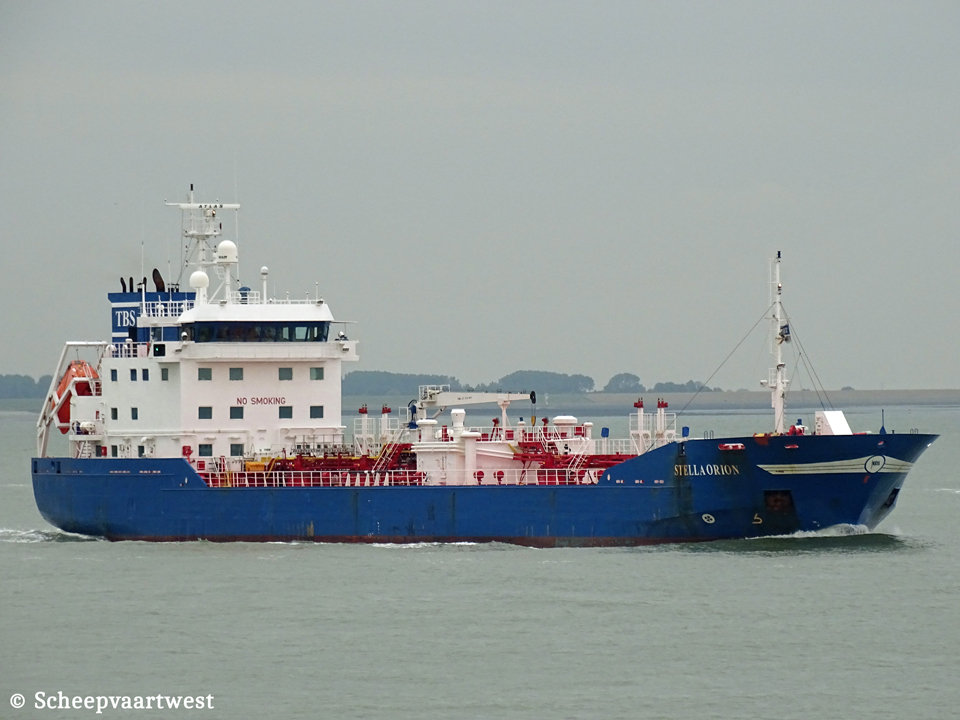

Westerschelde 21 January 2016 |
 |
 |
 |
||
| Westerschelde 30/07/16 | Westerschelde 30/07/16 | Westerschelde 16/07/14 | ||
|
Name |
STELLA ORION |
|
Previous names |
2004 - 10/2006 Etoile Lava |
|
Type |
Chemical tanker - Asphalt tanker - Oil tanker |
|
IMO-number |
9265251 |
|
Call sign |
PHGX |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
Previous flags |
2004 - 10/2006 Republic of Panama, Panama City |
|
GT |
4.074 t |
|
DWT |
Summer: 4.999 t |
|
NT |
1.223 t |
|
Length |
104,60 m overall 96,60 m between perpendiculars 97,83 m registered |
|
Breadth |
15,20 m extreme |
|
Draught |
Max.: 6,25 m |
|
Forecastle |
9,10 m |
|
Quarterdeck |
17,75 m |
|
Depth |
9,30 m moulded |
|
Speed |
Service: 13,0 knots |
|
Built |
2004 |
|
Keel laid |
15/01/2003 |
|
Launch date |
11/08/2003 |
|
Date of completion |
16/02/2004 |
|
Builder |
Rousse Industry A.D. 5, Matei Stoikov Street 7000 Ruse Bulgaria |
|
Yard number |
702 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine Mcr 2.880 kW / 3915 hp at 600 rpm Year of manufacture: 2003 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 173 rpm |
|
Boilers |
2x Thermal oil heater, oil fired - 13,0 bar Heating surface: 44,6 m² Year of manufacture: 2002 Manufacturer: Apparate- und Kesselbau AKB GmbH Baiertaler Str. 98 69168 Wiesloch Federal Republic of Germany 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 92,0 m² Year of manufacture: 2003 Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH Hirtscheider Str. 13-15 57647 Nistertal Federal Republic of Germany |
|
Electric installations |
3x Plants each 380/220 V - 525 kVA 1x Plant 380 V - 500 kVA 1x Plant 380 V - 170 kVA |
|
Shaft generator |
1x 440 kW / 500 kVA |
|
Generators |
3x Volvo Penta D25AMS - 4 stroke 6 cylinder 170 x 170 mm diesel engine each Mcr 485 kW connected with generators each 400 kW / 525 kVA at 1.500 rpm |
|
Emergency generator |
1x Diesel generatorset 170 kVA |
|
Compressed air receivers |
3x Receivers each 250 litres - 30,0 bar 1x Receiver 500 litres - 8,0 bar |
|
Bow thruster |
1x Jastram transverse thruster 380 kW / 517 hp, forward |
|
Number of cargo tanks |
8 4x 2 wing tanks |
|
Liquid cargo capacity 98% |
Tank 1-2: each 512 m³ Tank 3-6: each 510 m³ Tank 7-8: each 555 m³ 4.174 m³ |
|
Cargo pumps |
2x Borneman screw cargo pumps each 370 m³/h |
|
Manifolds |
Bow to centre manifold: 55,00 m |
|
Tank capacities |
Ballast: 2.295,9 m³ |
|
Anchor equipment |
3x Anchors weight each 2.640 kg Chain length: 467,50 m |
|
Lifting equipment |
1x Crane - SWL 3,0 t |
|
Crew |
13 |
|
Manager |
Tarbit Tankers Services B.V. Wolwewershaven 30 3311 AW Dordrecht The Netherlands |
|
Previous manager |
02/2004 - 10/2006 Enea Management Inc., Piraeus - Greece |
|
Registered owner |
Boerenzij B.V. Wolwevershaven 30M 3311 AW Dordrecht The Netherlands |
|
Previous names & owners |
2004 - 10/2006 Etoile Lava - Etoile Marine |
|
Latest data adjustment |
21 May 2023 |
