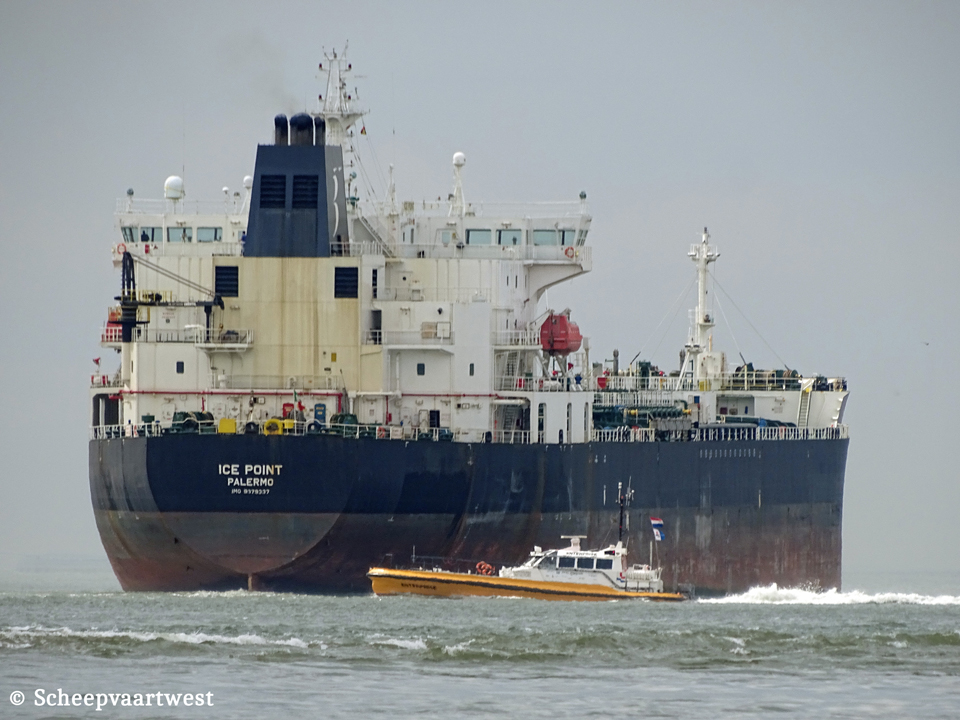

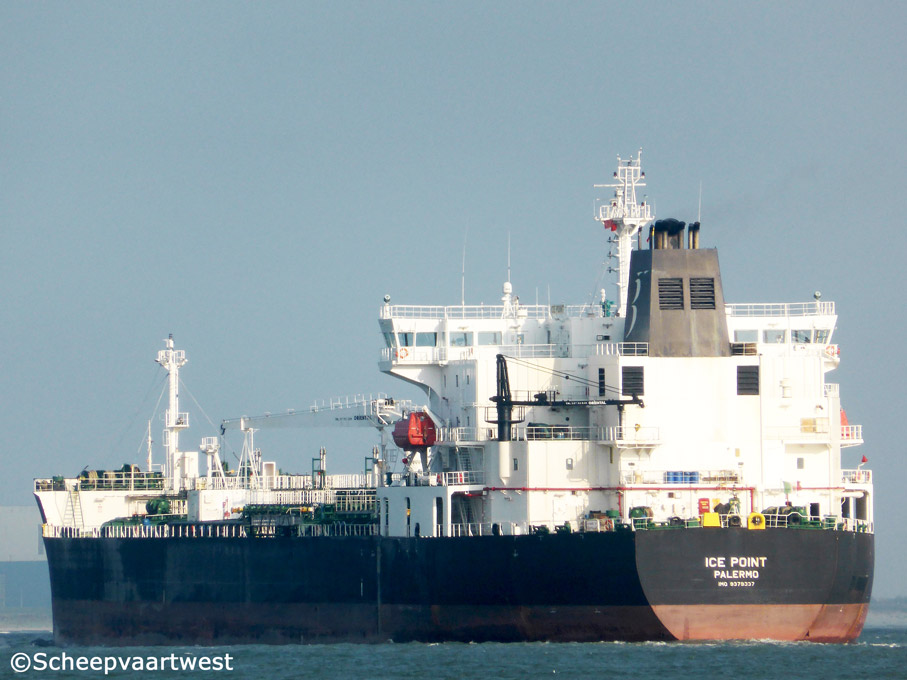

Westerschelde 13 September 2014 |
 |
|
| Westerschelde 15/04/18 | |
|
Name |
ICE POINT |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9379337 |
|
Call sign |
ICIB |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
30.050 t Suez: 32.300 t |
|
DWT |
Summer: 50.921,9 t |
|
NT |
13.700 t Suez: 27.700 t |
|
Lightship |
11.110 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,28 m |
|
Keel to mast end |
45,90 m |
|
Depth |
19,10 m moulded |
|
Speed |
15,9 knots |
|
Built |
2007 |
|
Keel laid |
23/08/2007 |
|
Launch date |
26/10/2007 |
|
Delivery date |
28/12/2007 |
|
Builder |
STX Offshore & Shipbuilding Co. Ltd. Pusan South Korea |
|
Yard number |
S1242 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x STX/MAN-B&W 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine Mcr 13.560 kW / 18.420 bhp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller - Four blades |
|
Boilers |
1x Composite Boiler Mission OC - 9,0 bar Heating surface: 303 m² Auxiliary boiler: Mission OL - 9,0 bar Heating surface: 110 m² |
|
Generators |
3x Hyundai main diesel generatorsets each 900 kW |
|
Bow thruster |
1x Hydraulic 950 kW |
|
Number of cargo tanks |
12 |
|
Number of segregations |
6 |
|
Slop tanks |
2 + 1 Residual tank |
|
Total cubic capacity 100% |
53.300 m³ Incl. slop |
|
Slop tanks capacity 100% |
1.288 m³ |
|
Cargo pumps |
12x Cargo pumps each 600 m³/h 2x Cargo pumps each 200 m³/h 1x Pump 20 m³/h Submerged, centrifugal, hydraulic driven |
|
Discharge capacity |
3.600 m³/h |
|
Ballast pumps |
2x 750 m³/h |
|
Lifting equipment |
1x Cargo hose crane - SWL 10,0 t |
|
ISM & commercial manager |
International Andromeda Gildo Pastor Center, 7, rue du Gabian 98000 Monte Carlo Monaco |
|
Registered owner |
PB Tankers SpA Via Principe di Belmonte 55 90139 Palermo PA Italy |
|
Latest data adjustment |
28 February 2023 |
