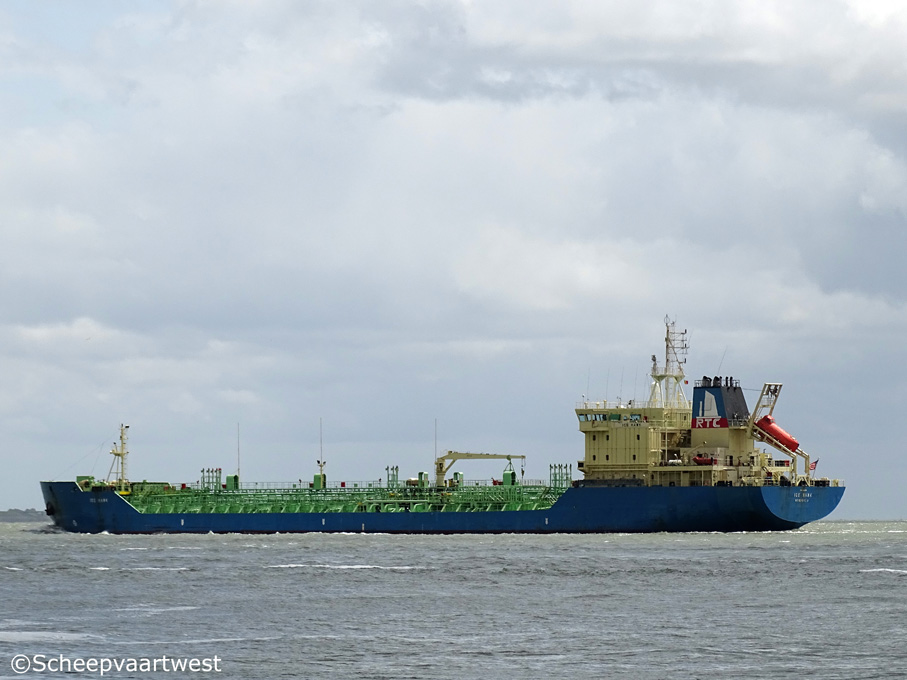

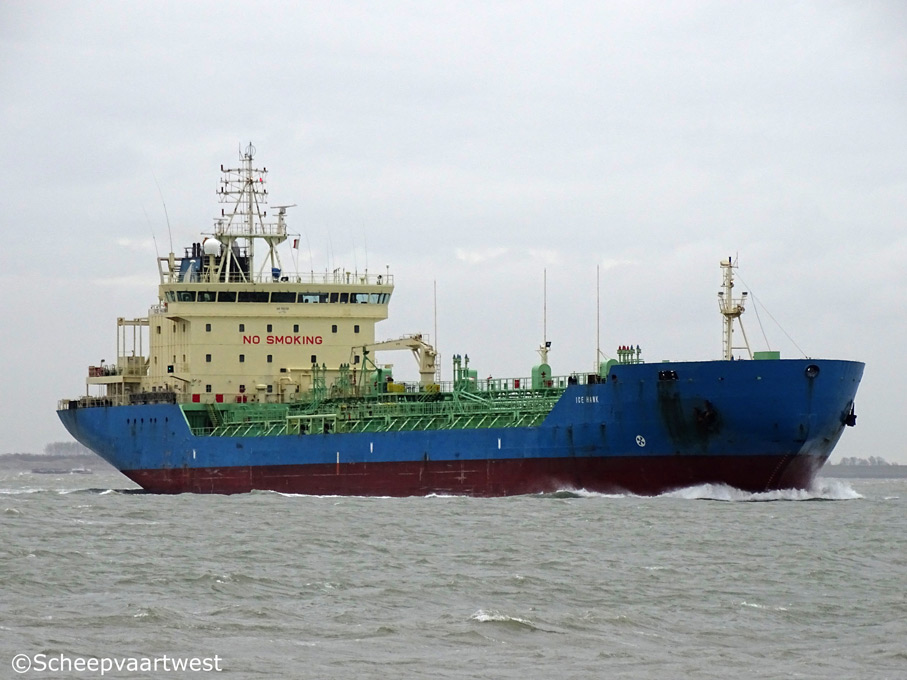

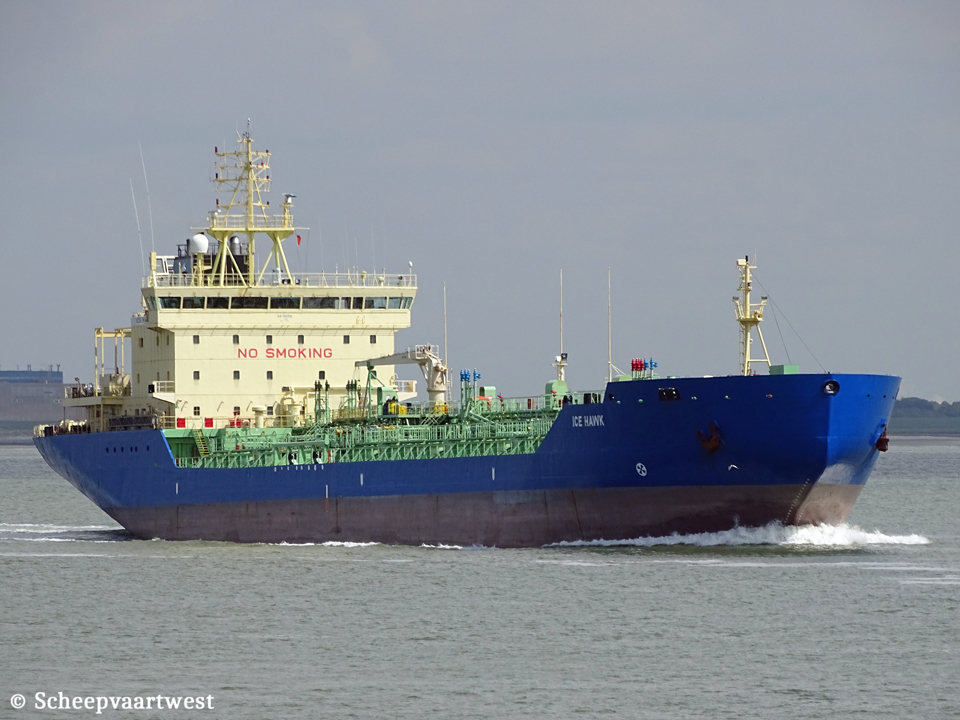

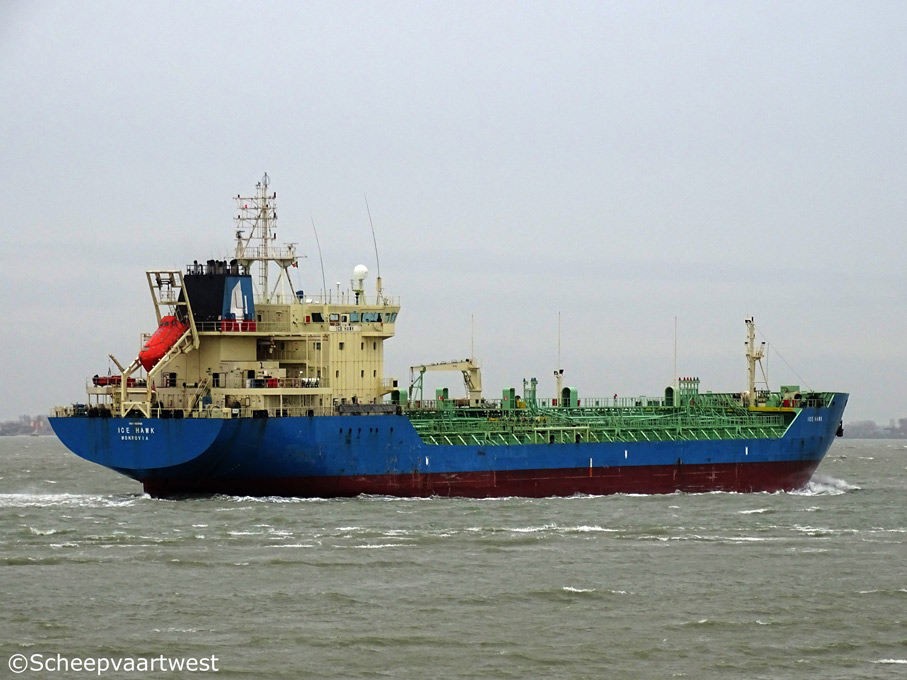

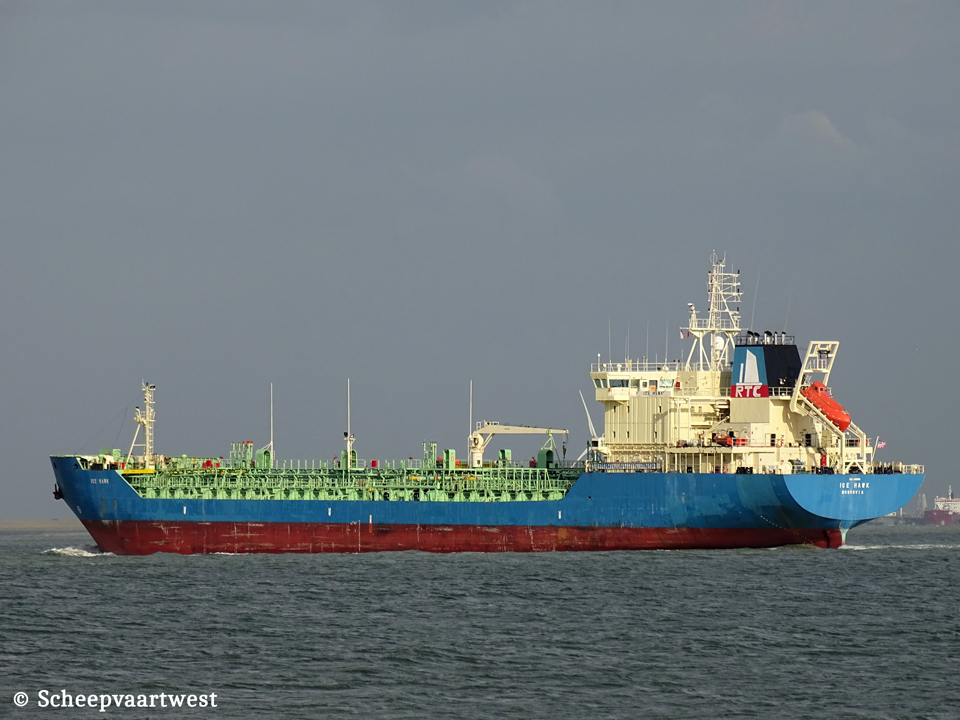

Westerschelde 20 February 2016 |
 |
 |
 |
 |
|||
| Westerschelde 20/02/16 | Westerschelde 14/05/16 | Westerschelde 28/07/16 | Westerschelde 31/07/17 | |||
|
Name |
ICE HAWK |
|
Previous names |
1999 - 04/2006 Saint Petersburg 04/2006 - 11/2007 Shakhdag 11/2007 - 03/2012 Stavrodromi |
|
Type |
Tanker for oil & chemicals Clean petroleum products |
|
IMO-number |
9169768 |
|
Call sign |
SVDA3 |
|
Flag |
Greece |
|
Previous flag |
1999 - 2012 Russia - Call sign: UAXI 2012 - 2017 Malta, Valletta - Call sign: 9HKB8 2017 - 2018 Liberia, Monrovia - Call sign: D5BT7 |
|
GT |
10.321 t registered |
|
DWT |
Summer: 15.441 t |
|
NT |
5.054 t registered |
|
Length |
145,88 m overall |
|
Breadth |
22,50 m moulded |
|
Draught |
8,71 m |
|
Moulded L x B x D |
137,00 x 22,50 x 11,25 m |
|
Registered L x B x D |
138,45 x 22,50 x 11,25 m |
|
Keel to mast end |
39,85 m |
|
Freeboard |
Summer: 2.560 mm |
|
Depth |
11,25 m moulded |
|
Speed |
14,4 knots |
|
Built |
1999 |
|
Keel laid |
06/10/1998 |
|
Launch date |
20/02/1999 |
|
Delivery date |
14/04/1999 |
|
Builder |
Aker MTW Schiffswerft GmbH Wismar Germany |
|
Yard number |
275 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S35MC - 2 stroke single acting 8 cylinder 350 x 1.400 mm combustion engine 5.300 kW / 7.206 hp at 170,0 rpm Manufacturer: MAN Diesel A/S Frederikshavn |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 463 mm |
|
Propellers |
1x KaMeWa controllable pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 12,0 bar Evaporation: 6,15 t/h Evaporation: 6,15 t/h |
|
Generators |
3x SK 8VDS 24/16 AL main diesel generatorsets each 680 kW |
|
Emergency generator |
1x MAN D0226MLE diesel generatorset |
|
Bow thruster |
1x KaMeWa - 500 kW / 670 hp |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity 98% |
16.948,8 m³ ex. slops |
|
Slop tank capacity 98% |
258,7 m³ |
|
Total tank capacity 98% |
17.207,1 m³ |
|
Segregations |
3 |
|
Number of pumps |
1x Cargo pump 684 m³ 2x Cargo pumps each 472 m³ |
|
Manifolds |
Bow to centre manifolds: 79,50 m |
|
Tank capacities |
Fuel oil: 1.182 m³ Fresh water: 125 m³ Water ballast: 6.129 m³ |
|
Ancho equipment |
Length: 550 m Diameter: 54 mm |
|
Lifting equipment |
1x Crane - SWL 7,0 t 1x Crane - SWL 1,5 t |
|
Rescue equipment |
1x life boat: 28 pers cap. 1x rescue boat: 6 pers cap. 1x liferaft: 6 pers cap. 4x liferafts: 16 pers. cap. |
|
Crew size |
24 |
|
ISM & commercial manager |
Ice Hawk Shipping Co. 8, Kalamon Street & Poseidonos Avenue Glyfada, 166 74 Athens Greece |
|
Registered owner |
Ice Hawk Shipping Co. 8, Kalamon Street & Poseidonos Avenue, Glyfada, 166 74 Athens Greece |
|
Previous names & owners |
|
|
Latest data adjustment |
25 May 2023 |
