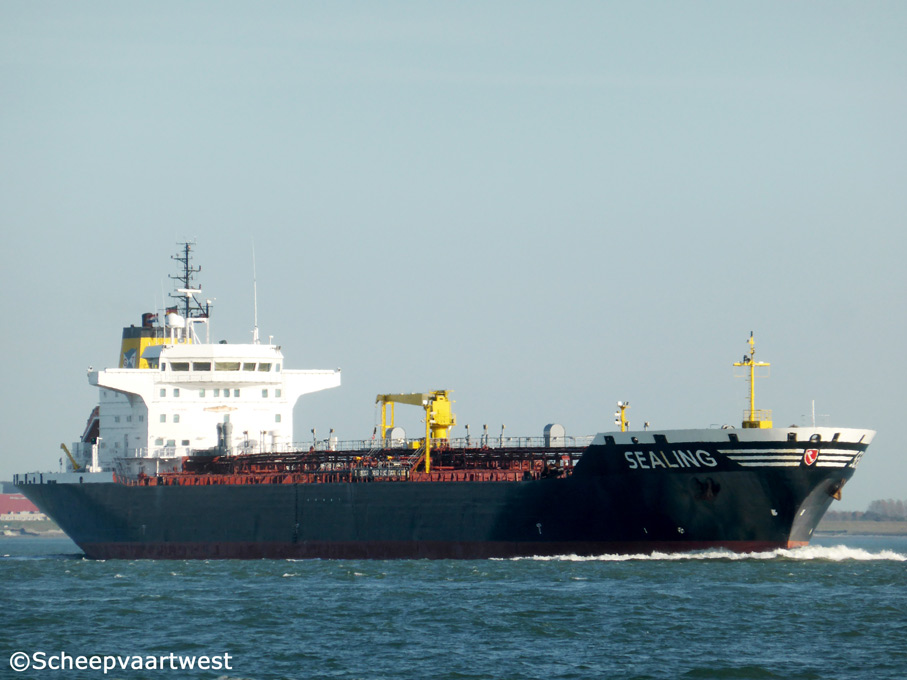

Sealing 01

Westerschelde 18 October 2014

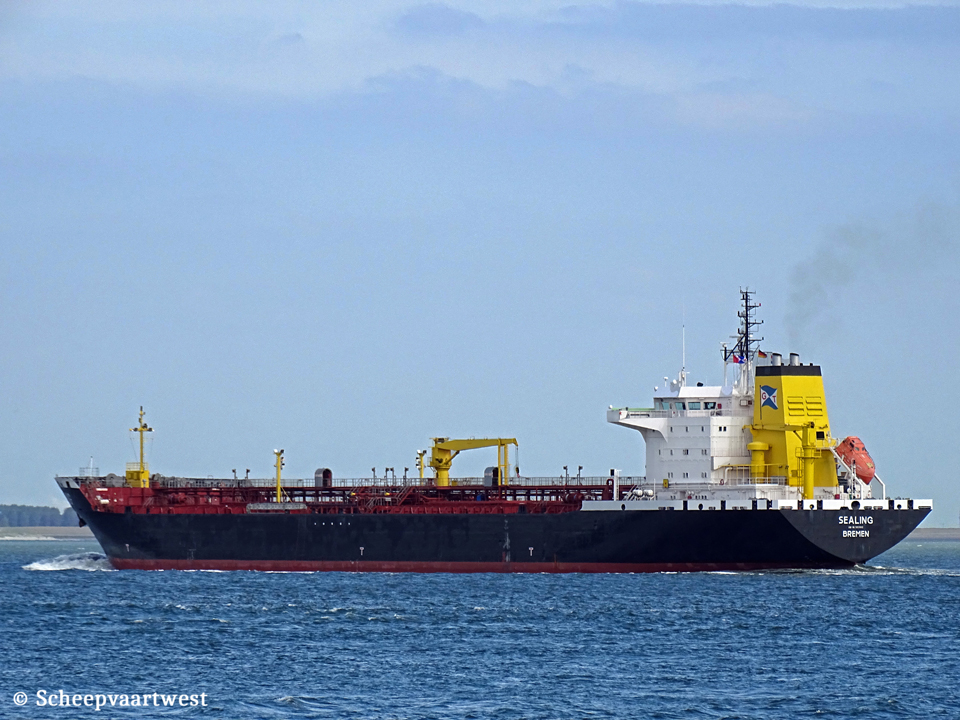

Sealing IMO 9251652 02
Westerschelde 03/09/16


Name

SEALING

Type

Tanker for oil and chemicals

IMO-number

9251652

Call sign

DECO

Flag

Germany

Port of registry

Bremen

GT

21.356 t

DWT

Summer: 32.428 t

NT

8.390 t

Length

177,74 m overall

169,070 m registered

Breadth

28,00 m registered

Draught

11,00 m

Forecastle

14,20 m

Depth

16,80 m moulded

Speed

Service: 15,1 knots

Max.: 16,0 knots

Built

2003

Keel laid

25.07.2002

Launch date

25.01.2003

Date of completion

20.05.2003

Builder

Lindenau GmbH Schiffswerft & Maschinenfabrik
Christianspries 30
24159 Kiel
Federal Republic of Germany

Yard number

S257

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAN B&W 6L58/64 - 4 stroke 6 cylinder 580 x 640 mm dieel engine - 8.340 kW / 11.342 hp at 428 rpm

Year of manufacture: 2002

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 101,0 rpm

Boilers

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating surface: 78,0 m²

1x Steam boiler, oil fired - 12,0 bar

Heating surface: 115,0 m²

Year of manufacture: 2002

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 380/220 V - 1.200 kVA

1x Plant 380 V - 1.400 kVA

1x Plant 380 V - 200 kVA

Shaft generator

1x 1.400 kVA

Generators

3x Main diesel generatorsets each 1.200 kVA

Emergency generator

1x Diesel generatorset 200 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30 bar

1x Receiver 20 litres - 30 bar

1x Receiver 1.000 litres - 10 bar

1x Receiver 60 litres - 10 bar

Bow thruster

1x Transverse thruster 1.050 kW, forward

Number of cargo tanks

10

Cargo tank capacity

Liquid: 37.511 m³

Tank capacities

Water ballast: 16.718 m³

Fuel oil: 863 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Manager

German Tanker Shipping GmbH & Co. KG
Hans-Böckler-Str. 50
28217 Bremen
Federal Republic of Germany

Registered owner

TMS "SEALING" GmbH & Co. KG
Hans-Böckler-Str. 50
28217 Bremen
Federal Republic of Germany

Latest data adjustment

09 November 2014
