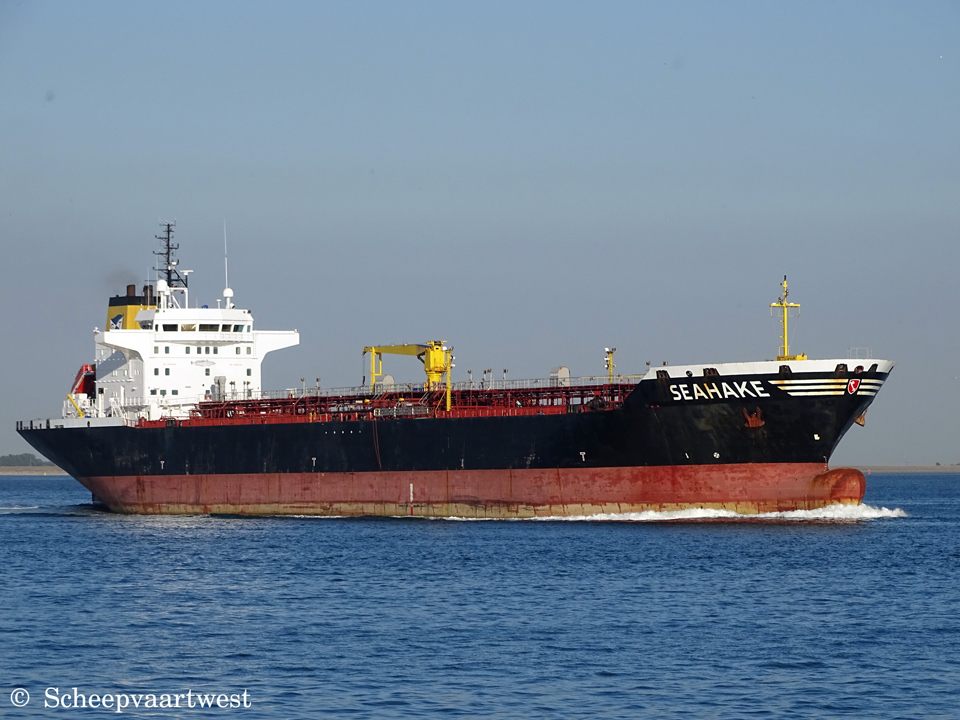

Seahake 03

Westerschelde 02 August 2018

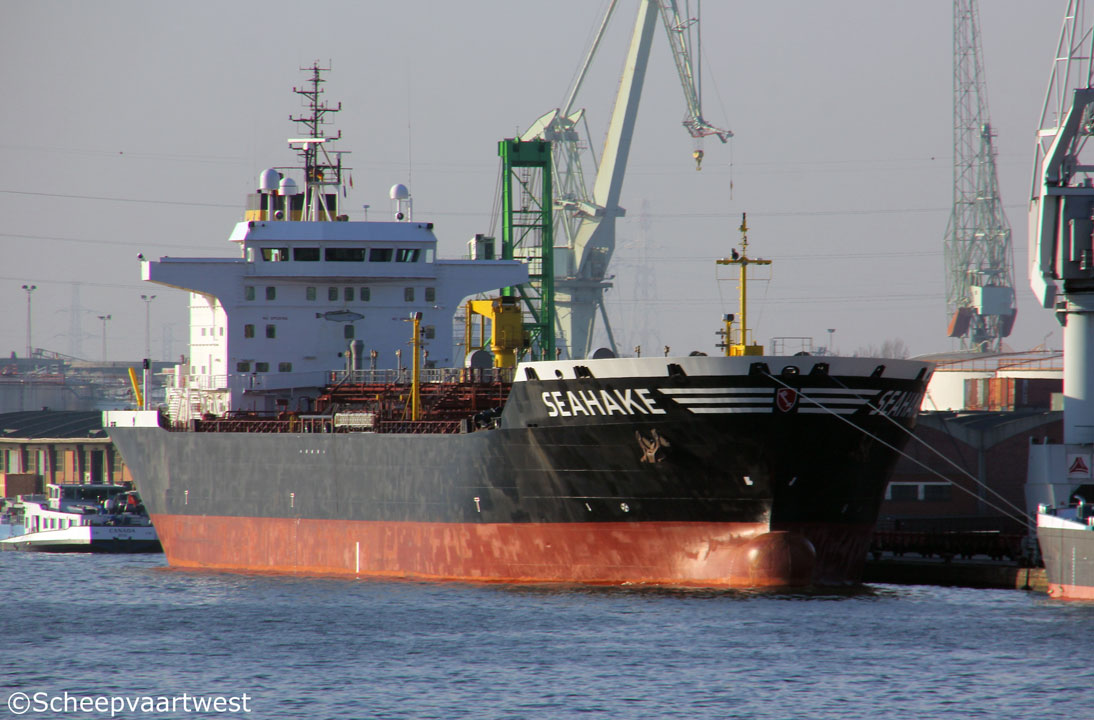

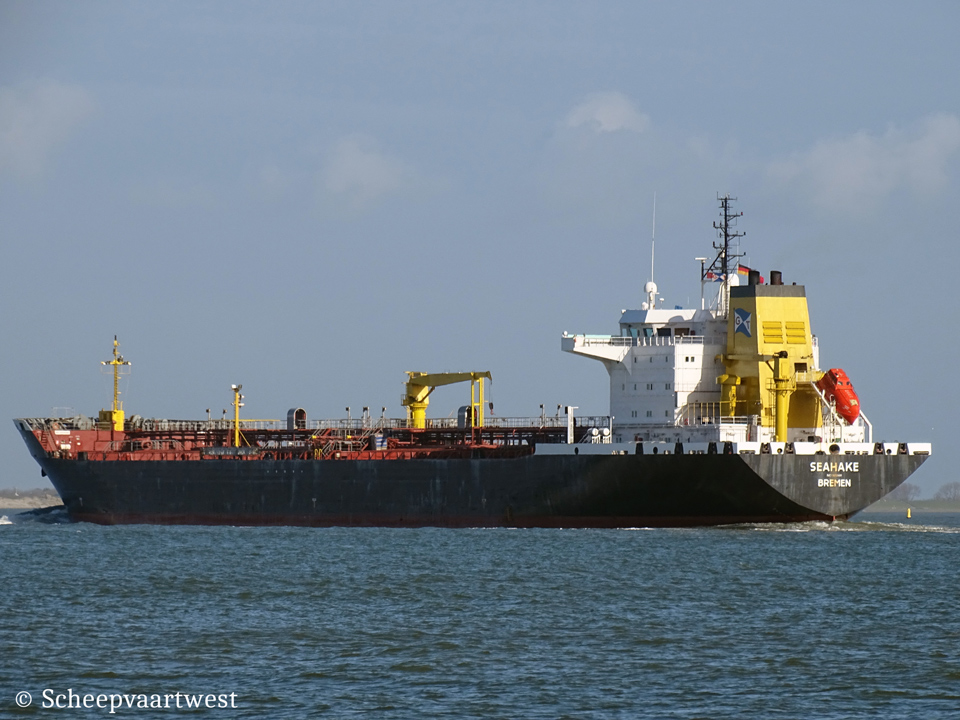

Seahake 02   Seahake 01
Westerschelde 25/03/16 Antwerpen 05/12/16


Name

SEAHAKE

Previous names

2003 built as Sehake

Type

Oil tanker

IMO-number

9255488

Call sign

DEEI

Flag

Germany

Port of registry

Bremen

GT

21.329 t

DWT

Summer: 32.464 t

NT

8.387 t

Length

177,72 m overall

168,00 m between perpendiculars

Breadth

28,09 m extreme

Draught

11,00 m

Air draft

38,00 m lightship

44,45 m keel to mast

Depth

16,80 m moulded

Speed

15,1 knots

Built

2003

Keel laid

25.01.2003

Launch date

12.07.2003

Date of completion

12.11.2003

Builder

Lindenau GmbH Schiffswerft & Maschinenfabrik
Kiel
Germany

Yard number

S251

Hull material

Steel

Hull type

Double hull

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAN B&W 6L58/64 - 4 stroke 6 cylinder 580 x 640 mm diesel engine - 8.340 kW / 11.342 hp at 428 rpm

Year of manufacture: 2002

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 101,0 rpm

Boilers

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating surface: 78,0 m²

1x Steam boiler, oil fired - 12,0 bar

Heating surface: 115,0 m²

Year of manufacture: 2002

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 380/220 V - 1.200 kVA

1x Plant 380 V - 1.400 kVA

1x Plant 380 V - 200 kVA

Shaft generator

1x 1.400 kW

Generators

3x Yanmar 6N21AL-GV main diesel generatorsets each 1.200 kW

Emergency generator

1x Deutz BF 6 M1015 M diesel generatorset 200 kW

Compressed air receivers

2x Receivers each 1.000 litres - 30 bar

1x Receiver 20 litres - 30 bar

1x Receiver 1.000 litres - 10 bar

1x Receiver 60 litres - 10 bar

Bow thruster

1x Transverse thruster 1.050 kW, forward

Number of cargo tanks

10x Wing tanks

Cargo tank capacity

Liquid: 37.511 m³

Pumps

10x Cargo centrifugal pumps - Total capacity of 5.000 m³

Manifolds

Manifold height above deck: 2,10 m

Distance from bow to centre manifold: 85,00 m

Tank capacities

Water ballast: 16.718 m³
Fuel oil: 863 m³

Anchor equipment

Length: 609,40 m

Diameter: 66 mm

Manager

German Tanker Shipping GmbH & Co. KG

Hans-Böckler-Straße 50
28217 Bremen
Germany

Operator

German tanker shipping

Registered owner

TMS "SEAHAKE" GmbH & Co. KG
c/o German Tanker Shipping GmbH & Co

Latest data adjustment

26 December 2016
