Westerschelde 05 July 2014 |
|
Name |

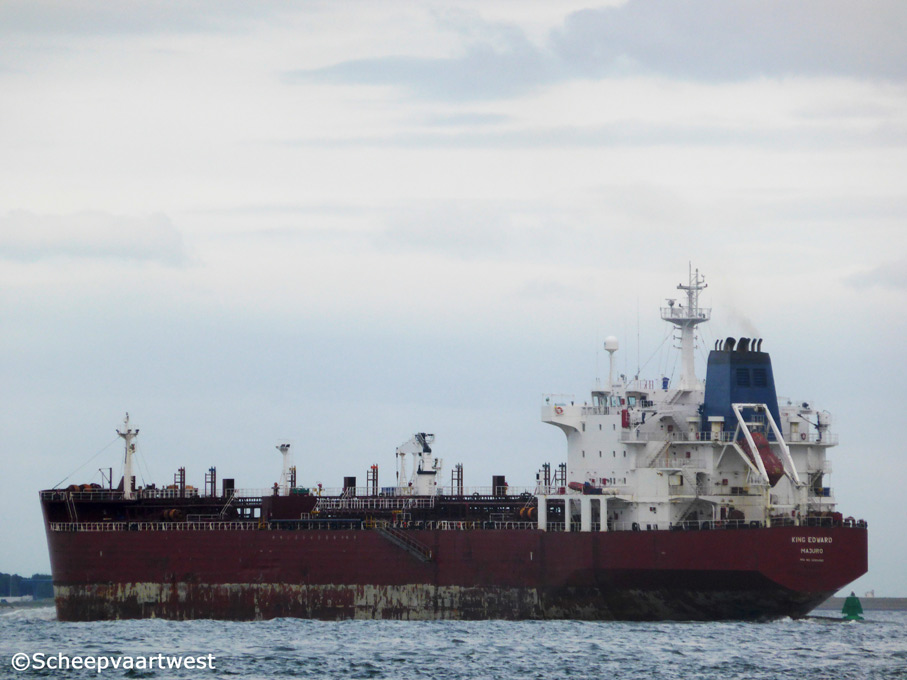

KING EDWARD |
|
Previous names |
2004 Launch as: Baltic Admiral 24/11/2004 - 24/11/2006 Ruby |
|
Type |
Tanker for oil and chemicals - Handymax type |
|
IMO-number |
9290490 |
|
Call sign |
V7GQ4 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
GT |
23.517 t |
|
DWT |
Summer: 34.999 t |
|
NT |
10.542 t |
|
Displacement |
45.974 t at summer DWT Light: 8.591 t |
|
Length |
182,55 m overall 175,11 m between perpendiculars |
|
Breadth |
27,37 m extreme |
|
Draught |
11,21 m |
|
Keel to mast end |
45,80 m |
|
Depth |
16,70 m |
|
Speed |
14,5 knots |
|
Built |
2004 |
|
Keel laid |
19/04/2004 |
|
Launch date |
10/07/2004 |
|
Date of completion |
16/09/2004 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. Ulsan South Korea |
|
Yard number |
0317 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 9 Longitudinal: 3 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C Mk. VII - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.466 kW/ 12.870 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated Builder: KangRim Industries. Co., Ltd. 1x Auxiliary boiler, oil/gas fired Builder: Aalborg Industries A/S |
|
Generators |
2x Hyundai 6H21/32 main diesel generatorsets Builder: HD Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Sisu 645 DSBIG diesel generatorset |
|
Bow thruster |
1x 787 kW |
|
Number of cargo tanks |
12x Phenolic epoxy-fully coated 6x Port 6x Starboard |
|
Number cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
41.392.4 m³ |
|
Slop tanks capacity 98% |
864,6 m³ |
|
Number of pumps |
10x Cargo pumps each 450 m³/h 2x Cargo pumps each 300 m³/h 2x Cargo pumps each 150 m³/h |
|
Tank capacities |
Ballast: 18.915,8 m³ |
|
Lifting equipment |
1x Hose crane - SWL 10,0 t |
|
Manager |
Scorship Navigation Hamburg Germany |
|
Technical operator |
OSM Ship Management GmbH & Co. KG |
|
Commercial operator |
Scorpio Handymax Tanker Pool Ltd. |
|
Owner |
Mercator Navigation GmbH & Co. KG Caffamacherreihe 7 20355 Hamburg Germany |
|
Registered owner |
MT 'KING EDWARD' Tankschiffahrts GmbH and Co. KG |
|
Renamed |
06/2016 CPO Larisa Athena Marshall Island, Majuro - Call sign: V7GQ4 Registered owner: mt "Larisa Athena" GmbH & Co KG 11/2018 Union Trust Indonesia, Belawan - Call sign: YCLK2 Owner & manager: Pt Waruna Nusa Sentana, Jakarta - Indonesia |
|
Latest data adjustment |
12 April 2024 |
