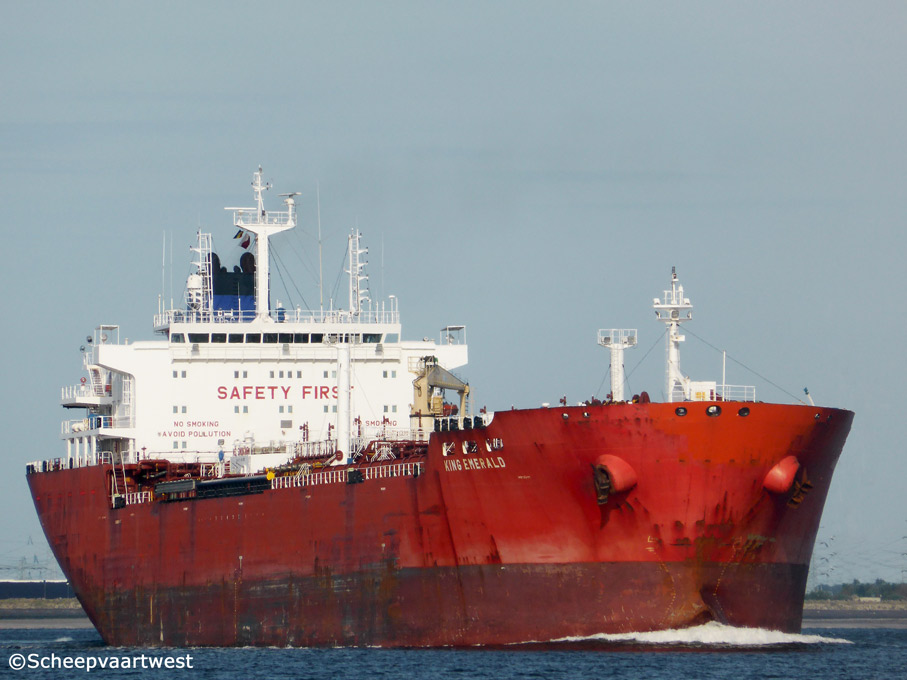

Westerschelde 22 June 2014 |
|
Name |
KING EMERALD |
|
Previous names |
2004 - 10.2008 Meriom Breeze |
|
Type |
Oil and Chemical Carrier - Handymax type |
|
IMO-number |
9267027 |
|
Call sign |
V7HL3 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
Previous flag |
06.2004 - 05.2005 Republic of Malta, Valletta |
|
GT |
25.507 t registered |
|
DWT |
Summer: 38.850 t |
|
NT |
11.043 t registered |
|
Length |
173,96 m overall 163,60 m between perpendiculars |
|
Breadth |
29,00 m moulded |
|
Draught |
Summer: 12,30 m |
|
Freeboard |
6.111 mm |
|
Depth |
18,40 m moulded |
|
Speed |
14,5 knots |
|
Built |
2004 |
|
Keel laid |
23.10.2003 |
|
Launch date |
03.02.2004 |
|
Date of completion |
22.06.2004 |
|
Builder |
Guangzhou International Shipyard |
|
Yard number |
H01130001 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 5 Oil tight: 6 |
|
Main engine |
1x Hyundai MAN B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.900 mm diesel engine - 7.860 kW at 129,0 rpm Manufacturer: Hudong Heavy Machinery Co.,Ltd. |
|
Propellers |
1x Solid propeller |
|
Boilers |
1x Exhaust Gas Boiler AQ-2 - 7,0 bar 1x Fired Boiler AQ-18 - 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 910 kW |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity |
45.905 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
4.068,5 m³ |
|
Segregations |
6 + 1 slop |
|
Number of tanks |
Ballast: 17 Lubricating oil: 9 Fuel oil: 8 Fresh water: 4 Diesel oil: 4 Waste water: 3 Sludge: 2 Slop: 2 Chain: 1 |
|
Tank capacities |
Diesel Oil: 401,87 m³ / 381,37 t Freshwater: 522,74 m³ Fuel Oil: 1.215,16 m³ / 1.227,31 t Lube Oil: 134,03 m³ / 120,62 t Tank Ballast: 17.654,85 m³ / 18.096,22 t |
|
Lifting equipment |
1x Engine overhead gantry type crane - SWL 3,0 t 1x Hose handling jib type crane - SWL 10,0 t 1x Provision monorail type crane - SWL 4,0 t |
|
Crew |
19 |
|
Manager |
Columbia Shipmanagement Deutschland |
|
Owner |
Mercator Navigation GmbH & CO. KG |
|
Registered owner |
MT King Emerald Tankschifffahrts GmbH & CO. KG |
|
Latest data adjustment |
14 March 2015 |
