Wijnegem, Belgium 25 May 2014 |
|
Name |

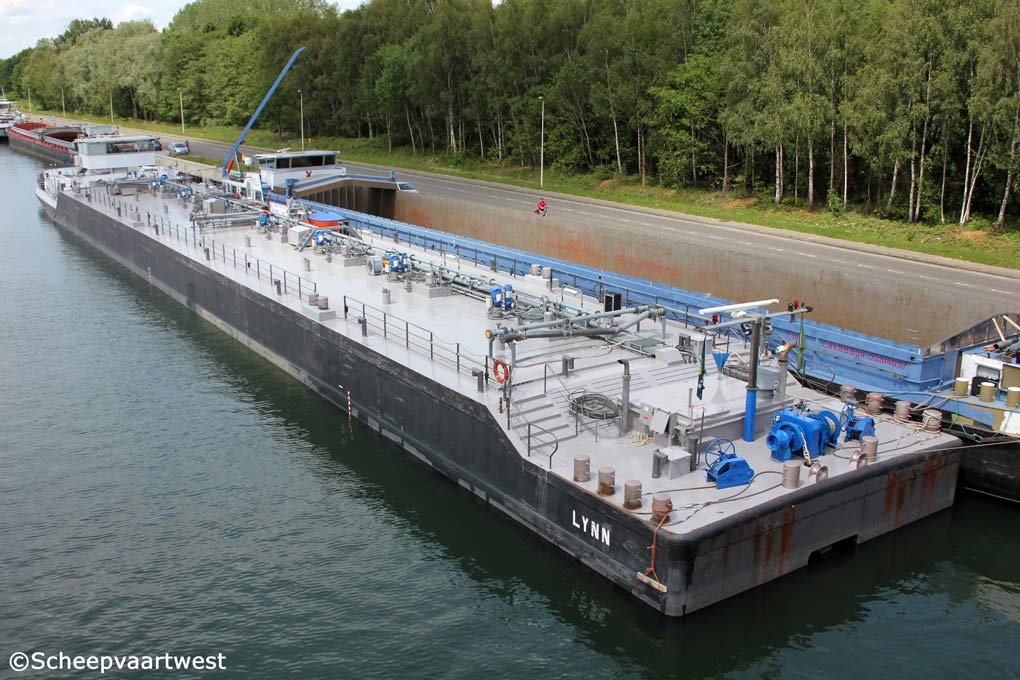

LYNN |
|
Type |
Inland tanker |
|
ENI-number |
07001816 |
|
Call sign |
HE7204 |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
1.734 t |
|
DWT |
2.465 t |
|
Length |
95,50 m |
|
Breadth |
11,45 m |
|
Draught |
3,40 m |
|
Depth |
5,47 m |
|
Built |
2005 |
|
Builder hull |
Severnav |
|
Builder completion |
Smits Machinefabriek en Scheepsreparatie B.V. |
|
Hull material |
Steel |
|
Main engine |
2x ABC6 MDZC - 6 cylinder diesel engine each 1.103 kW / 1.500 hp at 800 rpm Builder: Anglo Belgian Corporation NV Wiedauwkaai 43 900 Gent Belgium |
|
Gearbox |
2x Reintjes WGF 762 - reduction: 2,418:1 |
|
Propellers |
2x 5 blades propellers - Diameter 1.750 mm with nozzle Optima diameter 1.714 mm |
|
Generators |
2x Scania type DC 16 generatorsets each 458 kVA, 60 Hz 1x Sisu Diesel type 620 DSRIG generatorset 97 kVA, 50 Hz 2x Sisu Diesel type 420 DSRG generatorsets each 71,5 kVA, 50 Hz 1x Scania type DI 12 diesel motor 335 kW at 1.800 rpm |
|
Bow thruster |
1x 2 Veth-Jet type 4-K-1200 with electro motor 320 kW at 1.800 rpm |
|
Cargo tank capacity |
2.962 m³ |
|
Pumps |
15x MarFlex MDPD-80 cargo deepwell pumps 2x MarFlex MBDPD-200 ballast pumps |
|
Owner |
Navirom AG |
|
Latest data adjustment |
16 January 2015 |
