Vlissingen, The Netherlands 29 June 2014 |
|
Name |

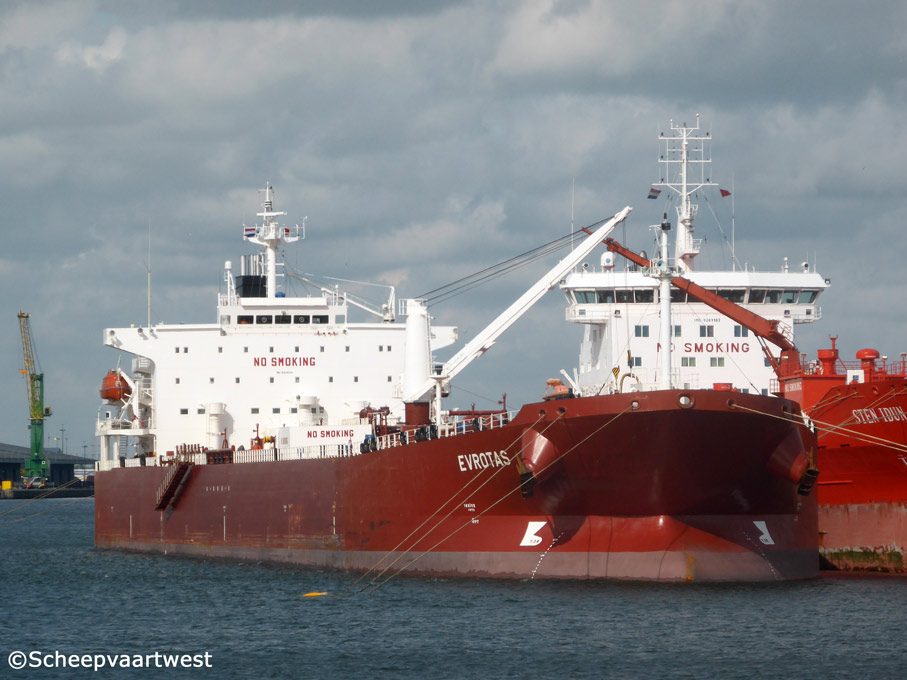

EVROTAS |
|
Type |
Crude oil tanker |
|
IMO-number |
9309241 |
|
Call sign |
A8HR9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
35.711 t Suez: 37.205,78 t |
|
DWT |
Summer: 61.281 t |
|
NT |
16.707 t Panama: 29.568 t Suez: 33.156,78 t |
|
Length |
213,35 m overall 206,56 m between perpendiculars |
|
Breadth |
32,26 m extreme |
|
Draught |
12,10 m |
|
Keel to mast |
45,33 m |
|
Air draft |
Lightship: 43,17 m Normal ballast: 39,62 m At loaded summer deadweight: 33,04 m |
|
Freeboard |
Summer: 6.255 mm Winter: 6.540 mm Tropical: 6.000 mm |
|
Depth |
18,50 m moulded |
|
Speed |
14,8 knots |
|
Built |
2006 |
|
Date of completion |
06.01.2006 |
|
Builder |
Sumitomo Heavy Industries Marine & Engineering Co. Ltd. |
|
Yard number |
1320 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsui MAN B&W 7S50MC Mk VI - 7 cylinder diesel engine 10.010 kW / 13.610 hp at 127,0 rpm |
|
Propellers |
1 |
|
Generators |
3x 5DK-20 diesel generatorsets each 610 kW |
|
Cargo tank capacity 98% |
Seg#1: 24.612 m³ (1P-S, 4P-S) Seg#2: 24.067,6 m³ (2P-S, 5P-S) Seg#3: 21.499,4 m³ (3P-S, Slop P-S) Total: 64.006,0 m³ m³ excluding slop |
|
Slop capacity 98% |
6.173,0 m³ |
|
Pumps |
3x Vertical centrifugal cargo pumps each 2.000 m/h 1x Reciprocating stripping pump 150 m³/h 1x Liquid driven eductors pump 250 m³/h 2x Vertical centrifugal ballast pumps each 1.125 m³/h |
|
Manifolds |
Bow to centre manifold: 102,93 m Stern to centre manifold: 109,64 m |
|
Maximum loading rate |
2.000 m³/h per manifold connection 6.000 m³/h loaded simultaneously through all manifolds |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t |
|
Manager |
Pleiades Shipping Agents S.A. |
|
Owner |
Victoria Shipping & Trading SA |
|
Latest data adjustment |
17 January 2015 |
