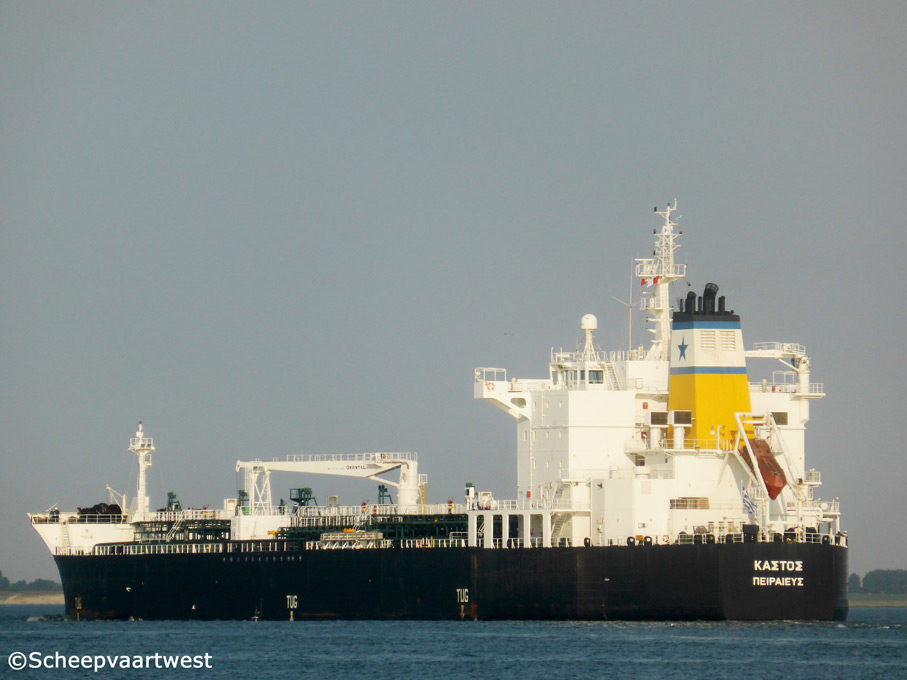

Westerschelde 17 July 2014 |
|
Name |
KASTOS |
|
Hellenic name |
ΚΑΣΤΟΣ |
|
Type |
Tanker for oil & Chemicals |
|
IMO-number |
9405552 |
|
Call sign |
SVAX8 |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
GT |
29.663 t Suez: 31.072,11 t |
|
DWT |
Summer: 51.875 t Winter: 49.934,5 t |
|
NT |
14.14.113 t Panama: 24.625 t Suez: 26.806,85 t |
|
Light ship |
10.310 t |
|
Length |
183,31 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,32 m Winter: 12,95 m |
|
Radar mast above keel |
51,27 m |
|
Freeboard |
Summer: 5.814 mm Winter: 6.091 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Service: 15,2 knots loaded |
|
Built |
2010 |
|
Date of completion |
16.03.2010 |
|
Builder |
Hyundai Mipo Dockyard |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HYUNDAI MAN B&W 6S50MC-C -6 cylinder - 9480 kW / 8.100 hp at 100,0 rpm |
|
Propellers |
1x Material Ni-Al-Bronze Diameter x Pitch 5.800 x 4.292,8mm |
|
Generators |
1x 6L23/30 diesel engine 780 kW at 720 rpm coupled with HFC7 506-14K generator 730 KW 2x 7L23/30 diesel engines 960 kW t at 720 rpm coupled with HFC7 508-14K generators 900 kW each |
|
Number of tanks |
12 |
|
Number of slop tanks |
2 |
|
Total tank capacity |
98%: 54.247,4 m³ 100%: 55.354,4 m³ |
|
Manifolds |
Centre of manifold to bow: 56,75 m |
|
Manager |
Eletson Corporation |
|
Owner |
Kastos Special Maritime Enterprise |
|
Latest data adjustment |
18 February 2015 |
