| Gibraltar 21 September 2011 |
 |
| Gibraltar 21/09/2011 |
|
Name |

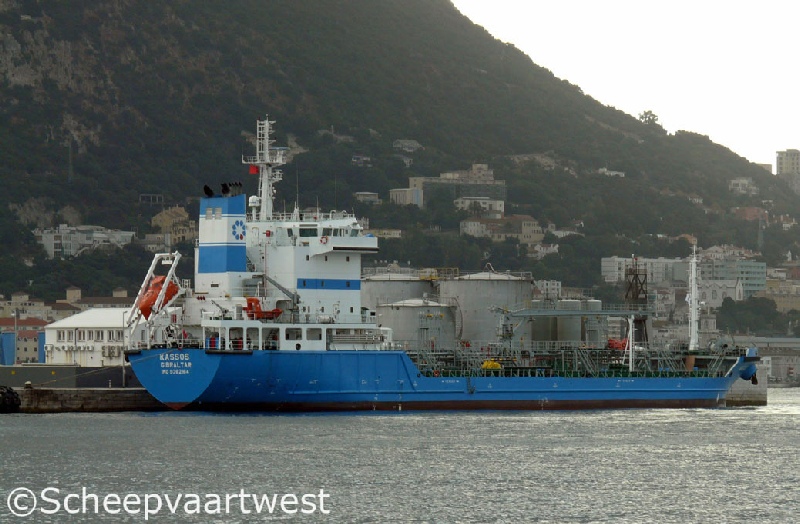

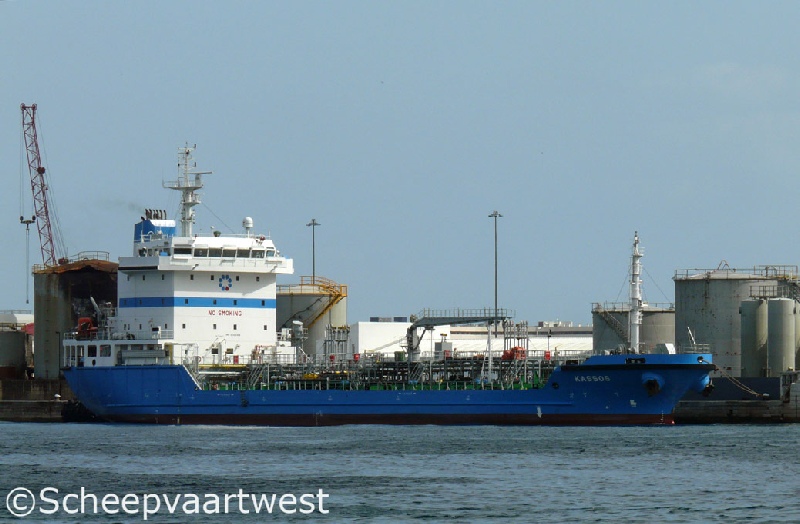

KASSOS |
|
Type |
Oil tanker |
|
IMO-number |
9382164 |
|
Call sign |
ZDKF2 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
4.580 t |
|
DWT |
6.256 t |
|
NT |
1.967 t |
|
Length |
102,50 m overall 95,20 m registered |
|
Breadth |
17,80 m registered |
|
Draught |
6,60 m |
|
Depth |
8,80 m moulded |
|
Speed |
12,5 knots |
|
Built |
2010 |
|
Keel laid |
23.02.2009 |
|
Launch date |
29.11.2009 |
|
Date of completion |
29.10.2010 |
|
Builder |
Qingdao Hyundai Shipbuilding Co., Ltd. |
|
Yard number |
QHS-225 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai-Himsen 9H25/33P - 4 stroke 9 cylinder 250 x 330 mm diesel engine - 2.218 kW at 850 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller |
1x Solid propeller (keyless) - aft at 227 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar 1x Steam boiler, exhaust gas heated - 11,0 bar Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg B.V. |
|
Electric installations |
1x Plant 450 V - 125 kVA 1x Plant 450 V - 500 kVA 1x Plant 450 V - 500 kVA 1x Plant 450 V - 500 kVA |
|
Generators |
3x Cummins KTA 19-DM diesel generatorsets each 500 kVA 1x Diesel generatorset - 125 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x 320 kW, forward |
|
Number of cargo tanks |
12 |
|
Cargo 98% incl. slops |
6.877,65 m³ |
|
Slop tanks 98% |
238,23 m³ |
|
Largest cargo tank |
688 m³ |
|
Number of segregations |
3 |
|
Number of cargo pumps |
3 |
|
Total cargo pumping cap. |
2x 750 m³/h 1x 300 m³/h |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Manager |
Aegean Bunkering Services Inc. |
|
Operator |
Aegean Marine Petroleum |
|
Registered owner |
Kassos Navigation S.A. |
