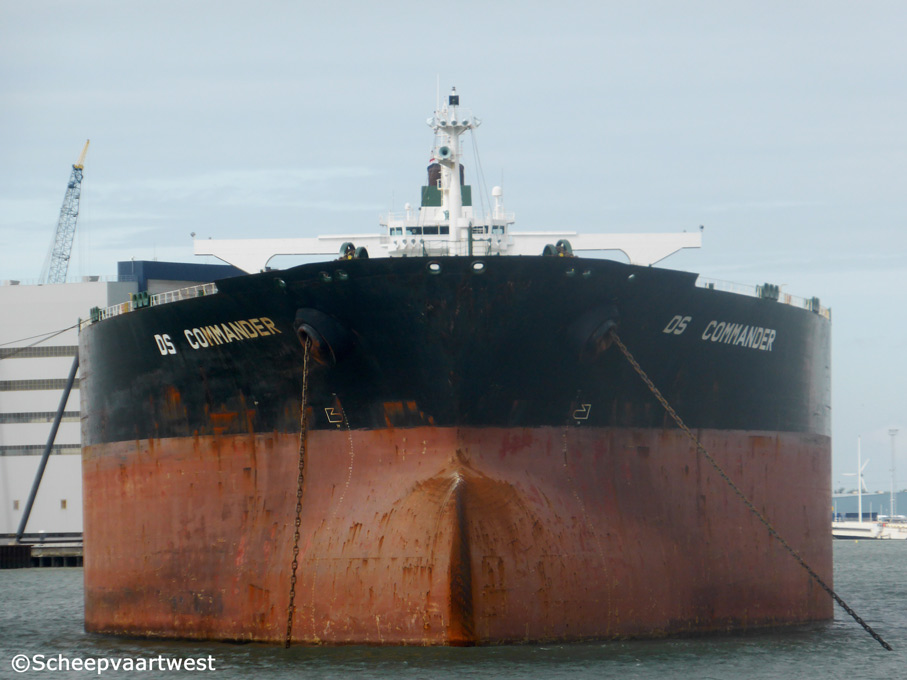

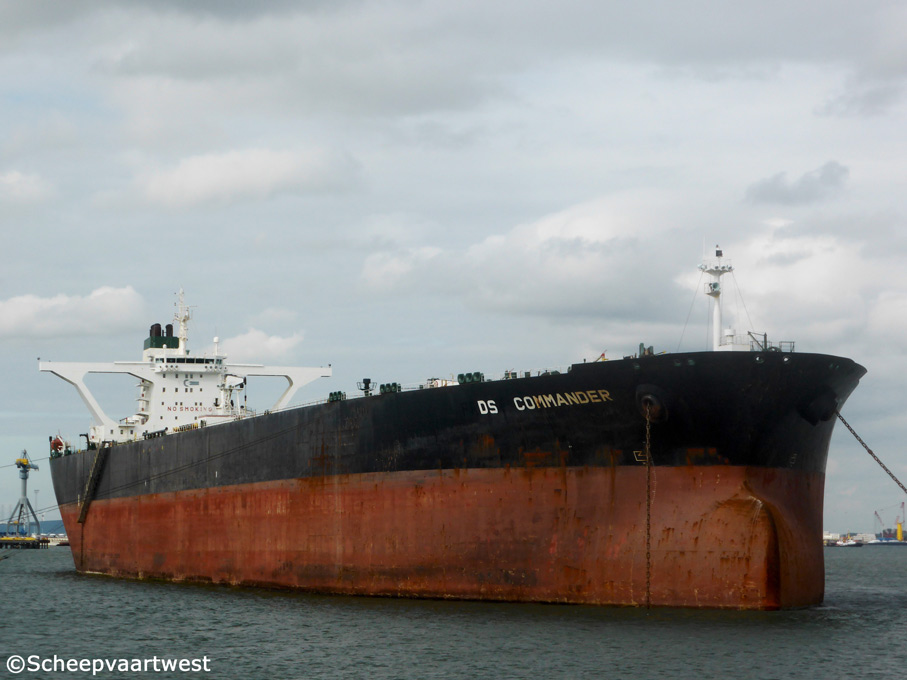

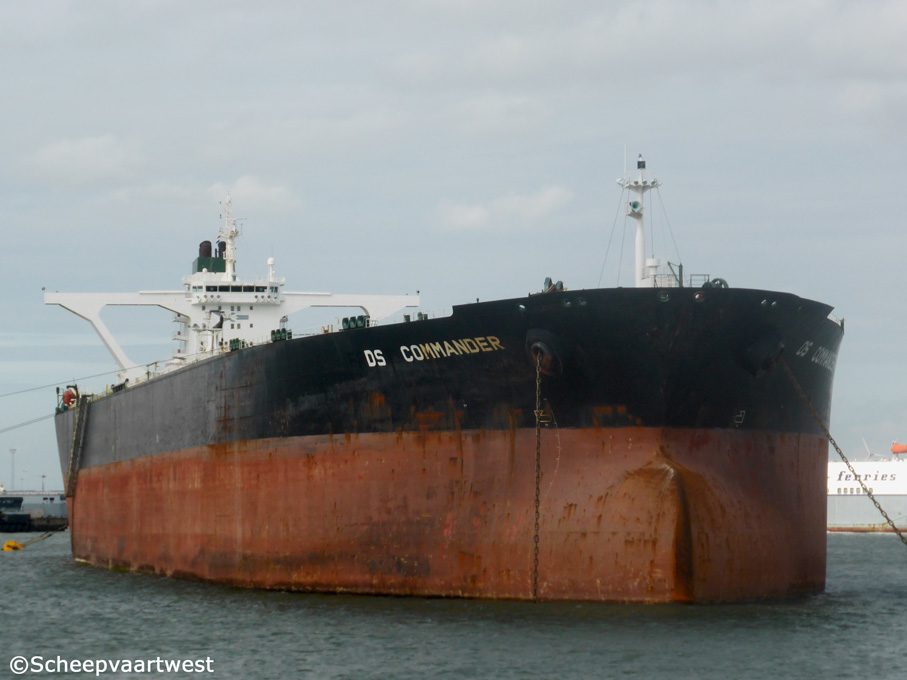

Vlissingen, The Netherlands 05 July 2014 |
 |
 |
|
| Vlissingen 05/07/14 | Vlissingen 05/07/14 | |
|
Name |
DS COMMANDER |
|
Previous names |
1999 - 07.2012 Front Commander |
|
Type |
Crude oil tankers |
|
IMO-number |
9174397 |
|
Call sign |
D5GI6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
Bahamas, Nassau - Call sign: C6QO5 |
|
GT |
157.863 t |
|
DWT |
Summer: 311.168 t |
|
NT |
109.583 t |
|
Length |
334,45 m overall 320,00 m between perpendiculars |
|
Breadth |
58,04 m extreme |
|
Draught |
Summer: 22,72 m |
|
Moulded L x B x D |
320,00 x 58,00 x 28,40 m |
|
Registered L x B x D |
320,00 x 58,00 x 28,40 m |
|
Freeboard |
Summer: 8.323 mm |
|
Depth |
28,40 m moulded |
|
Speed |
Max.: 16,3 knots Service: 15,0 knots |
|
Built |
1999 |
|
Keel laid |
31.10.1998 |
|
Launch date |
23.01.1999 |
|
Date of completion |
01.07.1999 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1150 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Hyundai 7S80MC - 2 stroke single acting 7 cylinder 800 x 3.056 mm diesel engine - 25.478 kW / 34.617 hp at 79,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 770 mm |
|
Propellers |
1x Solid propeller |
|
Boilers |
2x Auxiliary water tube boilers - 18,0 bar Evaporation: 50,00 t/h 1x Auxiliary exhaust gas boiler - 22,0 bar Evaporation: 2,00 t/h |
|
Generators |
4x Generators total 3.988 kVA |
|
Number of tanks |
15 |
|
Cargo tank capacity 98% |
336.031,8 m³ excluding slop tanks |
|
Slop tanks 98% |
7.029,9 m³ |
|
Tank capacities |
Fuel oil: 8.387 m³ Fresh water: 608 m³ Water ballast: 100.730 m³ |
|
Manager |
Wallem GmbH & Co. KG |
|
Owner |
DS-Rendite-Fonds Nr. 91 VLCC Front Commander GmbH & Co. Tankschiff KG |
|
Registered owner |
(Bareboat Charterer) DS Commander (Liberia) Shipping Ltd. |
|
Latest data adjustment |
16 March 2015 |
