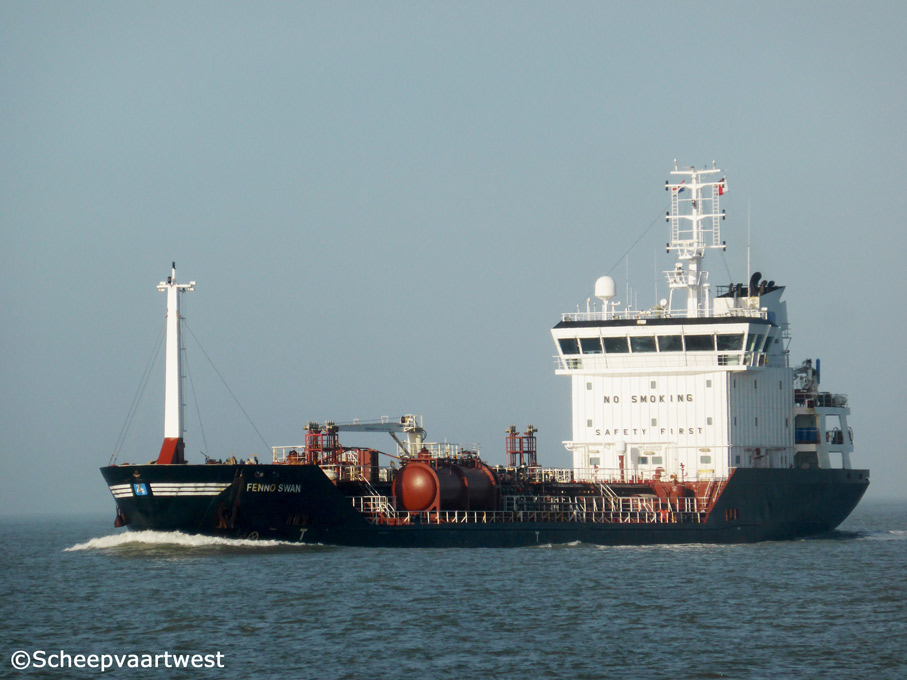

Westerschelde 10 March 2015 |
 |
 |
 |
 |
|||

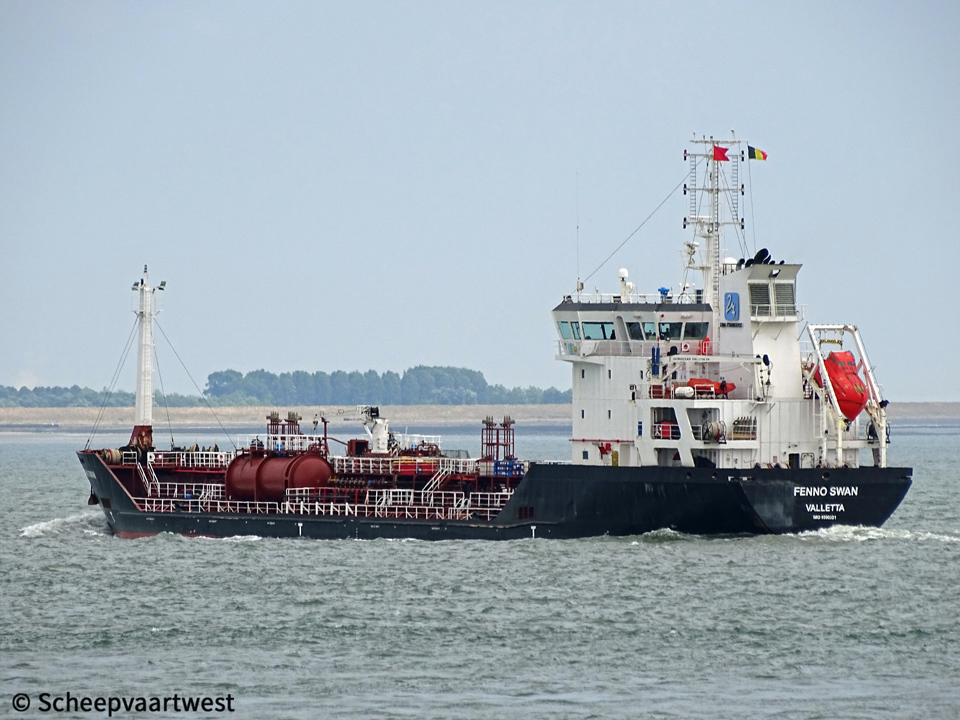

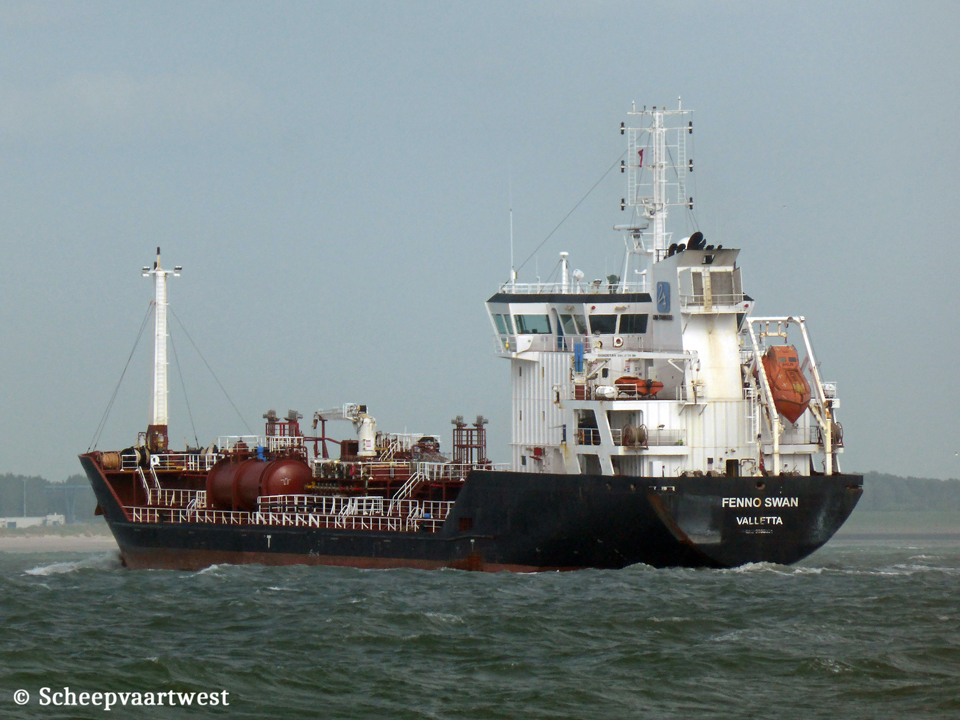

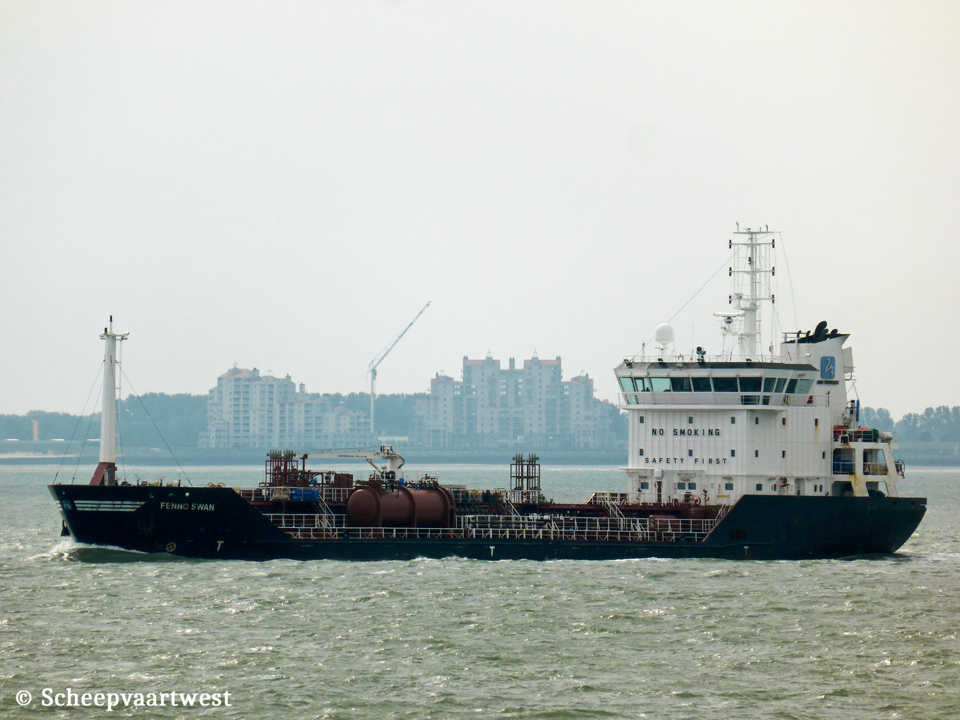

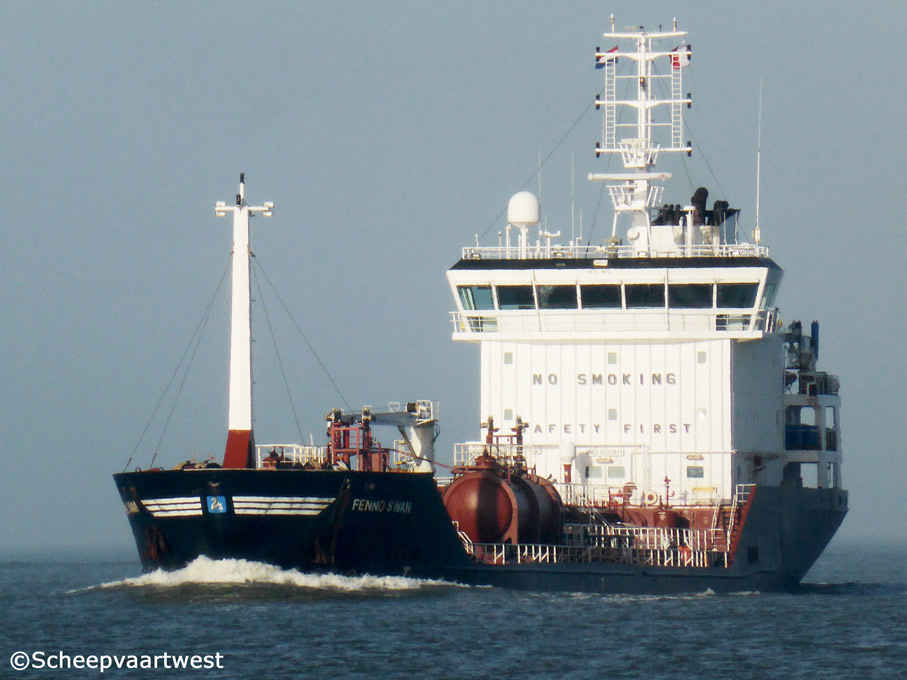

| Westerschelde 10/03/15 | Westerschelde 22/07/18 | Westerschelde 13/06/15 | Westerschelde 21/04/15 | |||
|
Name |
FENNO SWAN |
|
Previous names |
2008 - 05/2012 Erria Nimmer |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9390331 |
|
Call sign |
9HLI9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.300 t |
|
DWT |
Summer: 4.684 t |
|
NT |
1.424 t |
|
Length |
99,90 m overall 94,10 m between perpendiculars |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 6,04 m Ballast: 3,80 m |
|
Height from keel to mast |
33,56 m |
|
Air draft |
Ballast: 29,00 m Loaded: 27,50 m |
|
Freeboard |
1.356 mm |
|
Depth |
7,40 m moulded |
|
Speed |
12,8 knots ballast 12,0 knots loaded |
|
Built |
2008 |
|
Keel laid |
15/07/2007 |
|
Launch date |
19/01/2008 |
|
Date of completion |
21/04/2008 |
|
Builder |
Celiktrans Deniz Insaat Ltd. Sti. Tersaneler Bölgesi 2 Kisim G:50 Sokak No:19, Tuzla 81700 Istanbul Turkey |
|
Yard number |
33 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine Mcr 2.640 kW / 3.589 hp at 750 rpm Year of manufacture: 2007 Manufacturer: Caterpillar, Inc. 3701 South Street Lafayette United States of America |
|
Propellers |
1x Controllable pitch propeller - aft at 160 rpm |
|
Boilers |
1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 48,0 m² Year of Manufacture: 2007 2x Steam boiler, oil fired - 7,0 bar Heating surface: 30,7 m² Year of Manufacture: 2006 Manufacturer: Garioni Naval S.p.A. Viale dei Caduti, 3 25030 Castelmella Italy |
|
Electric installations |
3x Plants each 440 V - 456 kVA 1x Plant 440 V - 910 kVA |
|
Shaft generator |
1x 730 kW / 910 kVA - 440/230V 60 Hz |
|
Generators |
3x MAN main diesel generatorsets each 488 kVA - 390 kW - 530 hp / 440/230V 60 Hz |
|
Emergency generator |
1x MAN diesel generatorset 110 kW |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Tunnel thruster 300kW / 408 bhp, forward |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
4.957,1 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
118,2 m³ |
|
Number of segregations |
13x full segregations |
|
Pumps |
12 x Cargo pumps 220 m³ each 2x Cargo pumps 120 m³ each 1x Cargo pumps 70 m³ 2x Ballast pumps each 200 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 44,00 m Distance from stern to centre manifold: 55,90 m Distance between manifolds: 0,66 m Distance from ship side to manifold: 2,95 m Distance from deck / tray to manifold: 1,88 / 0,95 m Distance from deck to manifold: 1,90 m |
|
Tank capacities |
Ballast: 1.900,03 m³ |
|
Anchor equipment |
3x Anchors weight each 2.460 kg Chain length: 467,50 m |
|
Lifting equipment |
1x Hose crane - SWL 5,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
12 |
|
ISM & commercial manager |
Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Registered owner |
Uni-Tankers M/T "FENNO SWAN" ApS Turbinevej 10 5500 Middelfart Denmark |
|
Previous names & owners |
2008 - 05/2012 Erria Nimmer - Erria Nimmer K/S |
|
Latest data adjustment |
01 January 2024 |
